The SWAGELOK SS-4C-KZ-1 is a heavy-duty industrial check valve engineered for reliable unidirectional flow control in instrumentation and process systems. This poppet-style check valve ensures tight shutoff and minimal pressure drop, making it ideal for critical fluid handling applications.
SWAGELOK SS-4C-KZ-1 Technical Specifications
| Body Material | 316 Stainless Steel |
|---|---|
| Connection Type | Swagelok Tube Fitting, 1/4 in. |
| Flow Coefficient (Cv) | 0.35 |
| Maximum Operating Pressure | 3000 psig (206 bar) |
| Operating Temperature Range | -20°F to 400°F (-28°C to 204°C) |
| Cracking Pressure | 1/3 psig (0.02 bar) |
| Seat Material | PCTFE |
| Spring Material | 316 Stainless Steel |
| Mounting Orientation | Any |
Key Engineering Features
- Poppet design with PCTFE seat for bubble-tight shutoff
- Low cracking pressure ensures minimal backflow resistance
- 316 stainless steel construction for corrosion resistance
- Swagelok tube fitting ends for secure, leak-free connections
- Compact size suitable for space-constrained installations
Industrial Applications
- Instrumentation and process sampling systems
- Hydraulic and pneumatic control circuits
- Chemical and petrochemical processing
- Oil and gas flow control
- Power generation and analytical equipment
For technical inquiries, dimensional drawings, or replacement support for SWAGELOK SS-4C-KZ-1, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

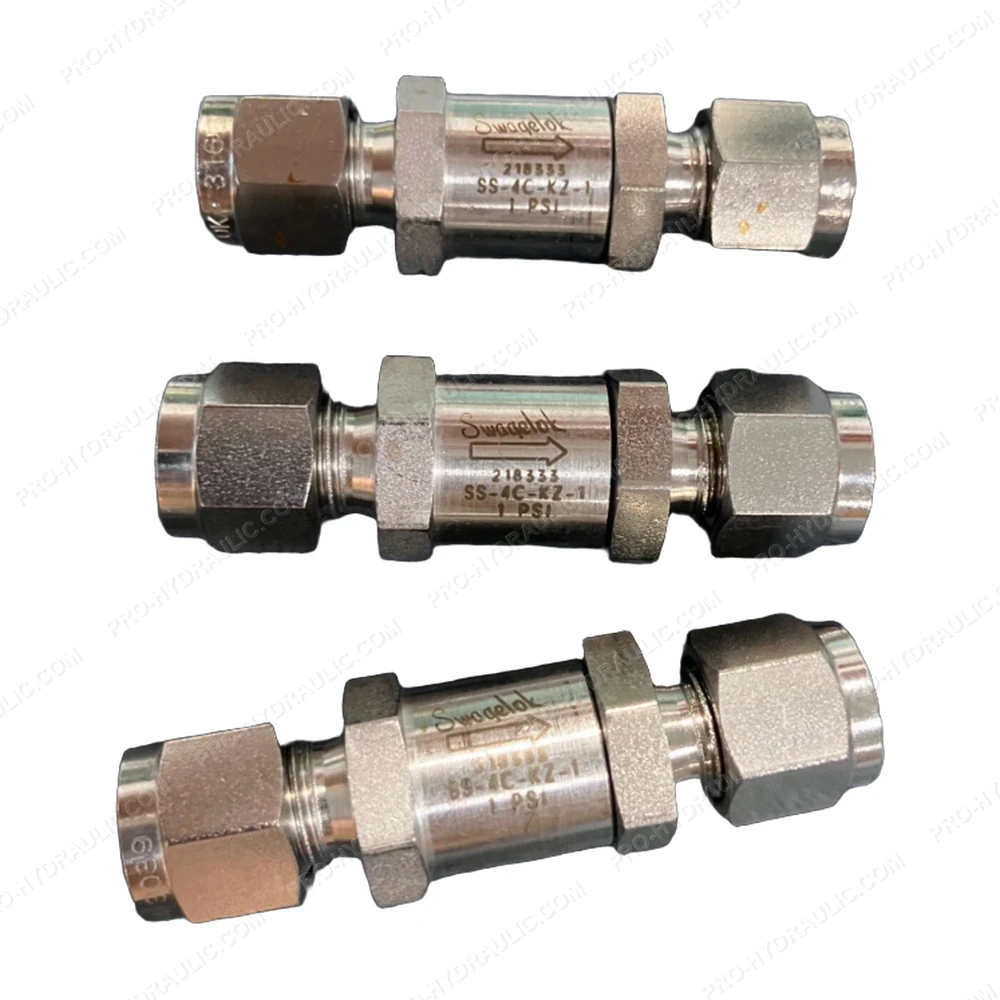

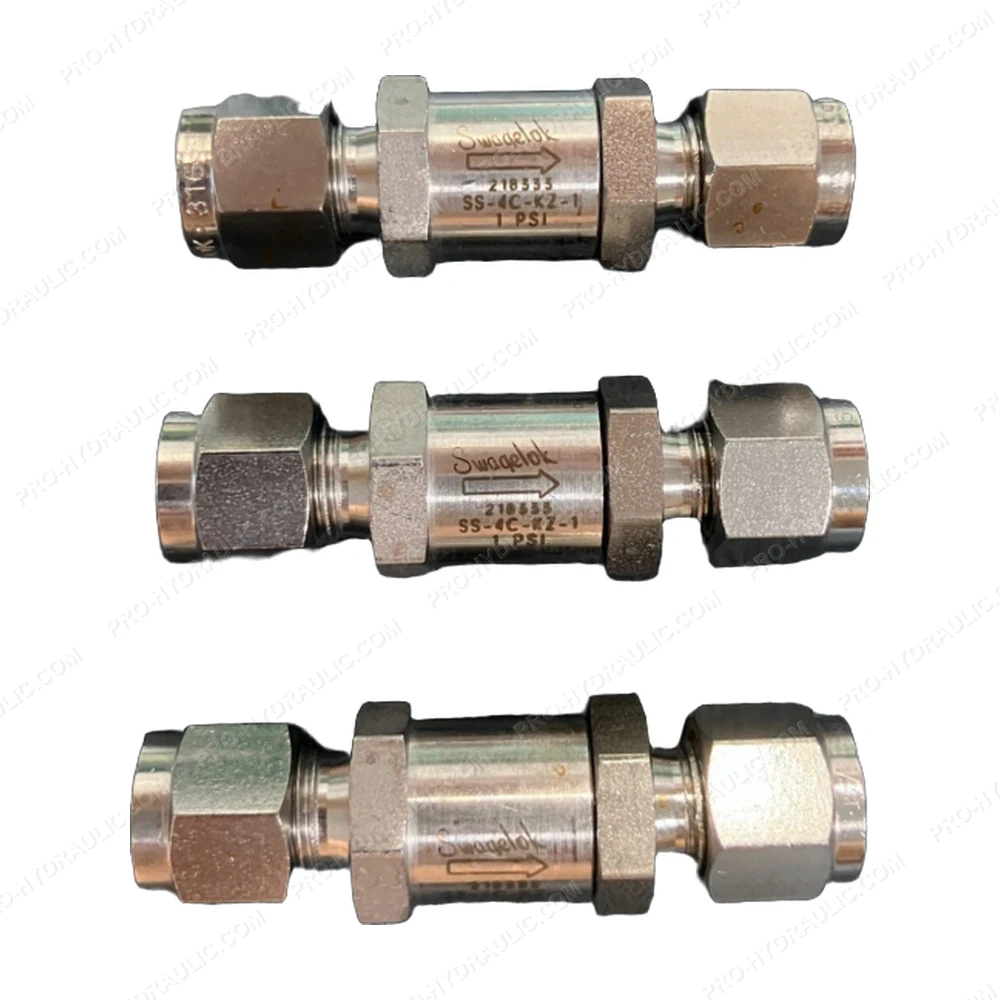

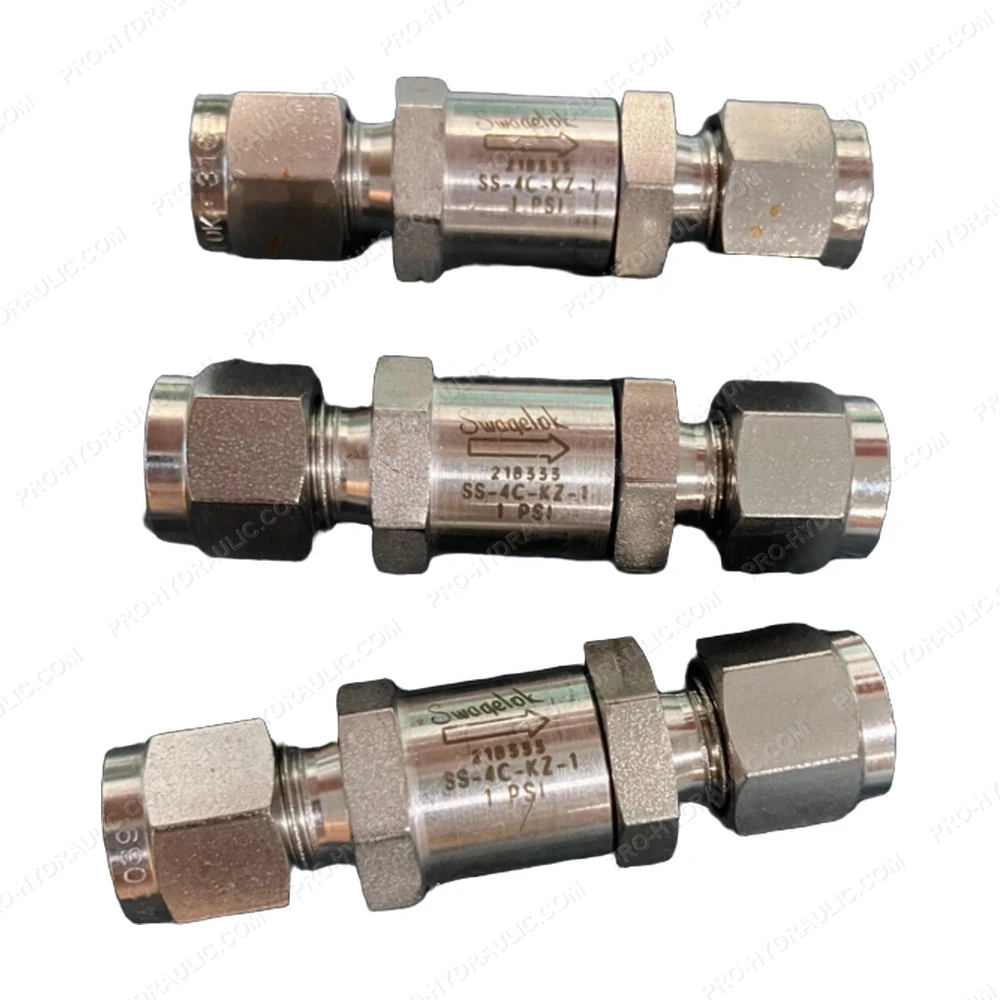

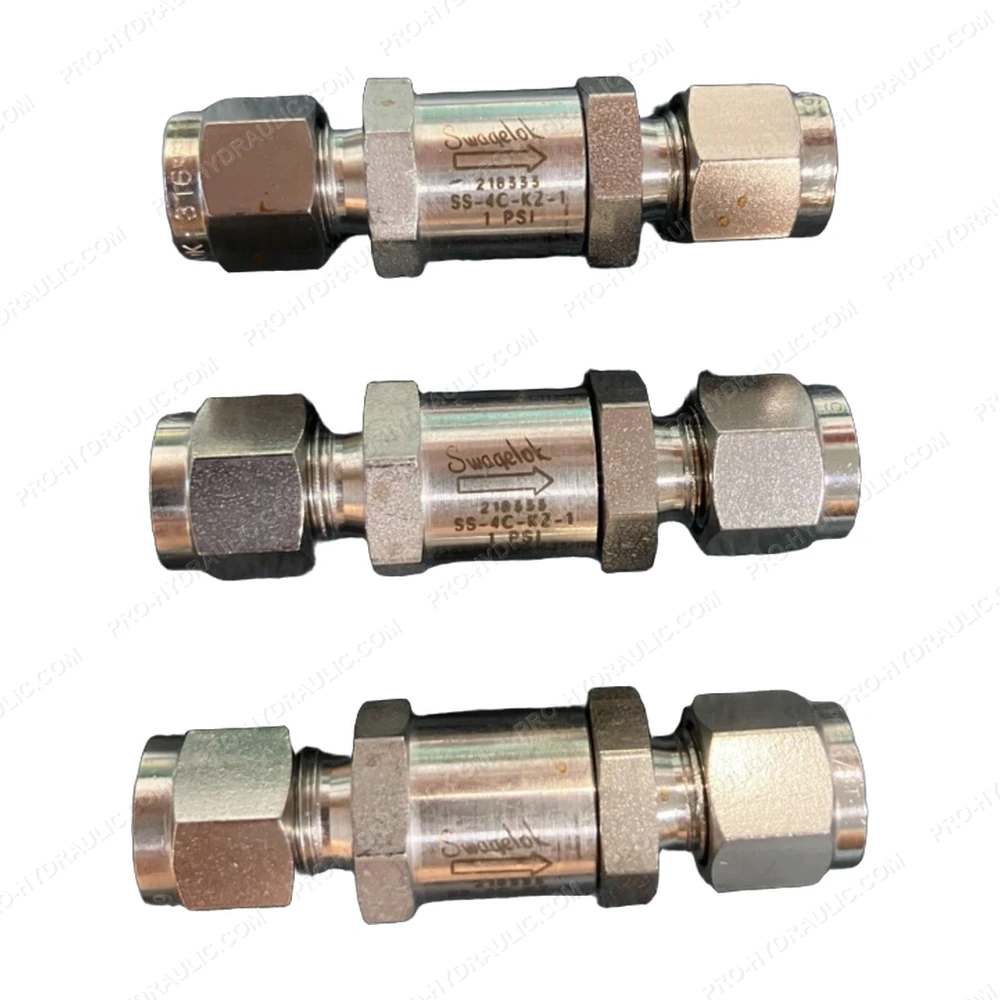

SWAGELOK SS-4C-KZ-1 Check Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the SWAGELOK SS-4C-KZ-1 Check Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
