The SWAGELOK SS-4CA-10 is a heavy-duty industrial check valve engineered for reliable unidirectional flow control in instrumentation and process systems. It ensures tight shutoff and prevents backflow in high-pressure fluid circuits.
SWAGELOK SS-4CA-10 Technical Specifications
| Body Material | 316 Stainless Steel |
|---|---|
| Connection Type | Swagelok Tube Fitting, 1/4 in. |
| Orifice Size | 0.09 in. (2.3 mm) |
| Maximum Operating Pressure | 3000 psig (206 bar) |
| Operating Temperature Range | -20°F to 400°F (-29°C to 204°C) |
| Cracking Pressure | 1/3 psig (0.02 bar) |
| Flow Coefficient (Cv) | 0.15 |
| Seat Material | PCTFE |
Key Engineering Features
- Poppet-style check valve design for low cracking pressure and reliable sealing.
- 316 stainless steel construction for corrosion resistance in aggressive environments.
- Swagelok tube fitting ends ensure leak-tight connections without special tools.
- Compact inline body suitable for space-constrained installations.
- PCTFE seat provides tight shutoff and long service life.
Industrial Applications
- Instrumentation and process sampling systems.
- Hydraulic and pneumatic control circuits.
- Chemical and petrochemical fluid handling.
- Analytical and laboratory equipment.
- Power generation and steam systems.
For technical inquiries, dimensional drawings, or replacement support for SWAGELOK SS-4CA-10, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

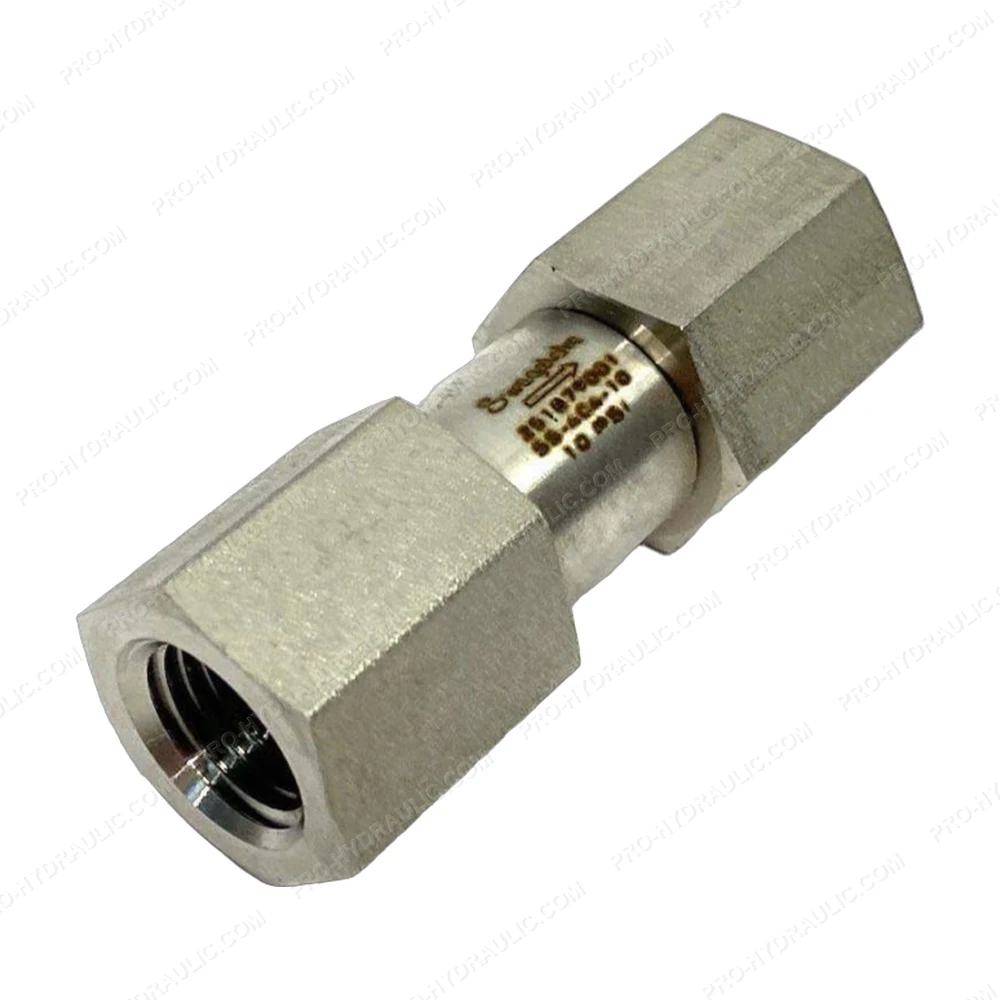

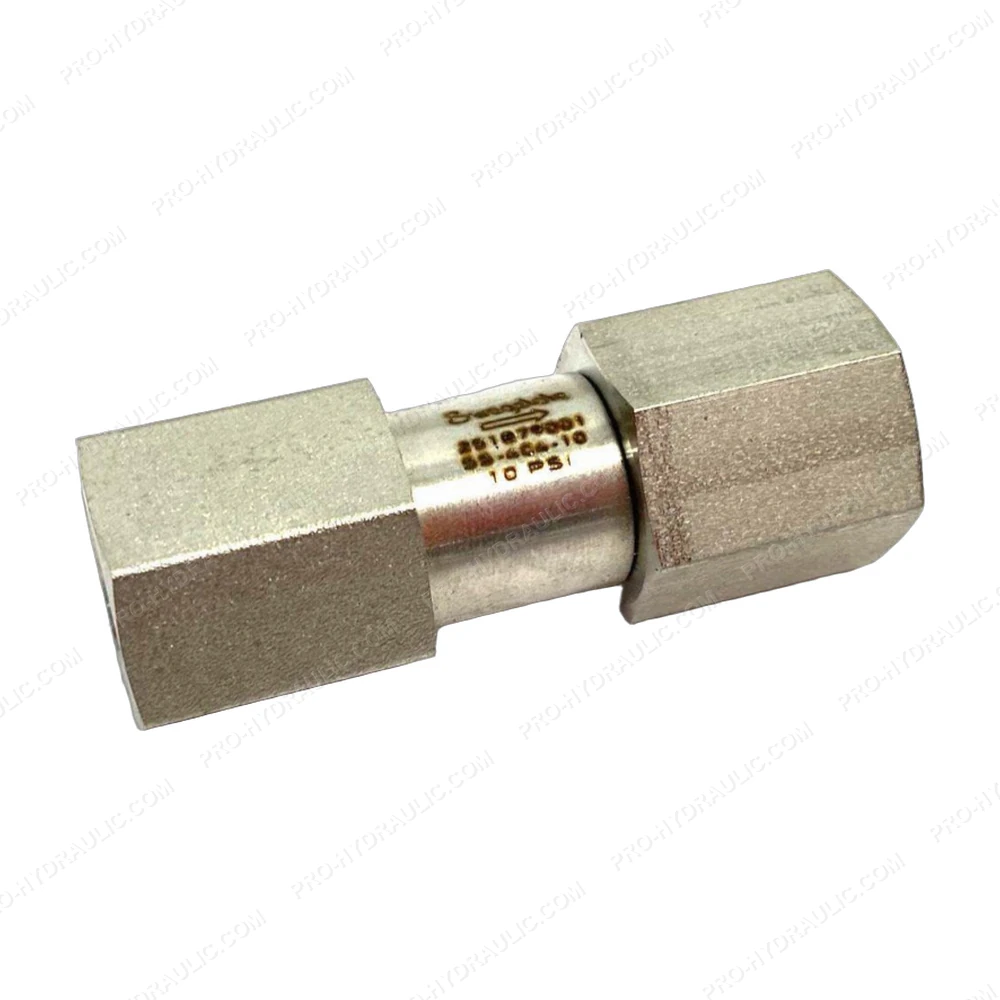

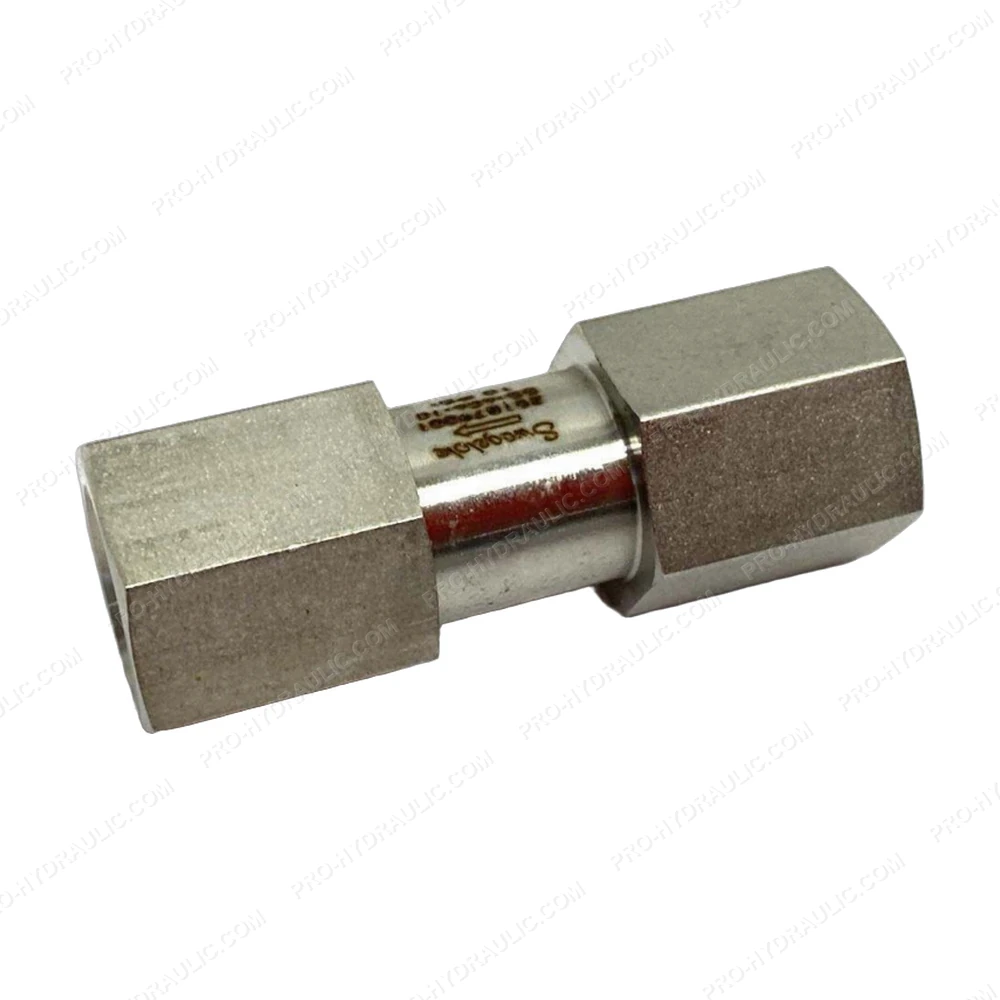

SWAGELOK SS-4CA-10 Check Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the SWAGELOK SS-4CA-10 Check Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
