Product Overview

The T1CE30N30S5 is a high-performance screw-in cartridge valve belonging to the standard directional control valve family. Engineered for demanding industrial hydraulic circuits, this cartridge-style directional control valve manages the start, stop, and direction of hydraulic fluid flow within a manifold block or integrated hydraulic system. Its two-way, two-position (2/2) spool-type design delivers reliable, leak-resistant switching performance in compact installations where space and circuit integrity are critical. The T1CE30N30S5 is manufactured to exacting tolerances, ensuring consistent spool actuation, minimal internal leakage, and long service life in continuous-duty industrial applications.

Technical Specifications

ParameterSpecification / Feature
Component TypeStandard Directional Control Valve (Screw-in Cartridge)
Model DesignationT1CE30N30S5
Valve Configuration2-Way, 2-Position Spool-Type Cartridge
Operating PressureStandard Industrial Grade (Up to 350 bar rated)
Flow CapacityUp to 30 L/min nominal (model-dependent)
Actuation TypeSolenoid or Pilot Actuated (per model configuration)
Mounting & ConnectionStandard Screw-in Cartridge Cavity (ISO / Manufacturer Interface)
Seal MaterialNBR / FKM (application-specific)
Fluid CompatibilityMineral-based hydraulic oil per ISO VG 32–68

Engineering Features & Advantages

  • Precision Spool Metering: Tight-tolerance spool-to-sleeve fit ensures accurate flow direction control with minimal internal leakage and consistent response across the operating pressure range.
  • Compact Cartridge Design: Screw-in cartridge construction allows direct integration into manifold blocks, reducing external piping, minimizing leak points, and saving valuable installation space.
  • Fast Actuation Response: Optimized spool geometry and spring return mechanism deliver rapid, repeatable shifting for reliable directional control in dynamic hydraulic circuits.
  • Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened spool and sleeve surfaces resisting wear, contamination, and fatigue.
  • Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM cavity standards, enabling straightforward drop-in replacement without manifold modification.

Typical Industrial Applications

The T1CE30N30S5 cartridge directional control valve is suited for a wide range of heavy industrial hydraulic systems, including plastic injection molding machines, metallurgical presses, CNC machine tool clamping circuits, construction and marine

PRODUCT IMAGES

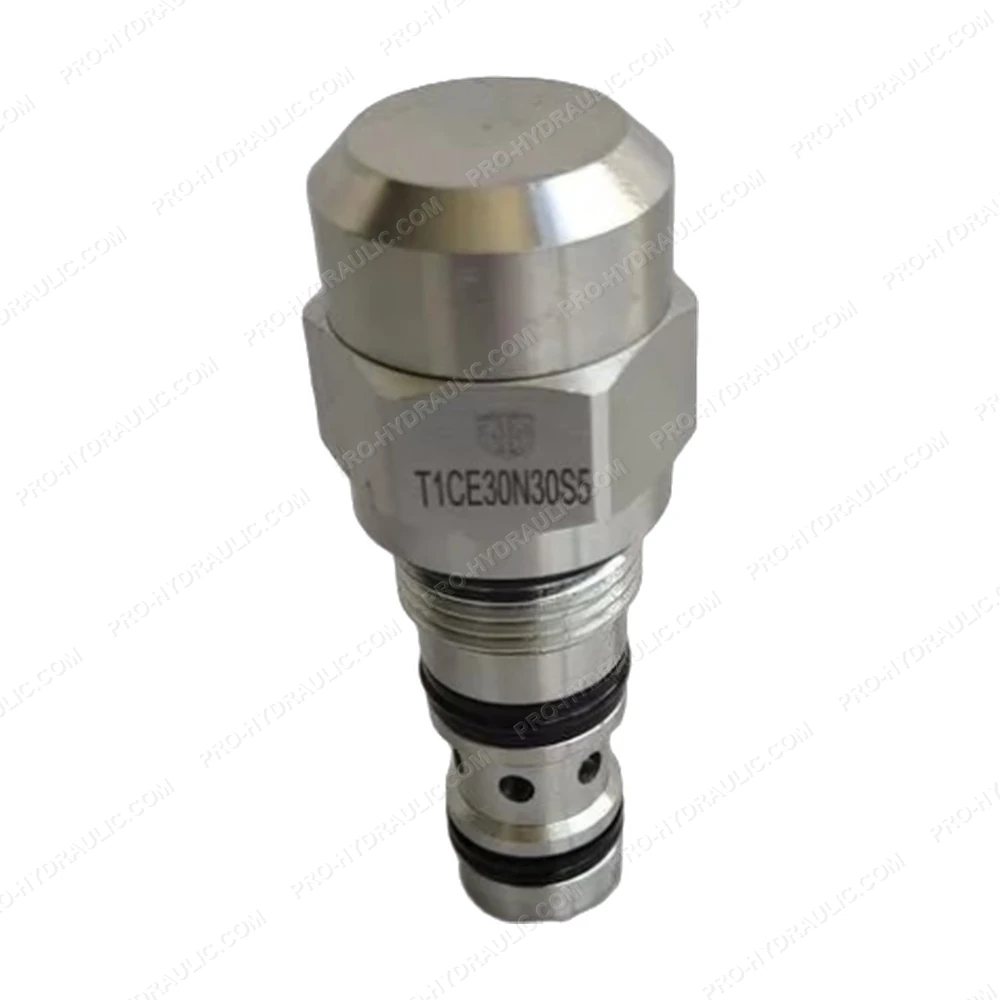

T1CE30N30S5

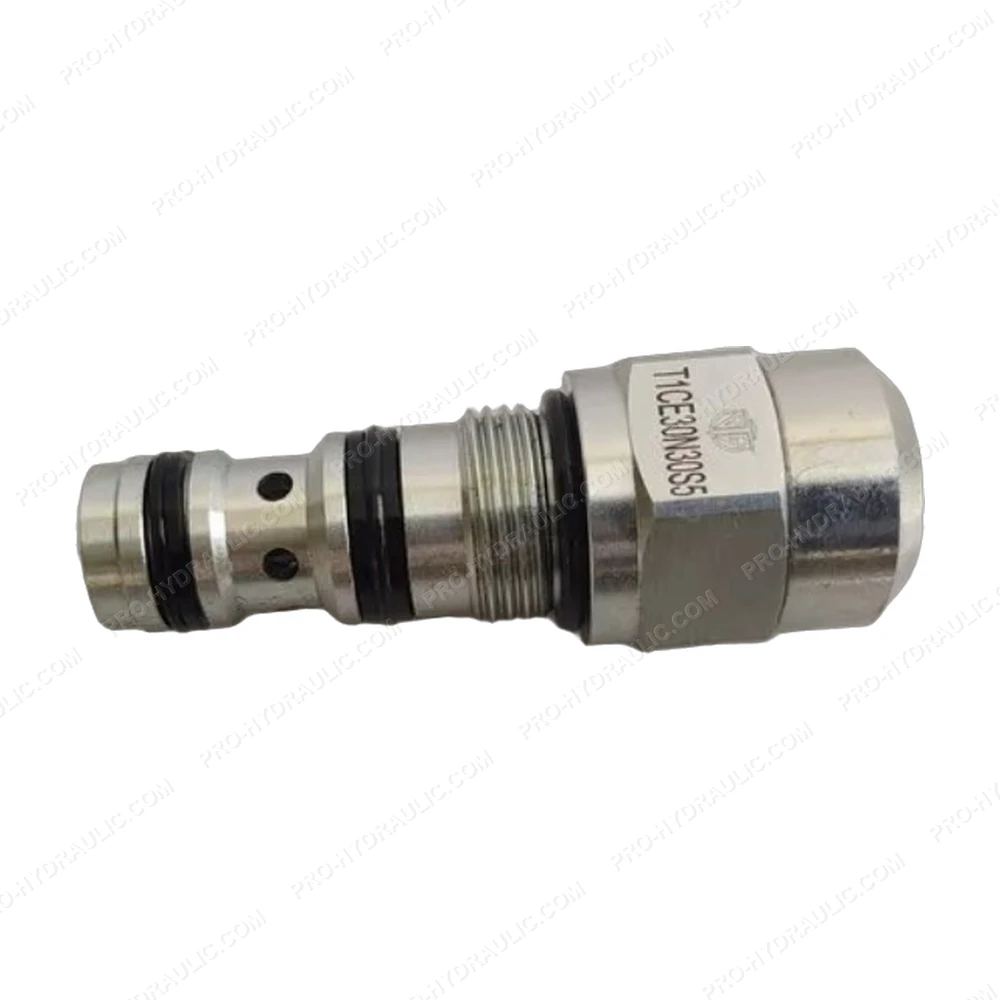

T1CE30N30S5

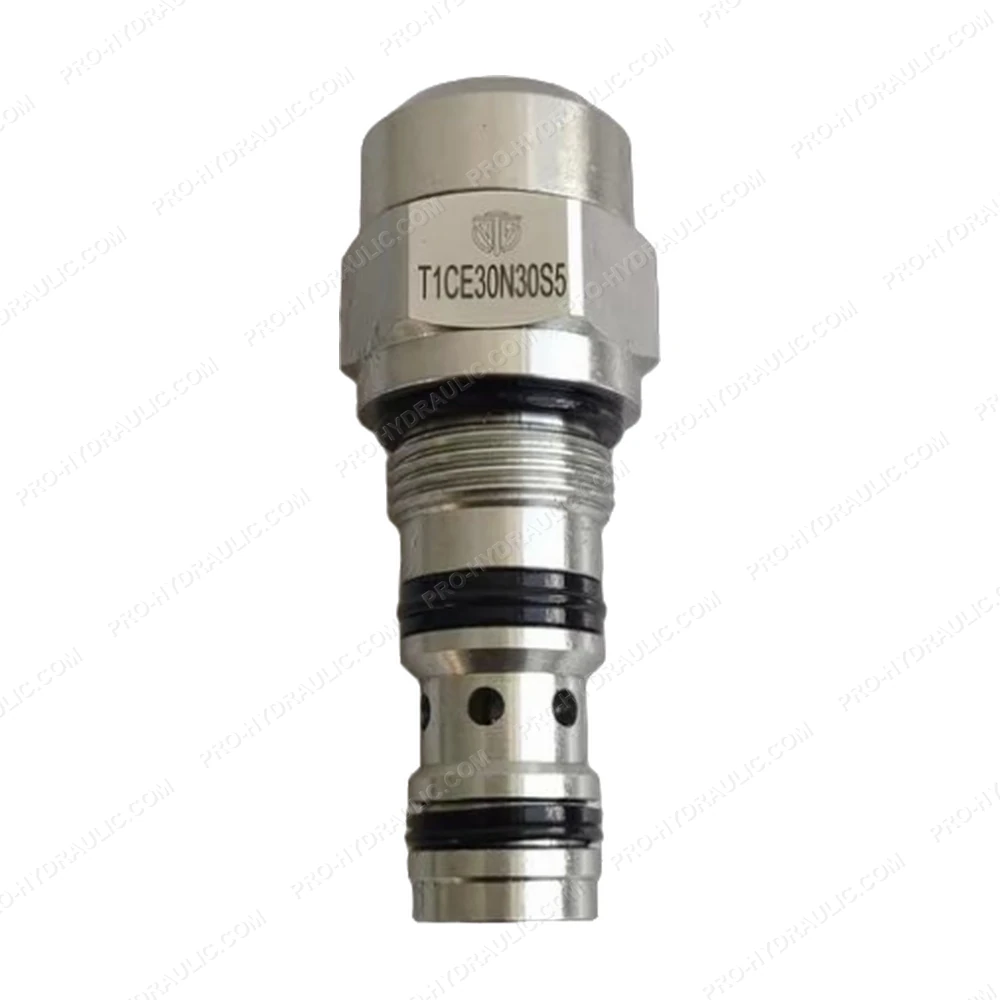

T1CE30N30S5

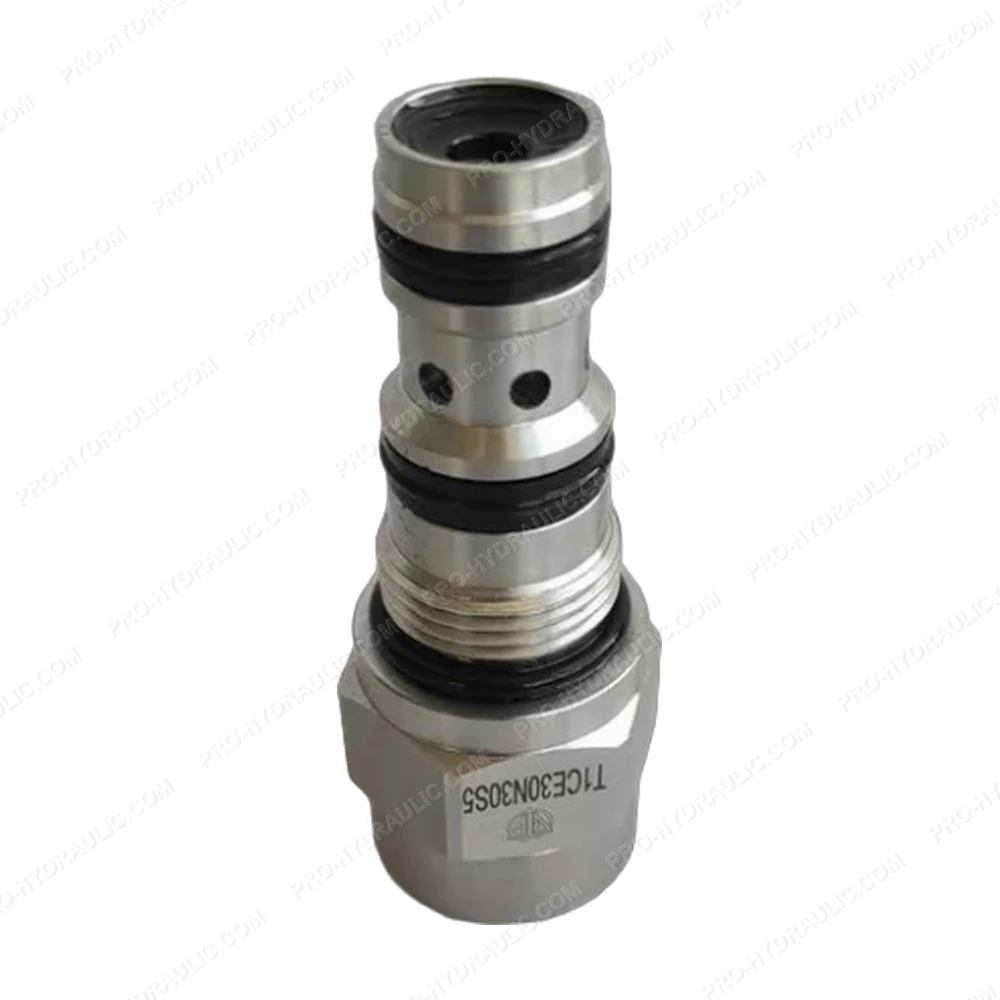

T1CE30N30S5

Unknown T1CE30N30S5 Cartridge Valve

⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:

  • Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
  • Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
  • Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
  • Peace of Mind: Covered by our 12-Month Replacement Warranty.

Shop the genuine T1CE30N30S5 Hydraulic Valve. This German-made hydraulic component features a precise spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
