Product Overview
The TAKASAGO WCE-2-4MUG is a miniature solenoid-operated directional valve engineered for precise control of low-flow pneumatic and process media circuits. Manufactured by TAKASAGO, a recognized name in compact fluid control technology, this valve utilizes a direct-acting solenoid mechanism that shifts an internal spool or poppet to open, close, or divert flow paths on command. Its miniature form factor makes it ideal for integration into space-constrained manifolds, analytical instrumentation, medical equipment, and light-duty automation systems where fast response and reliable sealing are essential. The WCE-2-4MUG functions as a 4-port, 2-position (4/2) directional control element, providing dependable switching between two independent flow circuits within a single compact body.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve — Miniature Solenoid Directional Valve (Process & Pneumatic) |
| Model Designation | WCE-2-4MUG |
| Valve Configuration | 4-Port, 2-Position (4/2) Directional Control |
| Actuation Method | Direct-Acting Solenoid with Spring Return |
| Operating Pressure | Standard Industrial Grade (Low-Pressure Process / Pneumatic Service) |
| Mounting & Connection | Compact Manifold / Sub-Base Interface with Miniature Port Fittings |
| Response Time | Fast Switching — Optimized for High-Cycle Precision Control |
| Seal & Body Construction | Precision-Machined Body with Elastomeric Sealing for Leak-Free Operation |
Engineering Features & Advantages
- Precision Performance: Direct-acting solenoid design delivers rapid, repeatable spool positioning for accurate flow switching in low-volume pneumatic and process circuits, minimizing cycle time and media waste.
- Miniature Footprint: Compact body dimensions enable high-density manifold mounting, reducing overall system size and simplifying routing in instrumentation panels and OEM equipment.
- Industrial Reliability: Built for continuous duty operation with robust solenoid coils and wear-resistant internal sealing, ensuring consistent performance under repetitive industrial cycling.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original TAKASAGO WCE-series specifications, allowing drop-in replacement without modification to existing manifolds or control panels.
- Versatile Media Compatibility: Suitable for a range of filtered pneumatic and process media, supporting diverse application requirements within a single valve platform.
Typical Industrial Applications
The TAKASAGO WCE-2-4MUG miniature solenoid valve is widely deployed in analytical and laboratory instrumentation, medical and dental equipment, semiconductor wafer handling systems, and compact pneumatic automation assemblies. Its precise 4/2 directional control also suits packaging machinery, textile
PRODUCT IMAGES

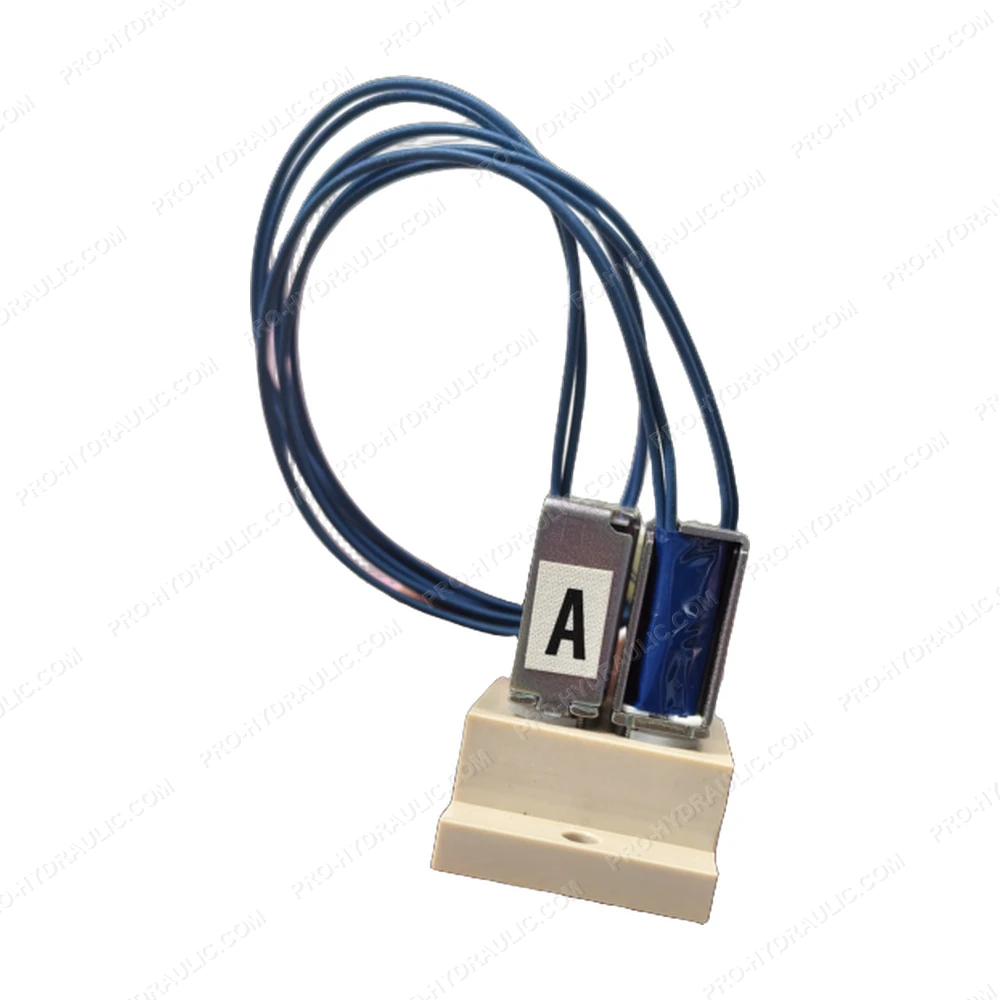

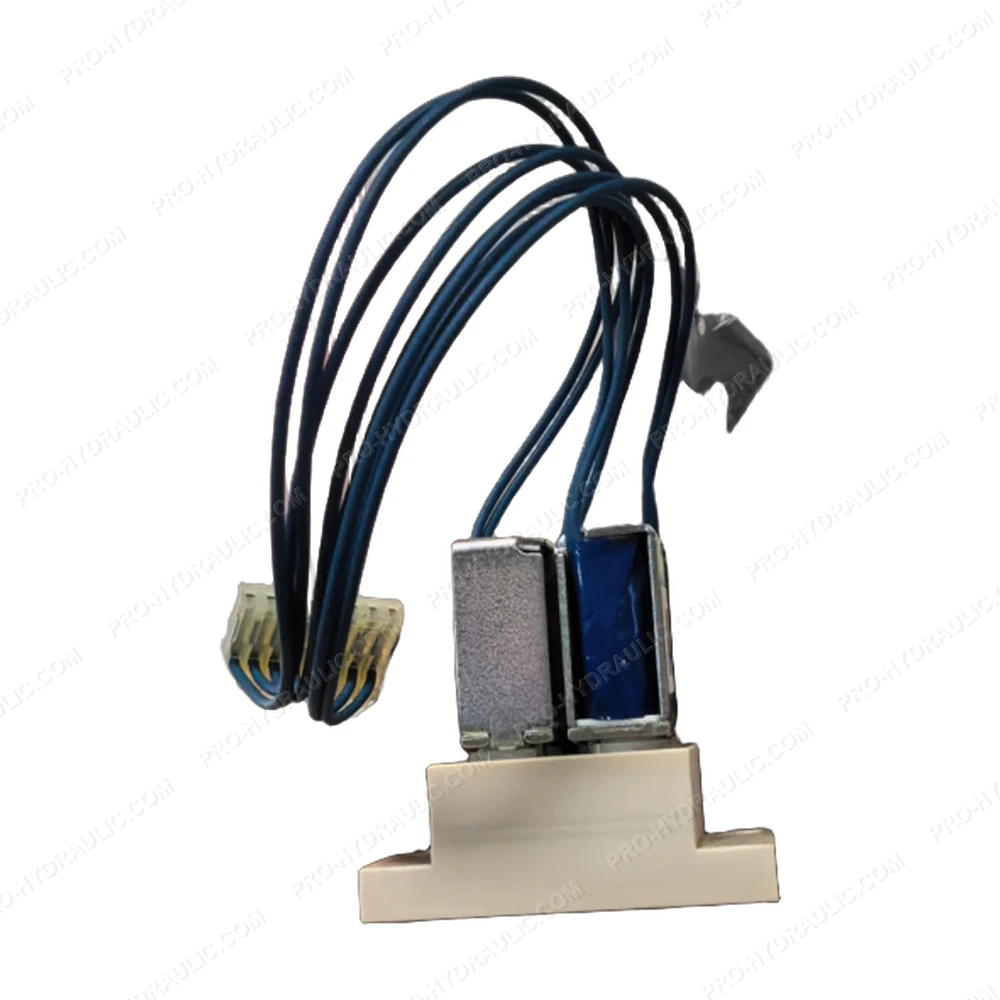

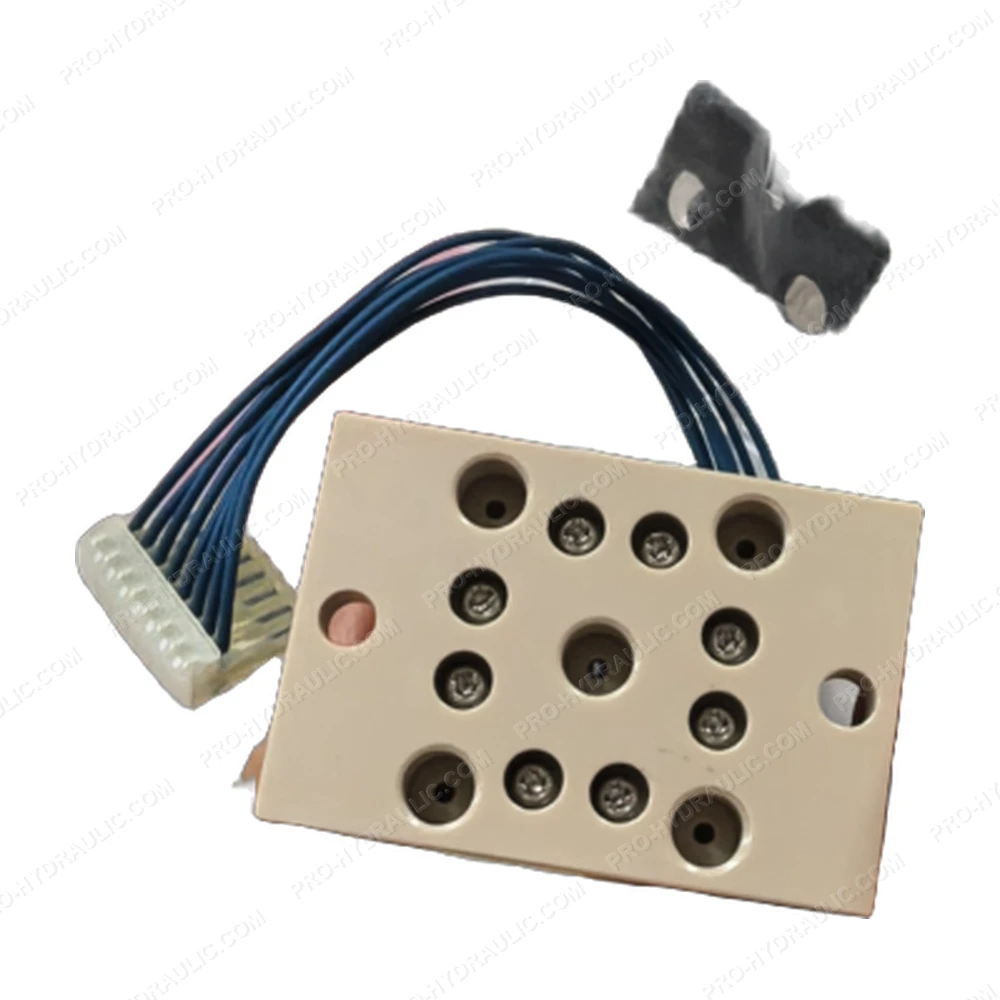

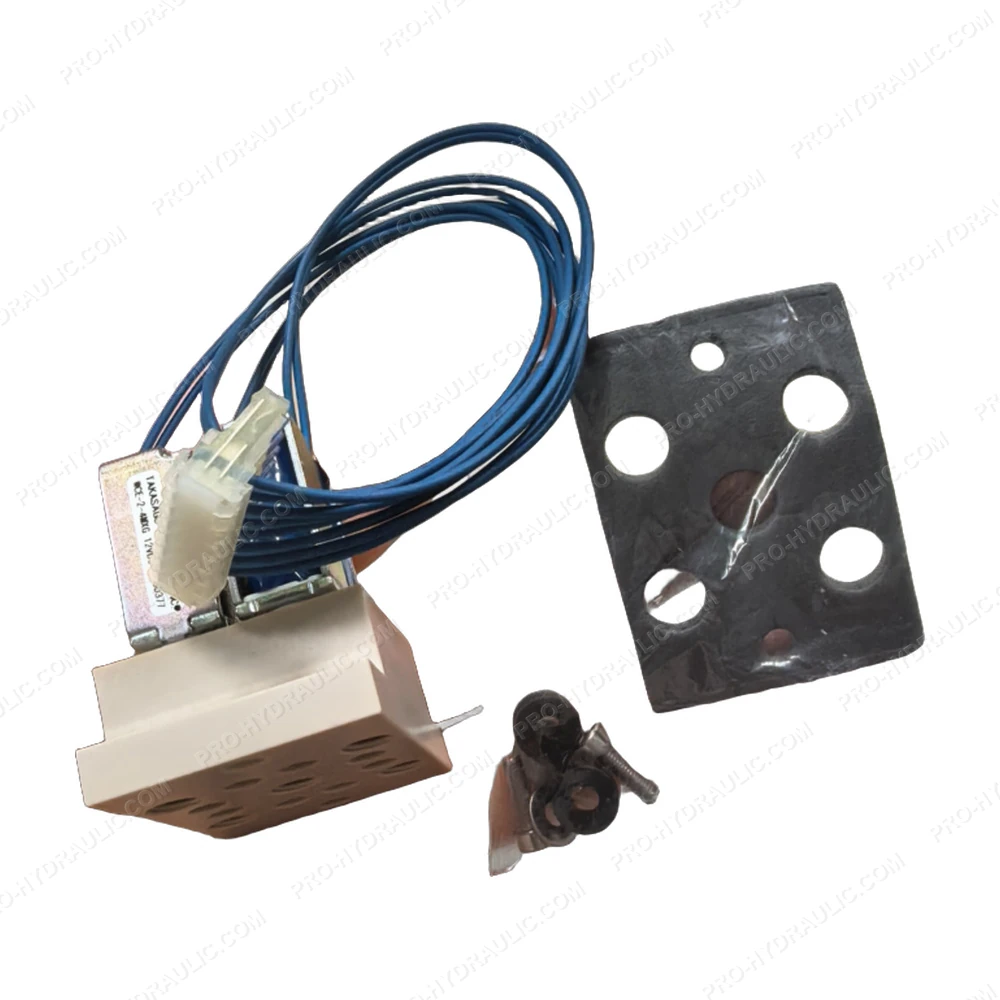

TAKASAGO WCE-2-4MUG Miniature Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TAKASAGO WCE-2-4MUG Solenoid Directional Control Valve. This Japan-made 24V DC hydraulic component features a 4-way 2-position spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
