Product Overview
The TAPFLO T20 PTT is a pneumatically driven double-diaphragm pump engineered for demanding industrial fluid transfer duties. Manufactured by Tapflo, a recognized specialist in air-operated diaphragm pump technology, the T20 PTT utilizes compressed air as its motive force acting alternately on two flexible diaphragms connected by a common shaft. This reciprocating action creates a self-priming, positive displacement pumping cycle capable of handling aggressive chemicals, viscous media, and solids-laden slurries. With no rotating shafts, mechanical seals, or close-tolerance metal-to-metal contact in the fluid path, the T20 PTT delivers reliable, leak-free performance in continuous industrial service.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Air Operated Double Diaphragm Pump |
| Model Designation | TAPFLO T20 PTT |
| Operating Pressure | Standard Industrial Grade (Up to 8 bar air inlet) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Port Size | 2″ BSP / NPT threaded connections |
| Max Flow Rate | Approx. 600 L/min (dependent on air supply and head) |
| Diaphragm Material | PTT elastomer configuration (chemical-resistant) |
| Solids Handling | Up to 6 mm particle size |
Engineering Features & Advantages
- Precision Performance: Balanced double-diaphragm design delivers smooth, pulsation-dampened flow with excellent self-priming capability and dry-run tolerance.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a seal-less construction that eliminates leakage paths and reduces maintenance downtime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in installation without system modification.
- Chemical Versatility: PTT diaphragm and wetted-path configuration supports aggressive fluids, solvents, and abrasive media across a wide pH range.
- Air-Driven Safety: Pneumatic operation removes electrical ignition risk, making the pump suitable for hazardous and explosive atmospheres.
Typical Industrial Applications
The TAPFLO T20 PTT is widely deployed in chemical processing and transfer stations, wastewater and slurry handling, paint and coating circulation lines, and food and pharmaceutical fluid transfer where gentle product handling is required. Its robust air-operated diaphragm principle also suits mining dewatering, ceramic slip transfer, and tanker unloading duties in heavy industrial environments.
PRODUCT IMAGES

Explore related inventory
Related parts by brand and category

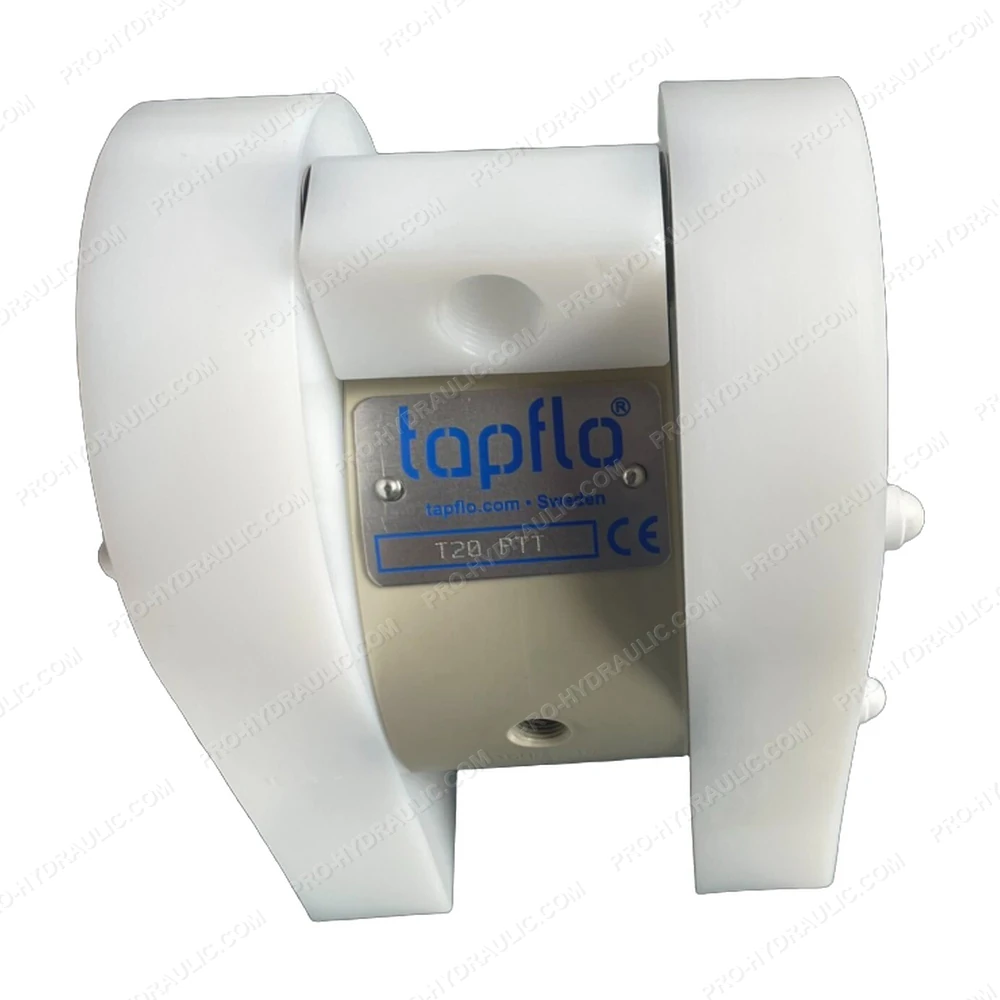

TAPFLO T20 PTT Air Operated Diaphragm Pump
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TAPFLO T20 PTT Diaphragm Valve. This German-made hydraulic component features a robust diaphragm design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
