The TEIKOKU CSM is a heavy-duty industrial canned motor pump engineered for leak-free transfer of aggressive, toxic, or high-purity fluids in continuous process applications. Its sealless construction eliminates external leakage paths, making it suitable for hazardous and environmentally sensitive installations.
TEIKOKU CSM Technical Specifications
| Pump Type | Canned motor centrifugal pump, sealless |
|---|---|
| Flow Range | Up to 120 m³/h |
| Head Range | Up to 150 m |
| Operating Pressure | Up to 25 bar (depending on model) |
| Temperature Range | -40 °C to +350 °C (model dependent) |
| Motor Power | 0.37 kW to 55 kW |
| Voltage / Frequency | 3-phase, 50/60 Hz, 230/400 V (typical) |
| Wetted Materials | Stainless steel, cast steel, or alloy options |
| Mounting | Horizontal foot-mounted or vertical inline |
| Standards | ISO 2858 / API 685 compliant configurations |
Key Engineering Features
- Sealless canned motor design eliminates mechanical seal leakage and maintenance
- Integrated motor cooling circuit for continuous duty without external cooling
- Robust bearing system with wear-resistant materials for extended service life
- Compact footprint and low noise/vibration operation
- Optional explosion-proof and high-temperature configurations
Industrial Applications
- Chemical and petrochemical process transfer
- Refrigeration and HVAC systems (brine, glycol, refrigerants)
- Pharmaceutical and food-grade fluid handling
- Power plant auxiliary systems and boiler feed
- Environmental and wastewater treatment
For technical inquiries, dimensional drawings, or replacement support for TEIKOKU CSM, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

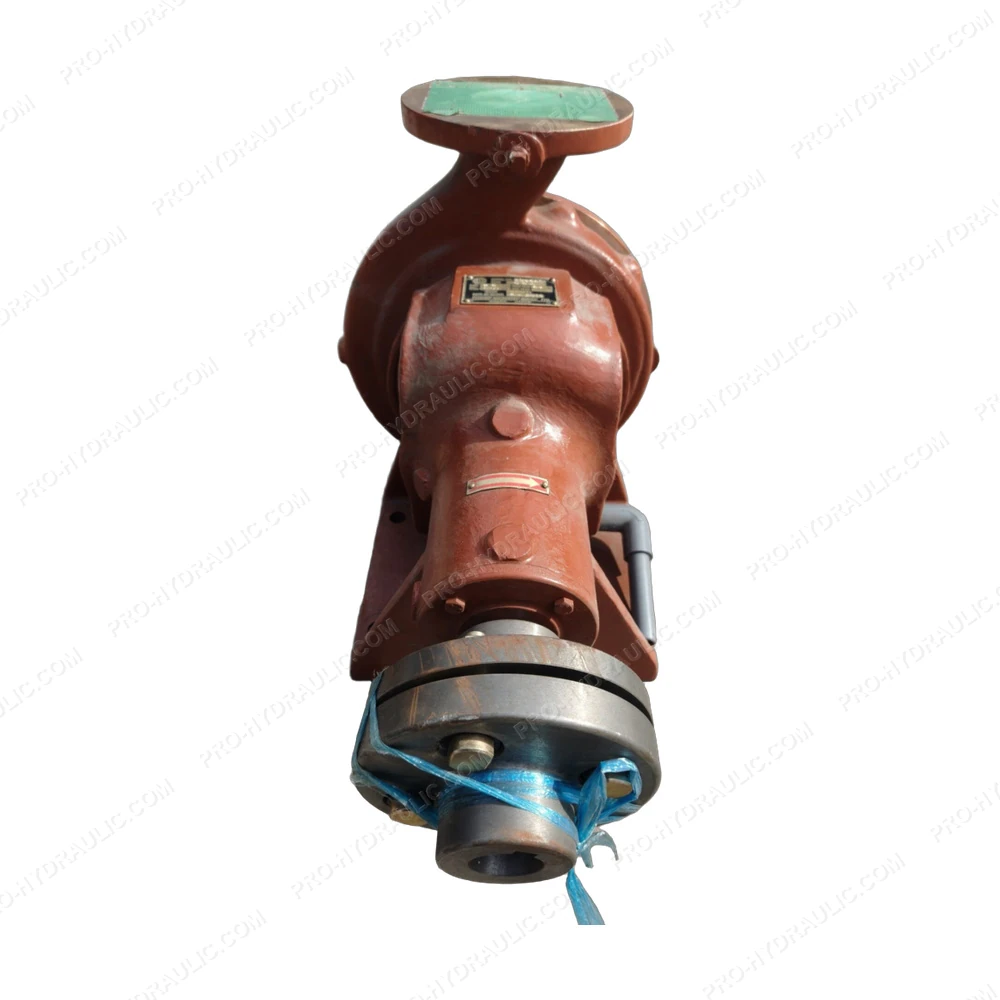

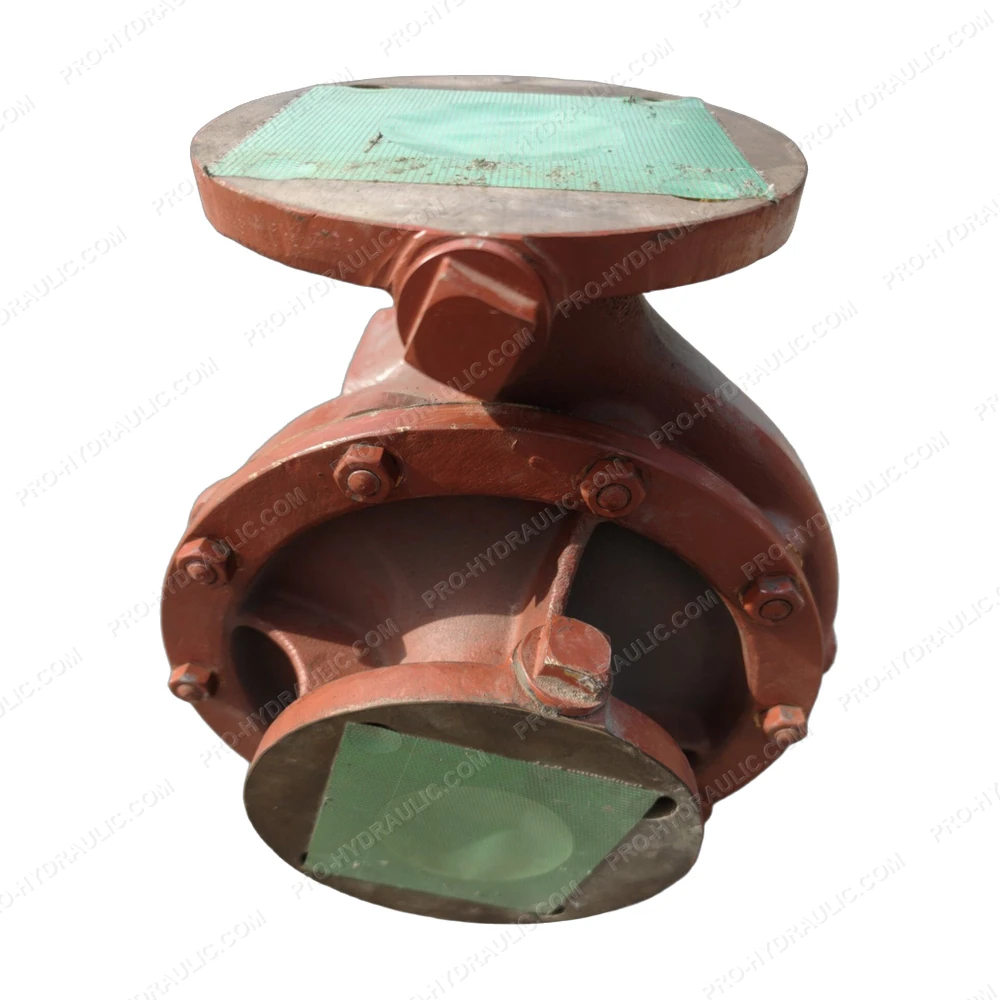

TEIKOKU CSM Canned Motor Pump
