Product Overview
The TELCOMOTION 4H5618X0704-B4S is a high-precision industrial stepper motor engineered for accurate position and velocity control in demanding automation systems. Operating on the hybrid stepping principle, this motor converts discrete electrical pulses into precise, repeatable angular increments, making it an ideal actuator for open-loop and closed-loop motion control architectures. With a NEMA 23 frame footprint and a 1.8° step angle, the 4H5618X0704-B4S delivers smooth microstepping performance, high holding torque, and excellent dynamic response for industrial positioning, indexing, and feed-to-length applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Stepper Motor (Hybrid, 2-Phase) |
| Model Designation | 4H5618X0704-B4S |
| Frame Size | NEMA 23 (56 mm flange) |
| Step Angle | 1.8° (200 steps per revolution) |
| Rated Current | Approx. 2.8 A per phase (bipolar) |
| Holding Torque | High-torque industrial grade (approx. 1.2–1.9 N·m class) |
| Operating Voltage | 24–48 VDC typical drive bus |
| Mounting & Connection | NEMA 23 standard flange, 4-lead bipolar wiring |
Engineering Features & Advantages
- Precision Performance: 1.8° hybrid step angle with microstepping compatibility delivers accurate, repeatable positioning without cumulative error in incremental moves.
- High Holding Torque: Optimized rotor and stator lamination design maintains strong detent and holding torque for reliable load retention in vertical and indexing axes.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with robust bearings and thermally stable windings.
- Direct Fit Replacement: Exact dimensional and functional compatibility with standard NEMA 23 mounting interfaces and OEM drive configurations.
- Low Vibration & Smooth Motion: Balanced rotor construction minimizes resonance and noise across the operating speed range.
Typical Industrial Applications
The TELCOMOTION 4H5618X0704-B4S is widely deployed in CNC machine tools, automated assembly and pick-and-place systems, packaging and labeling machinery, and laboratory or medical automation equipment where precise incremental motion, repeatable positioning, and dependable long-term operation are essential.
PRODUCT IMAGES

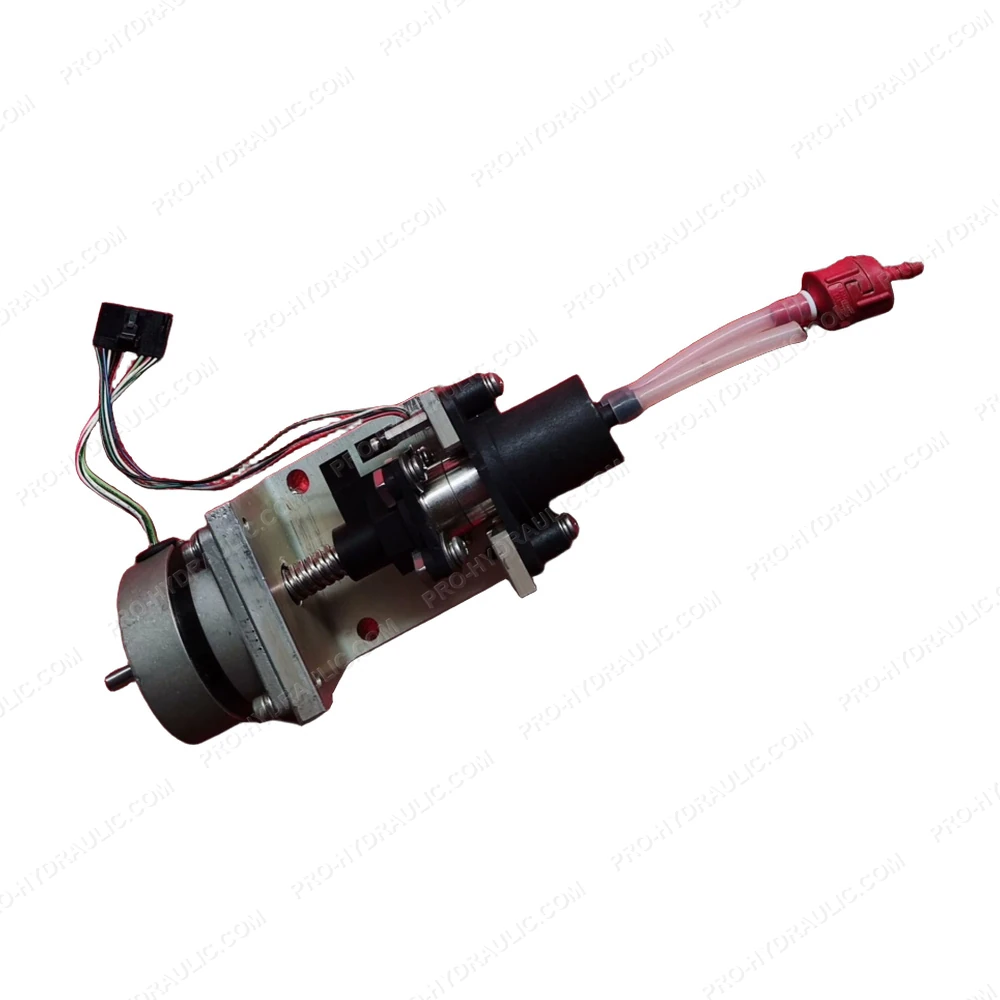

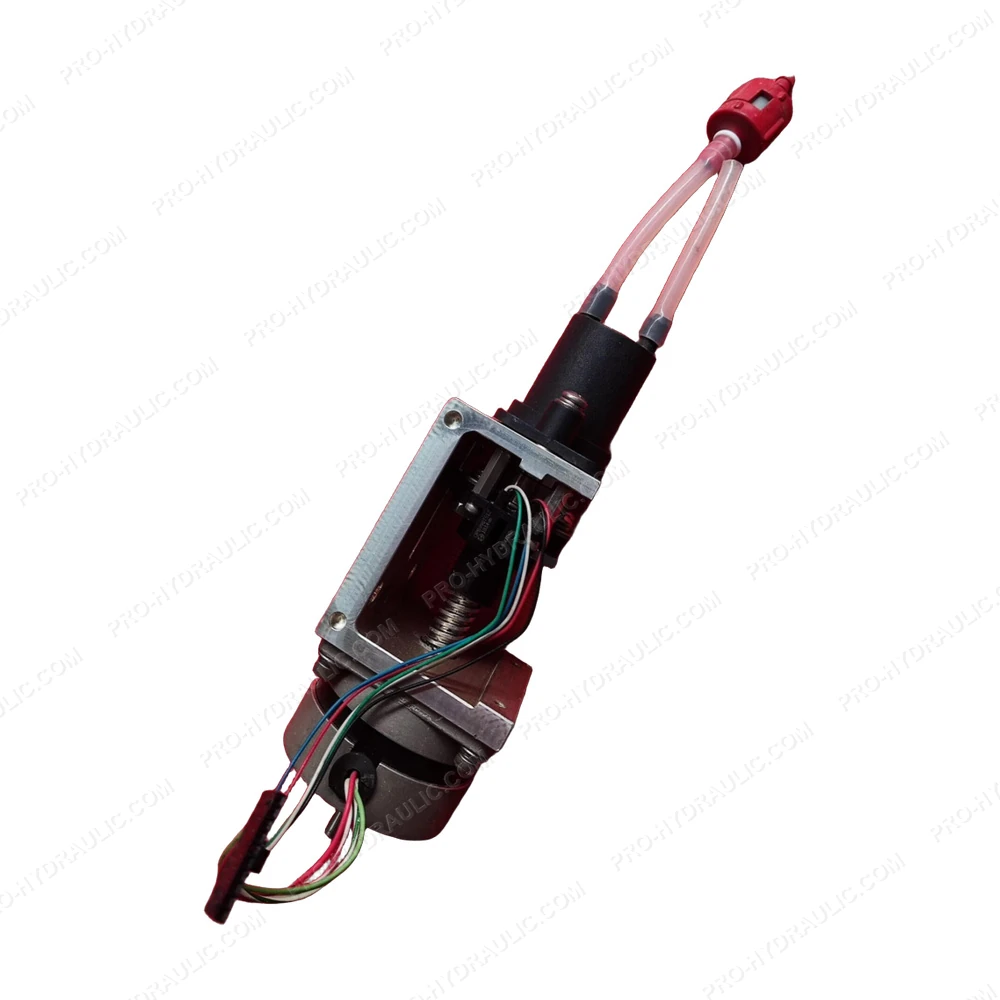

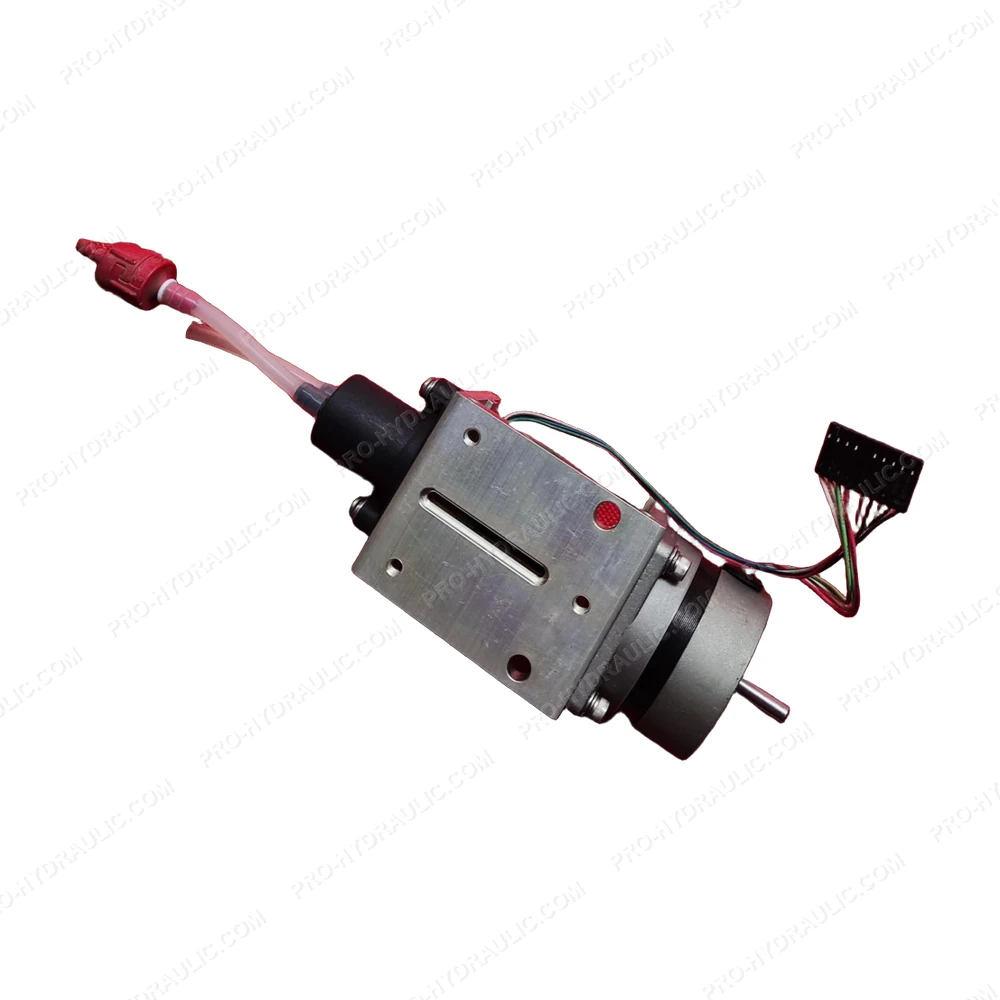

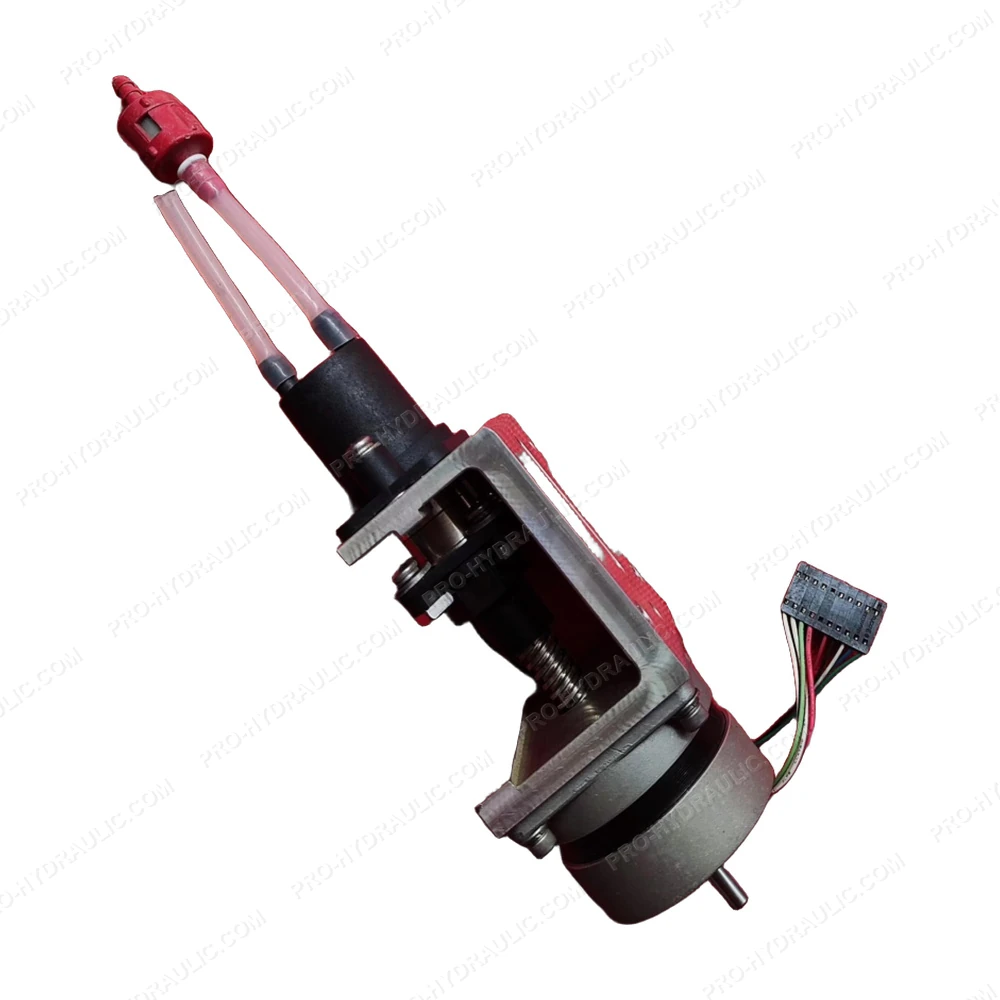

TELCOMOTION 4H5618X0704-B4S Stepper Motor
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TELCOMOTION 4H5618X0704-B4S Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
