The TESCOM 44-1316-2081-002 is a heavy-duty industrial pressure regulator engineered for precise control of gases and liquids in demanding process applications. It utilizes a mechanical diaphragm or piston sensing element to maintain stable outlet pressure despite variations in inlet pressure and flow demand.
TESCOM 44-1316-2081-002 Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Pressure Regulator |
| Series | 44 Series |
| Maximum Inlet Pressure | Up to 10,000 psig (690 bar) |
| Outlet Pressure Range | 0–500 psig (0–34.5 bar) |
| Body Material | 316L Stainless Steel |
| Seat Material | PCTFE |
| Diaphragm Material | Elgiloy® |
| Port Size | 1/4″ NPT |
| Operating Temperature | -40°F to 400°F (-40°C to 204°C) |
| Flow Coefficient (Cv) | 0.06 |
Key Engineering Features
- Precision pressure regulation with low droop and accurate setpoint repeatability.
- Robust 316L stainless steel construction for corrosion resistance in harsh environments.
- Elgiloy® diaphragm for long cycle life and consistent performance.
- PCTFE seat for reliable sealing and chemical compatibility.
- Panel-mount or line-mount configuration for flexible installation.
Industrial Applications
- Gas and liquid pressure control in analytical instrumentation.
- Sampling systems and process analyzers.
- Chemical injection and dosing systems.
- High-pressure test benches and research laboratories.
- Industrial gas supply lines and cylinder pressure regulation.
For technical inquiries, dimensional drawings, or replacement support for TESCOM 44-1316-2081-002, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

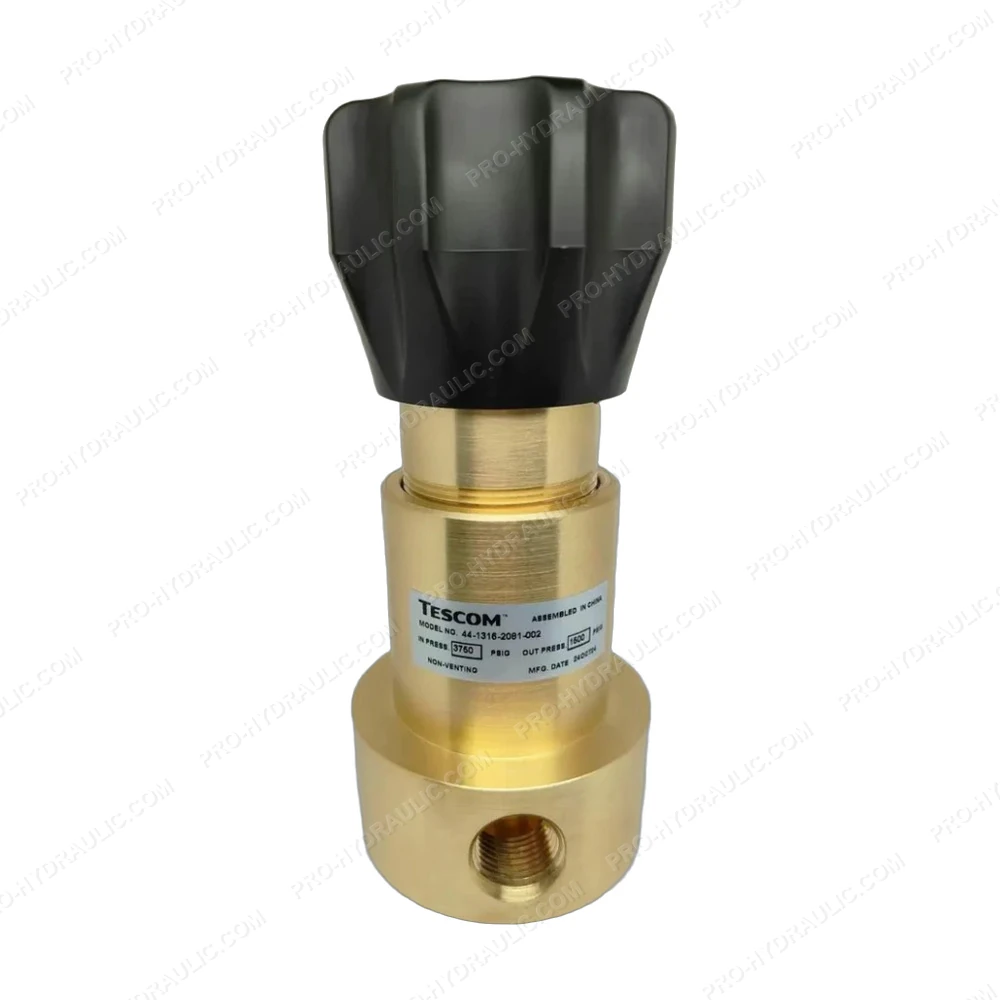

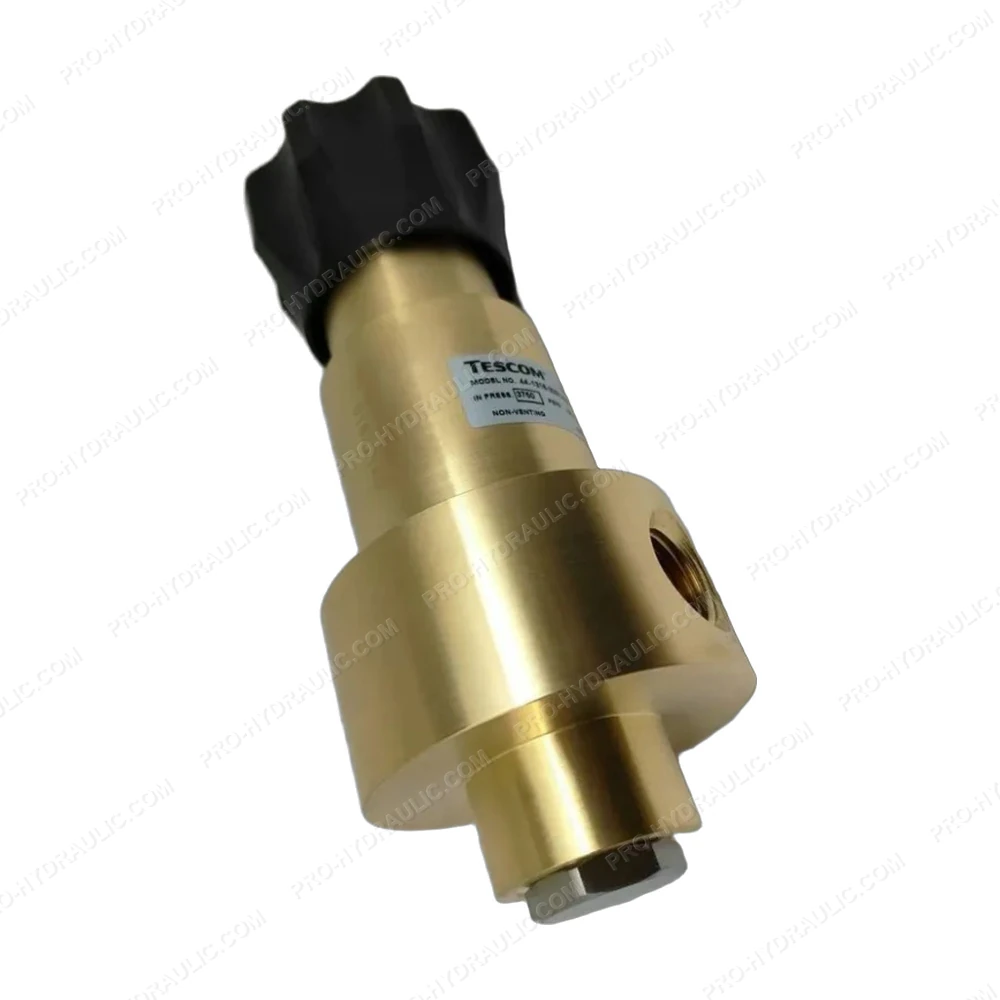

TESCOM 44-1316-2081-002 Pressure Regulator
