Product Overview
The TOKYO KEIKI COM-5-100-70-FM1-10 is a precision proportional directional and flow control valve engineered for demanding industrial hydraulic systems requiring accurate, infinitely variable control of actuator speed and direction. Manufactured by TOKYO KEIKI (Tokyo Keiki Inc.), a globally recognized authority in fluid power and electro-hydraulic control technology, this valve operates on a proportional solenoid actuation principle. An electrical command signal (typically 0–10 V DC or 4–20 mA) drives the proportional solenoids, which position the valve spool against a centering spring assembly. The spool displacement is directly proportional to the input signal, enabling precise, repeatable metering of hydraulic flow in both directions. The COM-5 series is a proven platform for closed-loop and open-loop control architectures, delivering smooth, shock-free motion control in injection molding, die-casting, metallurgical, and heavy machinery applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional and Flow Control Valve |
| Model Designation | COM-5-100-70-FM1-10 |
| Series | TOKYO KEIKI COM-5 Proportional Valve Series |
| Nominal Flow Rating | 100 L/min (nominal, at rated pressure differential) |
| Operating Pressure | Up to 315 bar (standard industrial grade, rated) |
| Spool Configuration | Proportional 4-way, 3-position, closed-center spool |
| Actuation Method | Proportional solenoid (dual solenoid, spring-centered) |
| Command Signal | Analog 0–10 V DC / 4–20 mA (amplifier card dependent) |
| Hysteresis | ≤ 3% of rated stroke (typical, with matched amplifier) |
| Mounting & Connection | Subplate mounting, ISO 4401 / CETOP / NG10 interface |
| Seal Material | NBR / FKM (application dependent) |
| Fluid Compatibility | Mineral-based hydraulic |
Engineering Features & Advantages
- Precision Performance: The proportional directional and flow control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original TOKYO standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 100 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The COM-5 series is a proven platform for closed-loop and open-loop control architectures, delivering smooth, shock-free motion control in injection molding, die-casting, metallurgical, and heavy machinery applications.
PRODUCT IMAGES

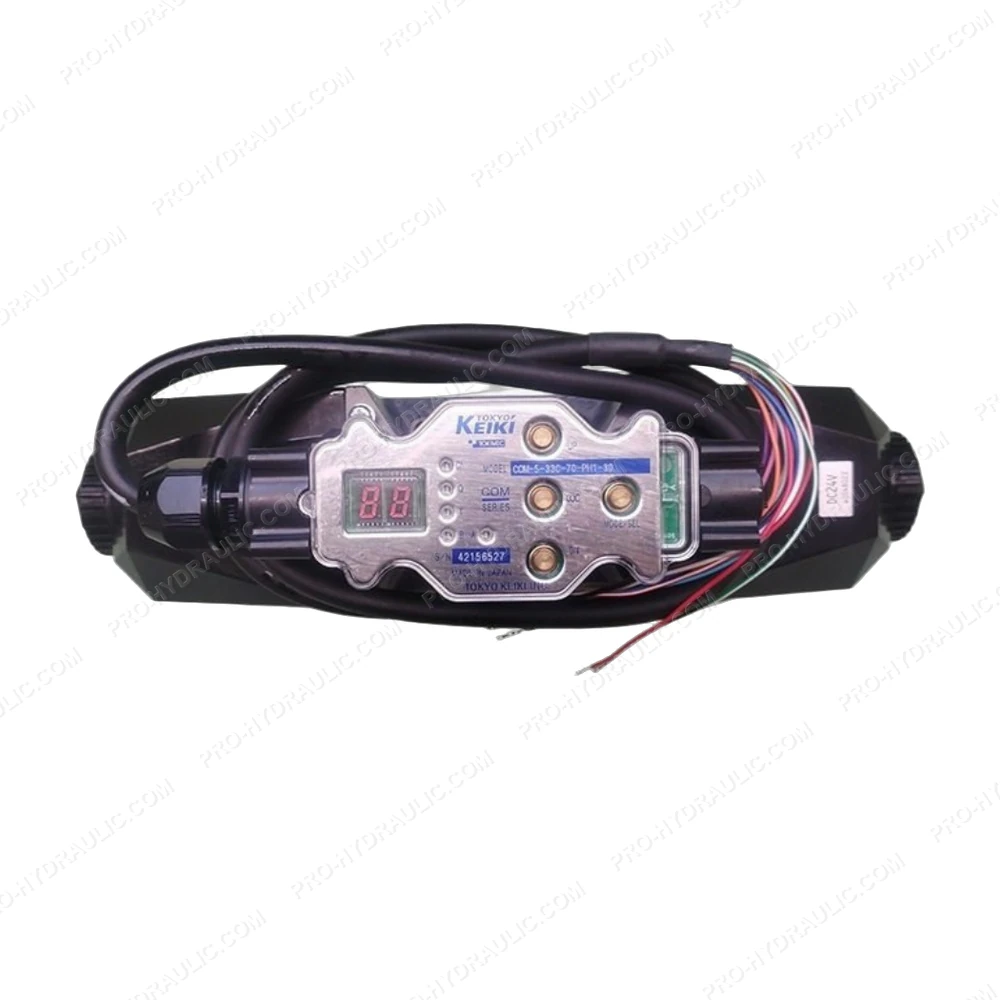

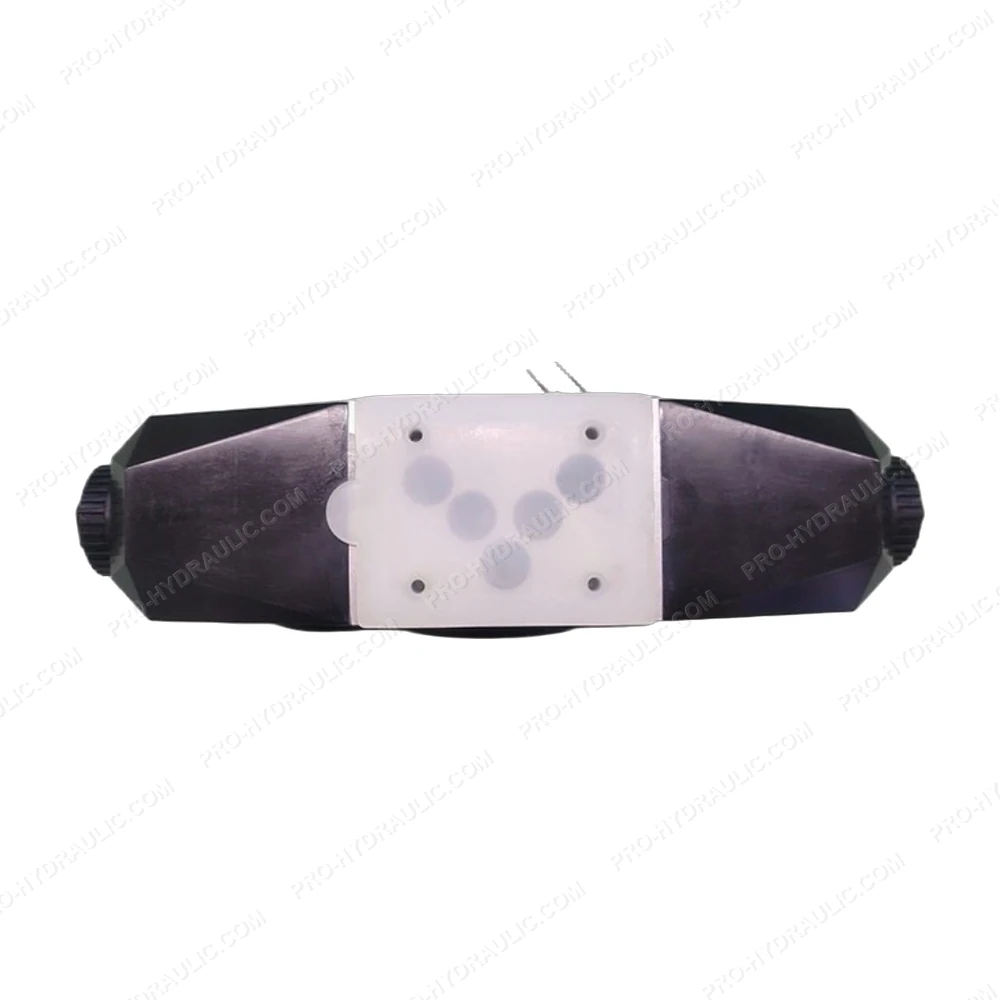

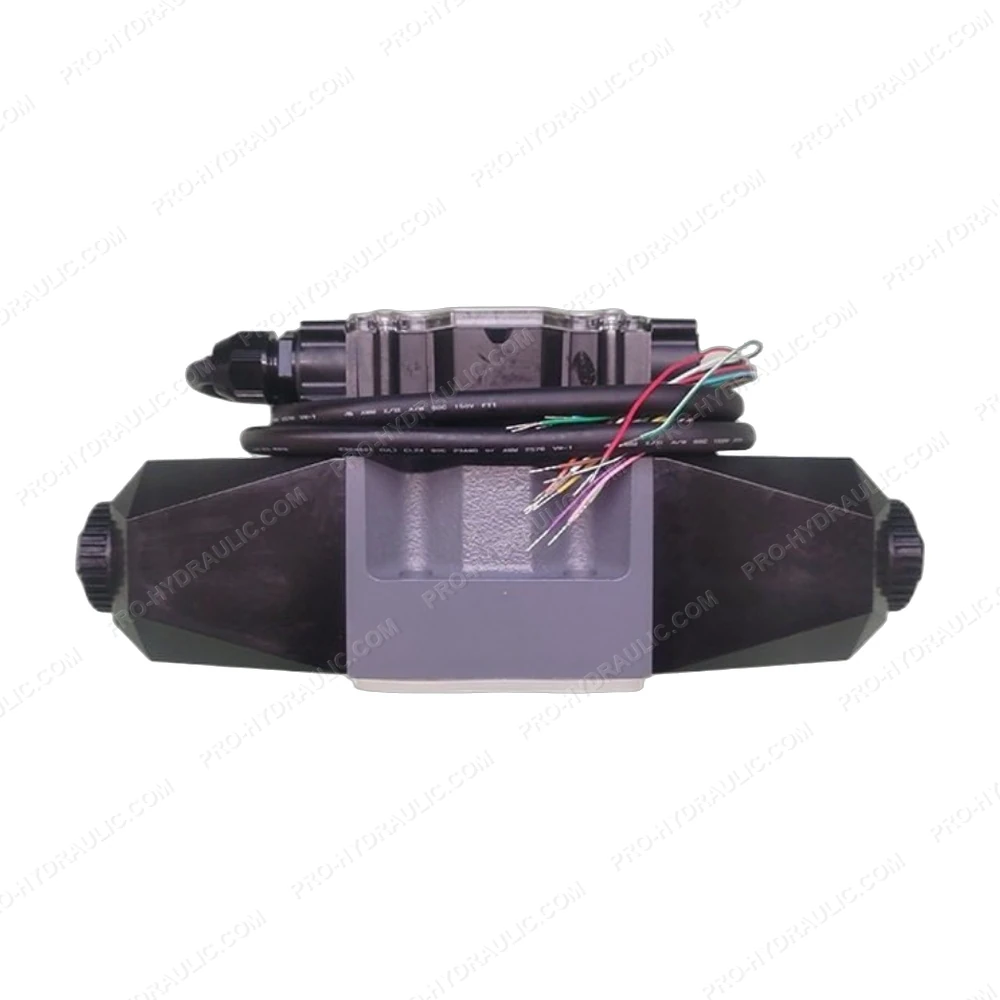

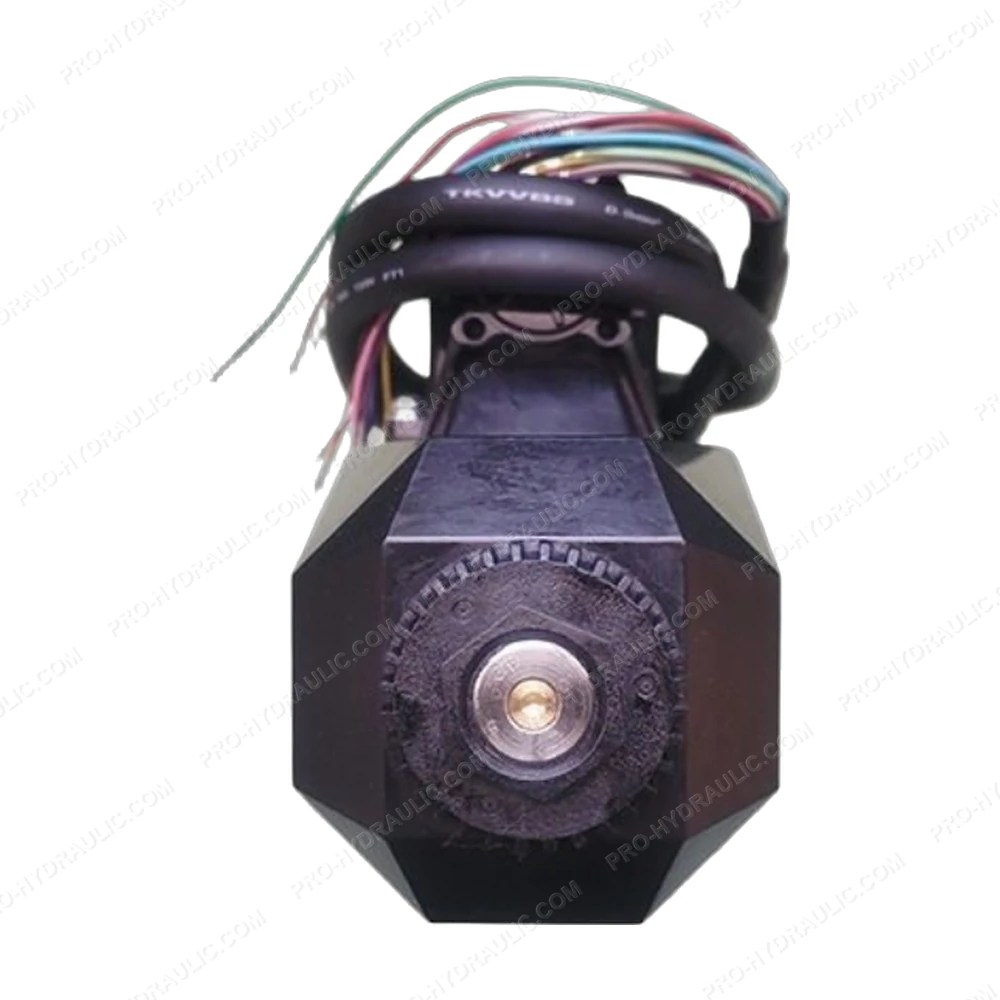

TOKYO KEIKI COM-5-100-70-FM1-10 Proportional Directional and Flow Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TOKYO KEIKI COM-5-100-70-FM1-10 Proportional Directional Control Valve. This Japan-made 100 L/min hydraulic valve features a proportional solenoid actuation, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
