Product Overview
The TOKYO KEIKI COM-5-33C-70-PN1-53 is a high-precision proportional directional and flow control valve engineered for advanced electro-hydraulic motion control in demanding industrial systems. Manufactured by TOKYO KEIKI (Tokyo Keiki Seizosho Co., Ltd.), a globally recognized authority in fluid power and precision control technology, this valve combines directional spool actuation with infinitely variable proportional flow metering. The COM-5 series utilizes a proportional solenoid actuator that positions the valve spool in direct proportion to an electrical command signal, enabling smooth, stepless control of both flow direction and magnitude. This design eliminates the abrupt switching characteristics of conventional directional valves and provides the precise velocity and position regulation required in closed-loop and open-loop hydraulic circuits. The COM-5-33C-70-PN1-53 is configured for reliable, repeatable performance in continuous industrial duty, offering excellent hysteresis characteristics, fast dynamic response, and robust contamination tolerance for long service life.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional & Flow Control Valve |
| Model Designation | COM-5-33C-70-PN1-53 |
| Manufacturer | TOKYO KEIKI |
| Actuation Type | Proportional Solenoid (Electro-Hydraulic) |
| Spool Configuration | 4-Way, 3-Position Directional Spool |
| Control Function | Proportional Directional + Flow Control |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per TOKYO KEIKI COM-5 series) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Subplate Mounting) |
| Electrical Interface | Proportional Solenoid with Integrated Feedback (PN1 Configuration) |
| Hydraulic Fluid | Mineral-Based Hydraulic Oil (ISO VG 32–68) |
Engineering Features & Advantages
- Precision Proportional Metering: The proportional solenoid actuator delivers infinitely variable spool positioning, enabling precise flow control proportional to the input command signal for smooth acceleration and deceleration of hydraulic actuators.
- Integrated Directional & Flow Control: Combines directional spool function with proportional flow regulation in a single compact valve body, reducing system complexity and piping requirements.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original TOKYO standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The COM-5-33C-70-PN1-53 is configured for reliable, repeatable performance in continuous industrial duty, offering excellent hysteresis characteristics, fast dynamic response, and robust contamination tolerance for long service life.
PRODUCT IMAGES

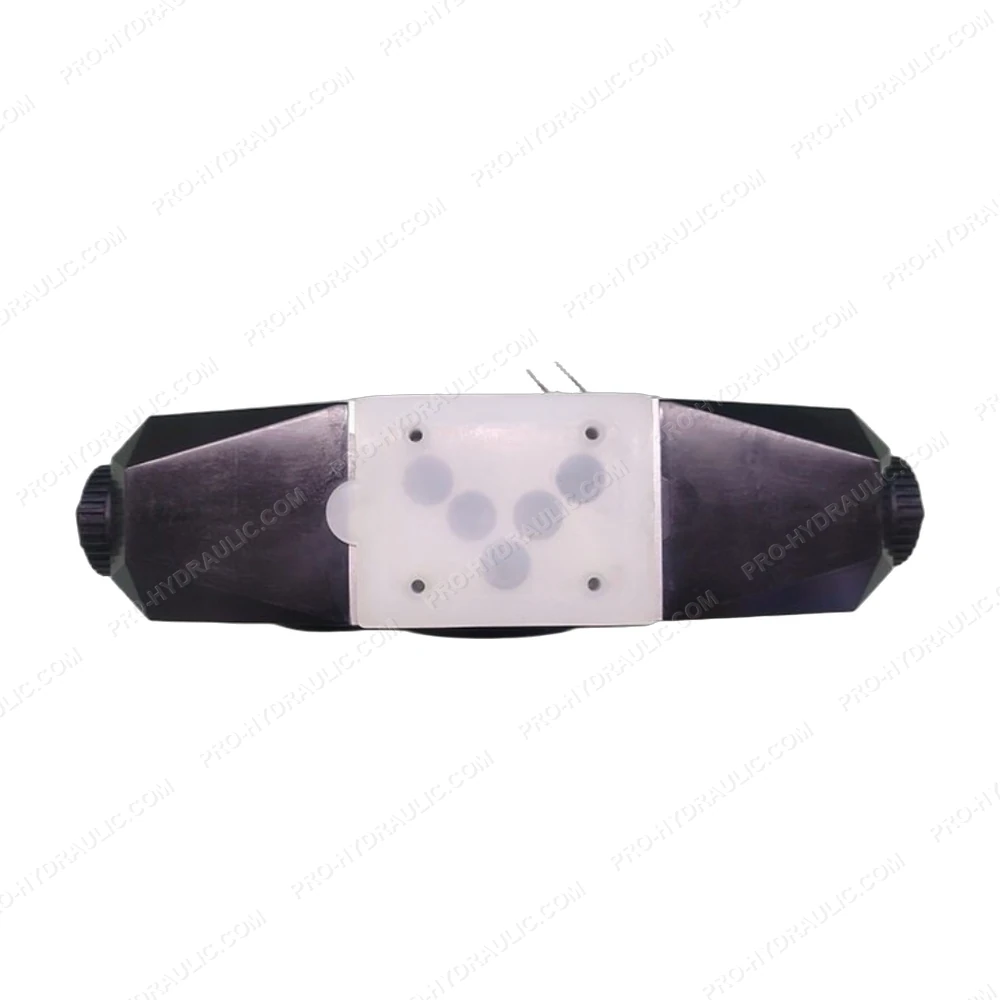

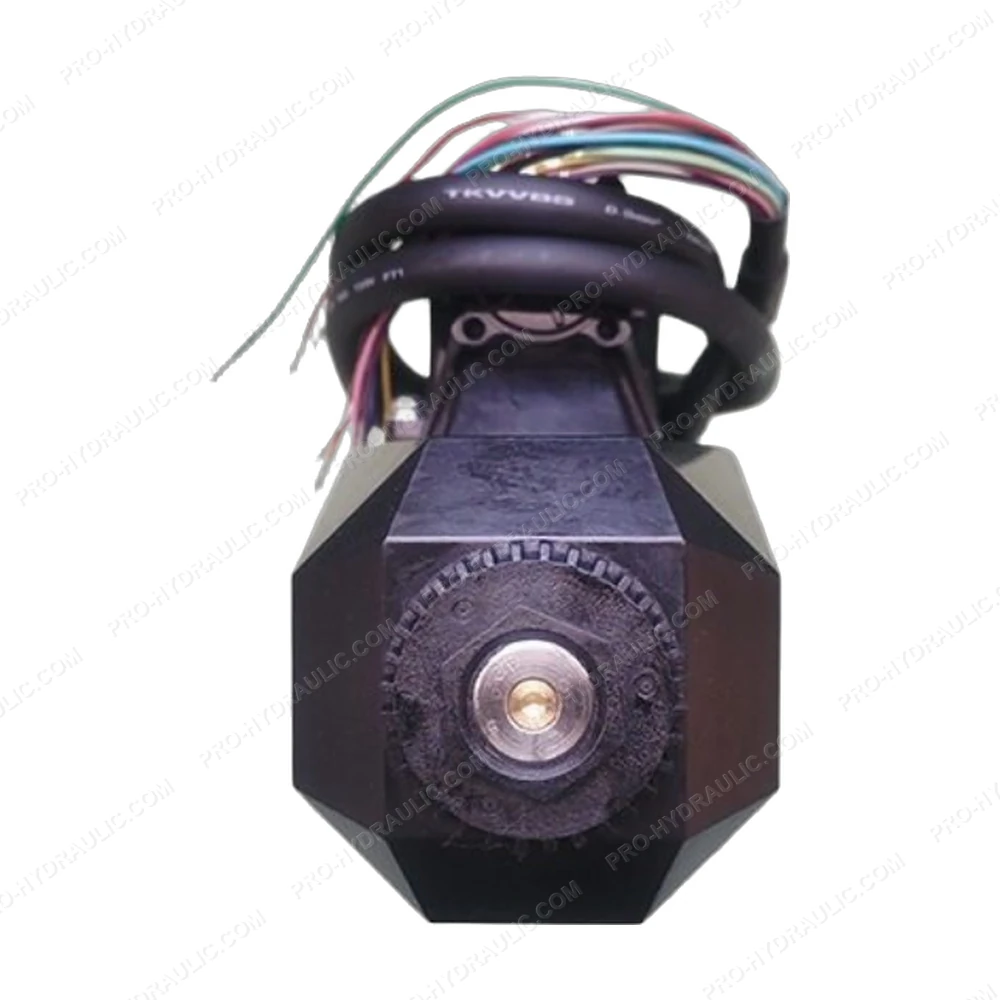

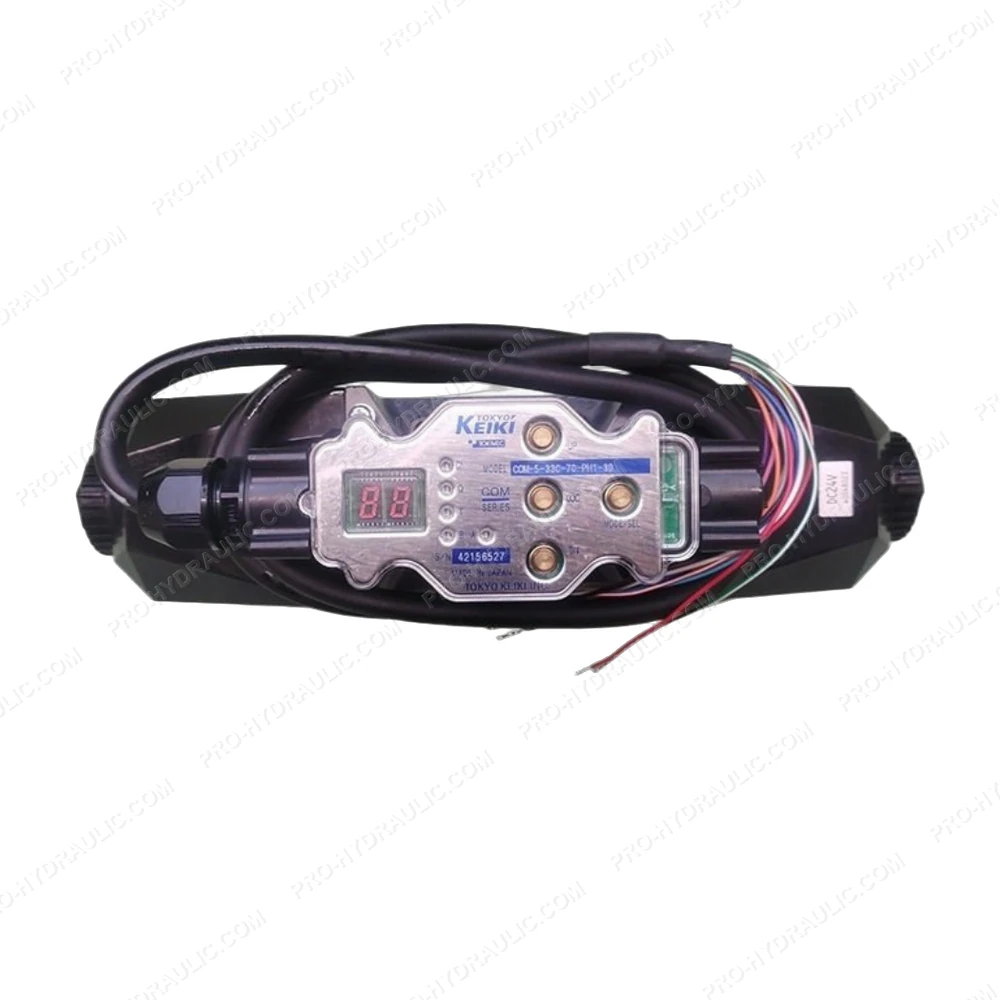

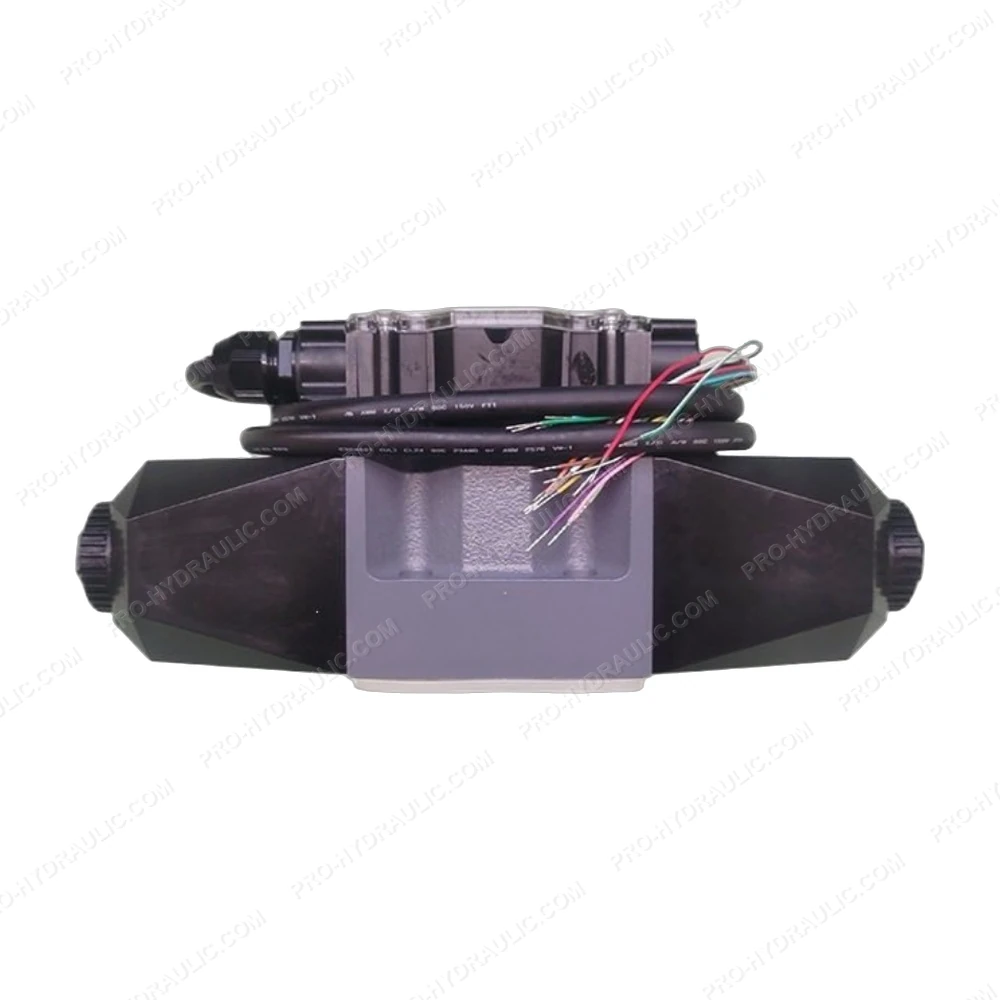

TOKYO KEIKI COM-5-33C-70-PN1-53 Proportional Directional and Flow Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TOKYO KEIKI COM-5-33C-70-PN1-53 Solenoid Directional Control Valve. This Japan-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
