The TOKYO KEIKI DG4M4-32A-24DC-20-JA is a heavy-duty industrial directional control valve engineered for precise flow direction and reliable operation in demanding hydraulic circuits. This solenoid-operated, spring-centered 4-way valve features a wet-pin armature and a 24 VDC coil, providing dependable switching performance with minimal maintenance. The DG4M4 series is designed for ISO 4401 mounting patterns, ensuring drop-in compatibility with standard manifold and subplate installations.
TOKYO KEIKI DG4M4-32A-24DC-20-JA Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | 4-way, 3-position directional control valve |
| Actuation | Solenoid operated, spring return |
| Coil Voltage | 24 VDC |
| Mounting Pattern | ISO 4401 (CETOP 3 / NG6) |
| Max. Operating Pressure | 315 bar (4570 psi) |
| Max. Flow Rate | 40 L/min (10.6 gpm) |
| Fluid Temperature Range | -20 °C to +70 °C |
| Port Connections | Subplate mounted (P, T, A, B) |
| Seal Material | NBR (Buna-N) |
| Electrical Connection | DIN 43650 connector |
Key Engineering Features
- Wet-pin armature design for smooth, low-friction solenoid operation
- Spring-centered spool ensures fail-safe return to neutral position
- Hardened steel spool and body for extended service life under high cycling
- ISO 4401 mounting pattern for direct interchangeability
- 24 VDC coil with DIN connector for simplified wiring and maintenance
- Rated for continuous duty and high-pressure hydraulic systems
Industrial Applications
- Machine tool hydraulic systems
- Press and forming equipment
- Injection molding machines
- Material handling and lifting equipment
- Industrial automation and robotics
- Marine and offshore hydraulic circuits
For technical inquiries, dimensional drawings, or replacement support for TOKYO KEIKI DG4M4-32A-24DC-20-JA, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

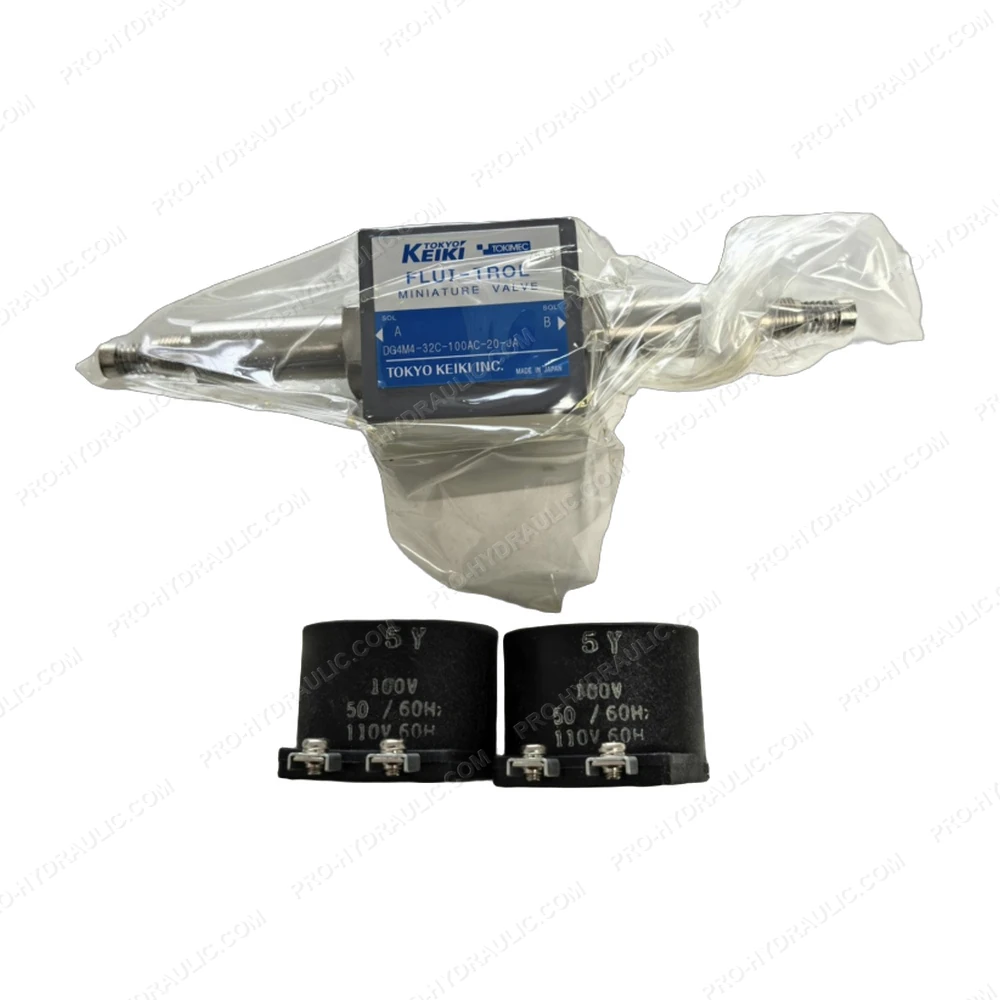

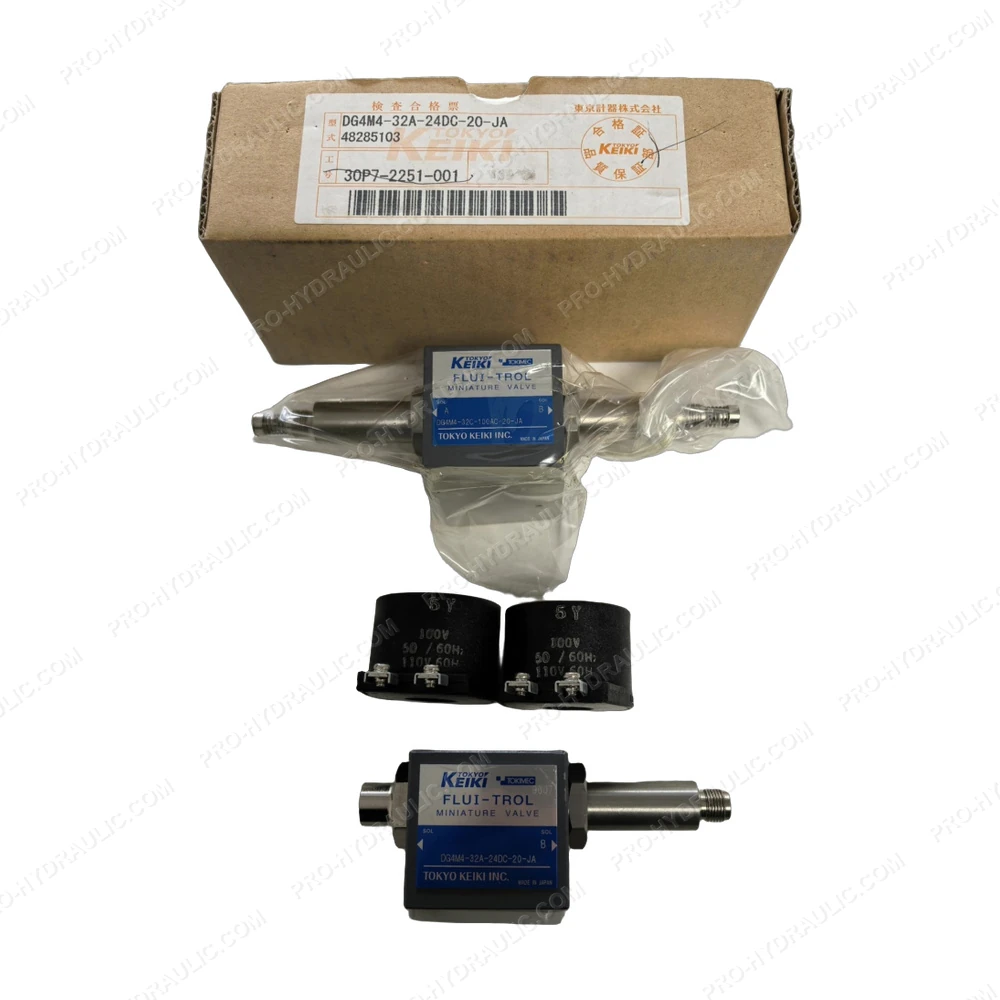

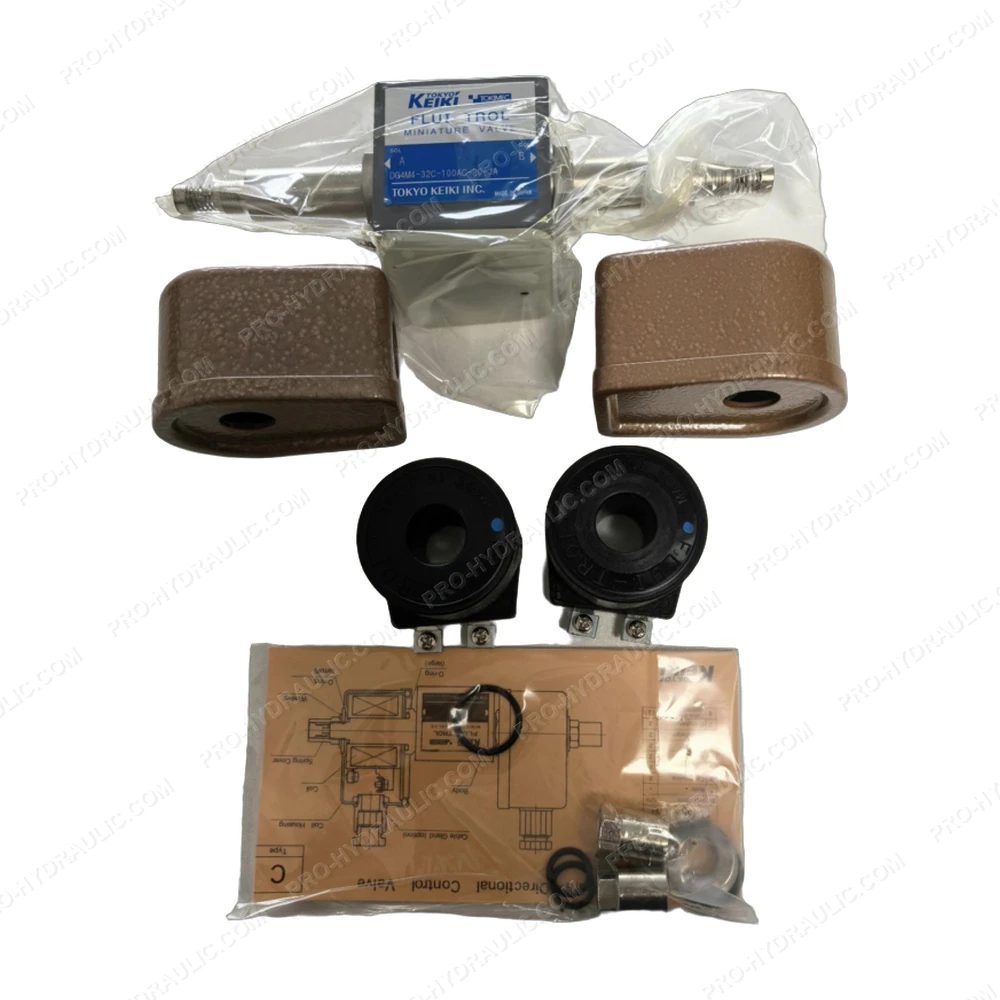

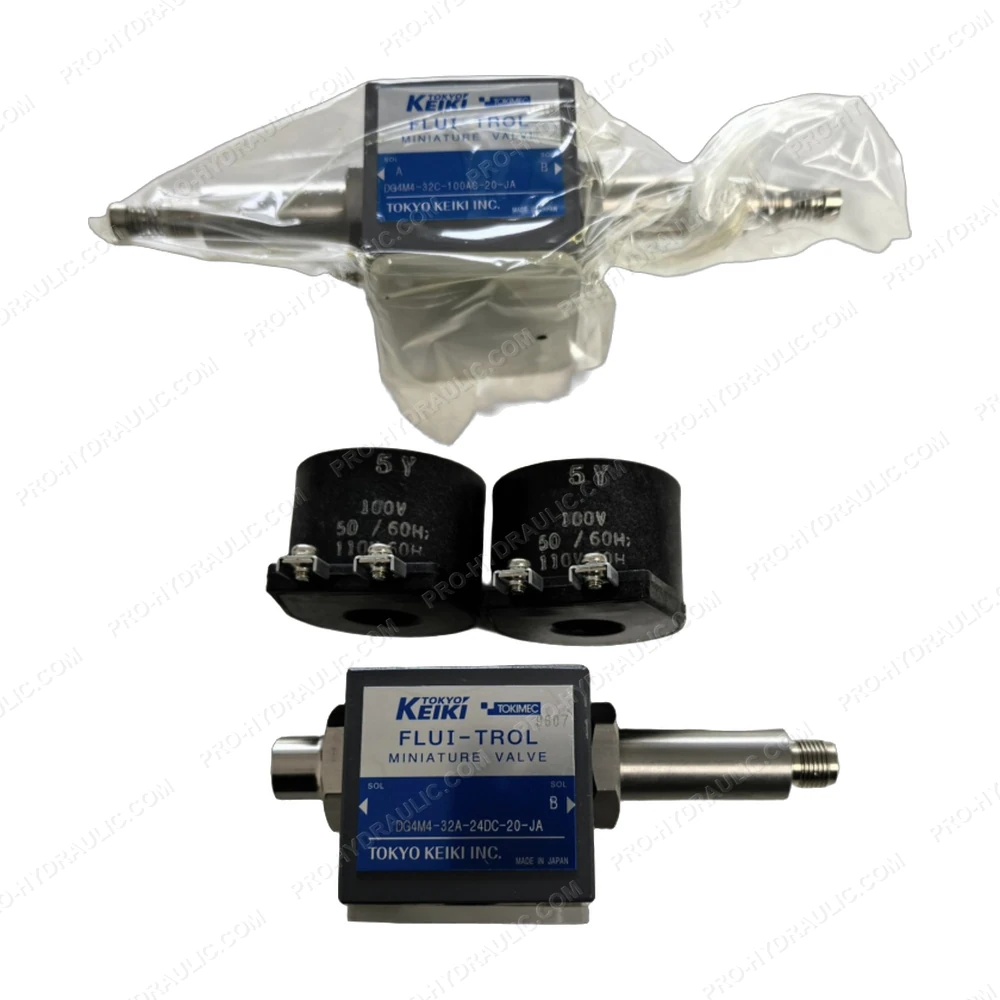

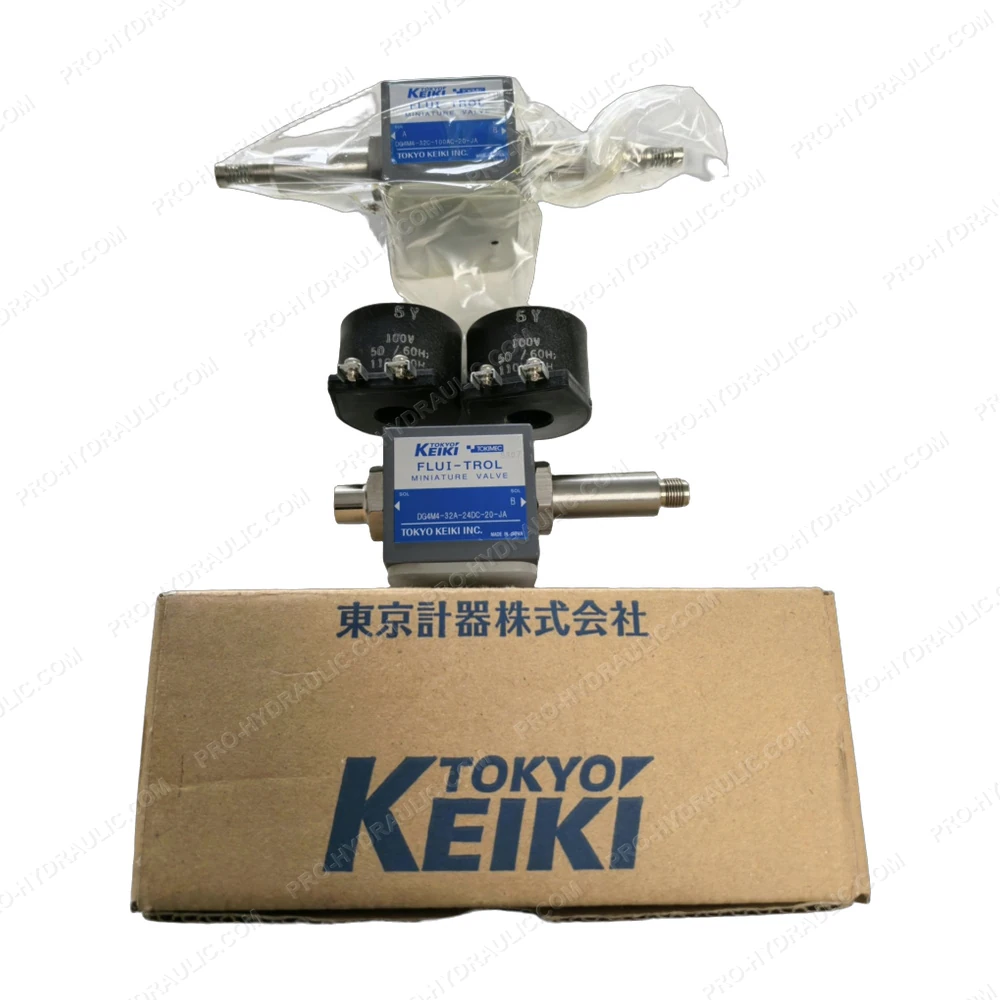

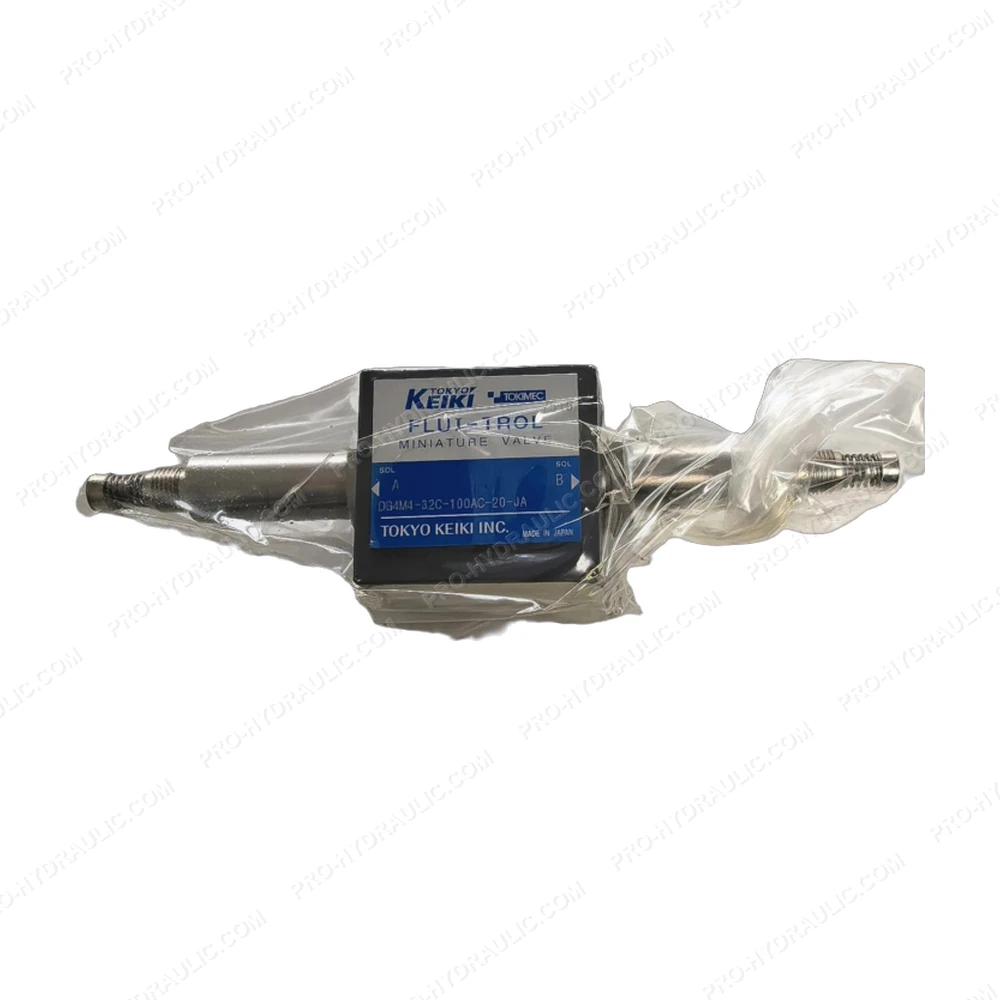

TOKYO KEIKI DG4M4-32A-24DC-20-JA Directional Control Valve
