Product Overview
The TOKYO KEIKI DG4SM-3-2C-P7-H-56 is a high-performance solenoid-operated directional control valve engineered for precise hydraulic circuit switching in demanding industrial environments. Manufactured by TOKYO KEIKI (Tokyo Keiki Inc.), a globally recognized leader in fluid power technology, this valve belongs to the DG4SM series of direct-acting, wet-armature solenoid directional valves. The DG4SM-3-2C-P7-H-56 utilizes a robust spool-type design that directs hydraulic flow to actuate cylinders, motors, and other hydraulic actuators with exceptional response fidelity. Its wet-armature solenoid construction ensures reliable shifting, low noise operation, and long service life, making it a preferred choice for continuous-duty industrial hydraulic systems requiring dependable directional control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Spool Type) |
| Model Designation | DG4SM-3-2C-P7-H-56 |
| Series | TOKYO KEIKI DG4SM Series |
| Spool Configuration | 3-Position, 4-Way (3-2C designation) |
| Actuation Type | Solenoid Actuated (Wet Armature, Direct-Acting) |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Rated Flow | Up to 80 L/min (dependent on spool type and pressure drop) |
| Mounting & Connection | Subplate Mounting, ISO 4401 / CETOP 3 (NG6) Interface |
| Electrical Connection | DIN 43650 Connector (P7 coil designation) |
| Seal Material | NBR (Buna-N) / FKM optional (H designation) |
| Operating Temperature | -20°C to +70°C (standard NBR seals) |
Engineering Features & Advantages
- Precision Performance: The solenoid directional control valve (spool type) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original TOKYO specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
Its wet-armature solenoid construction ensures reliable shifting, low noise operation, and long service life, making it a preferred choice for continuous-duty industrial hydraulic systems requiring dependable directional control.
PRODUCT IMAGES

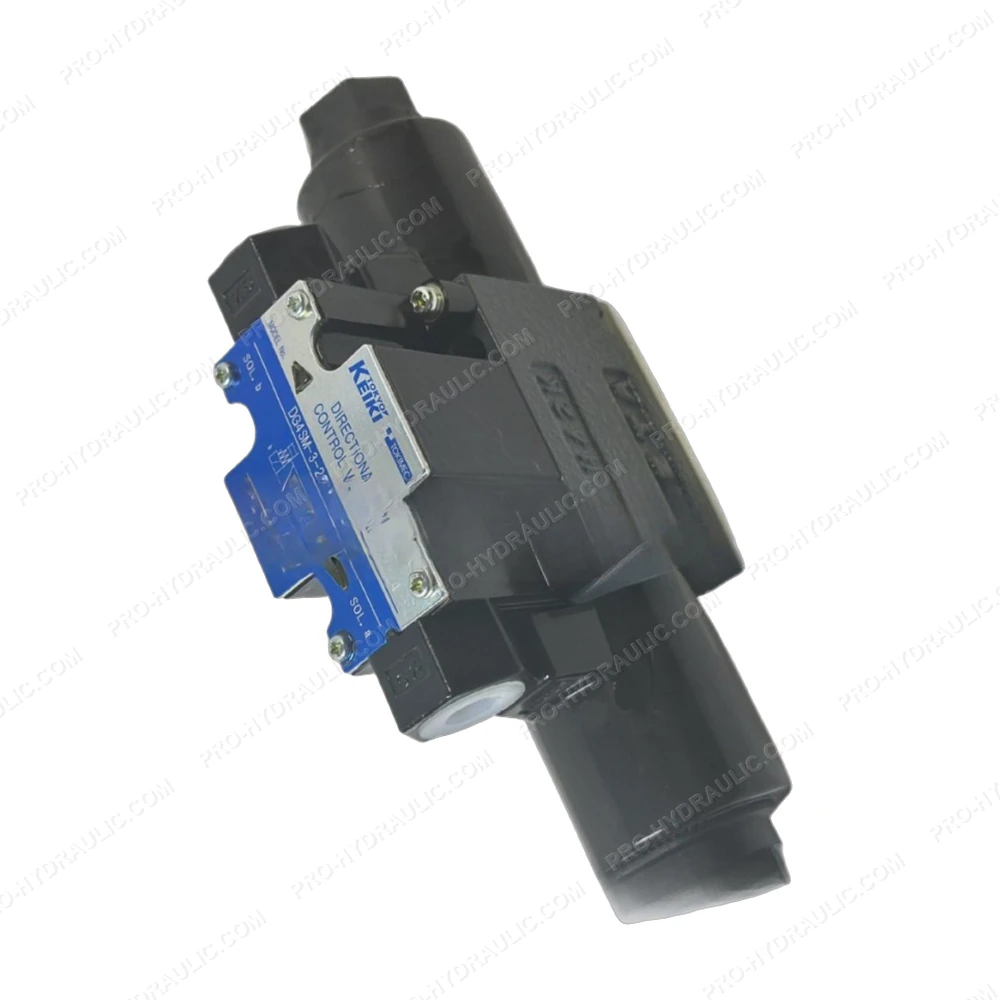

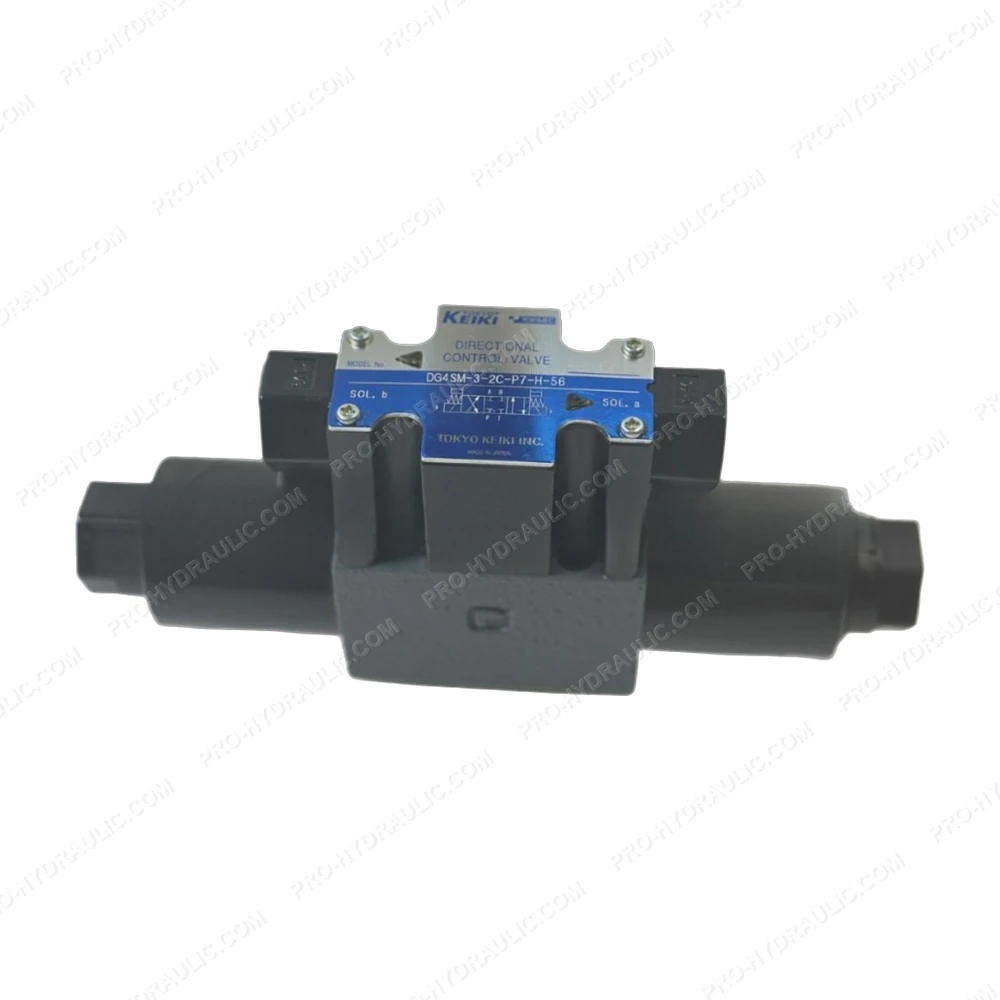

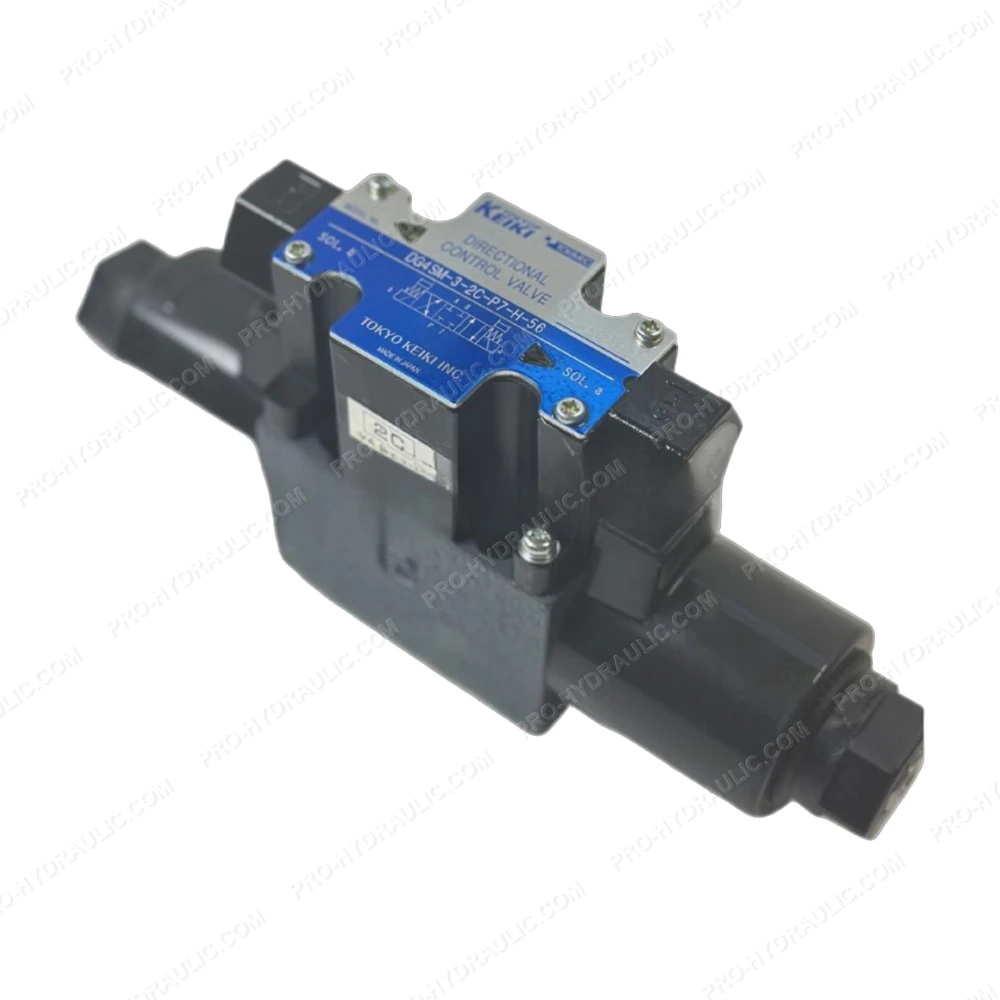

TOKYO KEIKI DG4SM-3-2C-P7-H-56 Solenoid Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TOKYO KEIKI DG4SM-3-2C-P7-H-56 Solenoid Directional Valve. This Japan-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
