Product Overview
The TOKYO KEIKI DG4SM-3-33C-P7-H-56 is a high-performance solenoid-operated directional control valve from the renowned DG4SM series, engineered by Tokyo Keiki (now part of the Nabtesco Group) for precise flow direction control in demanding industrial hydraulic systems. This valve utilizes a robust wet-armature solenoid design with a spring-centered, spring-offset spool configuration, ensuring reliable and repeatable shifting between flow paths. The DG4SM series is widely recognized for its high-pressure capability, low pressure drop, and exceptional spool response characteristics, making it a preferred choice for critical motion control circuits in heavy machinery and automated production equipment. The “P7” designation indicates a specific spool type and flow capacity, while “H-56” denotes the electrical connection and coil rating configuration. This valve serves as a direct-fit replacement for OEM installations and is suitable for both new system designs and maintenance applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve |
| Model Designation | DG4SM-3-33C-P7-H-56 |
| Series | Tokyo Keiki DG4SM Series |
| Actuation Type | Solenoid Actuated, Spring Centered / Spring Offset |
| Spool Configuration | 3-Position, 4-Way (P7 Spool Type) |
| Operating Pressure | Up to 350 bar (5075 psi) Rated |
| Rated Flow | Up to 80 L/min (Nominal, dependent on spool type) |
| Mounting & Connection | Subplate Mounting, ISO 4401 / CETOP 3 (NG6) Interface |
| Electrical Connection | H-56 Configuration (DIN 43650 Connector, Standard Coil Rating) |
| Seal Material | NBR (Buna-N) Standard, Optional FKM Available |
| Fluid Compatibility | Mineral Oil Based Hydraulic Fluids (ISO VG 32-68) |
Engineering Features & Advantages
- Precision Performance: The solenoid directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original TOKYO standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 80 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve serves as a direct-fit replacement for OEM installations and is suitable for both new system designs and maintenance applications.
PRODUCT IMAGES

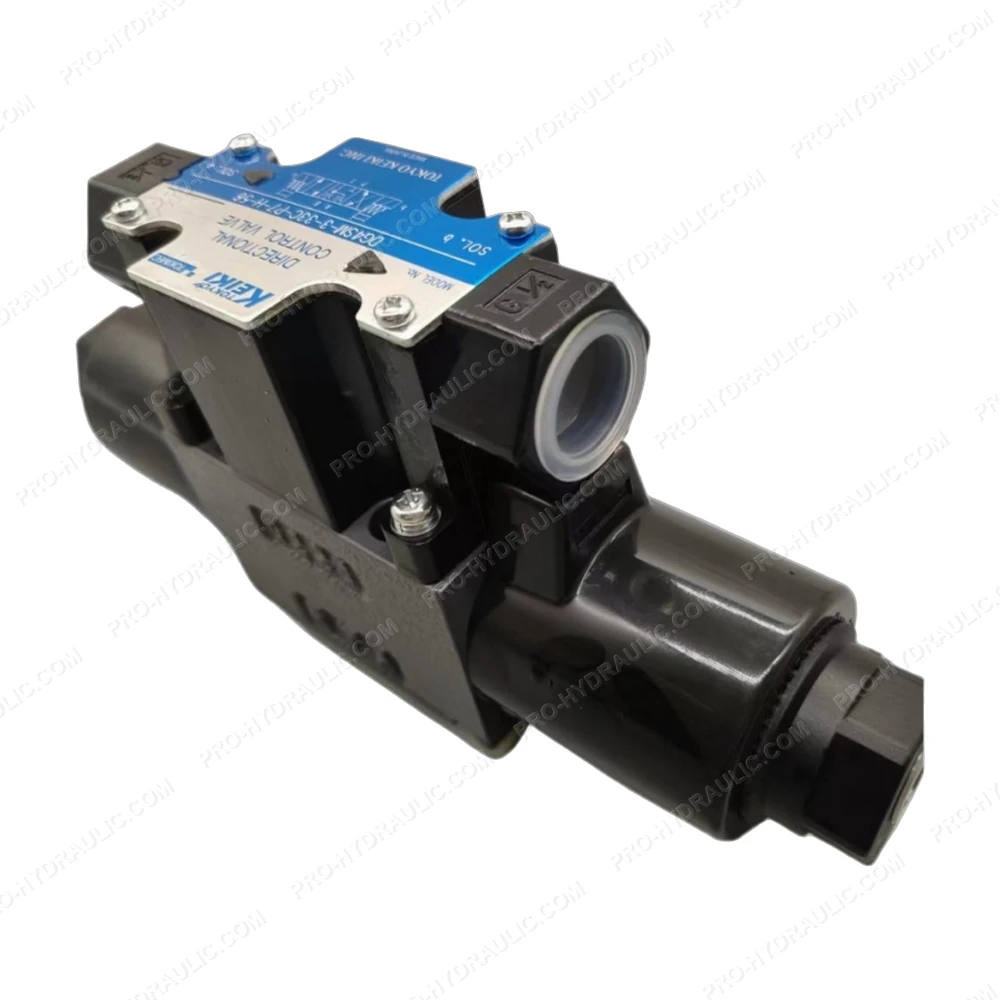

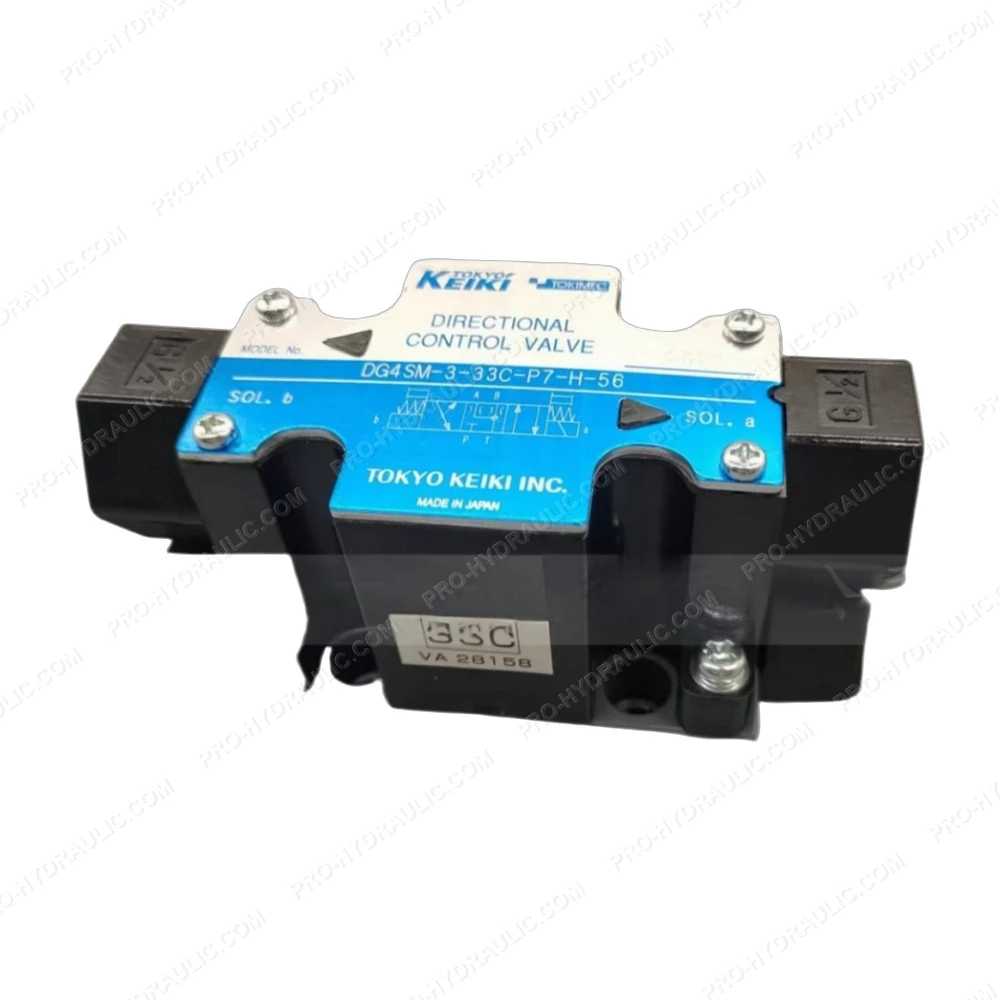

TOKYO KEIKI DG4SM-3-33C-P7-H-56 Solenoid Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TOKYO KEIKI DG4SM-3-33C-P7-H-56 Solenoid Directional Valve. This Japan-made 24V DC hydraulic component features a spring-centered, 4-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
