Product Overview

The TOKYO KEIKI DG4V-3-2A-M-P7-T-7-56-JA48B is a high-performance solenoid operated directional control valve engineered for precise hydraulic flow management in demanding industrial systems. Manufactured by TOKYO KEIKI (Tokyo Keiki Inc.), a globally recognized leader in fluid power technology, this valve belongs to the DG4V-3 series of standard directional control valves. It utilizes a robust wet-armature solenoid design to shift a precision-machined spool within a hardened valve body, directing hydraulic fluid flow to actuate cylinders, motors, or other hydraulic actuators. The “2A” spool configuration provides a specific flow path arrangement, while the “M” designation indicates a manual override feature for emergency or maintenance operation. With a “P7” high-pressure rating and “T-7” spring return configuration, this valve delivers reliable, repeatable performance in continuous-duty industrial applications. The “56” designates the specific solenoid coil rating, and “JA48B” indicates the electrical connection type. This valve is a direct-fit replacement for OEM TOKYO KEIKI and compatible systems, ensuring minimal downtime and optimal system integrity.

Technical Specifications

ParameterSpecification / Feature
Component TypeSolenoid Operated Directional Control Valve
Model DesignationDG4V-3-2A-M-P7-T-7-56-JA48B
SeriesDG4V-3 (Standard Directional Control Valve)
Spool Configuration2A (Specific flow path arrangement)
Actuation TypeSolenoid Operated with Manual Override (“M”)
Operating PressureUp to 350 bar (P7 rating, standard industrial grade)
Return TypeSpring Return (T-7 configuration)
Solenoid Coil Rating56 (Specific voltage/current rating)
Electrical ConnectionJA48B (Standard industrial connector)
Mounting & ConnectionStandard ISO / Manufacturer Interface (Subplate mounting)
Seal MaterialNBR (Nitrile) / FKM (Viton) options available

Engineering Features & Advantages

  • Precision Performance: The solenoid operated directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
  • Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
  • Direct Fit Replacement: Exact dimensional and functional compatibility with original TOKYO standards, allowing straightforward retrofit into existing hydraulic systems without rework.
  • Rated Capability: Rated for pressure ratings up to 350 bar, supporting stable operation across the full working range.

Typical Industrial Applications

This valve is a direct-fit replacement for OEM TOKYO KEIKI and compatible systems, ensuring minimal downtime and optimal system integrity.

PRODUCT IMAGES

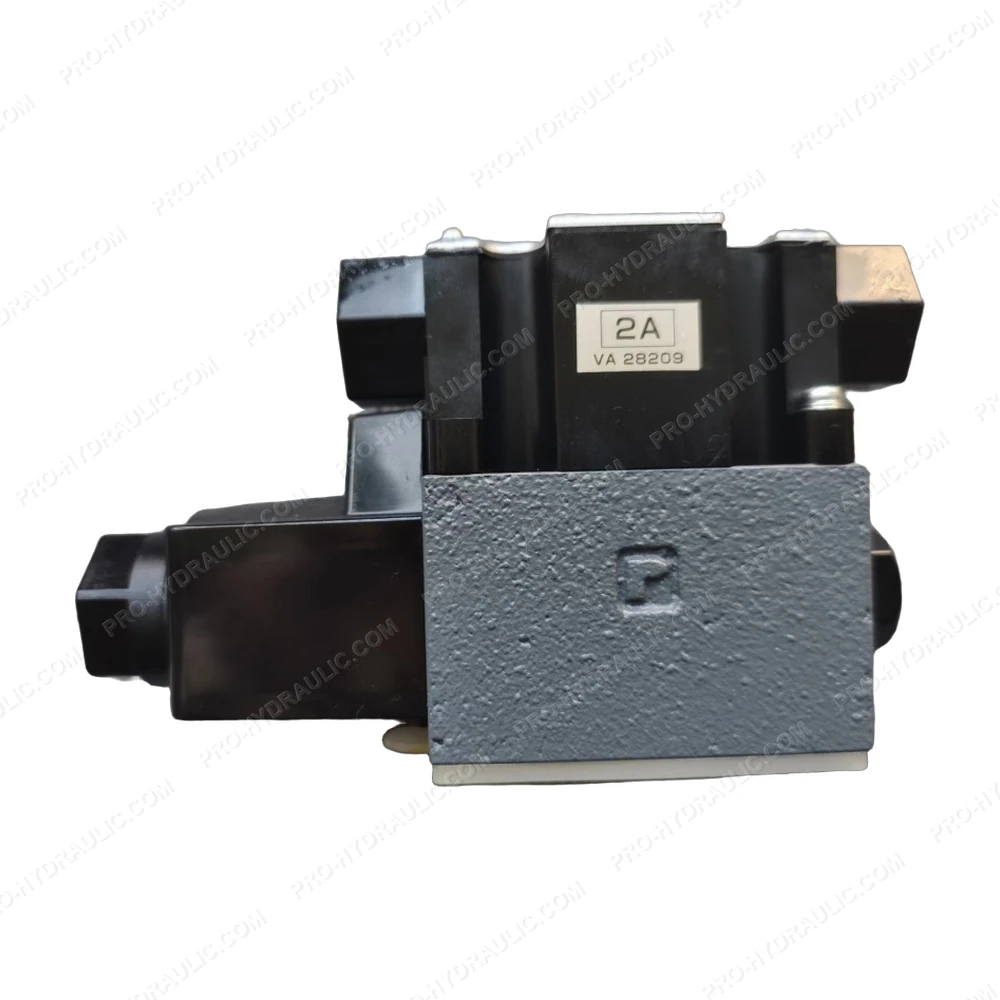

TOKYO KEIKI DG4V-3-2A-M-P7-T-7-56-JA48B

TOKYO KEIKI DG4V-3-2A-M-P7-T-7-56-JA48B Solenoid Operated Directional Control Valve

⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:

  • Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
  • Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
  • Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
  • Peace of Mind: Covered by our 12-Month Replacement Warranty.

Shop the genuine TOKYO KEIKI DG4V-3-2A-M-P7-T-7-56-JA48B Solenoid Directional Control Valve. This Japan-made hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
