Product Overview
The TOKYO KEIKI DG4V-3-2A-U-H-100 is a high-performance, solenoid-operated directional control valve engineered for precise hydraulic flow management in demanding industrial systems. Manufactured by TOKYO KEIKI (Tokyo Keiki Inc.), a globally recognized leader in fluid power technology, this valve belongs to the DG4V-3 series of wet-armature, direct-acting solenoid valves. The DG4V-3-2A-U-H-100 features a robust 4-way, 3-position spool configuration designed to direct hydraulic fluid flow to actuate cylinders, motors, and other hydraulic actuators with exceptional response and reliability. The “2A” spool type provides a specific flow path configuration (P to A/B to T in the energized state), while the “U” designation indicates a 110V AC solenoid coil rating (or equivalent per manufacturer code). The “H-100” suffix denotes a high-performance variant with specific pressure and flow characteristics. This valve is a critical component in industrial hydraulic circuits, offering dependable directional control for continuous-duty applications where precision and longevity are paramount.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve (4-Way, 3-Position) |
| Model Designation | DG4V-3-2A-U-H-100 |
| Manufacturer | TOKYO KEIKI |
| Spool Configuration | 2A Spool Type (Standard Open Center or Closed Center per DG4V-3 Series) |
| Operating Pressure | Up to 350 bar (5075 psi) Rated Working Pressure |
| Rated Flow | Up to 40 L/min (10.5 GPM) Nominal |
| Solenoid Voltage | 110V AC (U Coil Designation) or per Model Code |
| Mounting & Connection | Standard ISO 4401 / CETOP 3 / NG6 Subplate Mounting Interface |
| Seal Material | Nitrile (Buna-N) or Viton (FKM) per Application |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) Ambient |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional control valve (4-way, 3-position) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original TOKYO standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
This valve is a critical component in industrial hydraulic circuits, offering dependable directional control for continuous-duty applications where precision and longevity are paramount.
PRODUCT IMAGES

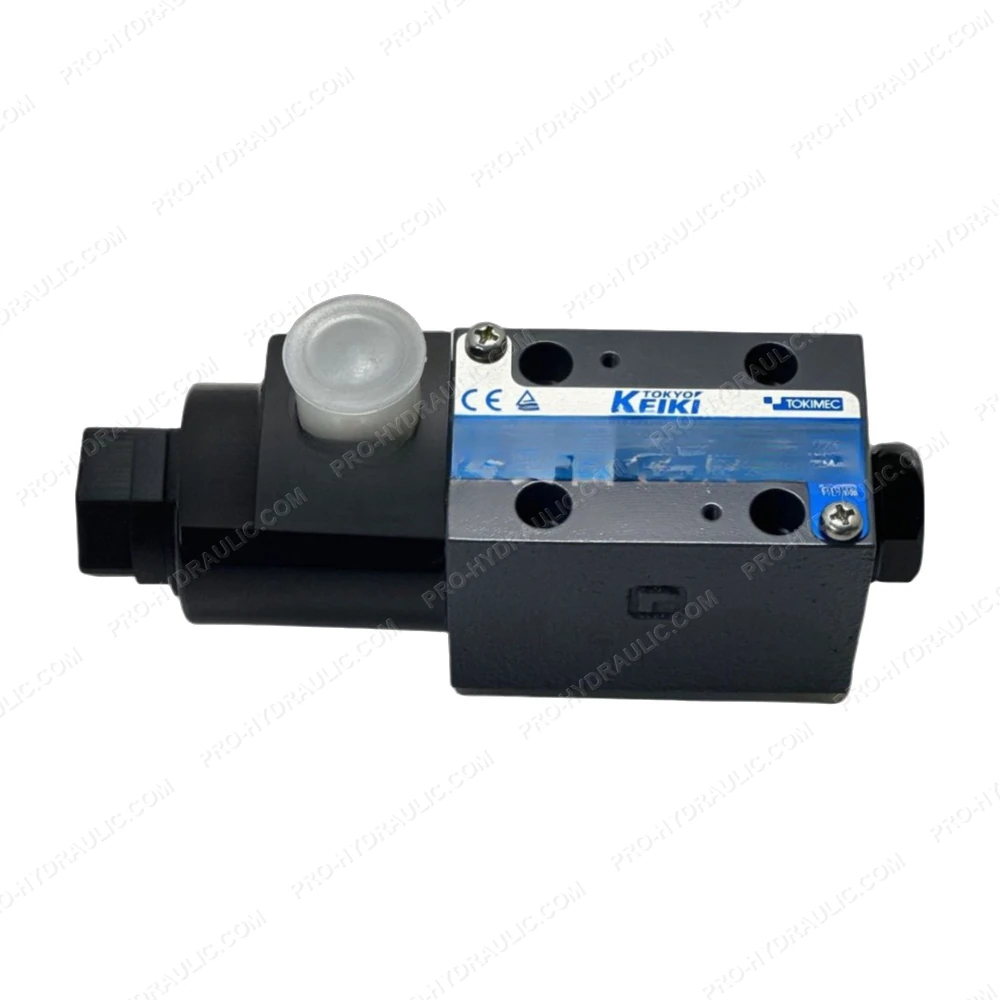

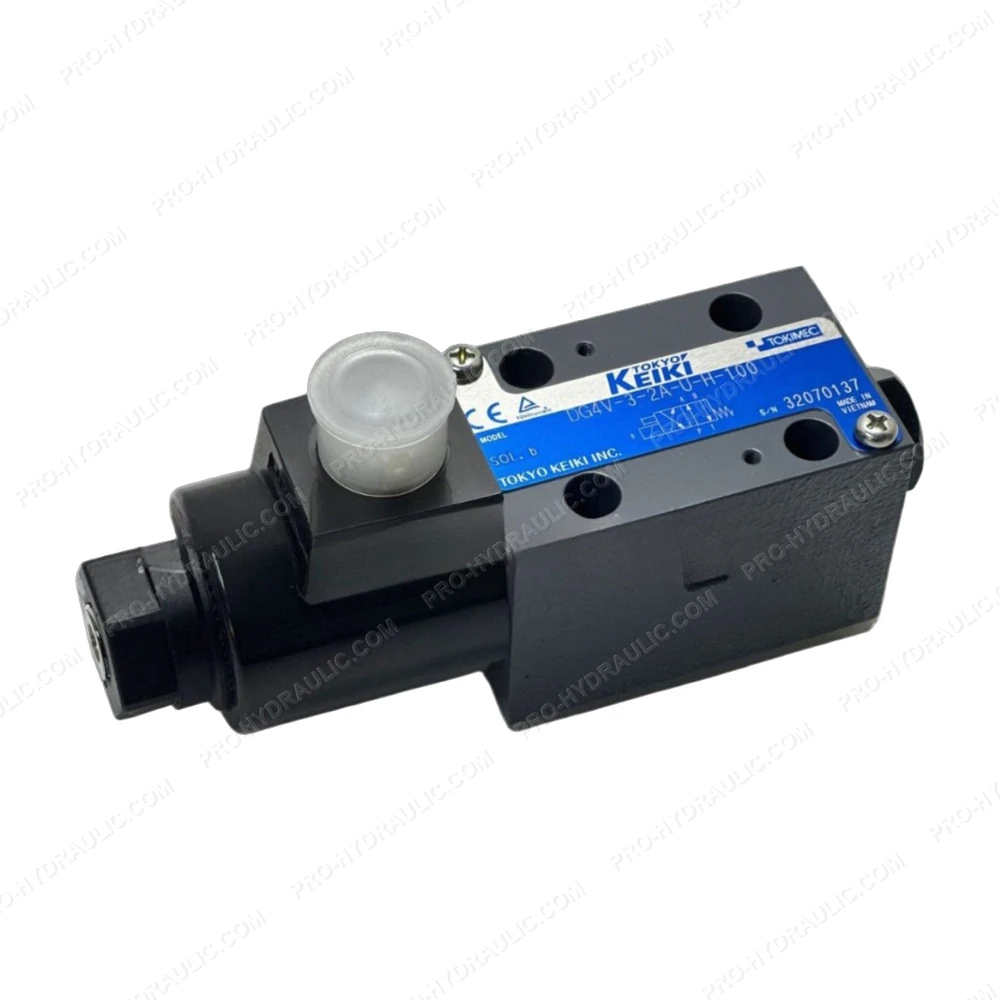

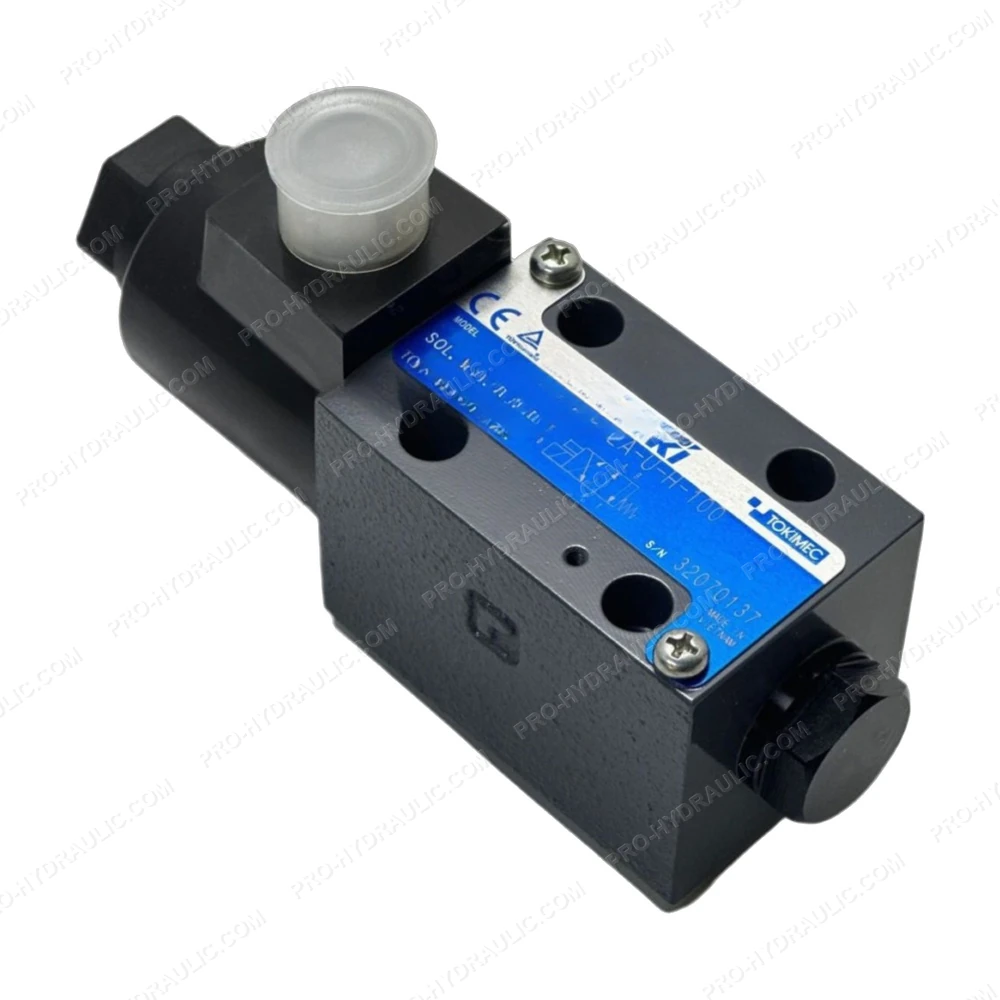

TOKYO KEIKI DG4V-3-2A-U-H-100 Solenoid Operated Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TOKYO KEIKI DG4V-3-2A-U-H-100 Solenoid Operated Directional Valve. This Japan-made 100V AC hydraulic component features a 4-way, 3-position design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
