Product Overview

The TOKYO KEIKI DG4V-3-2C-M-P7-T-7-54 is a high-performance solenoid operated directional control valve engineered for precise hydraulic flow management in demanding industrial systems. Manufactured by TOKYO KEIKI (Tokyo Keiki Inc.), a globally recognized leader in fluid power technology, this valve utilizes a robust wet-armature solenoid design to shift a precision-machined spool within a hardened valve body. The DG4V-3 series is renowned for its reliable shifting characteristics, low pressure drop, and long service life, making it a critical component for controlling the start, stop, and direction of hydraulic actuators in complex machinery.

Technical Specifications

ParameterSpecification / Feature
Component TypeSolenoid Operated Directional Control Valve
Model DesignationDG4V-3-2C-M-P7-T-7-54
Operating PressureUp to 350 bar (5075 psi) rated working pressure
Mounting & ConnectionISO 4401 / CETOP 3 (NG6) Subplate Mounting
Spool Configuration2C (Two-position, four-way, closed center)
Actuation TypeSolenoid Operated (Wet Armature, High Force)
Electrical ConnectionDIN 43650 Connector (P7 Terminal Box)
Seal MaterialNBR (Buna-N) / FKM (Viton) Options Available

Engineering Features & Advantages

  • Precision Spool & Sleeve Design: The precision-ground spool and honed sleeve assembly ensures minimal internal leakage and precise metering characteristics, delivering consistent actuator control and reduced system heat generation.
  • High-Force Wet Armature Solenoid: The wet-armature solenoid design provides high shifting forces with excellent resistance to contamination, ensuring reliable operation even in high-cycle industrial environments.
  • Low Pressure Drop: Optimized internal flow paths minimize pressure loss across the valve, improving overall system efficiency and reducing energy consumption.
  • Industrial Reliability: Built for continuous operation under severe industrial conditions, with a hardened valve body and robust coil insulation for extended service life.
  • Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring seamless integration into existing hydraulic manifolds and systems.

Typical Industrial Applications

This TOKYO KEIKI directional control valve is ideal for a wide range of heavy industrial applications, including plastic injection molding machines, metallurgical presses, CNC machine tools, construction and marine hydraulics, and automated assembly lines requiring precise directional control of hydraulic cylinders and motors.

PRODUCT IMAGES

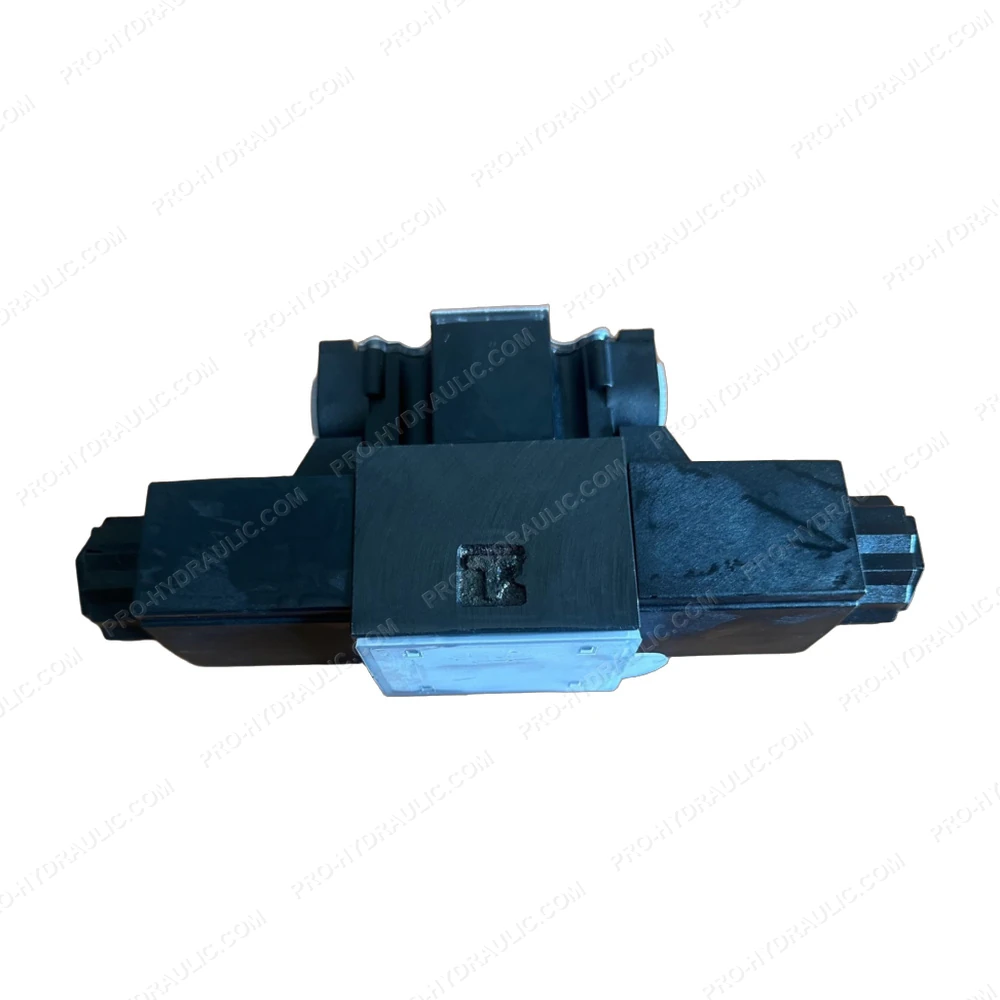

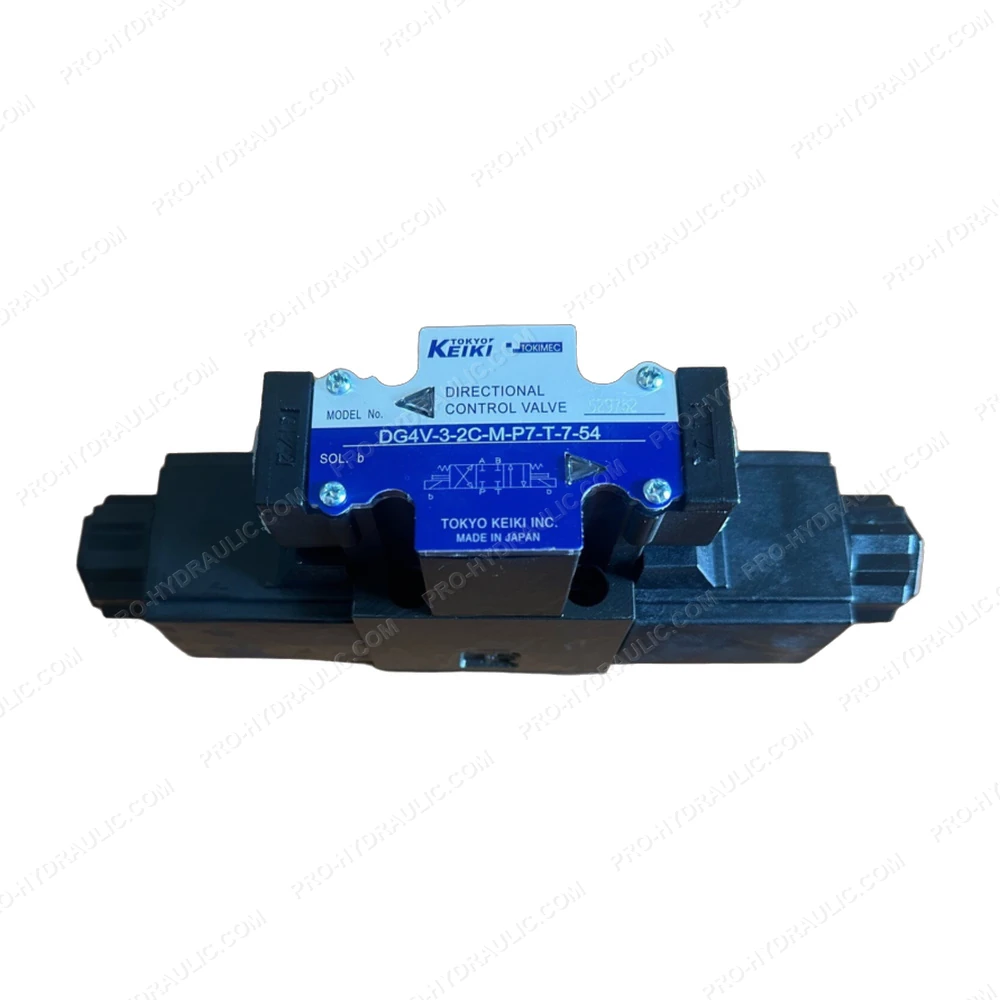

TOKYO KEIKI DG4V-3-2C-M-P7-T-7-54
TOKYO KEIKI DG4V-3-2C-M-P7-T-7-54

TOKYO KEIKI DG4V-3-2C-M-P7-T-7-54 Solenoid Operated Directional Control Valve

⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:

  • Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
  • Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
  • Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
  • Peace of Mind: Covered by our 12-Month Replacement Warranty.

Shop the genuine TOKYO KEIKI DG4V-3-2C-M-P7-T-7-54 Solenoid Directional Control Valve. This Japan-made hydraulic component features a 4-way, 2-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
