Product Overview
The TOKYO KEIKI DG4V-3-2N-M-U7-H-7-54 is a high-performance, solenoid-operated directional control valve engineered for precise hydraulic flow management in demanding industrial systems. Manufactured by TOKYO KEIKI (Tokyo Keiki Inc.), a globally recognized leader in fluid power technology, this valve belongs to the DG4V-3 series, a family of direct-acting, wet-armature solenoid valves designed for reliable switching and directional control of hydraulic actuators. The DG4V-3-2N-M-U7-H-7-54 features a robust spool-type design that directs pressurized fluid to specific ports based on electrical solenoid actuation, enabling precise control of cylinder extension, retraction, and holding functions. Its compact, modular construction allows for seamless integration into manifold-based hydraulic circuits, making it an ideal choice for applications requiring fast response, low leakage, and long service life. The valve is engineered to meet stringent industrial standards, ensuring compatibility with a wide range of hydraulic power units and control systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DG4V-3-2N-M-U7-H-7-54 |
| Series | DG4V-3 (Direct-Acting, Wet Armature) |
| Spool Configuration | 2N (Two-Position, Spring Offset, Closed Center) |
| Actuation Type | Solenoid Operated (Single or Dual Solenoid) |
| Operating Pressure | Up to 350 bar (5075 psi) Rated |
| Rated Flow | Up to 40 L/min (10.5 GPM) at 70 bar |
| Mounting & Connection | ISO 4401-03 (CETOP 3 / NFPA D03) Subplate Mounting |
| Electrical Connection | DIN 43650 Connector (U7 Coil Rating) |
| Seal Material | Nitrile (NBR) / Fluorocarbon (FKM) Options |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original TOKYO OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 40 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The valve is engineered to meet stringent industrial standards, ensuring compatibility with a wide range of hydraulic power units and control systems.
PRODUCT IMAGES

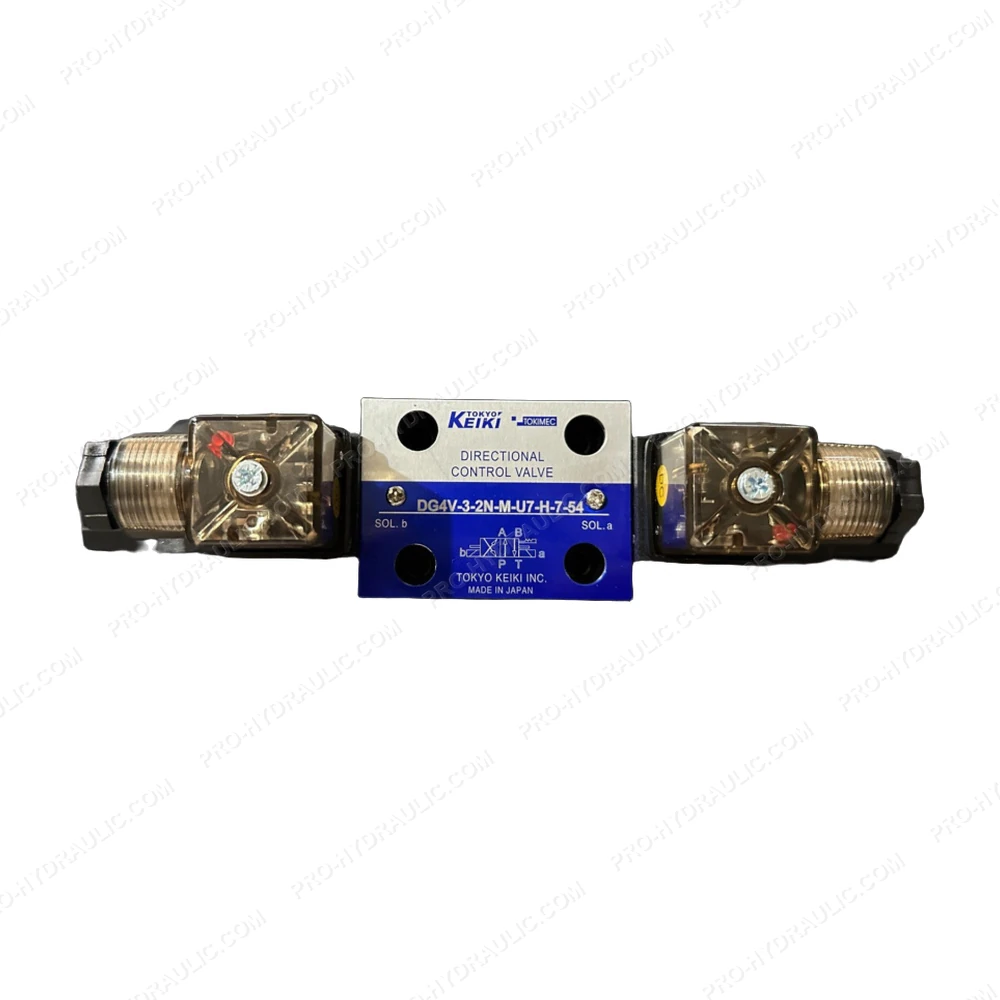

TOKYO KEIKI DG4V-3-2N-M-U7-H-7-54 Solenoid Operated Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TOKYO KEIKI DG4V-3-2N-M-U7-H-7-54 Solenoid Directional Control Valve. This Japan-made hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
