Product Overview
The TOKYO KEIKI DG4V-3-2N-U-H-100 is a high-performance solenoid operated directional control valve engineered for precise hydraulic flow management in industrial systems. Manufactured by TOKYO KEIKI (Tokyo Keiki Inc.), a globally recognized leader in fluid power technology, this valve belongs to the DG4V-3 series of standard directional control valves. It utilizes a wet-armature solenoid design to shift a precision-machined spool within the valve body, directing hydraulic flow between ports to control actuator movement, start, stop, and direction. The DG4V-3-2N-U-H-100 is a direct-operated, spring-centered valve with a 2-position configuration, delivering reliable switching performance and low-pressure drop. Its robust construction and ISO-compliant mounting interface make it a direct drop-in replacement for demanding industrial hydraulic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DG4V-3-2N-U-H-100 |
| Series | DG4V-3 (Standard Directional Control Valve) |
| Spool Configuration | 2-Position, Spring Centered / Spring Offset |
| Actuation Type | Solenoid Operated (Wet Armature) |
| Operating Pressure | Up to 315 bar (Standard Industrial Grade) |
| Rated Flow | Up to 40 L/min (Nominal) |
| Mounting & Connection | ISO 4401 / CETOP 3 / NG6 Subplate Interface |
| Electrical Supply | Standard Industrial Solenoid Voltage (e.g., 24V DC / 110V AC / 220V AC) |
| Seal Material | NBR / FKM (Standard Hydraulic Fluid Compatible) |
Engineering Features & Advantages
- Precision Spool & Sleeve Assembly: The precision-ground spool and honed sleeve provide minimal internal leakage, low hysteresis, and accurate flow metering for repeatable directional control.
- Wet-Armature Solenoid Design: Ensures smooth, quiet operation, reduced wear, and efficient heat dissipation, extending solenoid life under continuous duty cycles.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original TOKYO OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
Its robust construction and ISO-compliant mounting interface make it a direct drop-in replacement for demanding industrial hydraulic circuits.
PRODUCT IMAGES

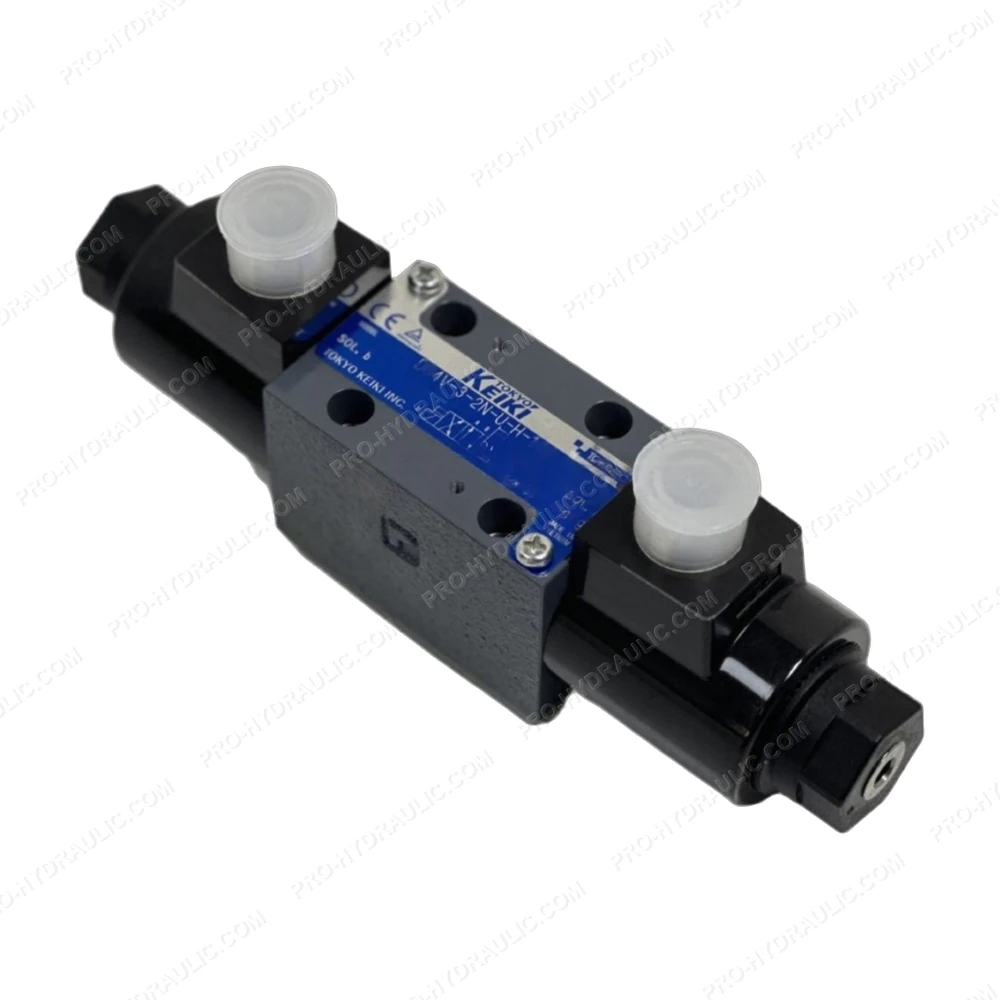

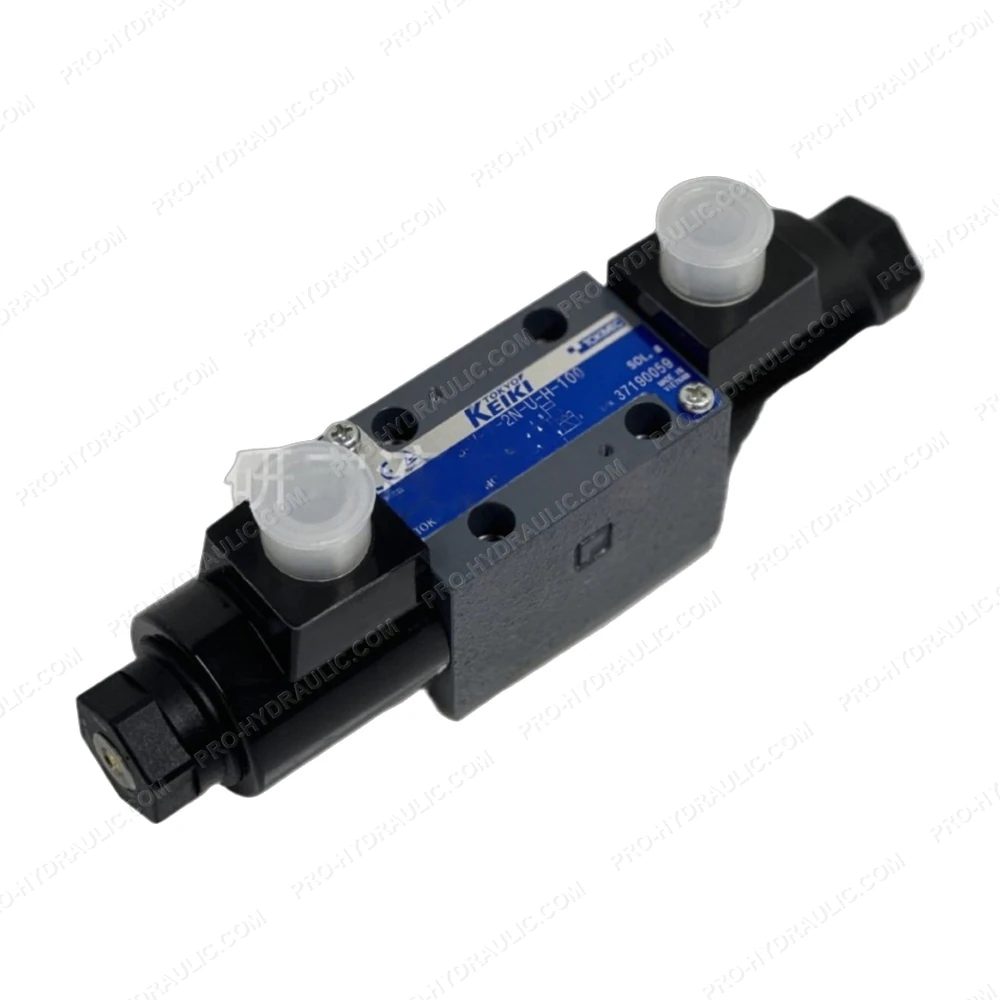

TOKYO KEIKI DG4V-3-2N-U-H-100 Solenoid Operated Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TOKYO KEIKI DG4V-3-2N-U-H-100 Solenoid Operated Directional Valve. This Japan-made 100V AC hydraulic component features a 4-way, 3-position design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
