Product Overview
The TOKYO KEIKI DG4V-3-6C-M-U1-H-7-52 is a high-performance, solenoid-operated directional control valve engineered for precise hydraulic flow management in demanding industrial systems. Manufactured by Tokyo Keiki (a globally recognized authority in fluid power technology), this valve belongs to the DG4V-3 series, a family of direct-acting, wet-armature solenoid valves designed for reliable switching and directional control of hydraulic actuators. The DG4V-3-6C-M-U1-H-7-52 features a robust spool-type design that directs pressurized fluid to specific ports based on the electrical signal applied to the solenoid, enabling smooth start, stop, and reversal of hydraulic cylinders and motors. With its compact footprint, high flow capacity relative to size, and exceptional response characteristics, this valve is a critical component in complex hydraulic circuits requiring precise directional control and dependable long-term operation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve (Standard Directional Control Valve) |
| Model Designation | DG4V-3-6C-M-U1-H-7-52 |
| Spool Configuration | 6C (Closed Center, All Ports Blocked in Neutral) |
| Actuation Type | Solenoid Operated (Wet Armature, Direct Acting) |
| Operating Pressure | Up to 350 bar (5075 psi) rated for industrial hydraulic service |
| Rated Flow | Up to 40 L/min (10.5 GPM) nominal at 70 bar pressure drop |
| Mounting & Connection | Standard ISO 4401 / CETOP 3 (NG6) Subplate Mounting Interface |
| Electrical Supply | Standard Industrial Voltage (e.g., 24V DC or 110/220V AC – consult factory for specific coil rating) |
| Seal Material | Nitrile (Buna-N) / Fluorocarbon (Viton) options for fluid compatibility |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The DG4V-3 series utilizes a precision-ground spool and honed sleeve assembly that ensures minimal internal leakage, low hysteresis, and repeatable directional control for accurate actuator positioning.
- High Response Solenoid Actuation: The wet-armature solenoid design provides fast, consistent shifting times with high force output, enabling rapid cycle times in automated hydraulic systems while reducing electrical power consumption.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original TOKYO specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The TOKYO KEIKI DG4V-3-6C-M-U1-H-7-52 is a high-performance, solenoid-operated directional control valve engineered for precise hydraulic flow management in demanding industrial systems.
PRODUCT IMAGES

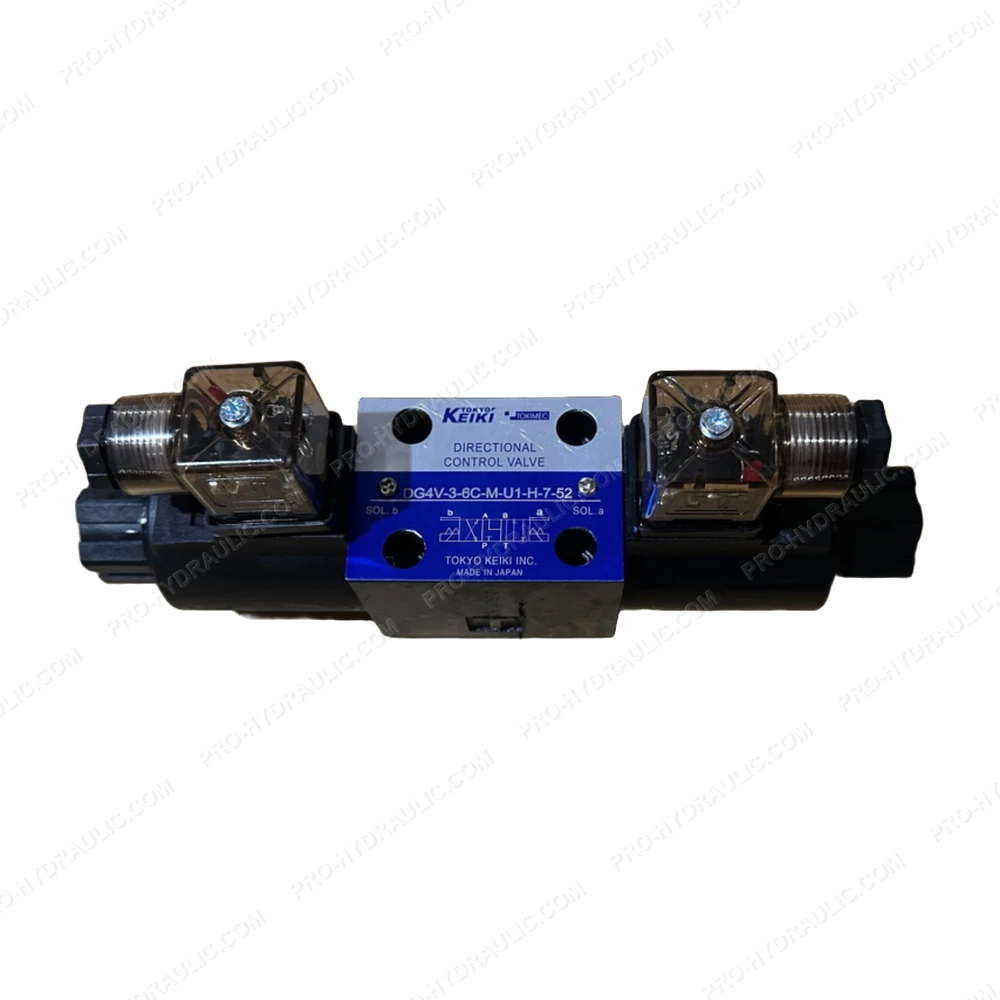

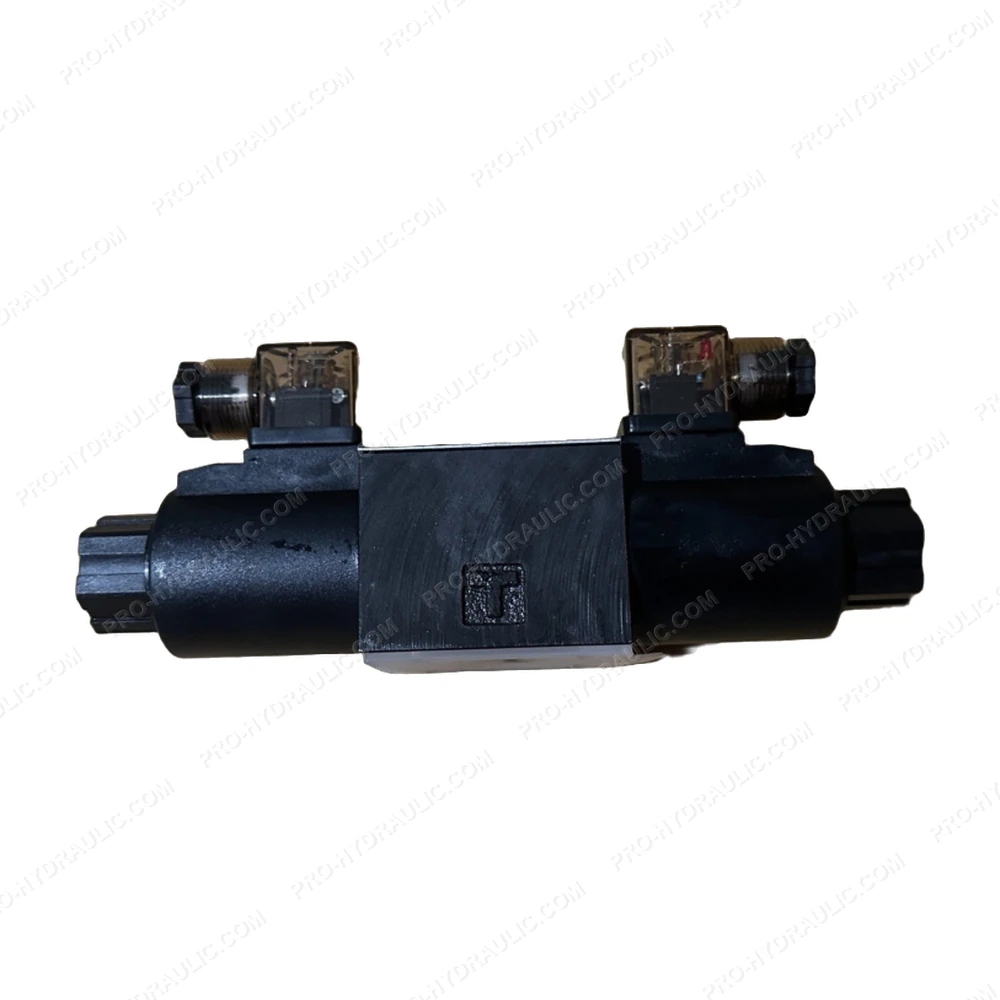

TOKYO KEIKI DG4V-3-6C-M-U1-H-7-52 Solenoid Operated Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TOKYO KEIKI DG4V-3-6C-M-U1-H-7-52 Solenoid Directional Control Valve. This Japan-made hydraulic component features a 4-way spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
