Product Overview
The TOKYO KEIKI DG4V-3-6C-U-H-100 is a high-performance, solenoid-operated directional control valve engineered for precise hydraulic flow management in demanding industrial circuits. Manufactured by Tokyo Keiki (a globally recognized authority in fluid power technology), this valve utilizes a robust wet-armature solenoid design and a precision-ground spool to direct pressurized fluid flow, start, stop, and reverse actuators with exceptional repeatability. The DG4V-3 series is a direct, drop-in equivalent to the industry-standard NFPA D03 / CETOP 3 / ISO 4401-03 mounting pattern, making it a versatile solution for manifold and subplate installations. The “6C” spool configuration provides a closed-center, tandem or blocked-port function (depending on specific circuit logic), ensuring reliable load holding and precise actuator control in continuous-duty industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve (Standard) |
| Model Designation | DG4V-3-6C-U-H-100 |
| Mounting Interface | ISO 4401-03 / CETOP 3 / NFPA D03 (Subplate or Manifold Mounted) |
| Spool Configuration | “6C” Spool Type (Closed Center / Tandem Logic) |
| Operating Pressure | Up to 350 bar (5075 psi) Rated Working Pressure |
| Rated Flow Capacity | Up to 40 L/min (10.5 GPM) Nominal |
| Solenoid Voltage | “U” Coil Code (Standard Industrial AC/DC Voltage Options) |
| Electrical Connection | DIN 43650 / ISO 4400 Plug Connector |
| Seal Material | “H” Code (NBR / Buna-N Standard for Mineral Oil) |
| Design Number | 100 Series (Standard Production Release) |
Engineering Features & Advantages
- Precision Spool & Sleeve Assembly: The “6C” spool is precision-ground and matched to the valve body bore, ensuring minimal internal leakage, precise metering characteristics, and smooth, stick-slip-free operation even at low flow rates.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original TOKYO specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The “6C” spool configuration provides a closed-center, tandem or blocked-port function (depending on specific circuit logic), ensuring reliable load holding and precise actuator control in continuous-duty industrial environments.
PRODUCT IMAGES

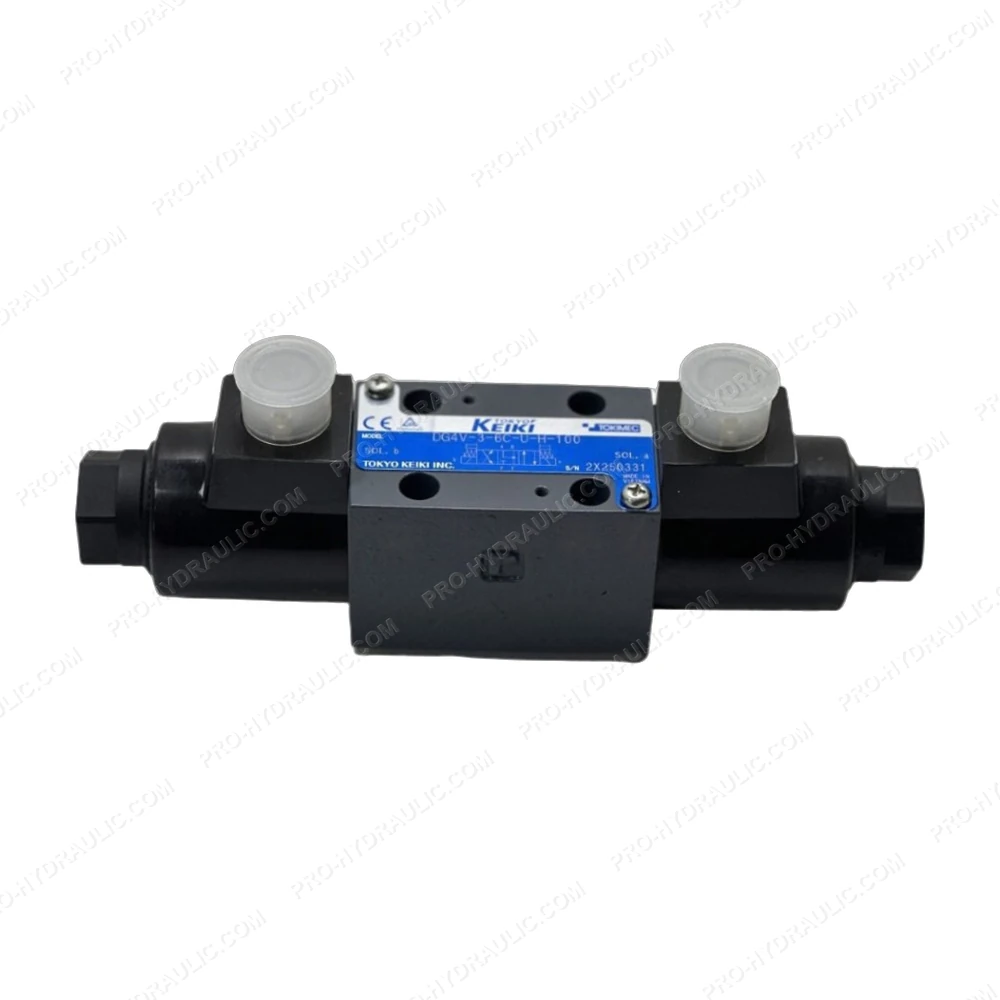

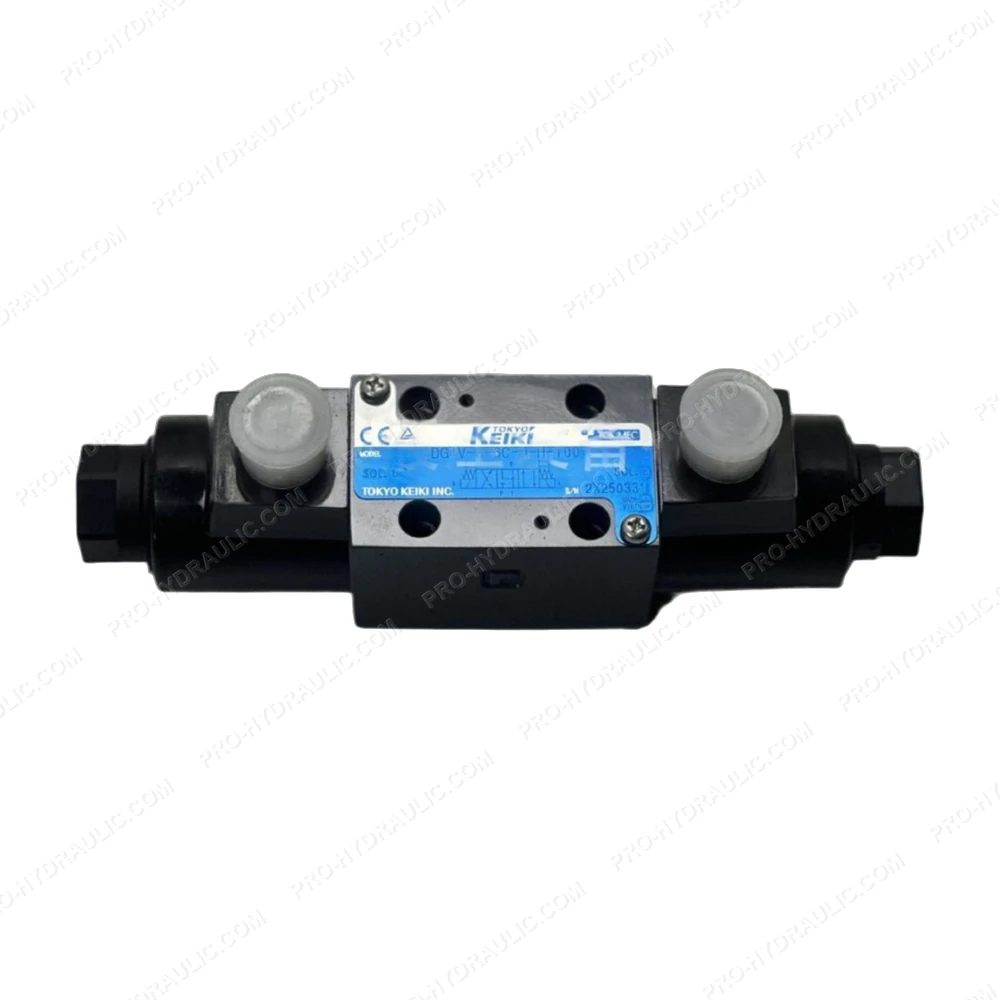

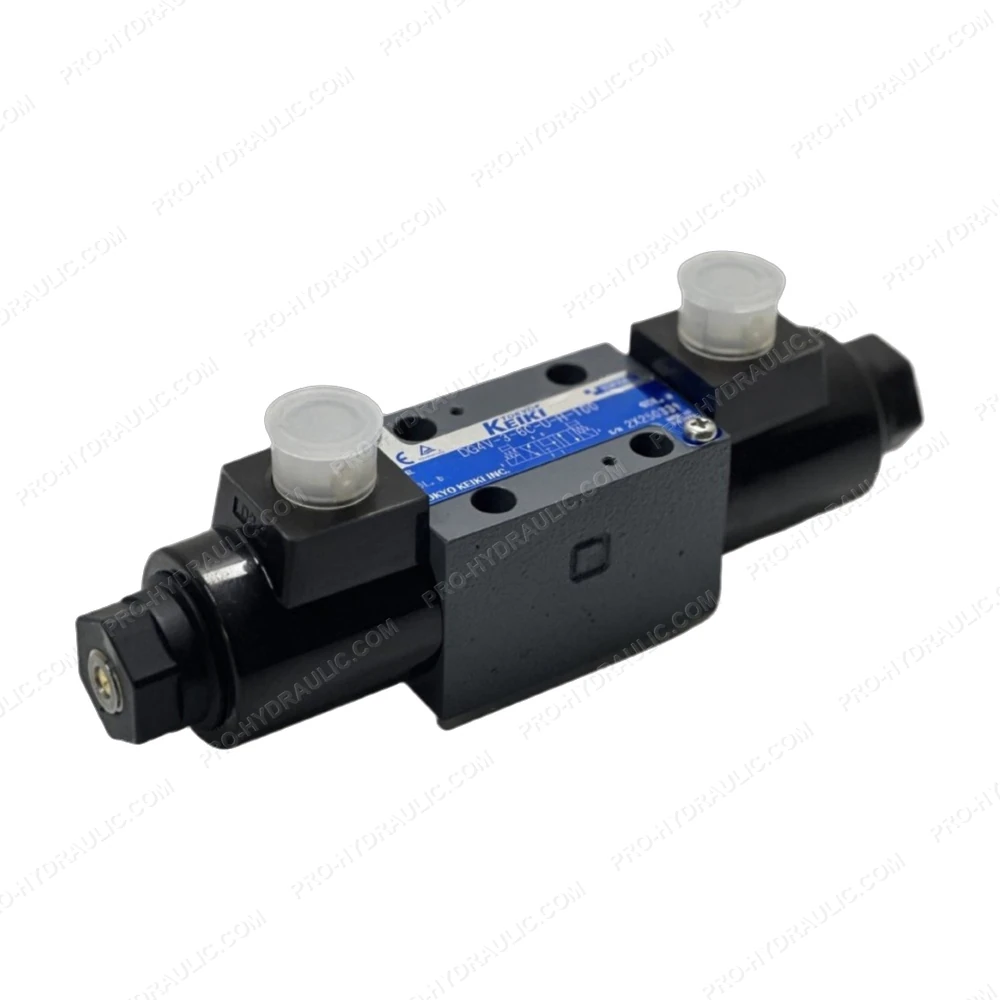

TOKYO KEIKI DG4V-3-6C-U-H-100 Solenoid Operated Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TOKYO KEIKI DG4V-3-6C-U-H-100 Solenoid Operated Directional Valve. This Japan-made 100V AC hydraulic component features a spring-centered, solenoid-actuated spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
