Product Overview
The TOKYO KEIKI DG4VC-3-2N-M-PN2-H-7-P10-56-JA872 is a high-performance solenoid operated directional control valve from the renowned DG4VC series, engineered for precise control of hydraulic fluid flow direction in demanding industrial circuits. This valve utilizes a robust wet-armature solenoid design and a precision-machined spool within a high-grade cast iron body to deliver reliable directional switching, holding, and load control functions. As a standard directional control valve, it serves as a critical control element in hydraulic power units, enabling actuator extension, retraction, and neutral bypass operations with minimal pressure drop and excellent repeatability.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DG4VC-3-2N-M-PN2-H-7-P10-56-JA872 |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Mounting & Connection | Standard ISO 4401 / CETOP 3 Subplate Interface |
| Spool Configuration | 3-Position, 4-Way, Spring Centered |
| Actuation Type | Dual Wet-Armature Solenoid, Push-Pin Actuated |
| Max Flow Rate | Up to 60 L/min (dependent on spool variant) |
| Electrical Connection | DIN 43650 / ISO 4400 Plug Connector |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, ground, and honed spool ensures minimal internal leakage, precise flow metering, and consistent directional response across the full pressure range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust cast iron body and wet-armature solenoids that resist contamination and thermal stress.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including ISO 4401 mounting patterns and standardized solenoid voltage options.
- Low Pressure Drop: Optimized internal flow passages minimize energy loss and heat generation, improving overall system efficiency.
- Fast Response & Long Service Life: High-force solenoid design delivers rapid spool shifting, while spring centering ensures reliable return to neutral in power-off conditions.
Typical Industrial Applications
This directional control valve is widely deployed in plastic injection molding machines for mold open/close and injection sequence control, metallurgical presses for ram advance and retract circuits, construction and marine hydraulic systems for boom, bucket, and steering actuation, and CNC machine tools for tool clamping, pallet changing, and axis positioning. Its robust construction and precise spool control also make it suitable for hydraulic power units, test stands, and other demanding industrial automation
PRODUCT IMAGES

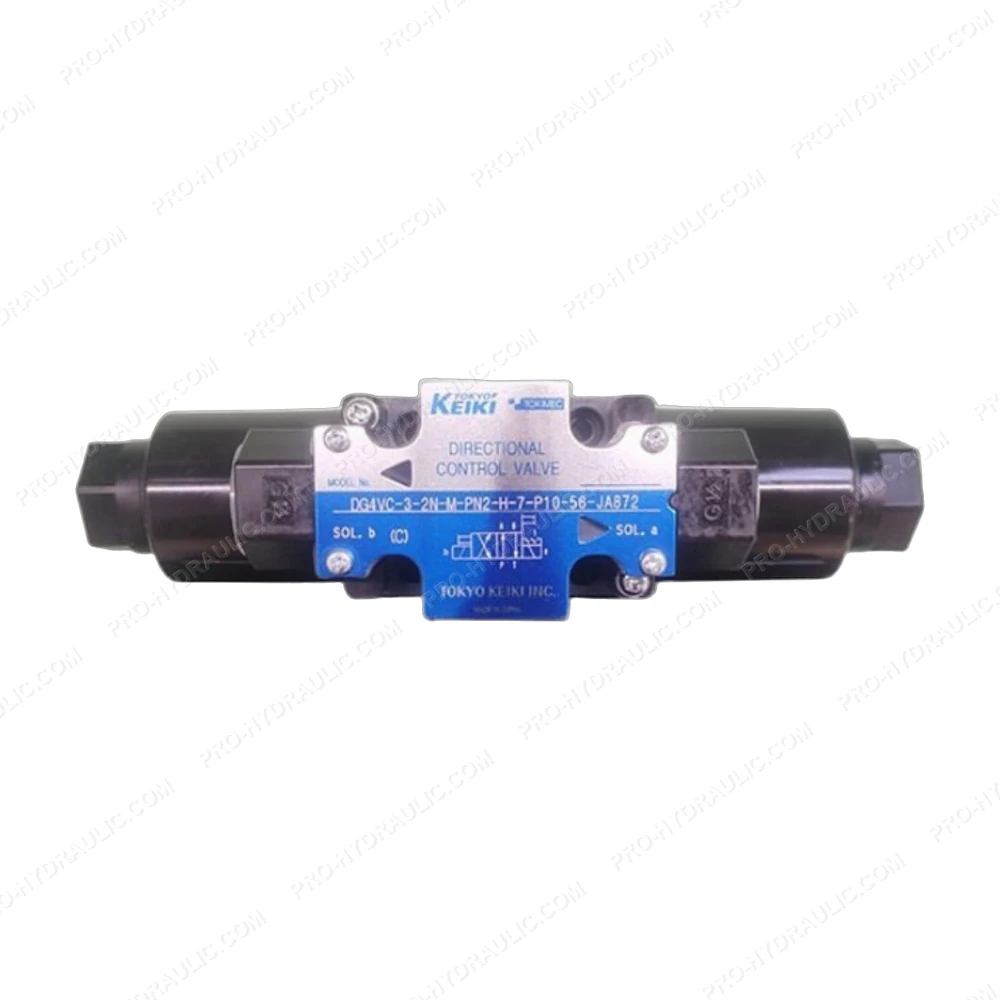

TOKYO KEIKI DG4VC-3-2N-M-PN2-H-7-P10-56-JA872 Solenoid Operated Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TOKYO KEIKI DG4VC-3-2N-M-PN2-H-7-P10-56-JA872 Solenoid Directional Valve. This Japan-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
