Product Overview
The TOKYO KEIKI DGSV-7-6C-P7-H-86-JA is a high-performance pilot operated directional control valve engineered for precise flow direction management in demanding industrial hydraulic circuits. Manufactured by TOKYO KEIKI (Tokyo Keiki Inc.), a globally recognized authority in fluid power technology, this valve utilizes a two-stage pilot operated design in which a small pilot pressure signal shifts the main spool, enabling the controlled routing of high-flow, high-pressure hydraulic fluid with minimal actuation effort. The DGSV-7 series is a solenoid-controlled, spring-centered directional valve designed for reliable switching, holding, and reversing functions within complex hydraulic systems, making it a critical control component in plastic injection molding machines, metallurgical presses, and heavy industrial automation equipment.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pilot Operated Directional Control Valve (Solenoid Actuated, Spring Centered) |
| Model Designation | DGSV-7-6C-P7-H-86-JA |
| Spool Configuration | 6C Spool Type (Closed Center, All Ports Blocked in Neutral) |
| Actuation Method | Pilot Operated via Integral Solenoid Pilot Valve |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Pilot Pressure | Internal / External Pilot Supply (P7 Configuration) |
| Mounting & Connection | Standard ISO 4401 / CETOP Subplate Mounting Interface |
| Electrical Connection | 86 Series Solenoid with JA Terminal Box / DIN Connector |
| Seal Material | NBR / FKM (Standard Industrial Hydraulic Fluid Compatible) |
Engineering Features & Advantages
- Precision Spool Metering: The 6C closed-center spool configuration provides positive shut-off of all ports in the neutral position, ensuring accurate load holding and preventing drift in actuator circuits.
- Pilot Operated Efficiency: Two-stage pilot operation allows the small solenoid pilot valve to control the main spool with minimal electrical power, enabling high flow capacity and fast response times without oversized solenoids.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened spool and sleeve assemblies that resist wear, contamination, and thermal cycling.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original TOKYO KEIKI DGSV-7 series mounting patterns and port locations, ensuring drop-in replacement without system modification.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original TOKYO standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The DGSV-7 series is a solenoid-controlled, spring-centered directional valve designed for reliable switching, holding, and reversing functions within complex hydraulic systems, making it a critical control component in plastic injection molding machines, metallurgical presses, and heavy industrial automation equipment.
PRODUCT IMAGES

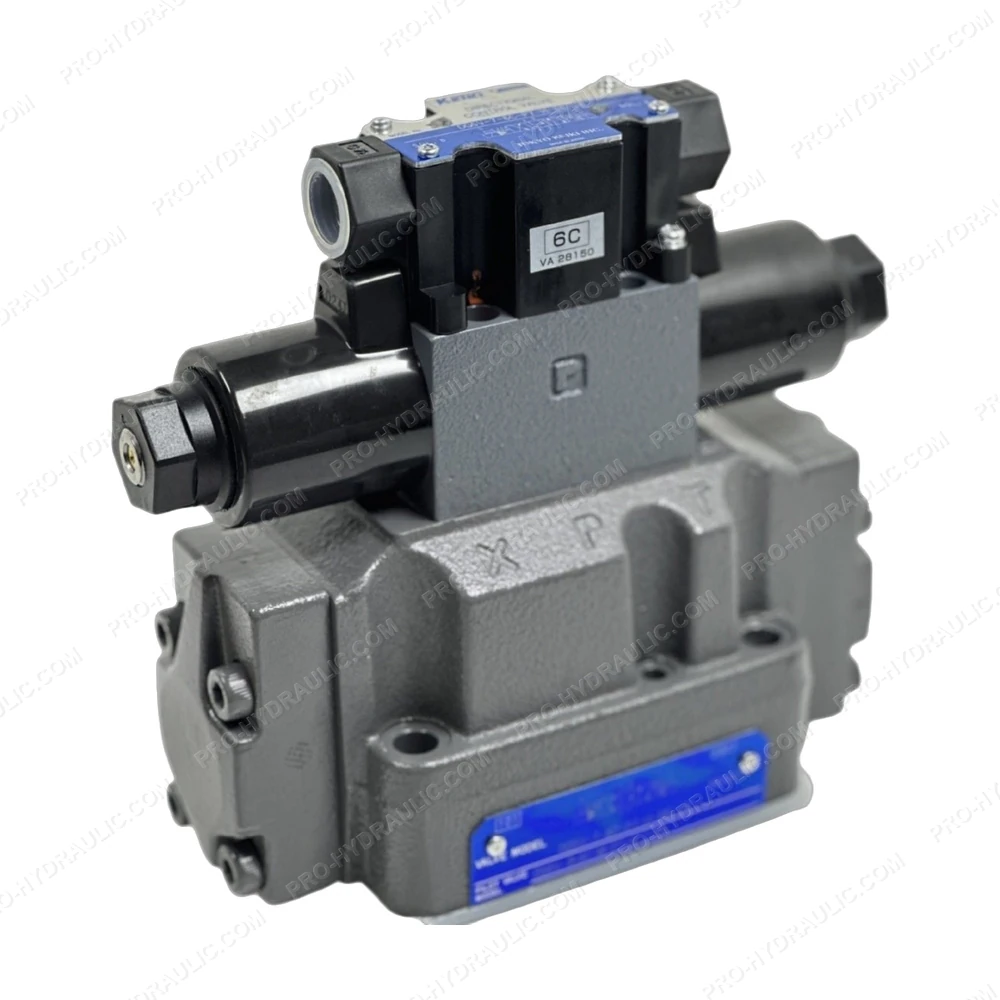

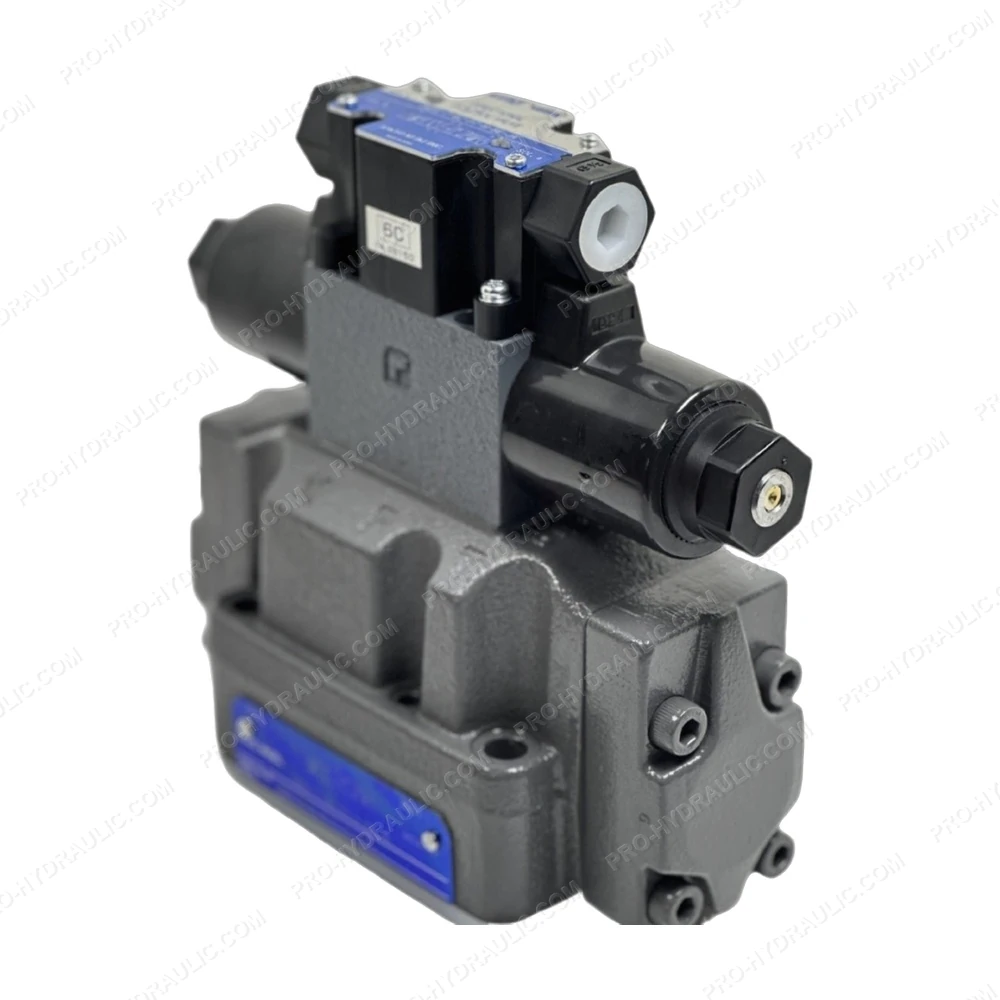

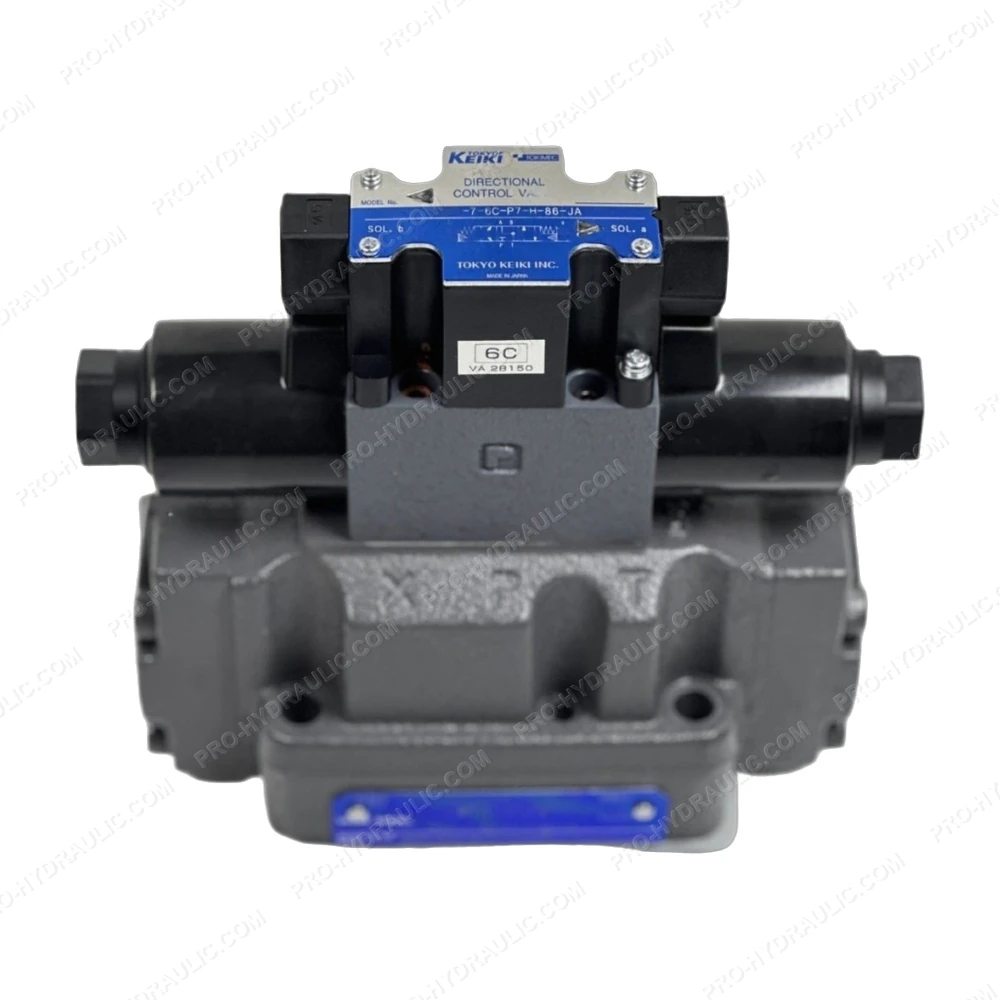

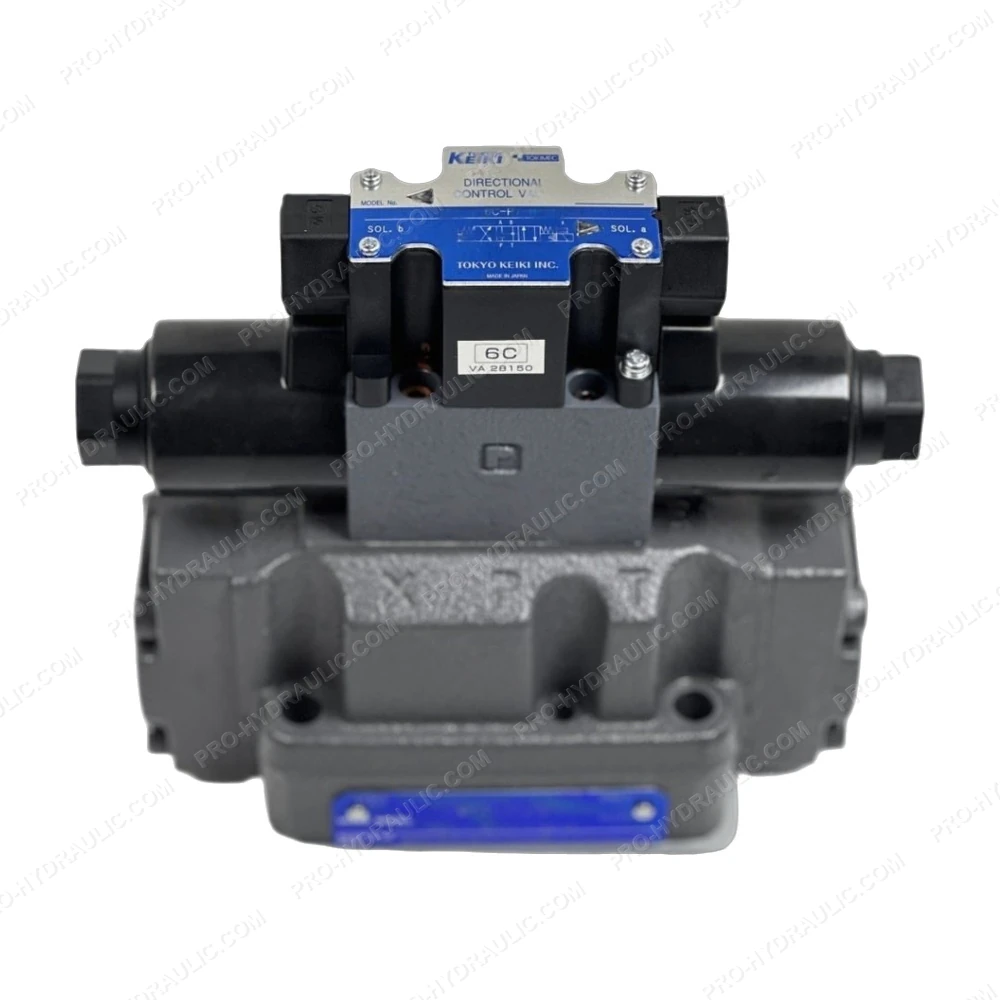

TOKYO KEIKI DGSV-7-6C-P7-H-86-JA Pilot Operated Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TOKYO KEIKI DGSV-7-6C-P7-H-86-JA Solenoid Directional Valve. This Japan-made 24V DC hydraulic component features a direct-acting spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
