Product Overview
The TOKYO KEIKI TGMFN-3-Y-A2W-B2W-51 is a modular flow control valve engineered for precise regulation of hydraulic fluid flow within industrial power units and manifold-based systems. Manufactured by TOKYO KEIKI, a recognized leader in fluid power technology, this valve belongs to the TGMFN series of modular (sandwich-style) flow control valves designed for direct mounting between a directional control valve and its subplate or manifold. The unit provides accurate flow metering and pressure-compensated control, enabling consistent actuator speed regardless of load variations. Its modular construction allows integration into standardized hydraulic stacking systems, reducing piping complexity and minimizing leakage points in demanding industrial circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve – Modular Flow Control Valve |
| Model Designation | TGMFN-3-Y-A2W-B2W-51 |
| Series | TOKYO KEIKI TGMFN Modular Flow Control Series |
| Nominal Size | Size 3 (NG6 / CETOP 3 interface) |
| Operating Pressure | Standard Industrial Grade (up to rated bar per manufacturer data) |
| Flow Control Function | Pressure-compensated metering with adjustable flow setting |
| Adjustment Type | Manual adjustment (spindle / hex key configuration per model code) |
| Mounting & Connection | Sandwich / Modular mounting, ISO 4401 / CETOP 3 interface |
| Seal Material | NBR (standard industrial hydraulic fluid compatibility) |
Engineering Features & Advantages
- Precision Flow Metering: Pressure-compensated spool design maintains a constant set flow rate independent of load fluctuations, ensuring repeatable actuator speed control across the operating range.
- Modular Sandwich Construction: Direct interposition between directional valve and subplate eliminates external piping, reduces installation time, and minimizes potential leak paths in the circuit.
- Stable Low-Noise Operation: Refined spool and bore geometry suppresses flow-induced vibration and noise, contributing to a quieter hydraulic power unit.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened internal components resistant to wear and contamination.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original TOKYO KEIKI OEM standards, ensuring drop-in replacement without manifold modification.
Typical Industrial Applications
The TOKYO KEIKI TGMFN-3-Y-A2W-B2W-51 is
PRODUCT IMAGES

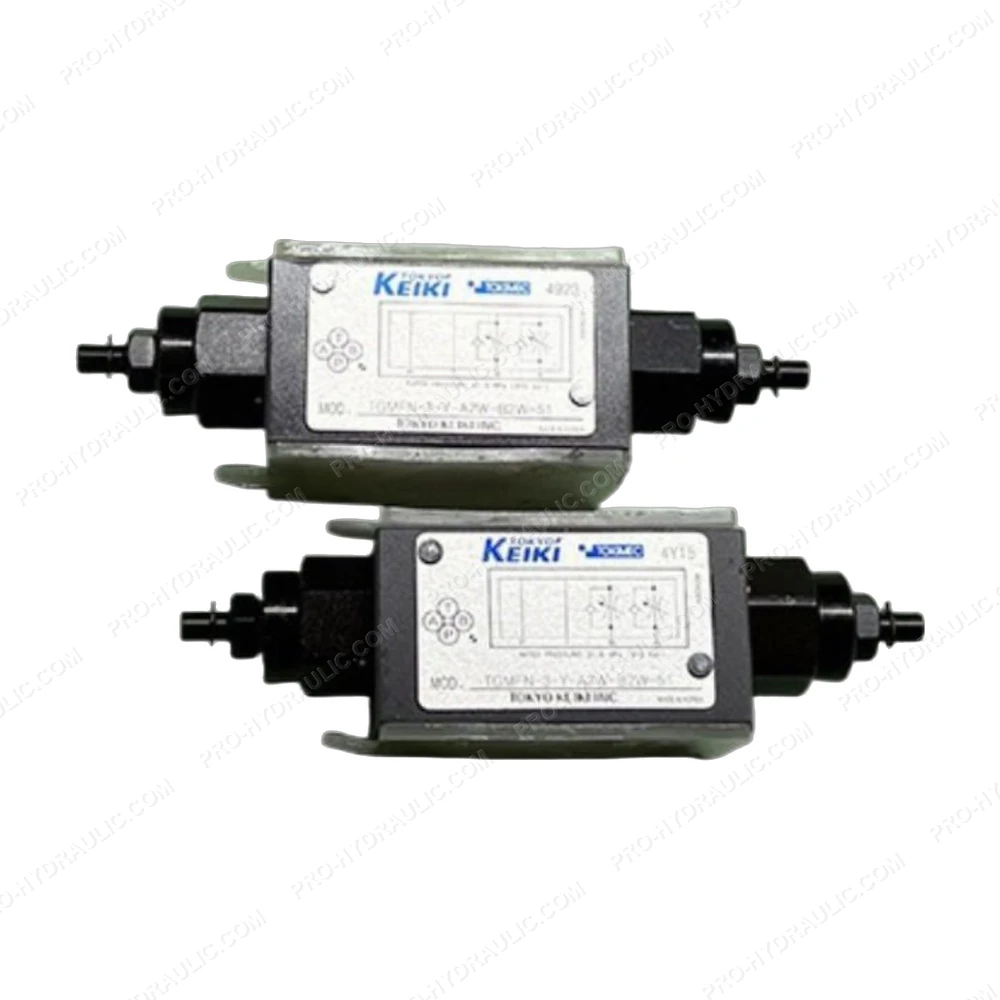

TOKYO KEIKI TGMFN-3-Y-A2W-B2W-51 Modular Flow Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TOKYO KEIKI TGMFN-3-Y-A2W-B2W-51 Proportional Directional Control Valve. This Japan-made 24V DC hydraulic component features a high-response proportional solenoid design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
