Product Overview
The TOKYO KEIKI TGMRC-5-BY-BW-G-50 is a modular pressure reducing valve engineered for precise secondary circuit pressure regulation within industrial hydraulic systems. Manufactured by TOKYO KEIKI (Tokyo Keiki Inc.), a recognized authority in fluid power and marine control technology, this valve belongs to the TGMRC series of modular reducing valves designed for sandwich-style manifold mounting. The valve operates on a balanced spool principle, sensing downstream outlet pressure and modulating the spool position to maintain a constant reduced pressure regardless of fluctuations in the primary supply or changes in flow demand. As a pressure control valve, it does not generate flow but rather conditions and stabilizes pressure for downstream actuators, pilot circuits, and sub-systems requiring a pressure level lower than the main system pressure. Its modular construction allows direct stacking between a directional control valve and a subplate, eliminating the need for separate piping and reducing leakage points in the manifold assembly.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Pressure Control Valve — Modular Reducing Valve |
| Model Designation | TGMRC-5-BY-BW-G-50 |
| Series | TGMRC Modular Reducing Valve Series |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per series specification) |
| Pressure Adjustment | Adjustable reducing pressure via integrated setting mechanism |
| Mounting & Connection | Modular sandwich mounting — Standard ISO / Manufacturer Interface |
| Spool Design | Balanced spool for stable pressure regulation |
| Sealing | O-ring sealed modular interface |
Engineering Features & Advantages
- Precision Pressure Regulation: The balanced spool and spring-loaded sensing mechanism deliver accurate, repeatable reduced pressure output, minimizing hysteresis and pressure override across varying flow demands.
- Modular Sandwich Construction: Designed for direct stacking between directional valves and subplates, reducing piping complexity, installation time, and potential external leakage paths in the manifold.
- Stable Secondary Circuit Control: Maintains consistent downstream pressure independent of upstream supply fluctuations, protecting sensitive actuators and pilot-operated components from over-pressure conditions.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with robust internal components resistant to contamination and wear.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original TOKYO KEIKI OEM standards, ensuring drop-in interchangeability without manifold modification.
Typical Industrial Applications
The TOKYO KEIKI TGMRC-5-BY-BW-G-50 modular reducing valve is deployed in hydraulic systems requiring reliable secondary pressure control. Typical applications include plastic injection molding machines where consistent clamping and injection pressures are critical, metallurgical presses and rolling mill circuits demanding stable reduced pressure for control functions, CNC machine tools and machining centers with multi-pressure hydraulic circuits, marine and offshore hydraulic systems where TOKY
PRODUCT IMAGES

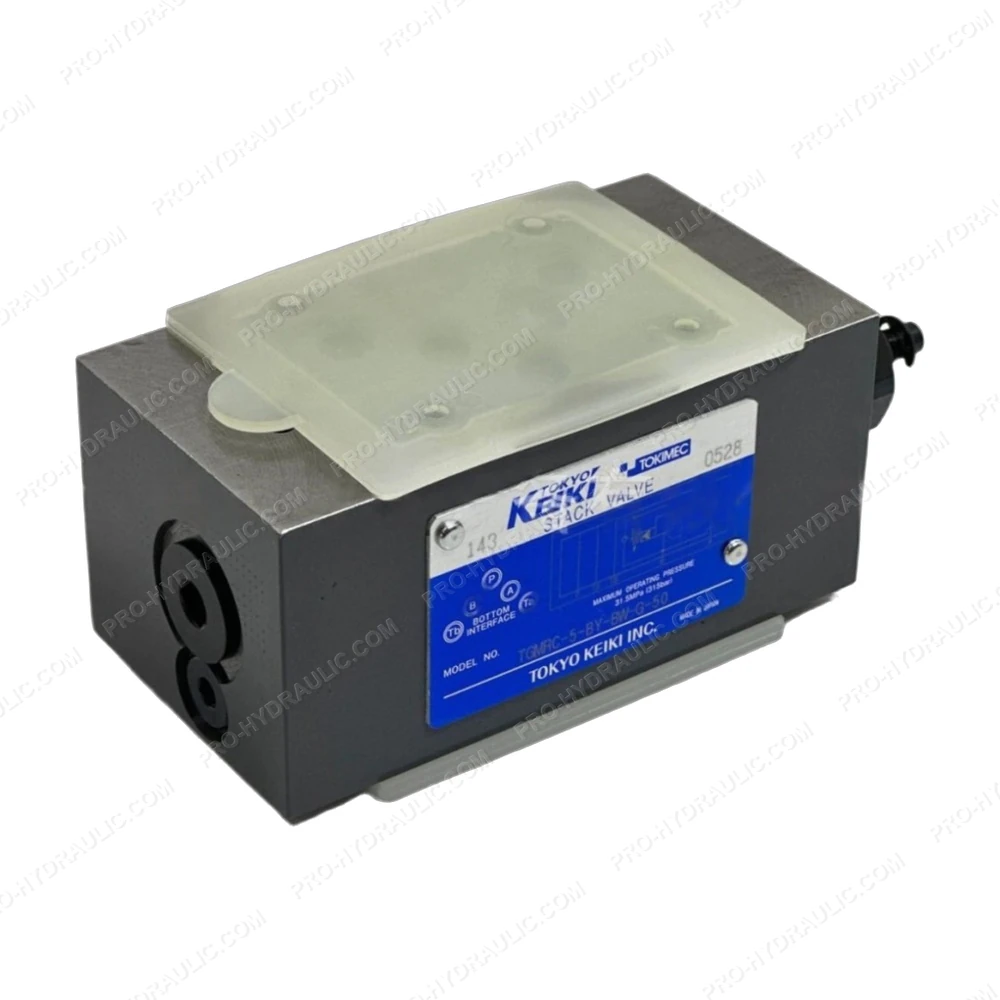

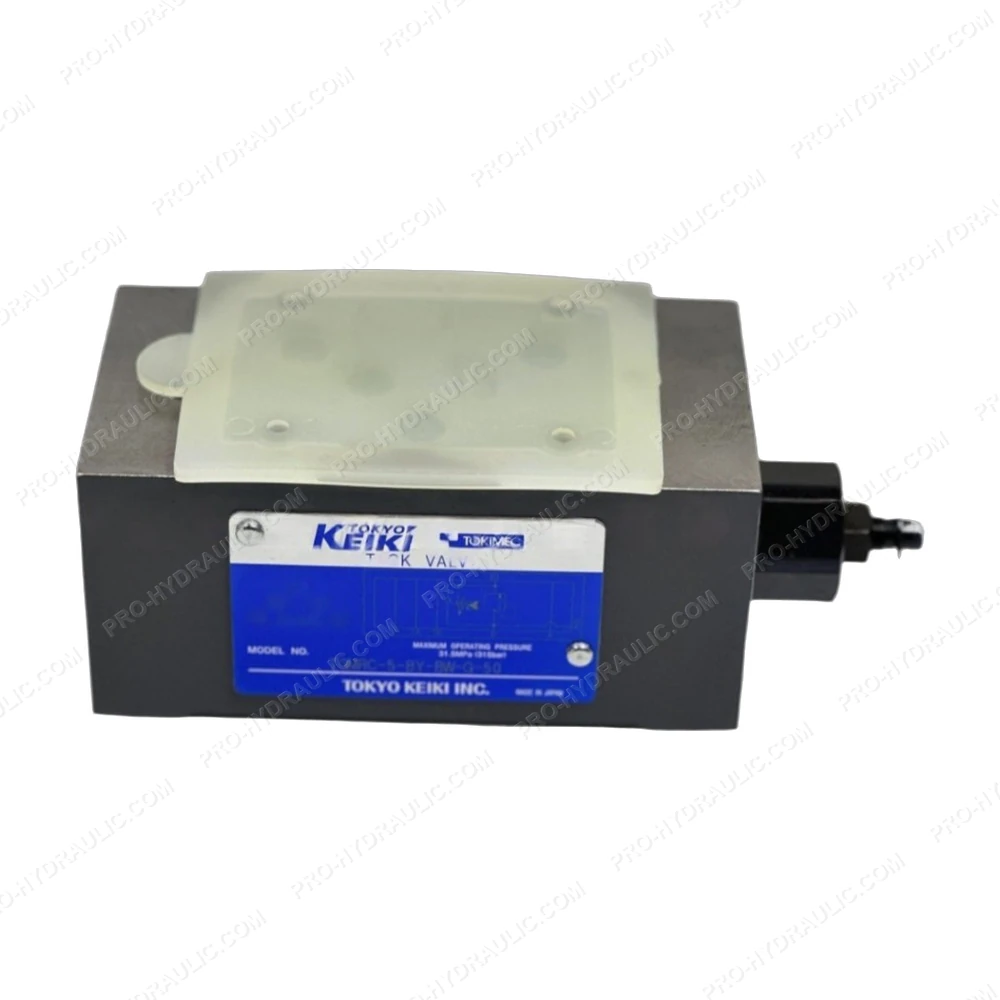

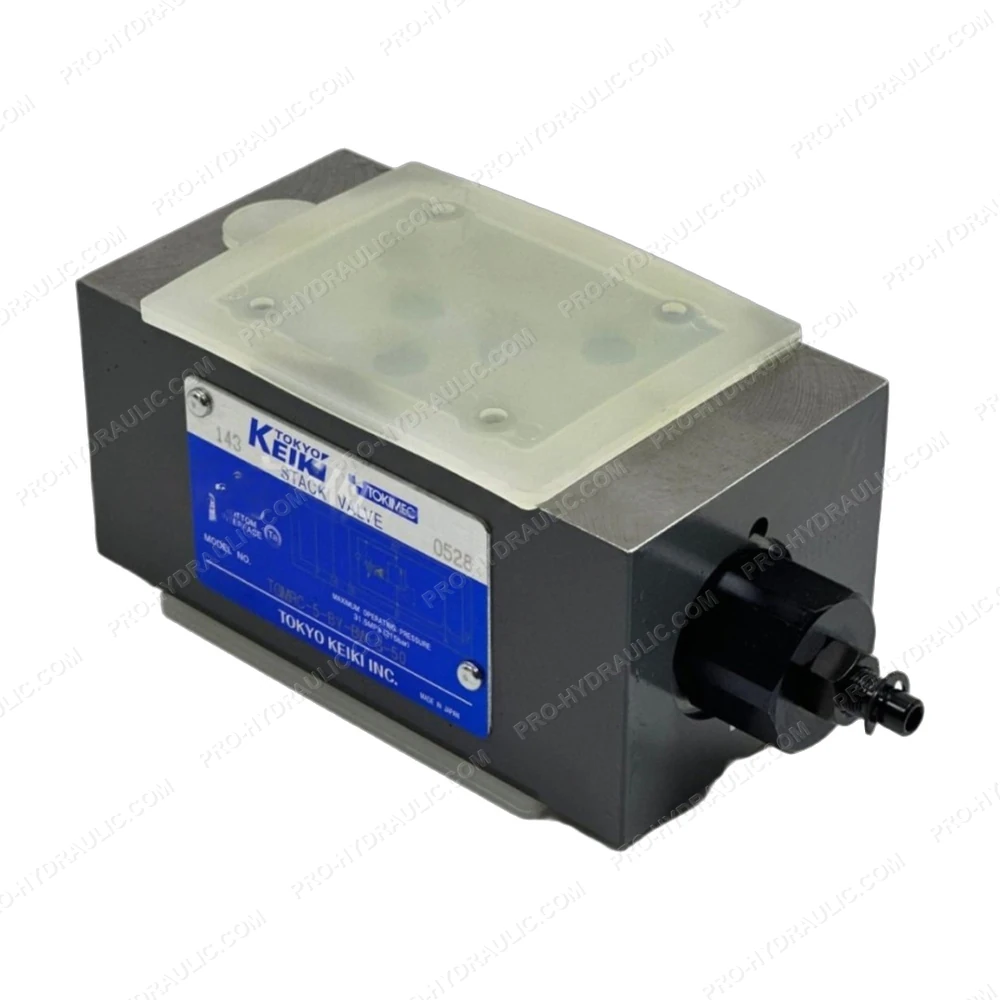

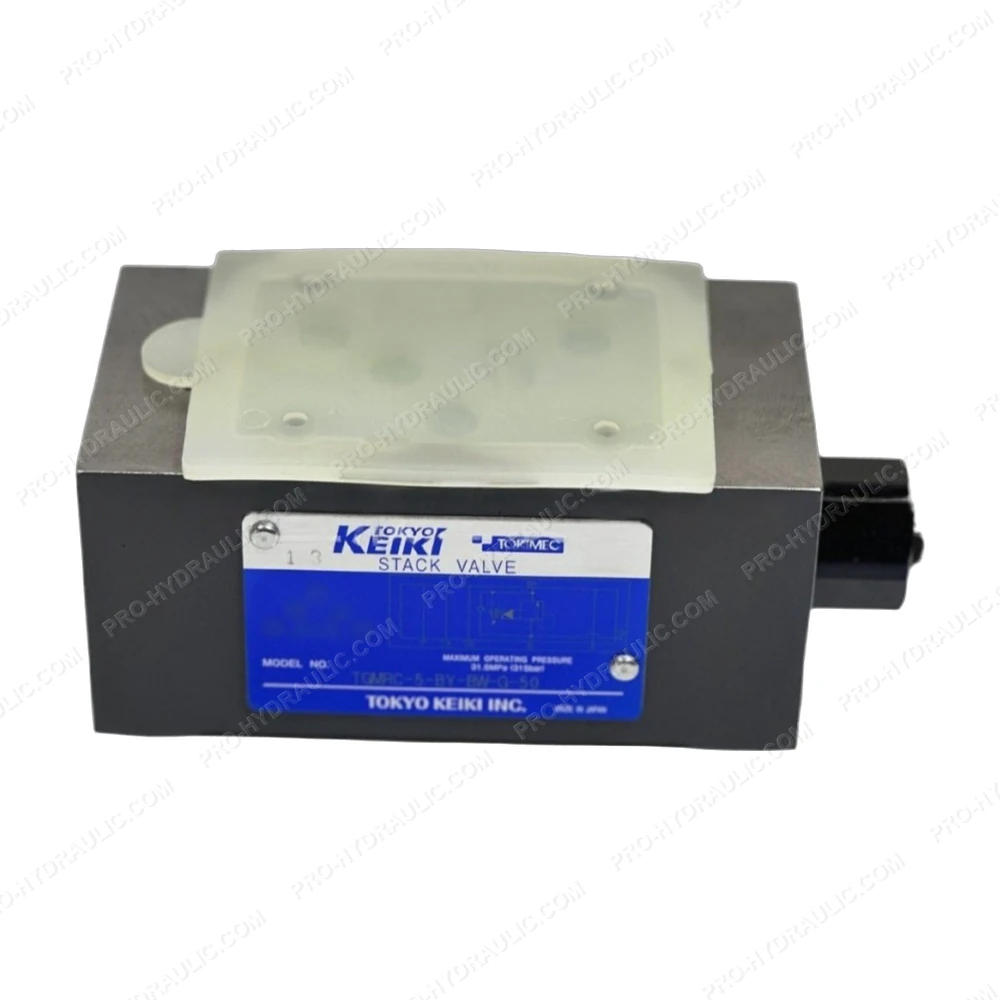

TOKYO KEIKI TGMRC-5-BY-BW-G-50 Modular Reducing Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TOKYO KEIKI TGMRC-5-BY-BW-G-50 Proportional Directional Control Valve. This Japan-made 24V DC hydraulic component features a 4-way proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
