Product Overview
The TOYOOKI AD-04100E is a high-performance solenoid-operated directional control valve engineered for precise flow direction management in industrial hydraulic systems. Manufactured by TOYOOKI, a globally recognized leader in fluid power technology, this valve features a robust wet-armature solenoid design that ensures reliable spool actuation and rapid response times. The AD-04100E is designed to direct hydraulic fluid flow to various actuators, cylinders, and motors, serving as a critical control component in complex hydraulic circuits. Its construction emphasizes durability, low leakage, and consistent performance under demanding operating conditions, making it an ideal choice for both new system designs and direct replacement applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve |
| Model Designation | AD-04100E |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Subplate Mounting) |
| Actuation Type | Solenoid Operated (Wet Armature) |
| Spool Configuration | 4-Way, 3-Position (Closed Center) |
| Flow Rate Capacity | Up to 100 L/min (Nominal) |
| Response Time | Fast Switching (Typically < 30 ms) |
Engineering Features & Advantages
- Precision Performance: The advanced spool and sleeve design ensures minimal internal leakage and precise flow metering, enabling accurate control of actuator movement and positioning.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the valve features a high-cycle life solenoid and rugged construction that resists contamination and wear.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards ensures seamless integration into existing TOYOOKI manifolds and hydraulic power units.
- Low Pressure Drop: Optimized internal flow paths minimize pressure losses, improving overall system efficiency and reducing heat generation.
- Versatile Control: Available in multiple spool configurations to suit various circuit requirements, including tandem, parallel, and closed center options.
Typical Industrial Applications
The TOYOOKI AD-04100E solenoid directional control valve is widely utilized in demanding industrial environments, including plastic injection molding machines, metallurgical presses, CNC machine tools, and construction & marine hydraulic systems. Its reliable performance makes it suitable for controlling cylinders, rotary actuators, and hydraulic motors in applications requiring precise directional control and rapid cycle times.
PRODUCT IMAGES

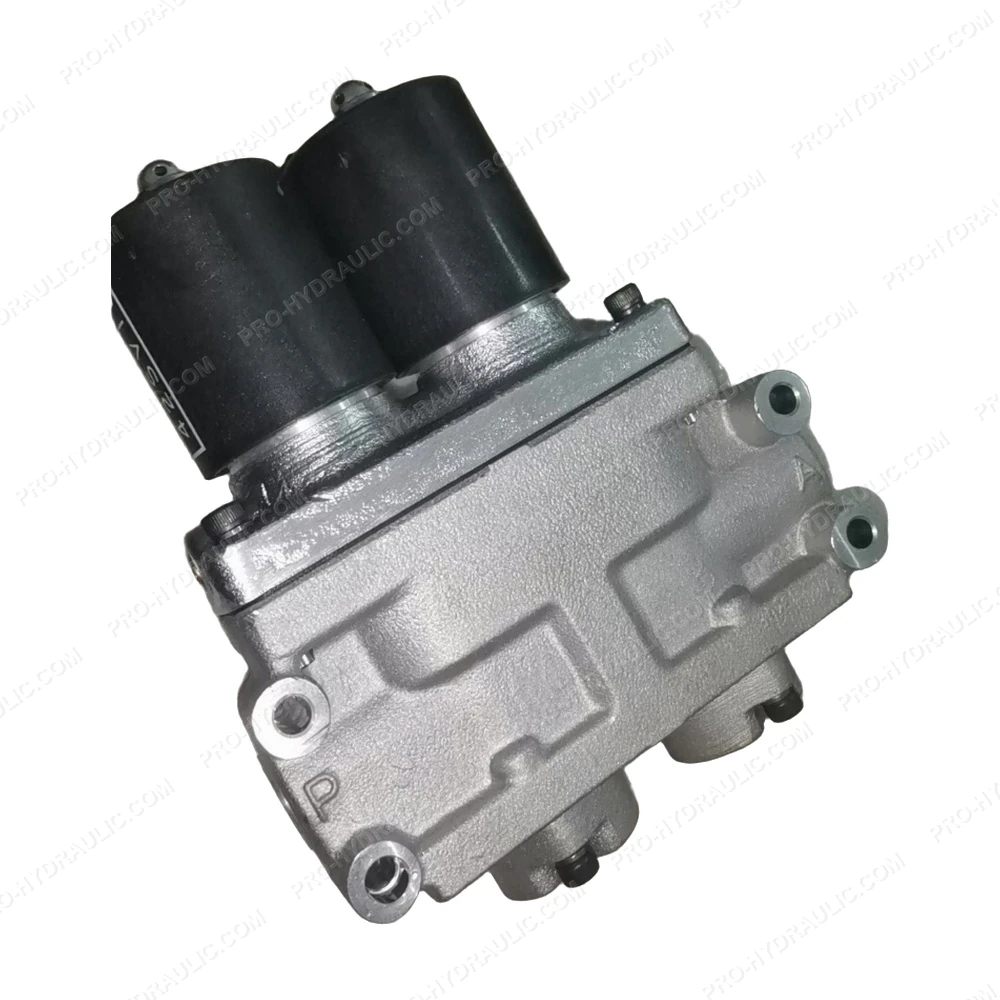

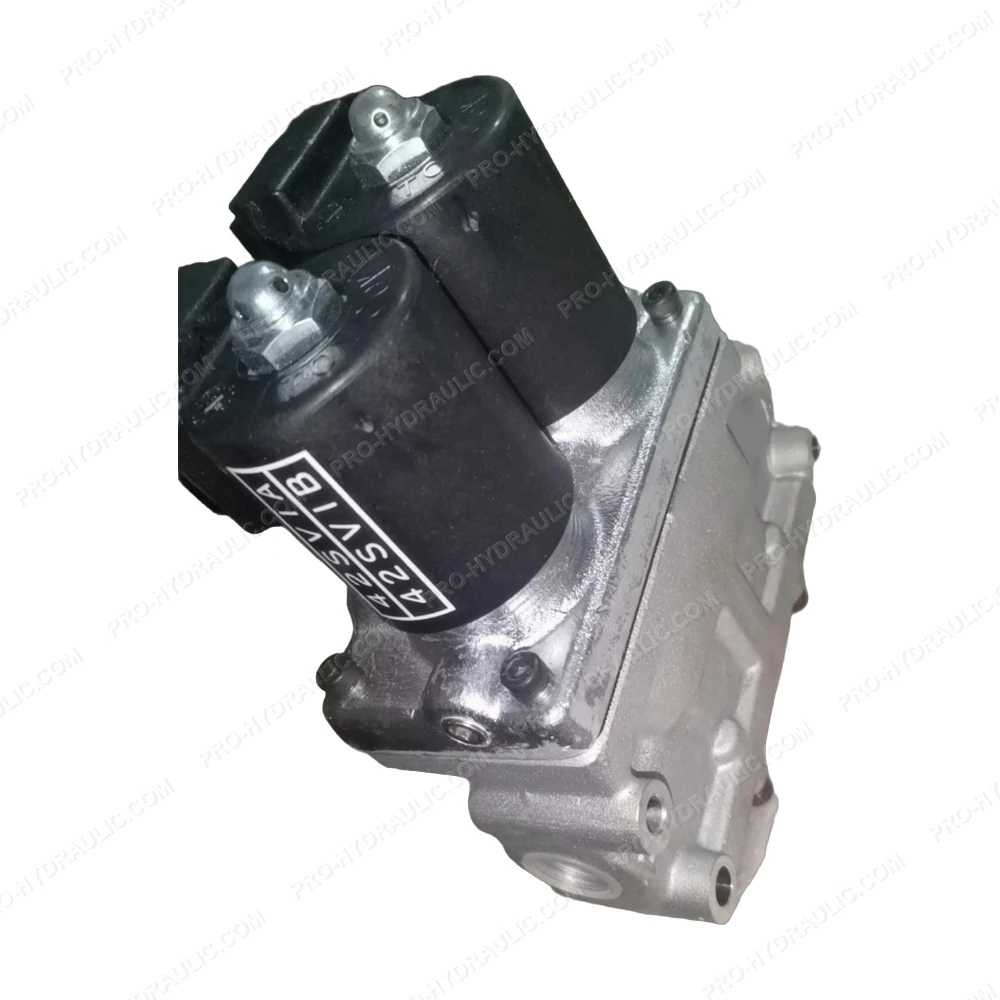

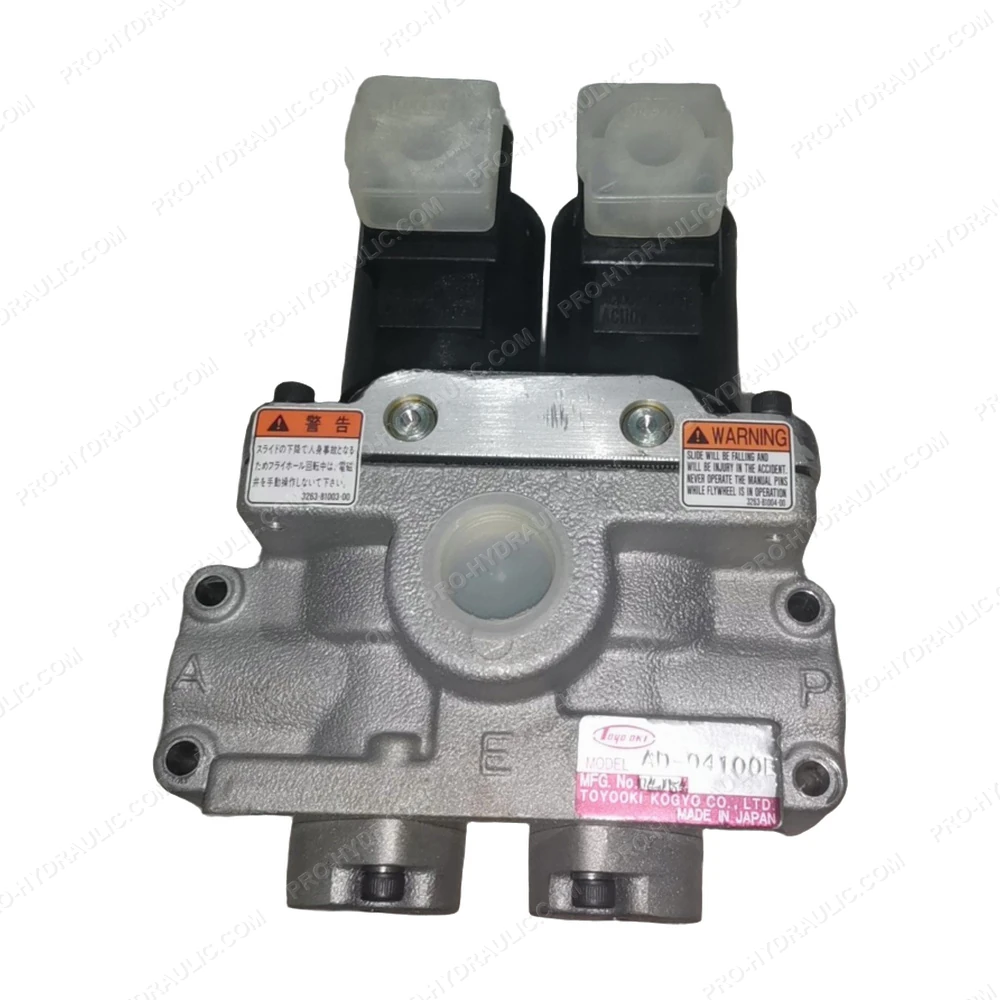

TOYOOKI AD-04100E Solenoid Directional Control Valve
