The TOYOOKI HD1N-3W-BGA-025-D2 is a heavy-duty industrial directional control valve engineered for precise flow direction and reliable operation in hydraulic systems. This 3-way, 2-position spool valve features a solenoid actuated design with a nominal flow capacity of 25 L/min and a maximum operating pressure of 250 bar, ensuring robust performance in demanding applications.
TOYOOKI HD1N-3W-BGA-025-D2 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Directional Control Valve, 3-way, 2-position |
| Actuation | Solenoid, spring return |
| Nominal Flow Rate | 25 L/min |
| Maximum Operating Pressure | 250 bar |
| Spool Type | Closed center |
| Mounting Interface | ISO 4401 / CETOP 3 (NG6) |
| Coil Voltage | 24 V DC (standard) |
| Electrical Connection | DIN 43650 connector |
| Fluid Compatibility | Mineral oil based hydraulic fluids |
| Operating Temperature Range | -20°C to +70°C |
| Protection Class | IP65 |
Key Engineering Features
- Precision-machined spool and body for low leakage and reliable shifting
- Spring-return design ensures fail-safe positioning on power loss
- Compact CETOP 3 mounting pattern for space-saving installation
- Durable solenoid coil with high cycle life and thermal protection
- Hardened internal components for extended service life under high pressure
Industrial Applications
- Machine tool hydraulic systems
- Industrial automation and robotics
- Press and forming equipment
- Material handling and lifting systems
- General hydraulic power units
For technical inquiries, dimensional drawings, or replacement support for TOYOOKI HD1N-3W-BGA-025-D2, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

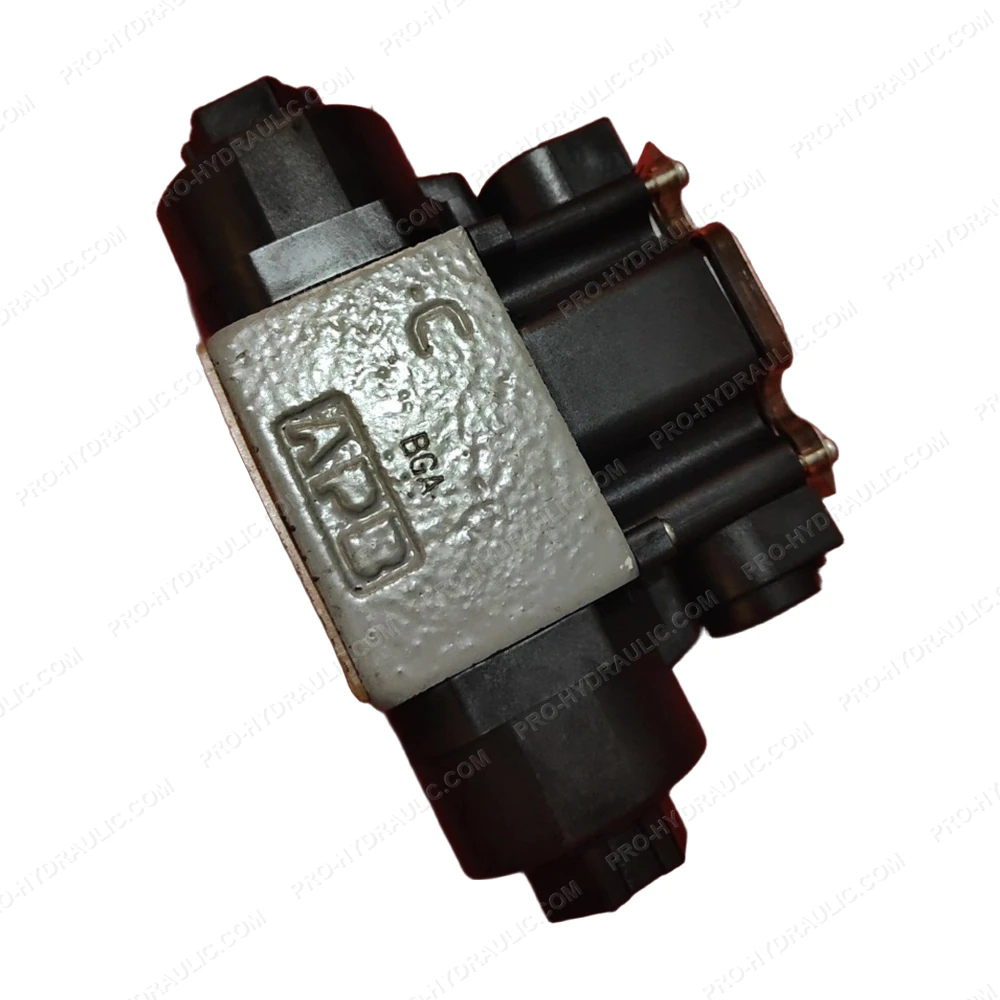

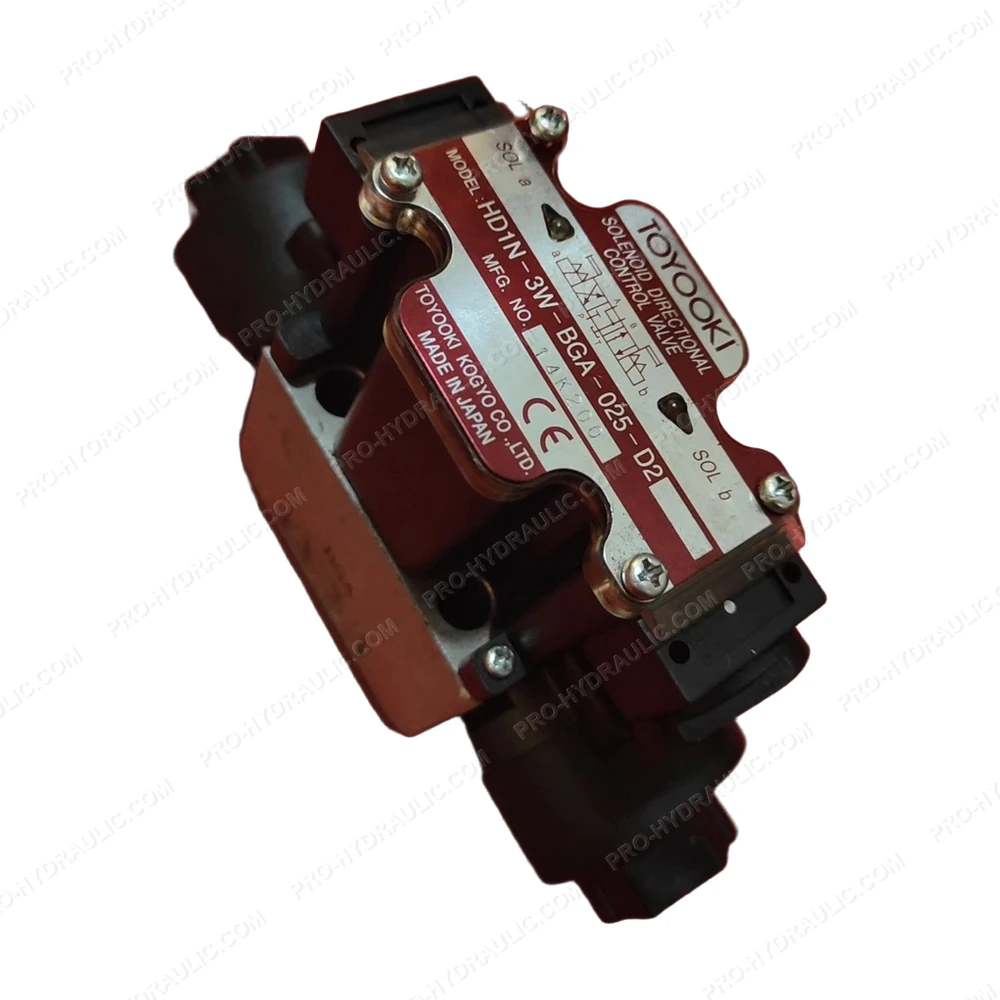

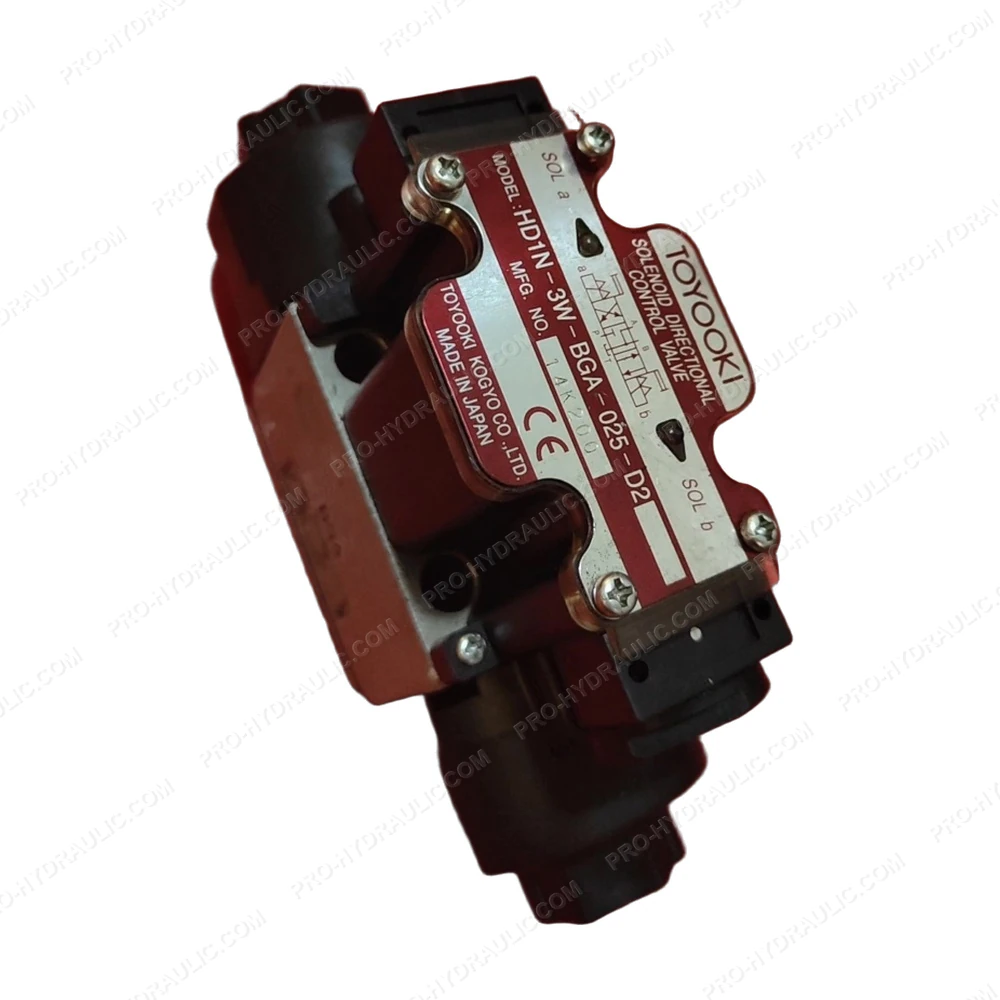

TOYOOKI HD1N-3W-BGA-025-D2 Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the TOYOOKI HD1N-3W-BGA-025-D2 Directional Control Valve. This precision-engineered hydraulic component delivers reliable performance and accurate flow control for demanding industrial systems.
