Product Overview
The TRAFAG DVB22 is a precision-engineered pressure switch designed for reliable monitoring and control of hydraulic and pneumatic system pressures in demanding industrial environments. Manufactured by TRAFAG, a globally recognized specialist in high-accuracy pressure and temperature instrumentation, the DVB22 utilizes a robust diaphragm or piston sensing element coupled with a snap-action microswitch to deliver precise, repeatable switching signals at preset pressure thresholds. Unlike continuous pressure transmitters, this device provides a discrete electrical output (normally open or normally closed) when system pressure reaches the adjustable set point, making it ideal for safety interlocks, pump control, alarm activation, and sequence control within complex hydraulic power units and automation systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pressure Switch (Mechanical, Adjustable) |
| Model Designation | TRAFAG DVB22 |
| Operating Pressure | Standard Industrial Grade (Up to 400 bar, depending on configuration) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (G1/4, G1/2 or NPT thread options) |
| Switching Element | Snap-action microswitch, SPDT (changeover) |
| Electrical Rating | Up to 250 V AC / 24 V DC, 5 A resistive |
| Adjustment Range | Factory-set or field-adjustable via set screw |
| Housing Material | Die-cast aluminum or stainless steel (model dependent) |
| Ingress Protection | IP65 (standard), IP67 optional |
Engineering Features & Advantages
- Precision Performance: High-accuracy switching point with minimal hysteresis ensures reliable signal actuation for critical pressure monitoring and safety interlocks.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, including vibration, temperature fluctuations, and high-cycle pressure loading.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without system modification.
- Adjustable Set Point: Field-adjustable switching threshold enables fine-tuning to specific application requirements without replacing the unit.
- Robust Construction: Corrosion-resistant wetted parts and sealed housing protect against hydraulic fluid, moisture, and dust ingress.
Typical Industrial Applications
The TRAFAG DVB22 pressure switch is widely deployed in hydraulic power units for pump loading/unloading control, filter clogging indication, and accumulator charge monitoring. It is also essential in plastic injection molding machines for mold clamping pressure verification, in metallurgical presses for overload protection, in construction and marine
PRODUCT IMAGES

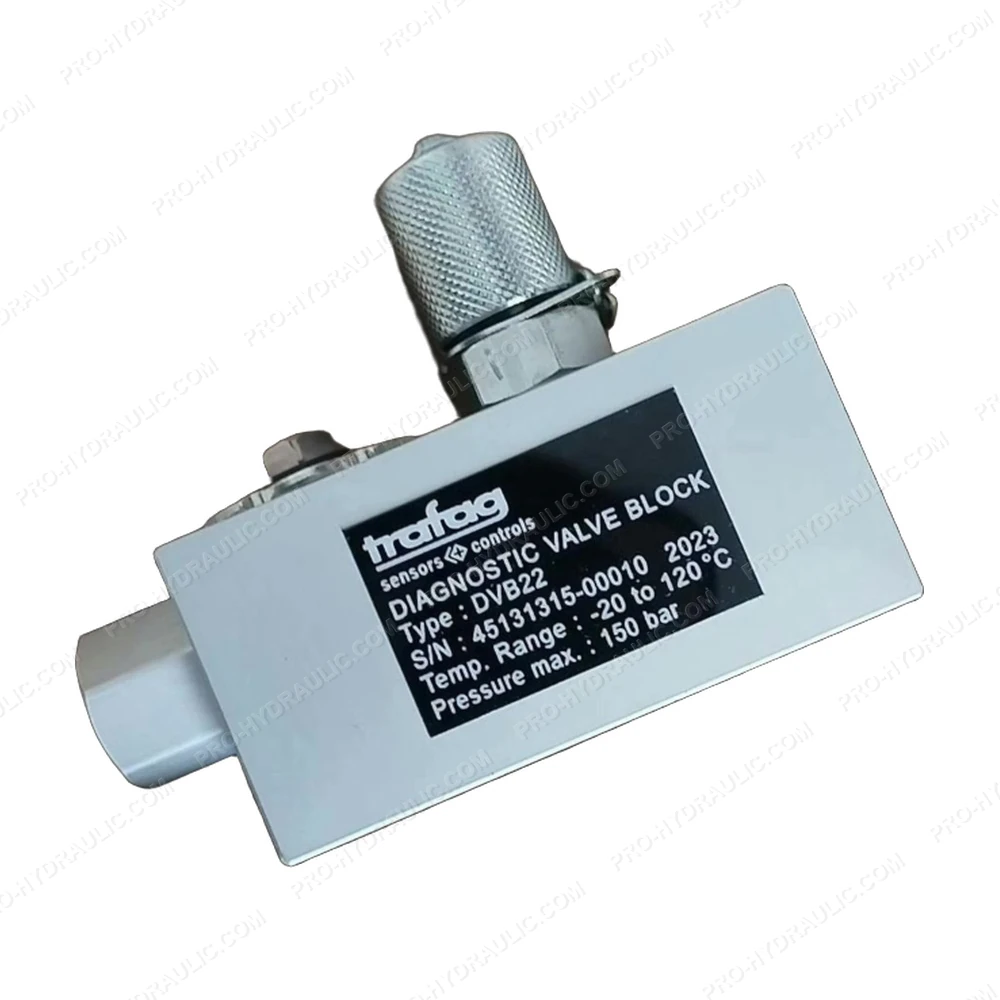

TRAFAG DVB22 Pressure Switch
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine TRAFAG DVB22 Pressure Switch. This Switzerland-made 250 VAC hydraulic component features a diaphragm piston design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
