The UNET LP0115030016 is a heavy-duty industrial joystick control valve engineered for precise pilot pressure modulation in mobile and stationary hydraulic systems. It converts operator joystick input into proportional pilot oil flow, enabling smooth, fatigue-free control of directional control valves in demanding applications.
UNET LP0115030016 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LP0115030016 |
| Type | Joystick Control Valve (Pilot Control Valve) |
| Actuation | Manual joystick, mechanical lever |
| Number of Functions | 2 (typical, configurable) |
| Pilot Pressure Range | 10–40 bar (depends on configuration) |
| Max. Inlet Pressure | 50 bar |
| Port Connections | G 1/4 (BSPP) or as per order |
| Operating Temperature | -20 °C to +80 °C |
| Fluid | Mineral hydraulic oil, viscosity 10–400 cSt |
| Mounting | Panel or bracket mounting |
| Body Material | Cast iron / aluminum alloy |
Key Engineering Features
- Proportional pilot pressure output for precise directional valve control
- Ergonomic joystick handle with low actuation force
- Integrated relief valve protection (optional)
- Robust construction for harsh industrial environments
- Multiple lever configurations and detent options available
- Compatible with a wide range of hydraulic fluids
Industrial Applications
- Mobile hydraulic systems (cranes, excavators, loaders)
- Material handling equipment
- Agricultural machinery
- Marine and offshore hydraulic controls
- Industrial automation and test stands
For technical inquiries, dimensional drawings, or replacement support for UNET LP0115030016, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

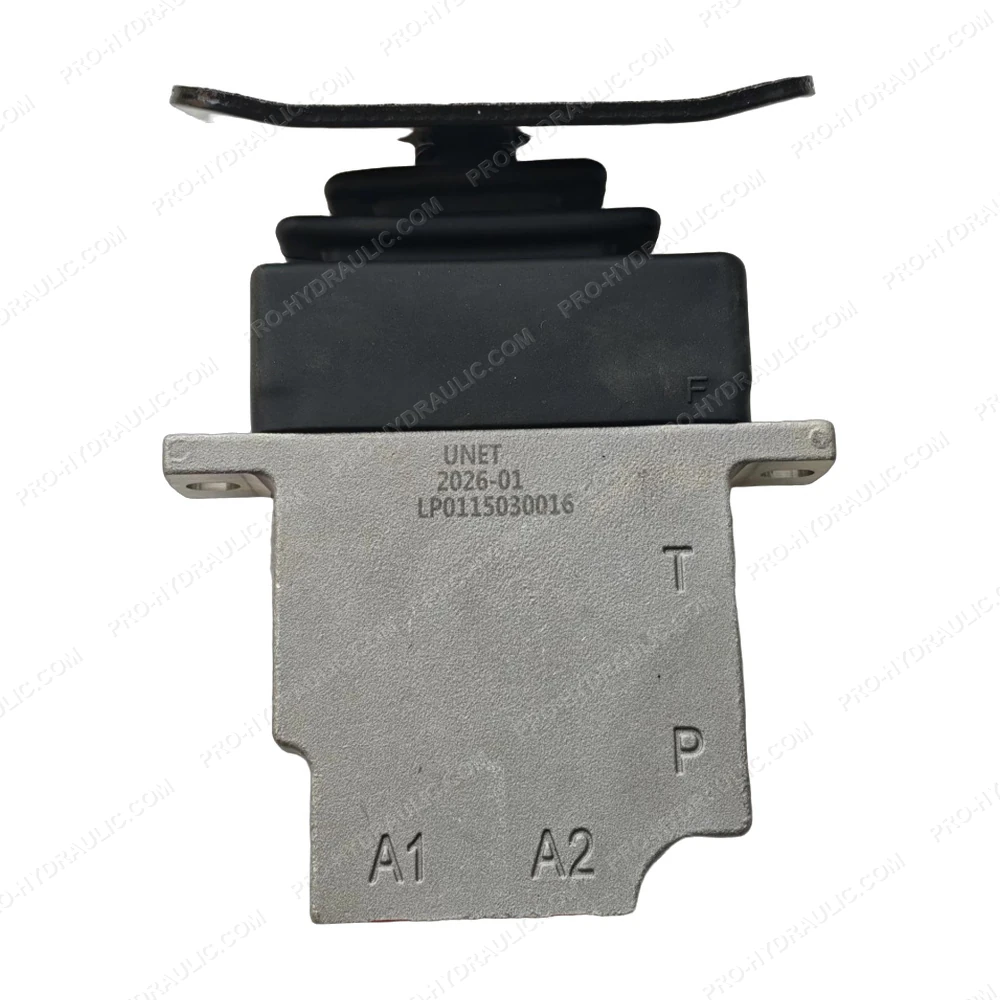

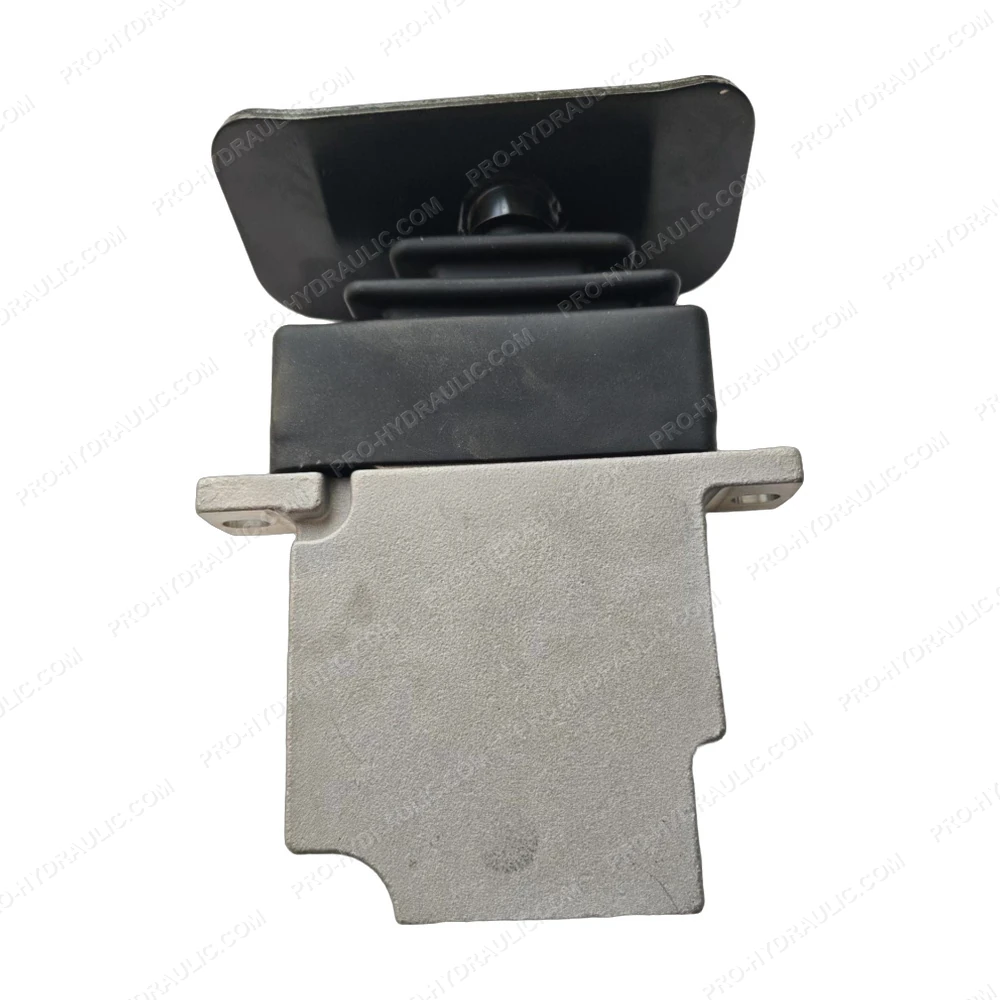

UNET LP0115030016 Joystick Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the UNET LP0115030016 Joystick Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
