Product Overview

The VACUUBRAND MZ 2C NT +AK+EK is a high-performance chemical-resistant diaphragm vacuum pump engineered for continuous, oil-free operation in demanding laboratory and industrial vacuum systems. As a positive-displacement diaphragm pump, it utilizes a flexible elastomer diaphragm driven by an eccentric connecting rod to create a reciprocating pumping action, drawing gas or vapor from the inlet and discharging it through the outlet without any contact between the pumped medium and the drive mechanism. The “+AK+EK” configuration denotes an integrated gas ballast valve (AK) for enhanced vapor tolerance and an exhaust condensate separator (EK) for capturing condensable vapors before they reach downstream components. This model is a direct-fit replacement for OEM vacuum systems and is widely deployed as a reliable vacuum source in rotary evaporation, vacuum drying, filtration, gel drying, and solvent recovery applications where oil-free, chemically resistant performance is mandatory.

Technical Specifications

ParameterSpecification / Feature
Component TypeDiaphragm Vacuum Pump (Oil-Free Positive Displacement)
Model DesignationMZ 2C NT +AK+EK
Operating PressureStandard Industrial Grade (Ultimate vacuum down to 7 mbar / 5 Torr)
Mounting & ConnectionStandard ISO / Manufacturer Interface (DN 16 KF flange inlet/outlet)
Pumping Speed2.0 m³/h (33 L/min) at 50 Hz; 2.3 m³/h (38 L/min) at 60 Hz
Number of Pumping HeadsTwo-stage diaphragm configuration
Motor Power0.18 kW (0.25 HP) single-phase, 230 V / 50-60 Hz
Diaphragm MaterialPTFE-coated, chemically resistant elastomer
Valve MaterialFFKM / PTFE for aggressive media compatibility
Gas BallastIntegrated AK valve for enhanced condensable vapor tolerance
Exhaust Condensate SeparatorEK separator included for vapor recovery and system protection

Engineering Features & Advantages

  • Precision Performance: The diaphragm vacuum pump (oil-free positive displacement) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
  • Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
  • Direct Fit Replacement: Exact dimensional and functional compatibility with original VACUUBRAND OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.

Typical Industrial Applications

This model is a direct-fit replacement for OEM vacuum systems and is widely deployed as a reliable vacuum source in rotary evaporation, vacuum drying, filtration, gel drying, and solvent recovery applications where oil-free, chemically resistant performance is mandatory.

PRODUCT IMAGES

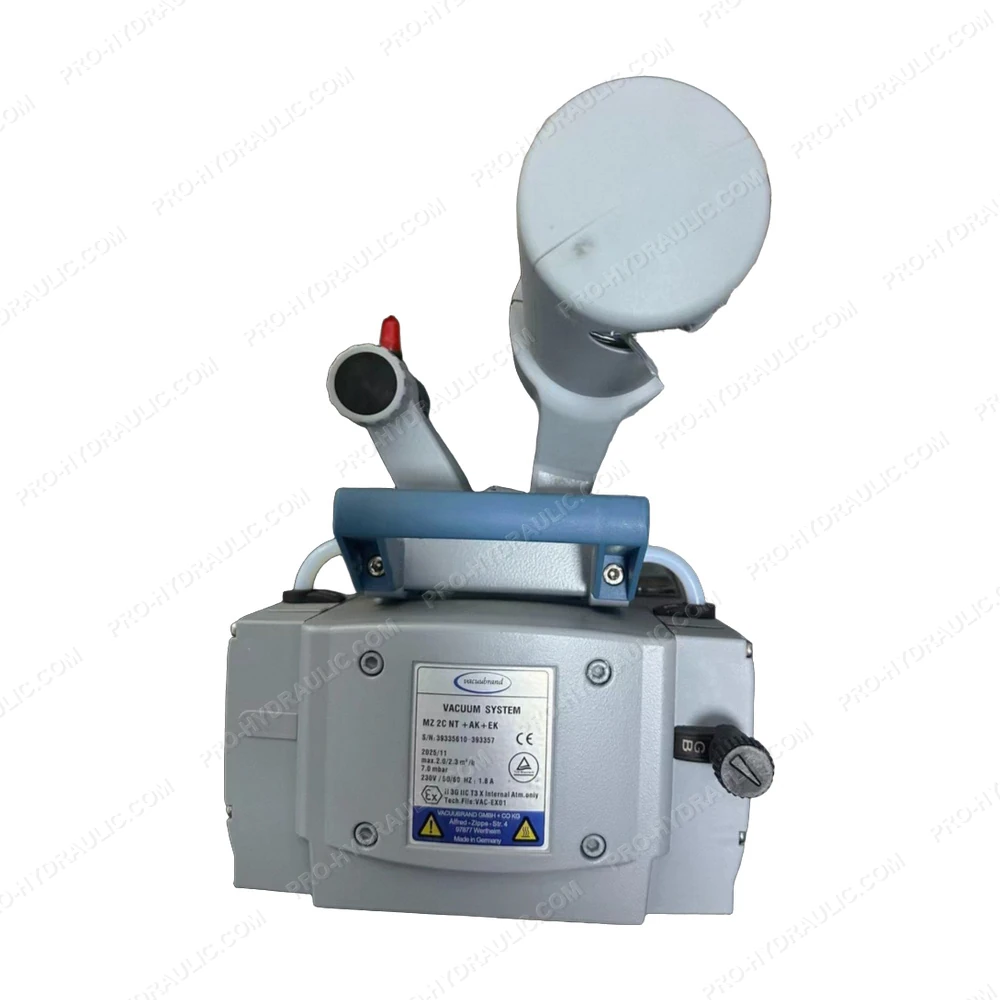

VACUUBRAND MZ 2C NT +AK+EK

VACUUBRAND MZ 2C NT +AK+EK Diaphragm Vacuum Pump

⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:

  • Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
  • Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
  • Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
  • Peace of Mind: Covered by our 12-Month Replacement Warranty.

Shop the genuine VACUUBRAND MZ 2C NT +AK+EK Chemical Duty Vacuum Pump System. This Germany-made vacuum pump features a chemically resistant design, delivering reliable, oil-free vacuum for demanding industrial processes.
