Product Overview
The VALBIA 82DA0010 is a double-acting pneumatic rotary actuator from the VALBIA 82 Series, engineered for precise quarter-turn (90°) operation of industrial process valves. Utilizing a rack-and-pinion drive mechanism, this actuator converts pneumatic pressure into controlled rotary torque, providing reliable open/close actuation for ball valves, butterfly valves, and plug valves across demanding process environments. The 82DA0010 is a direct-mount, compact solution designed for seamless integration with standard ISO 5211 valve interfaces, making it a preferred choice for automated process control loops in chemical, water treatment, and general industrial fluid handling systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Rotary Actuator (Quarter-Turn Valve Actuator) |
| Model Designation | 82DA0010 |
| Actuation Type | Double-Acting (DA) — pneumatic pressure required for both open and close strokes |
| Operating Pressure | Standard Industrial Grade (typically 2.5 to 8 bar / 36 to 116 psi) |
| Rotation Angle | 90° (quarter-turn) with adjustable travel stops ±5° |
| Mounting & Connection | Standard ISO 5211 valve mounting interface; Namur solenoid / accessory pad |
| Body Material | Anodized aluminum alloy housing with corrosion-resistant finish |
| Sealing | NBR (Buna-N) O-ring seals, factory lubricated for extended service life |
| Temperature Range | -20°C to +80°C (standard NBR configuration) |
Engineering Features & Advantages
- Precision Rack-and-Pinion Drive: Dual-opposed rack-and-pinion mechanism delivers smooth, backlash-free quarter-turn rotation with balanced torque output in both directions, ensuring accurate valve positioning and repeatable actuation cycles.
- Compact & Lightweight Design: The extruded aluminum body minimizes installation footprint and weight, reducing structural load on valve assemblies and simplifying mounting in space-constrained manifolds and skids.
- Direct Valve Mounting: Standard ISO 5211 bottom flange and Namur accessory interface allow direct mounting of solenoid valves, positioners, and limit switch boxes without additional adapters, reducing installation time and cost.
- Industrial Reliability: Hard-anodized aluminum housing and precision-machined internal components are built for continuous operation under severe industrial conditions, including high-cycle automation and corrosive plant environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original VALBIA OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The 82DA0010 is a direct-mount, compact solution designed for seamless integration with standard ISO 5211 valve interfaces, making it a preferred choice for automated process control loops in chemical, water treatment, and general industrial fluid handling systems.
PRODUCT IMAGES

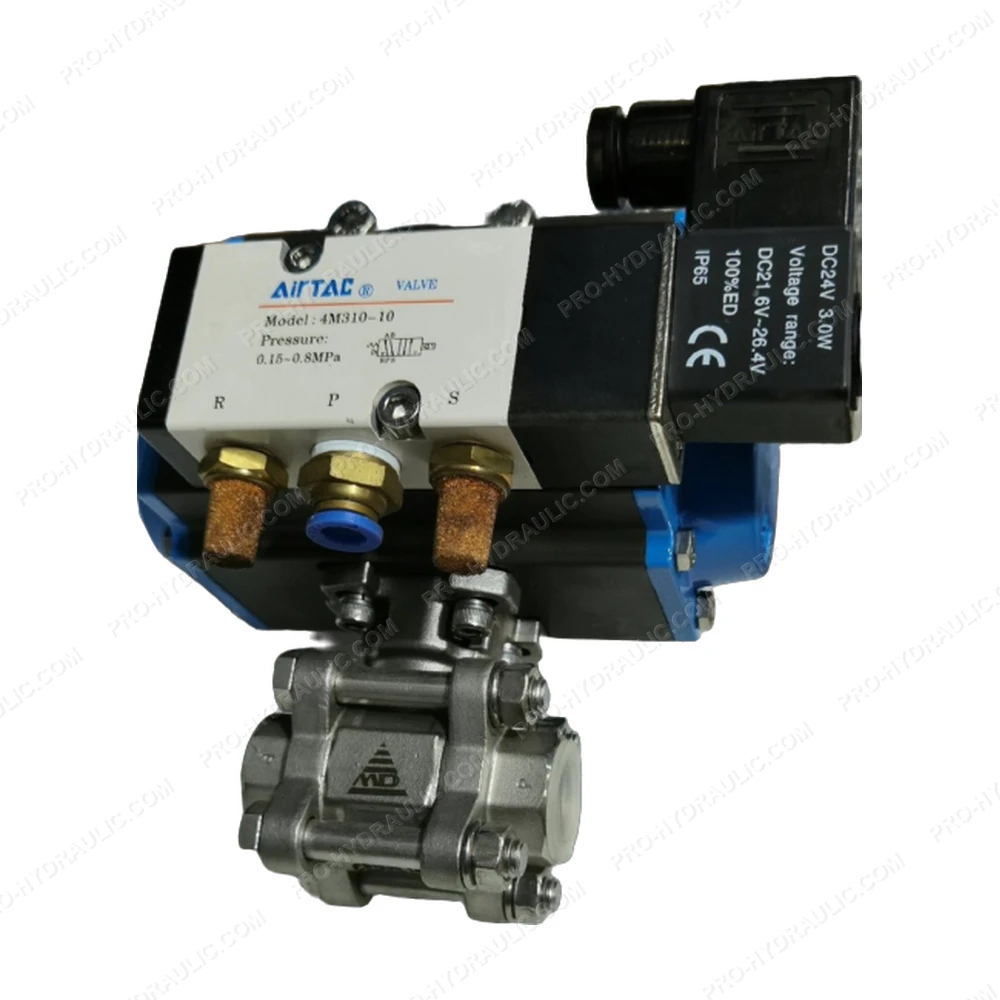

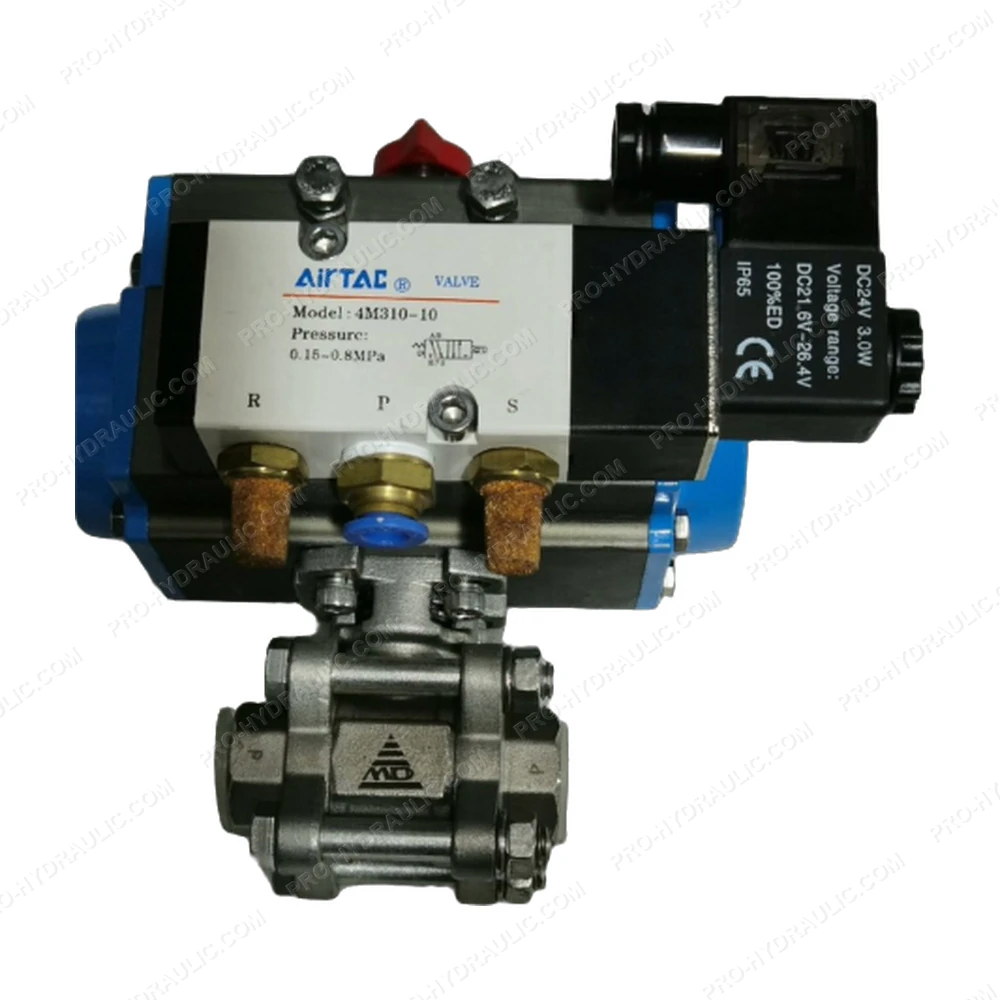

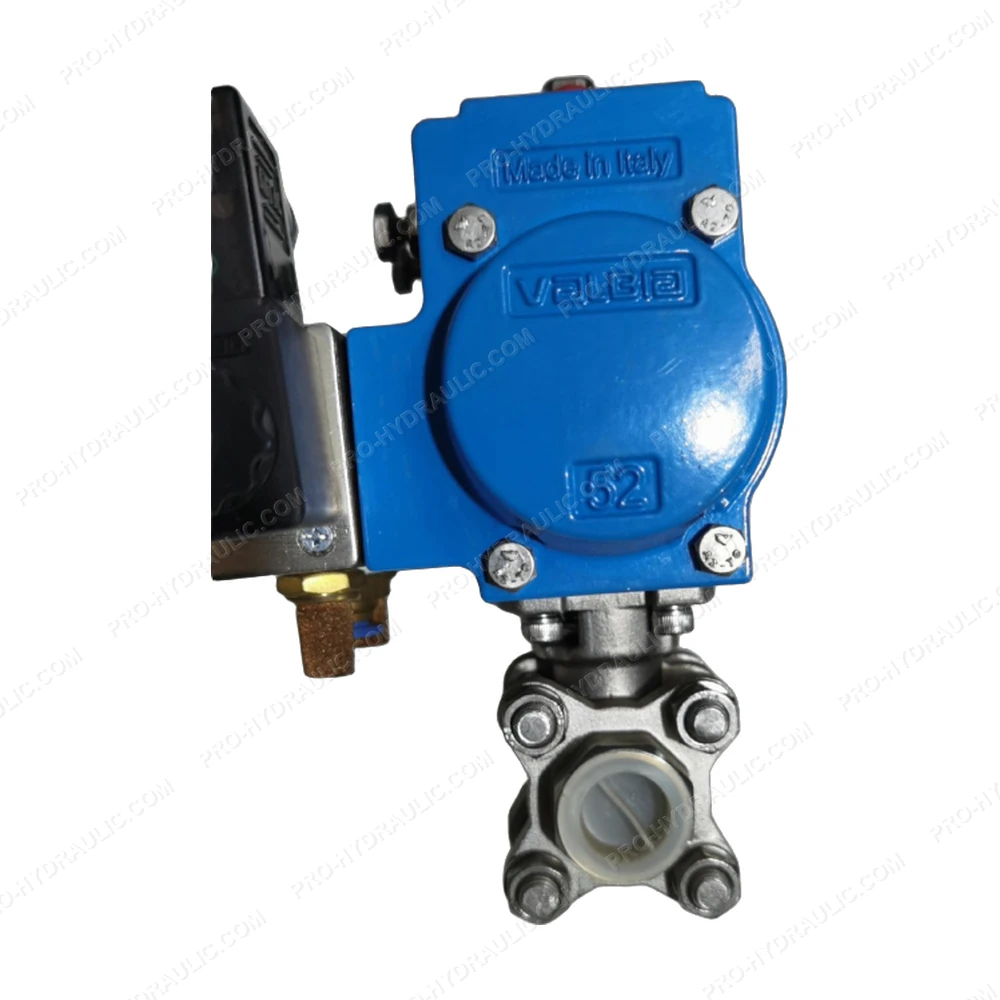

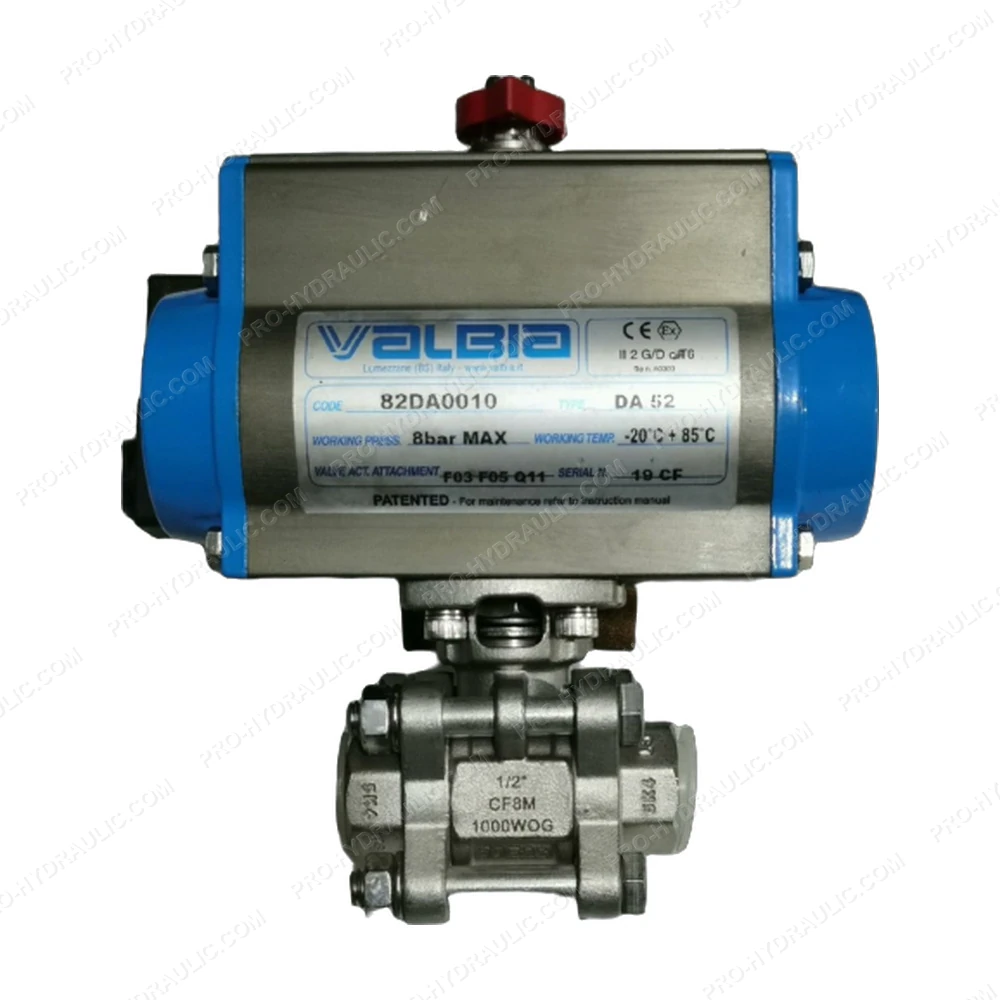

VALBIA 82DA0010 Pneumatic Rotary Actuator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine VALBIA 82DA0010 Solenoid Directional Seat Valve. This Italian-made 24V DC hydraulic component features a poppet-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
