The VALBIA 82SRFZ10 is a heavy-duty industrial pneumatic actuator valve engineered for reliable quarter-turn operation in process and pneumatic systems. It utilizes a double-acting rack-and-pinion mechanism with a hard-anodized aluminum body and stainless steel pinion for high cycle life and precise valve control.
VALBIA 82SRFZ10 Technical Specifications
| Actuator Type | Double-acting pneumatic |
|---|---|
| Action | Quarter-turn (90°) |
| Body Material | Hard-anodized aluminum |
| Pinion Material | Stainless steel |
| Air Supply | 2.5 to 8 bar (36 to 116 psi) |
| Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Mounting Standard | ISO 5211 |
| Port Connections | G1/4 (air), NAMUR interface |
Key Engineering Features
- Rack-and-pinion design with dual piston for balanced torque output
- Hard-anodized aluminum body for corrosion resistance and extended service life
- Stainless steel pinion and fasteners for durability in harsh environments
- NAMUR solenoid interface and ISO 5211 mounting pattern for direct valve adaptation
- Pre-lubricated for maintenance-free operation
Industrial Applications
- Chemical and petrochemical process lines
- Water and wastewater treatment systems
- Food and beverage processing (with appropriate valve materials)
- Pneumatic conveying and general industrial automation
- HVAC and cooling water circuits
For technical inquiries, dimensional drawings, or replacement support for VALBIA 82SRFZ10, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

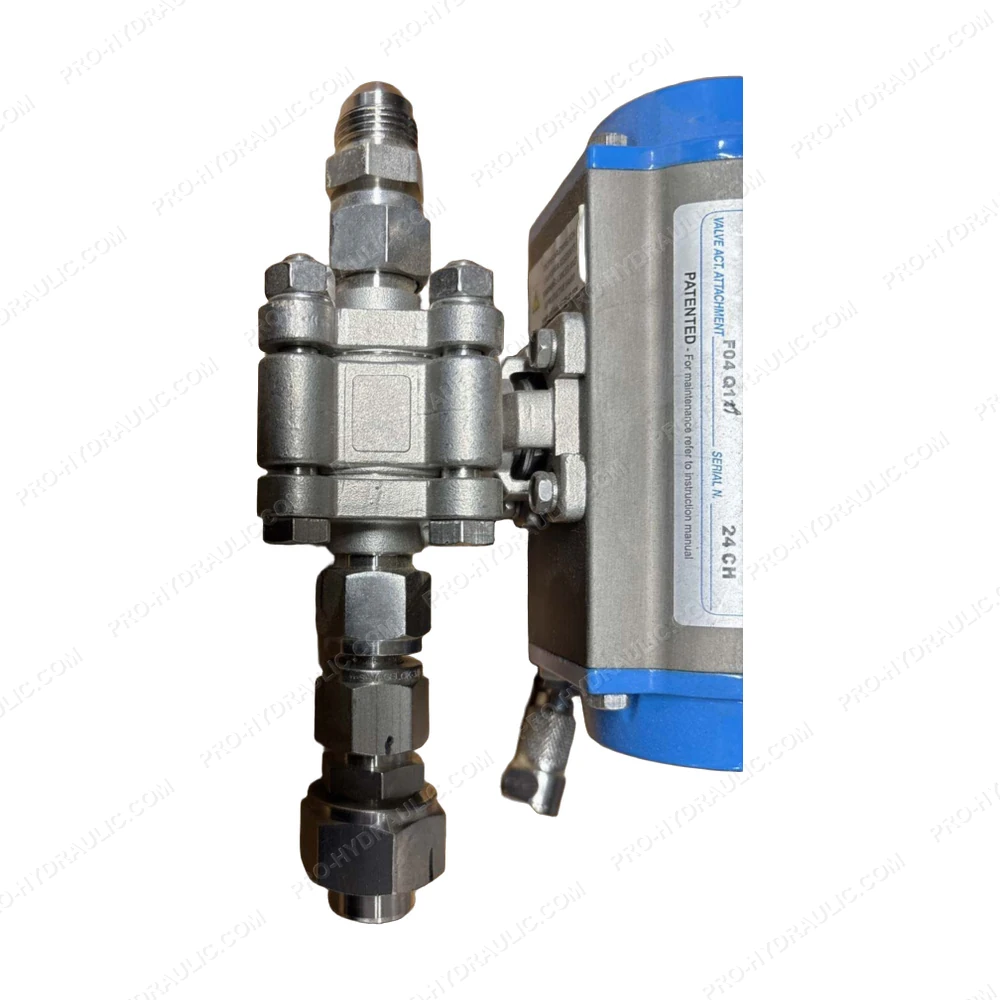

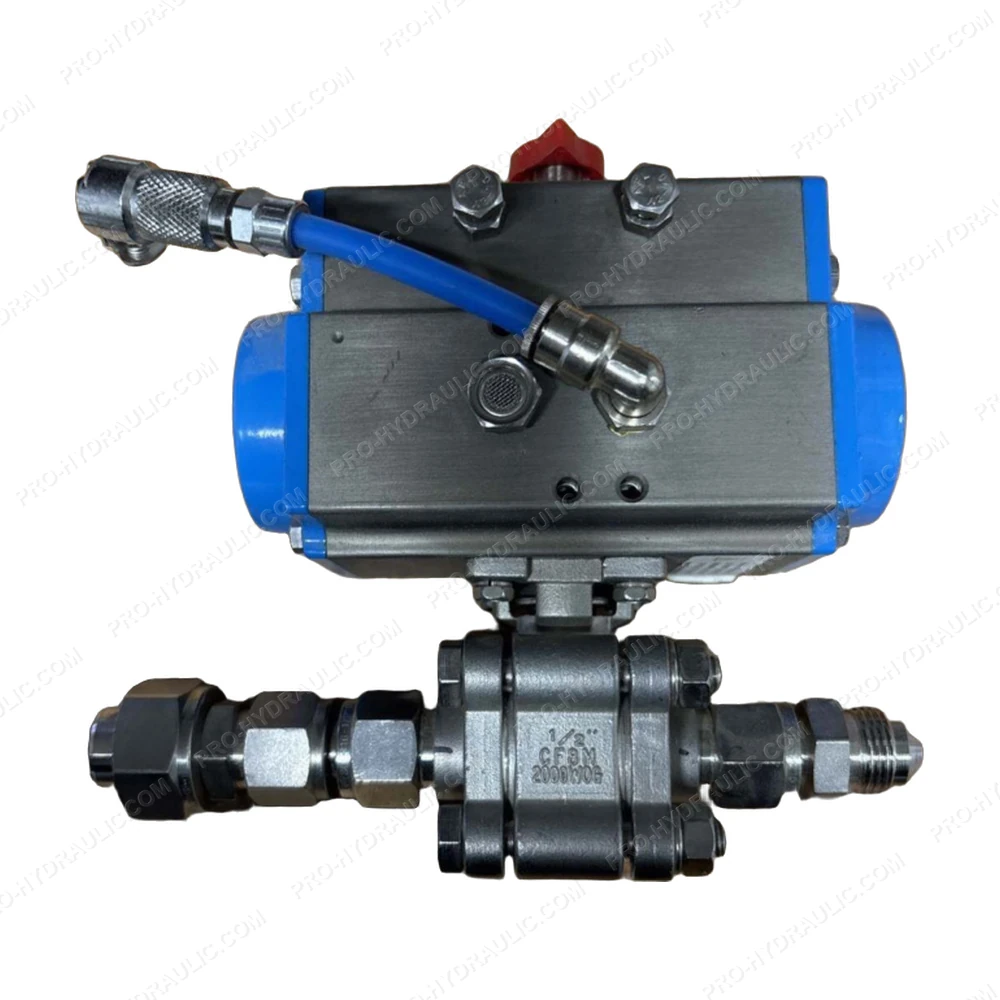

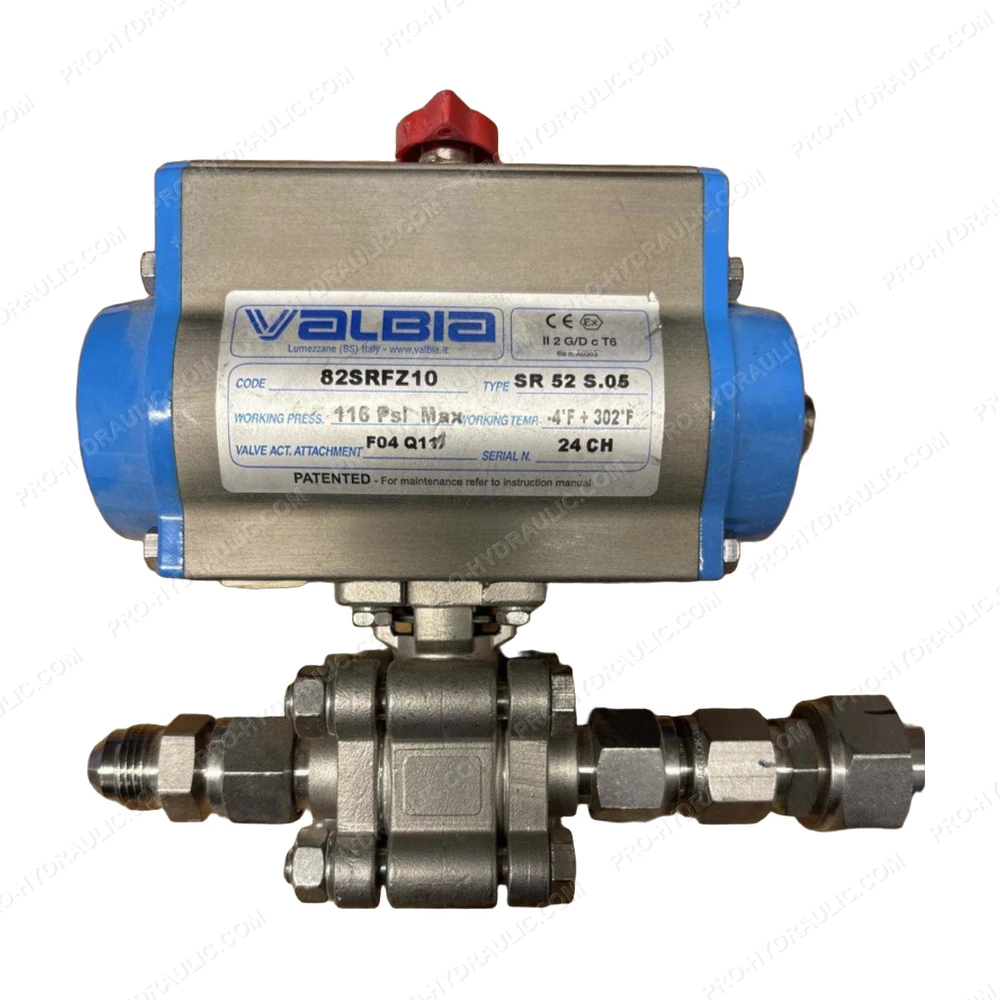

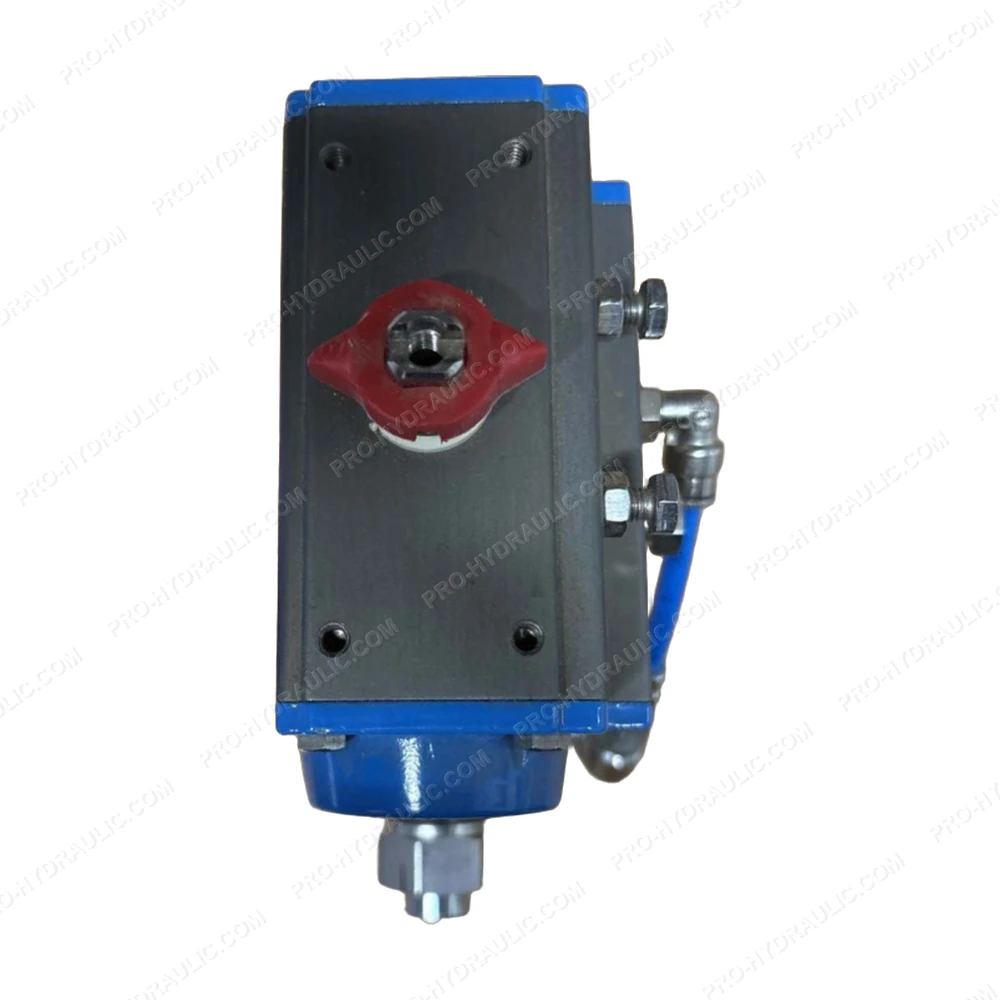

VALBIA 82SRFZ10 Pneumatic Actuator Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the VALBIA 82SRFZ10 Pneumatic Actuator Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
