Product Overview
The VALVAUT Z20010GR is a pneumatically actuated general process valve engineered for precise media control in demanding industrial fluid handling systems. Manufactured by VALVAUT, this valve utilizes compressed air as the actuation medium to drive an internal closure element (disc, diaphragm, or spool depending on trim configuration), providing rapid, repeatable on/off or modulating control of compatible process media. As a core component within hydraulic and pneumatic circuit architectures, the Z20010GR serves as a critical isolation and flow-direction device, ensuring safe and efficient operation of process lines where remote or automated actuation is required. Its robust construction and standardized interface make it a direct-fit solution for OEM and retrofit applications across a wide spectrum of industrial sectors.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Process Valve (General Process & Pneumatic Valve) |
| Model Designation | Z20010GR |
| Actuation Type | Pneumatic (Air Pilot / Spring Return or Double Acting) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar; consult factory for specific pressure envelope) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Threaded or Flanged per configuration) |
| Body Material | Industrial-grade metal alloy (e.g., brass, stainless steel, or aluminum dependent on trim) |
| Seal Material | NBR / FKM / EPDM (media compatibility dependent) |
| Response Time | Fast-acting pneumatic pilot response (millisecond range) |
Engineering Features & Advantages
- Precision Pneumatic Actuation: Delivers rapid and repeatable valve positioning via compressed air pilot signal, enabling accurate remote control and integration into automated process loops.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust body and seal construction resistant to wear, corrosion, and media degradation.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement without modification to existing piping or control interfaces.
- Leak-Tight Shutoff: Precision-machined seating surfaces and high-quality elastomeric seals provide reliable isolation, minimizing media loss and enhancing system safety.
- Versatile Media Compatibility: Available in multiple trim and seal configurations to handle air, water, oil, and compatible hydraulic fluids within specified temperature and pressure limits.
Typical Industrial Applications
The VALVAUT Z20010GR pneumatic process valve is widely deployed in heavy industrial scenarios including plastic injection molding machines (for cooling and hydraulic circuit control), metallurgical presses (for clamping and pressure regulation), construction and marine hydraulics (for directional and isolation functions), and CNC machine tools (for coolant and pneumatic clamping systems). Its robust pneumatic actuation and standardized interface make it equally suited for process automation
PRODUCT IMAGES

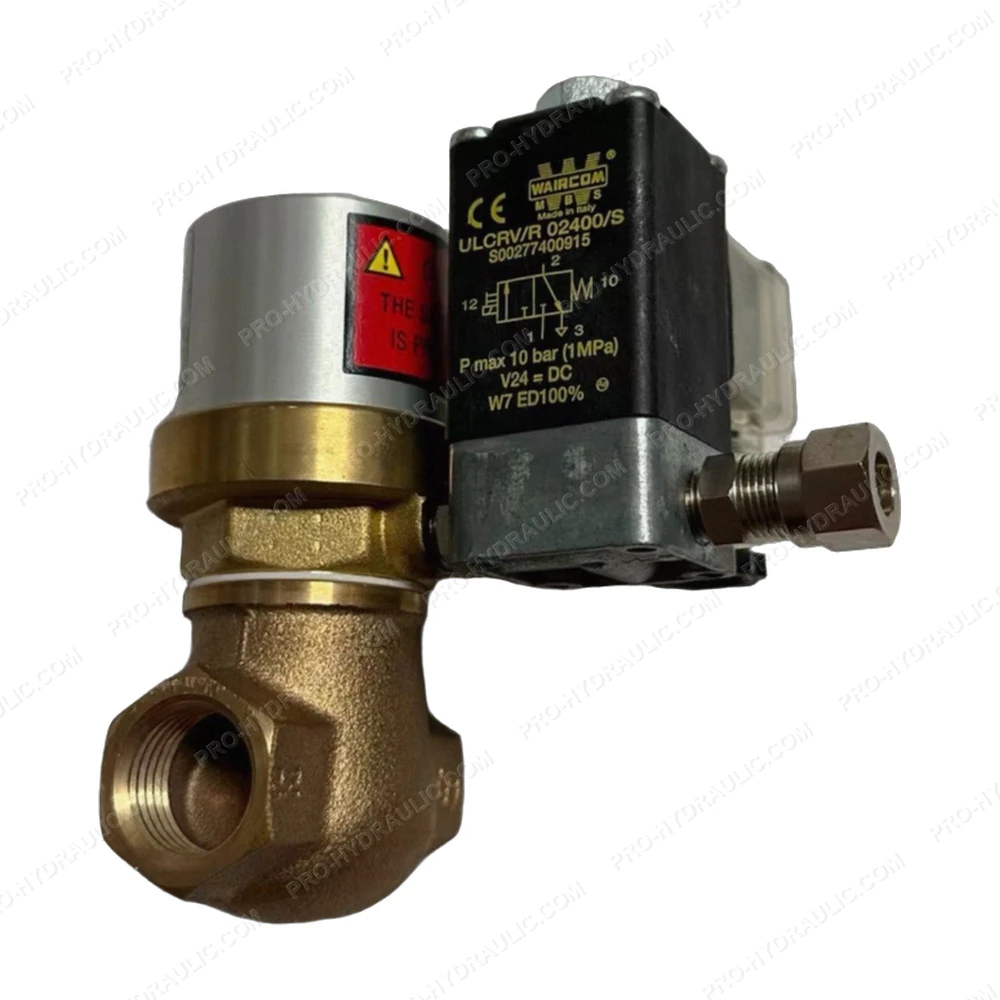

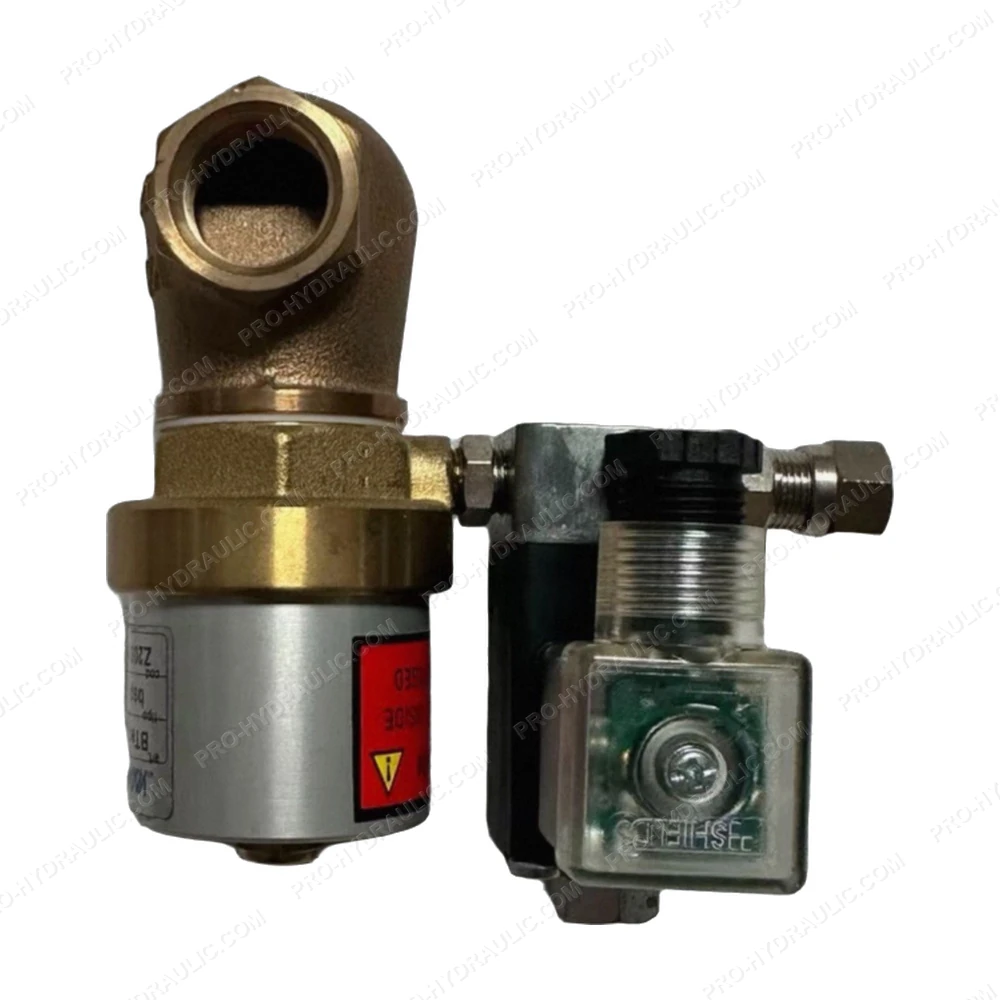

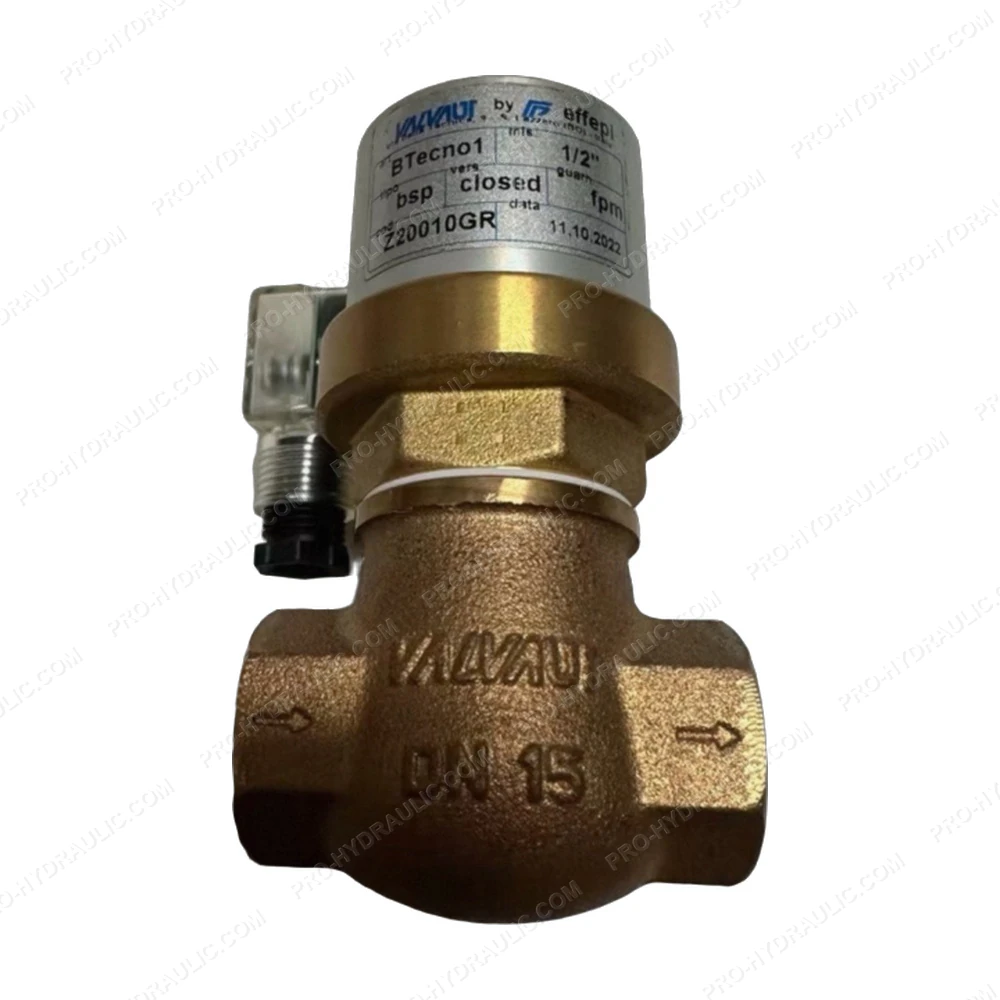

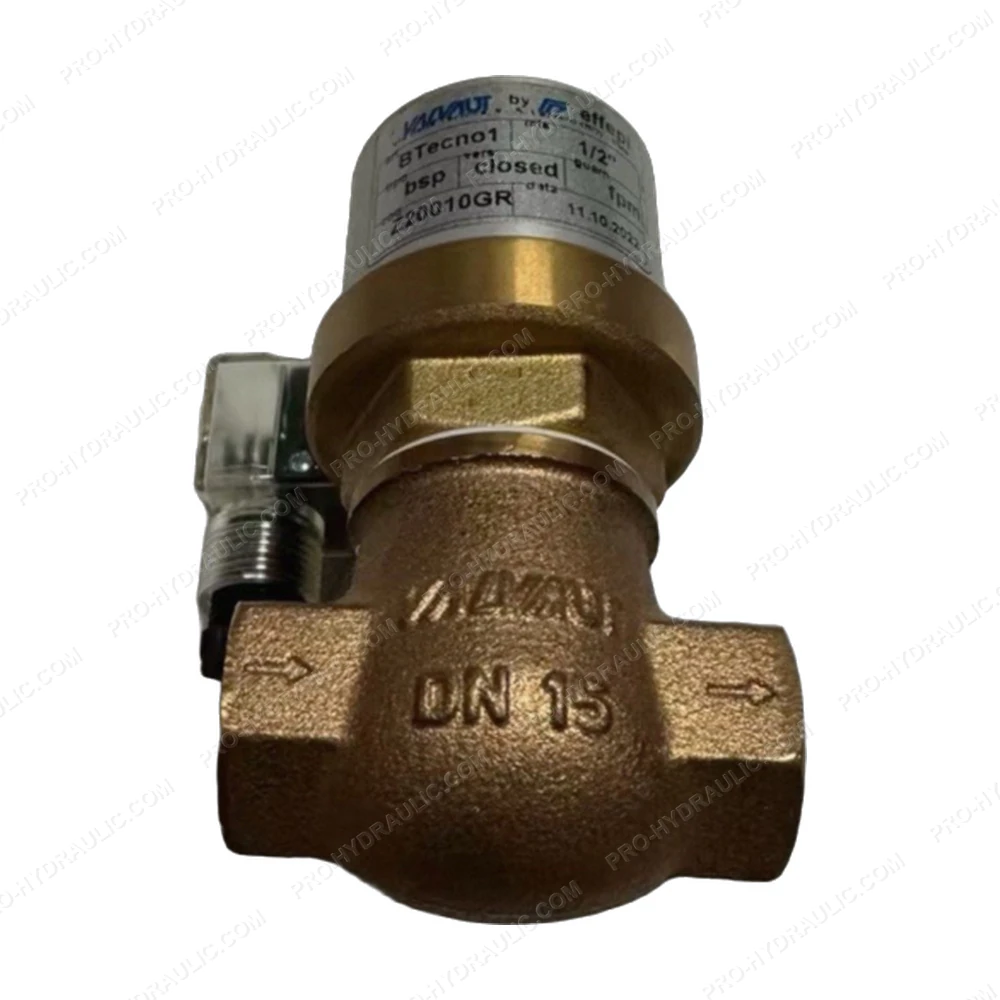

VALVAUT Z20010GR Pneumatic Process Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine VALVAUT Z20010GR Solenoid Directional Seat Valve. This German-made 24V DC hydraulic component features a poppet-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
