Product Overview
The VAT 0530X-CA24-AGF1/0300 is a high-precision vacuum isolation valve engineered by VAT Group, a global leader in vacuum valve technology. This pneumatically actuated valve is designed for reliable isolation and control of vacuum lines in demanding industrial and process environments. Featuring a robust aluminum or stainless steel body construction, the 0530X series utilizes a bellows-sealed or elastomer-sealed gate mechanism to ensure leak-tight performance and minimal particle generation. The valve operates via a compressed air actuator (24 VDC solenoid pilot), providing fast, repeatable open/close cycles essential for vacuum process control. With a nominal flange size of 0300 (DN 300 / 12-inch), this valve is suitable for high-conductance vacuum lines where minimal pressure drop and high flow capacity are critical. Its compact design and standard ISO-K or ISO-F flange interfaces allow seamless integration into OEM vacuum systems, load locks, and process chambers.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Vacuum Isolation Valve (Pneumatic, Process & Pneumatic Valve) |
| Model Designation | VAT 0530X-CA24-AGF1/0300 |
| Operating Pressure | Vacuum service: 1×10⁻⁸ mbar to 2 bar (absolute); Actuator: 4–7 bar compressed air |
| Mounting & Connection | ISO-K / ISO-F flange, DN 300 (12″) nominal; Actuator port: G1/4″ or equivalent |
| Actuation | Pneumatic, double-acting or spring-return; 24 VDC solenoid pilot (CA24) |
| Seal Material | Elastomer (FKM/Viton) or bellows-sealed gate (AGF1 configuration) |
| Leak Rate | < 1×10⁻⁹ mbar·L/s (helium) |
| Body Material | Aluminum alloy or stainless steel (corrosion-resistant) |
| Temperature Range | -20°C to +150°C (depending on seal material) |
| Cycle Life | > 1,000,000 cycles (typical for VAT 05 series) |
Engineering Features & Advantages
- Precision Performance: The integrated pneumatic, double-acting or spring-return; 24 VDC solenoid pilot (CA24) ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original VAT standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
Its compact design and standard ISO-K or ISO-F flange interfaces allow seamless integration into OEM vacuum systems, load locks, and process chambers.
PRODUCT IMAGES

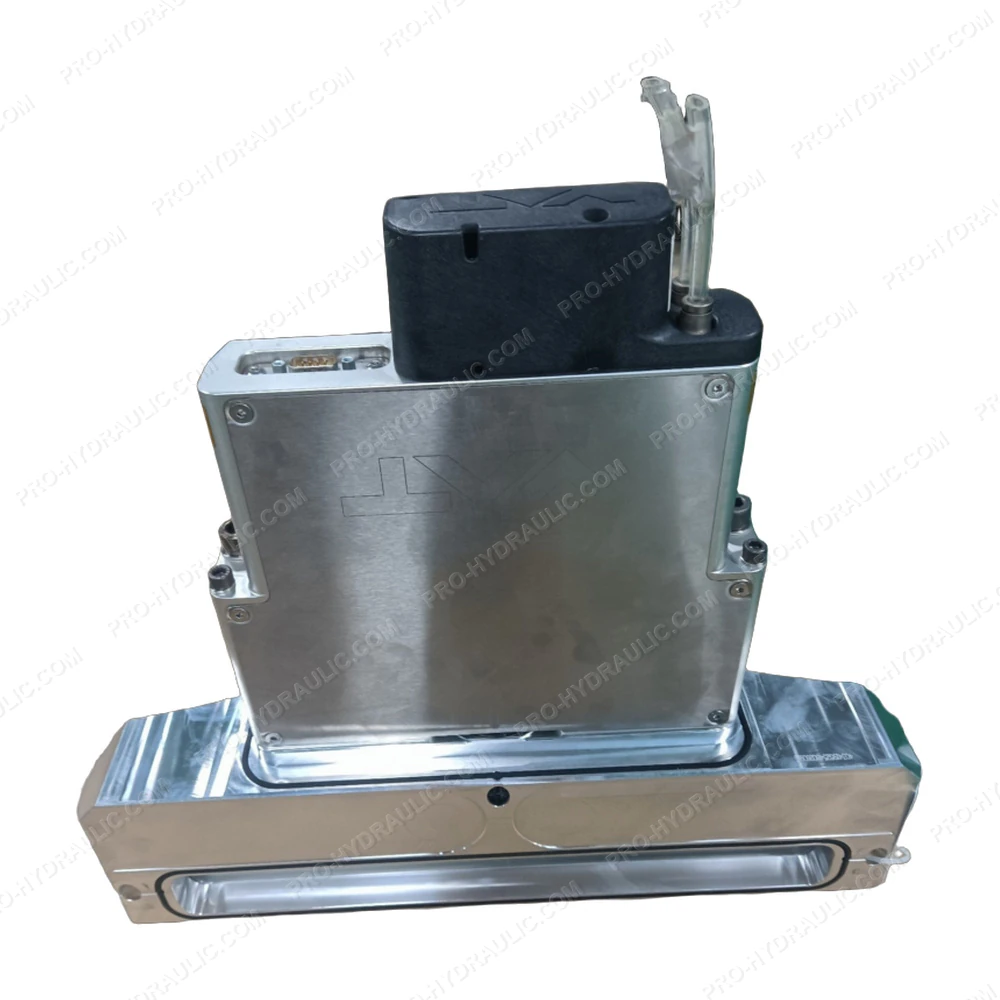

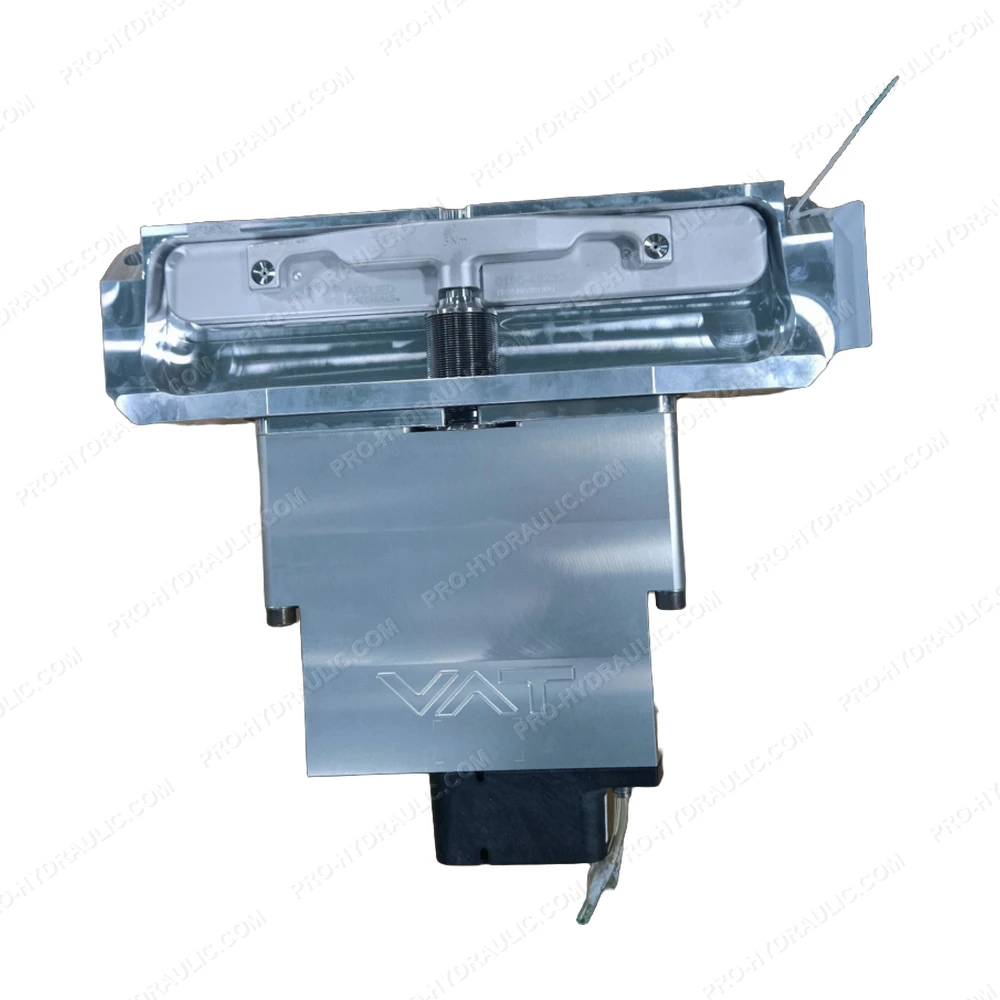

VAT 0530X-CA24-AGF1/0300 Vacuum Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine VAT 0530X-CA24-AGF1/0300 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a direct-acting spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
