Product Overview
The VAT 0530X-CA24-AGF1/0657 is a high-precision vacuum isolation valve engineered by VAT Group, a global leader in vacuum valve technology. This pneumatically actuated valve is designed for reliable isolation and control of vacuum lines in demanding process environments. Featuring a robust aluminum or stainless steel body construction and a bellows-sealed or elastomer-sealed gate mechanism, the 0530X series ensures leak-tight performance, minimal particle generation, and long service life. The valve operates via a compressed air actuator with a solenoid pilot interface, providing fast, repeatable open/close cycles essential for semiconductor, coating, and industrial vacuum processes. Its compact flange design allows direct integration into standard vacuum piping systems, ensuring optimal conductance and minimal pressure drop.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Vacuum Isolation Valve (Process & Pneumatic Valve) |
| Model Designation | VAT 0530X-CA24-AGF1/0657 |
| Operating Pressure | Vacuum service (typically 1×10⁻⁸ mbar to 2 bar differential); pneumatic actuator supply: 4–7 bar |
| Mounting & Connection | ISO-KF / CF flange or manufacturer-specific vacuum interface (AGF1 configuration) |
| Actuation Type | Pneumatic (compressed air), with solenoid pilot valve (CA24 = 24 VDC coil) |
| Body Material | Aluminum or stainless steel (corrosion-resistant, cleanroom-compatible) |
| Seal Material | Elastomer (FKM/EPDM) or metal bellows (depending on variant) |
| Leak Rate | < 1×10⁻⁹ mbar·L/s (helium leak-tight) |
| Temperature Range | -20°C to +150°C (depending on seal material) |
Engineering Features & Advantages
- Precision Vacuum Sealing: High-integrity gate or pendulum mechanism ensures ultra-low leak rates, maintaining process chamber integrity and preventing contamination in critical vacuum applications.
- Fast Pneumatic Actuation: 24 VDC solenoid pilot valve enables rapid, repeatable open/close cycles, reducing cycle times and improving throughput in automated process lines.
- Industrial Reliability: Built for continuous operation under severe vacuum and process conditions, with robust construction that resists particle generation and wear.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original VAT 0530X series valves, ensuring drop-in replacement without modification to existing vacuum interfaces.
- Direct Fit Replacement: Precision-manufactured to original VAT specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
Its compact flange design allows direct integration into standard vacuum piping systems, ensuring optimal conductance and minimal pressure drop.
PRODUCT IMAGES

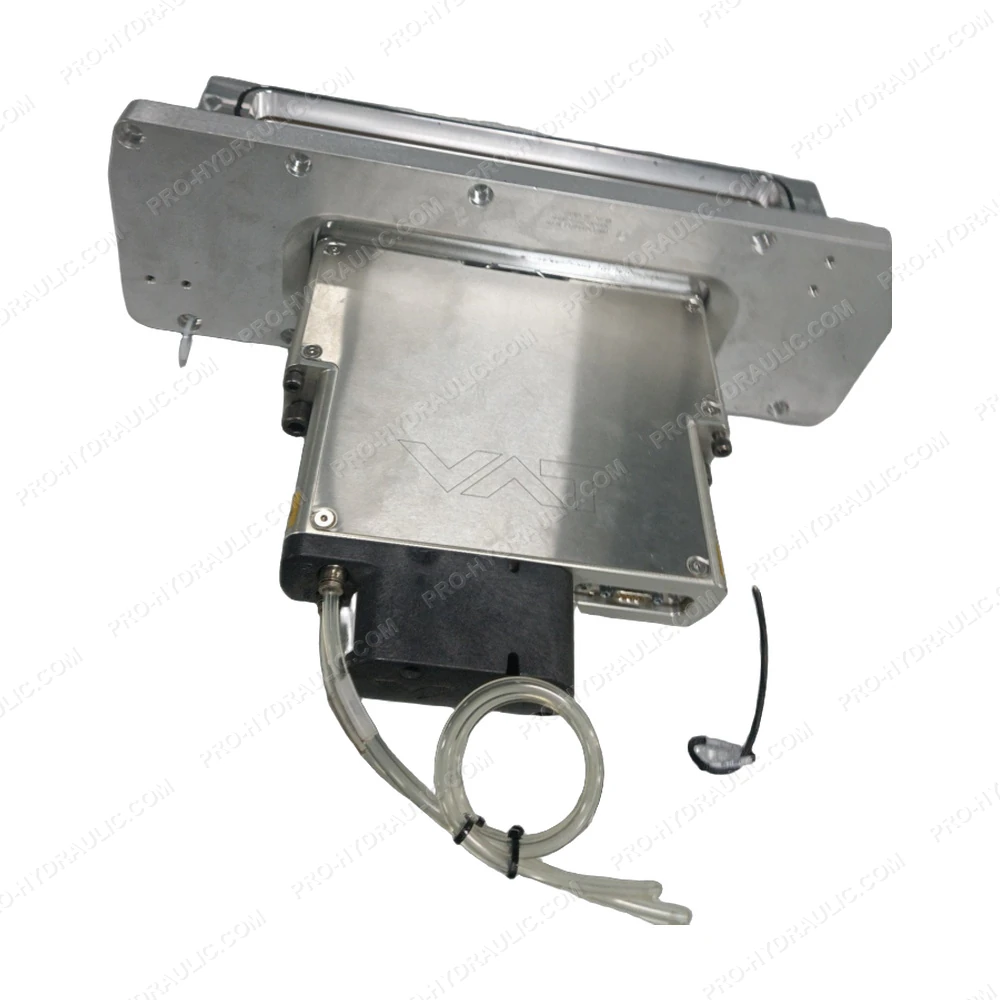

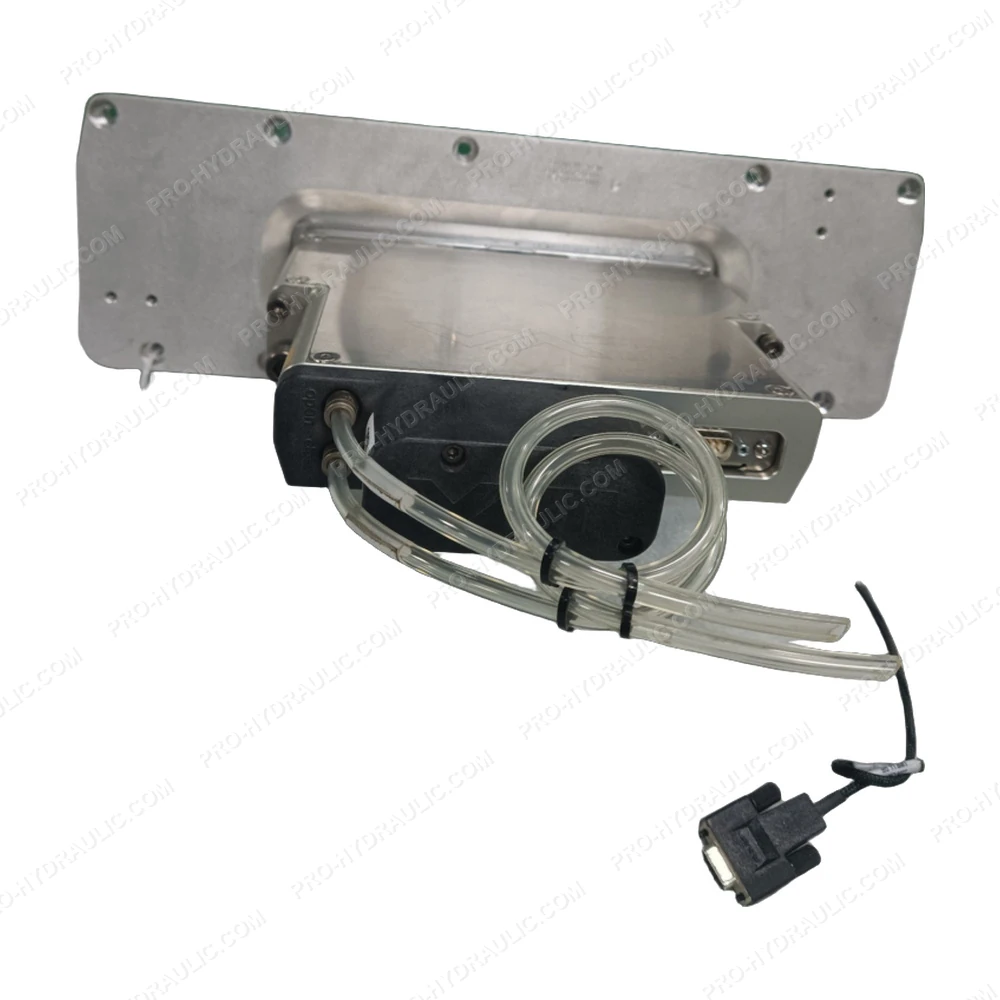

VAT 0530X-CA24-AGF1/0657 Vacuum Valve
