Product Overview
The VAT 10844-PE24-0005/0035 (OEM Reference: A-768815) is a high-precision vacuum isolation valve engineered by VAT Vakuumventile AG, the global benchmark for ultra-clean and high-vacuum flow control. Operating on a pneumatically actuated, normally-closed (NC) gate mechanism, this valve provides reliable on/off isolation of process gas and vacuum lines in demanding semiconductor, coating, and analytical environments. Its compact aluminum body and elastomer-sealed gate deliver fast actuation, low particle generation, and leak-tight sealing performance, making it a critical component for chamber isolation, load-lock sequencing, and pump protection in high-vacuum process tools.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Process & Pneumatic Valve — Pneumatically Actuated Vacuum Gate Valve (Normally Closed) |
| Model Designation | VAT 10844-PE24-0005/0035 / A-768815 |
| Manufacturer | VAT Vakuumventile AG (Switzerland) |
| Actuation Type | Pneumatic (compressed air), spring-return fail-safe closing |
| Valve Configuration | 2/2-way isolation gate, normally closed (NC) |
| Operating Pressure | Standard Industrial Grade — pneumatic pilot typically 4–7 bar; vacuum range from atmosphere down to high vacuum (10⁻⁷ mbar class) |
| Leak Rate | Elastomer gate seal, < 1 × 10⁻⁹ mbar·l/s (He) at valve seat |
| Body Material | Anodized aluminum alloy, vacuum-compatible |
| Seal Material | FKM / Viton elastomer (process-compatible variants available) |
| Mounting & Connection | Standard ISO / VAT flange interface (KF, ISO-K, or CF per configuration) |
| Pneumatic Port | Threaded pilot air connection with solenoid interface option |
Engineering Features & Advantages
- Precision Performance: The process & pneumatic valve — pneumatically actuated vacuum gate valve (normally closed) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original VAT OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings of standard Industrial Grade — pneumatic pilot typically 4–7 bar; vacuum range from atmosphere down to high vacuum (10⁻⁷ mbar class), supporting stable operation across the full working range.
Typical Industrial Applications
This process & pneumatic valve — pneumatically actuated vacuum gate valve (normally closed) is widely used in industrial hydraulic power units, machine tools, presses, and general automation systems where reliable, precise performance is required.
PRODUCT IMAGES

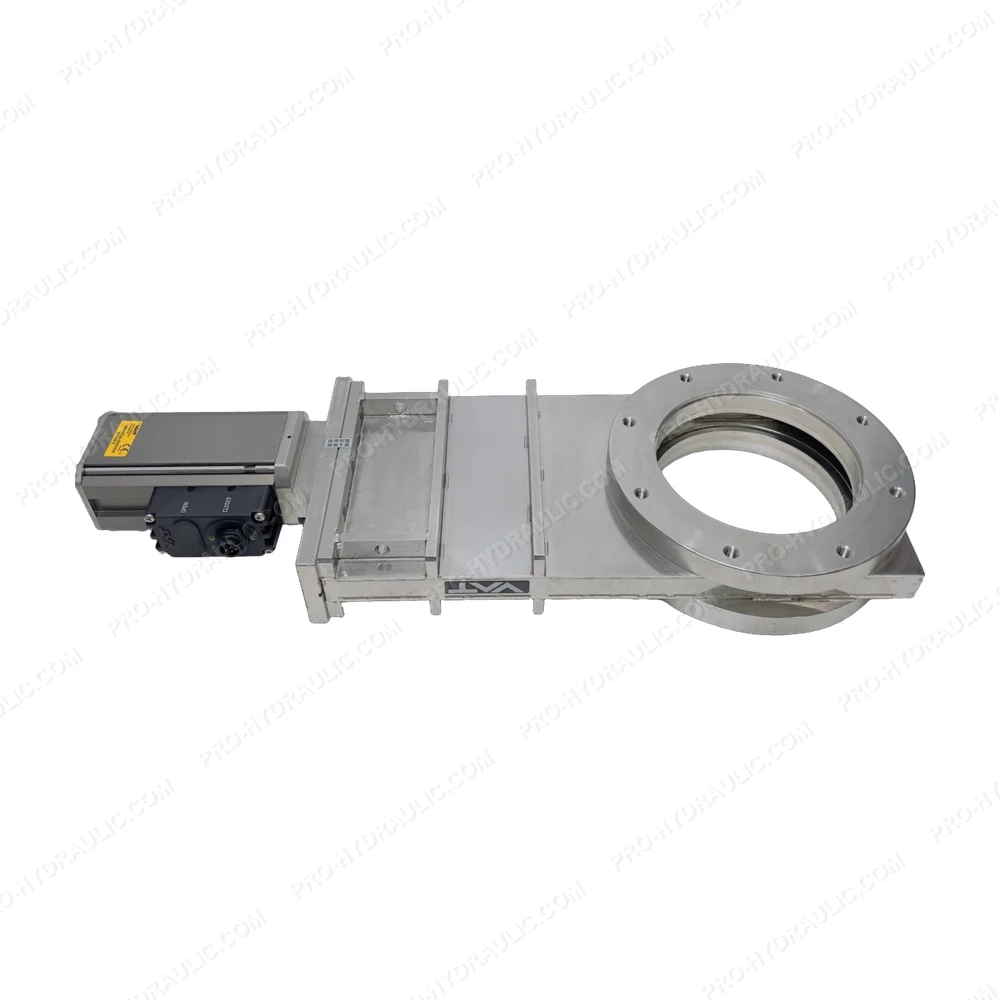

VAT 10844-PE24-0005/0035 / A-768815 Vacuum Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine VAT 10844-PE24-0005/0035 / A-768815 Solenoid Directional Control Valve. This Swiss-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
