Product Overview
The VERSA-MATIC E1PP5T5T9C-CP is a pneumatically driven, air operated double diaphragm (AODD) pump engineered for reliable transfer of aggressive, viscous, and shear-sensitive fluids in industrial environments. Manufactured by Versa-Matic (IDEX Corporation), this 1-inch pump utilizes a positive displacement, reciprocating diaphragm working principle in which compressed air is alternately directed to two opposing diaphragm chambers via a pilot-shifted air distribution system. The result is a smooth, self-priming, seal-less pumping action capable of running dry without damage. The E1PP5T5T9C-CP serves as a robust fluid handling solution for chemical dosing, slurry transfer, and utility circulation duties where electric motors are impractical or unsafe.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Air Operated Double Diaphragm Pump (AODD) |
| Model Designation | E1PP5T5T9C-CP |
| Port Size | 1″ NPT (suction and discharge) |
| Operating Pressure | Standard Industrial Grade (up to 100 psi / 6.9 bar air inlet) |
| Max Flow Rate | Approx. 45 GPM (170 LPM) depending on air supply and viscosity |
| Wetted Materials | Polypropylene body with PTFE diaphragms and elastomer seats |
| Mounting & Connection | Standard ISO / Manufacturer Interface, foot-mounted base |
Engineering Features & Advantages
- Precision Performance: Balanced air valve and pilot spool design deliver smooth, non-stalling reciprocation with excellent flow stability across varying viscosities and discharge pressures.
- Seal-Less, Dry-Run Capable: Double diaphragm construction eliminates mechanical seals and packing, allowing safe dry running and handling of abrasive or shear-sensitive media.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with corrosion-resistant polypropylene housing and chemically inert PTFE diaphragms.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Versa-Matic E1 series OEM standards, ensuring drop-in serviceability.
Typical Industrial Applications
The VERSA-MATIC E1PP5T5T9C-CP is widely deployed in chemical transfer and dosing lines, wastewater and slurry handling, paint and coating circulation, and general plant utility fluid transfer. Its air-driven, seal-less design makes it particularly suited to hazardous or explosive atmospheres, mining dewatering, and food and pharmaceutical processing where gentle, contamination-free pumping is essential.
PRODUCT IMAGES

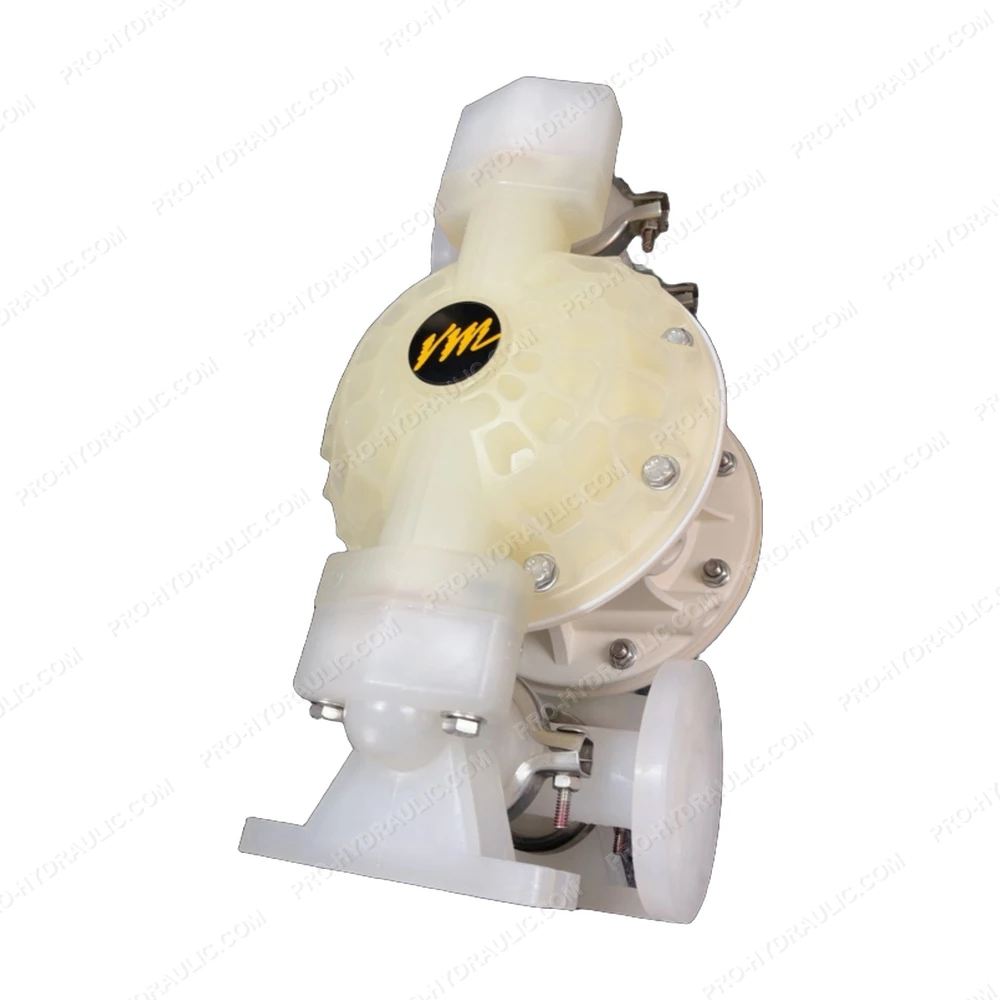

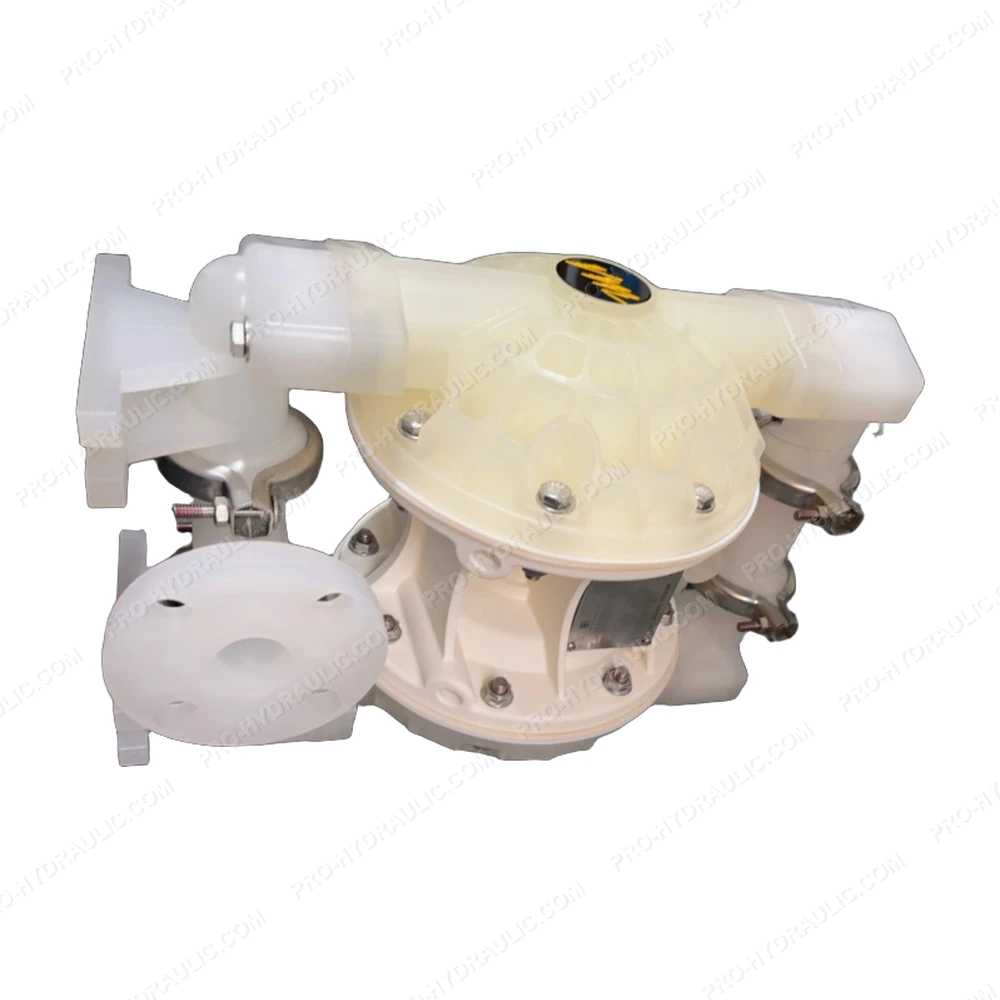

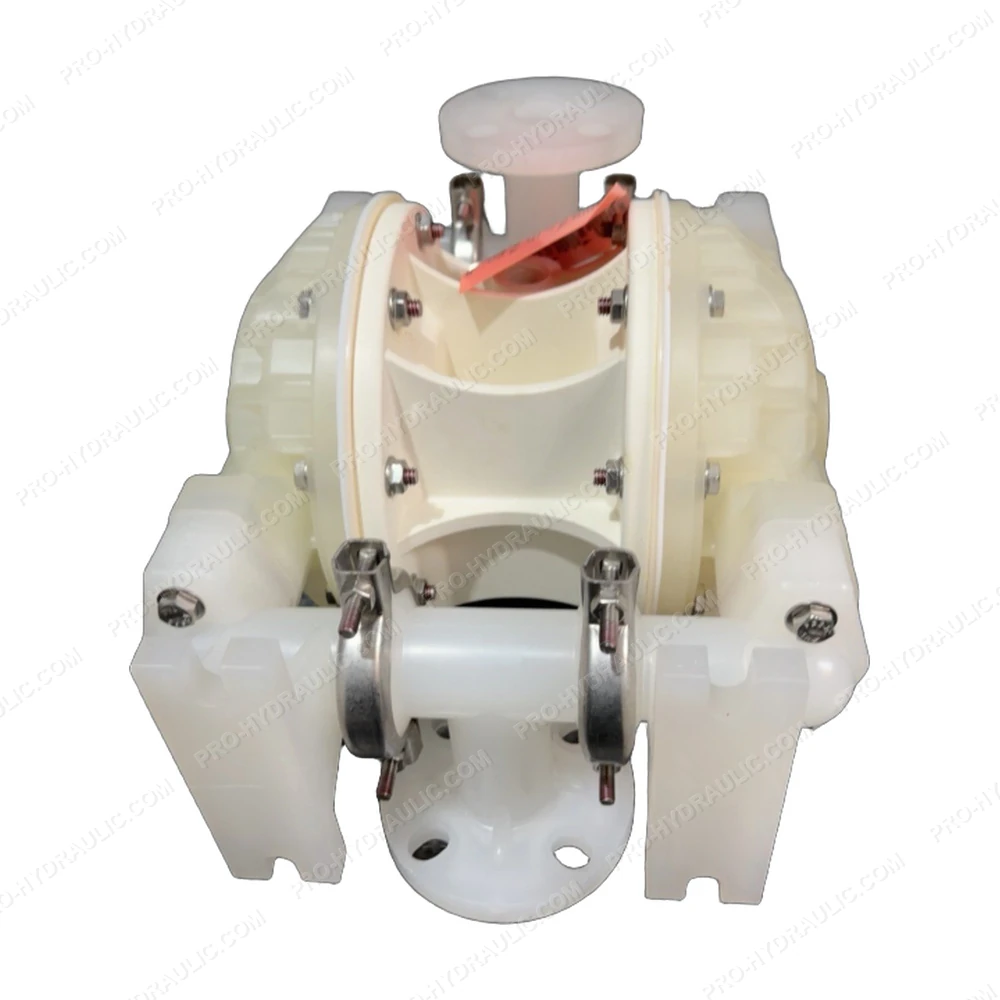

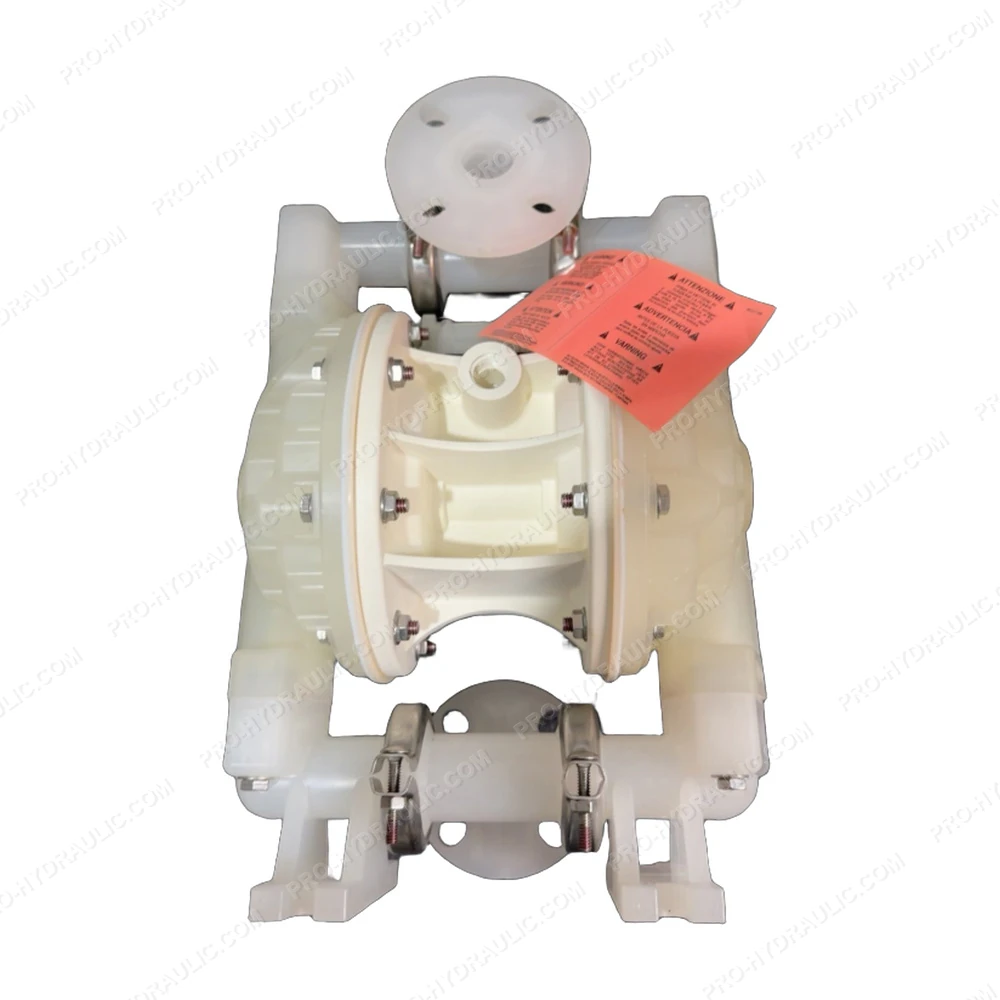

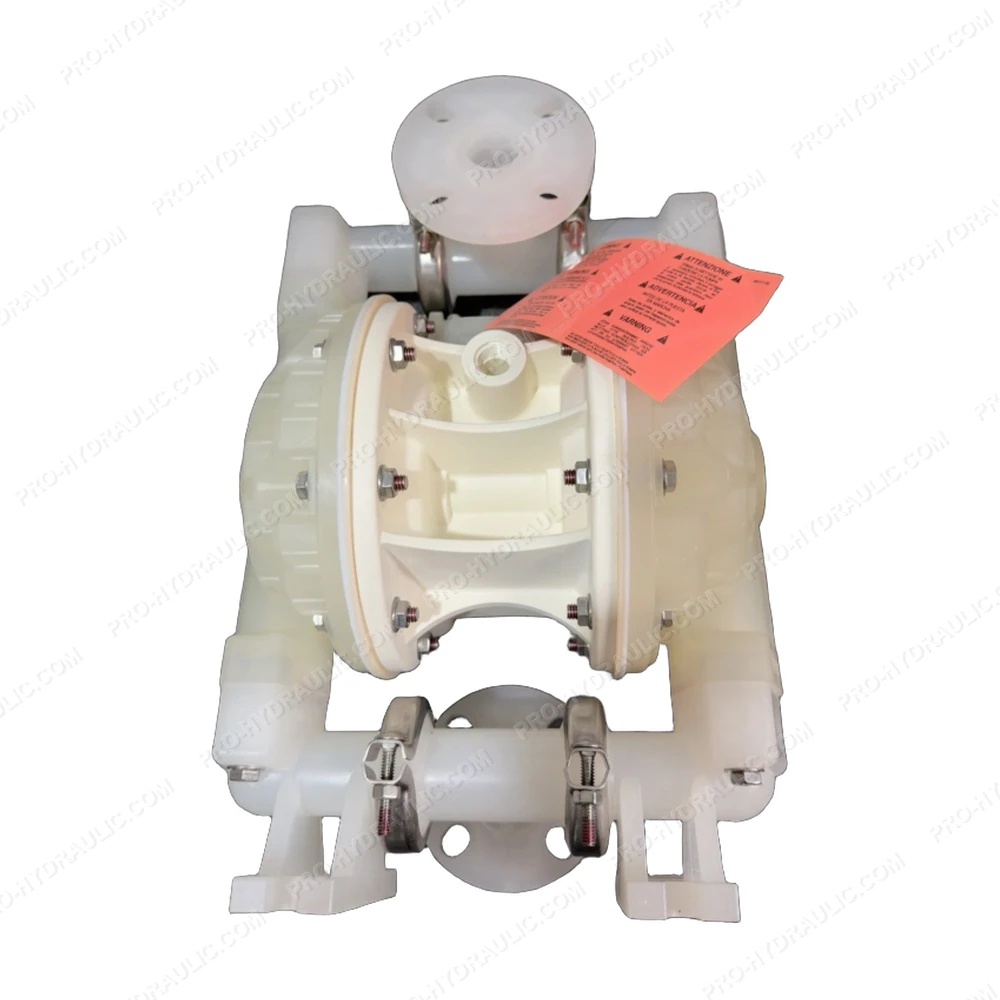

VERSA-MATIC E1PP5T5T9C-CP Air Operated Double Diaphragm Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine VERSA-MATIC E1PP5T5T9C-CP Air Operated Double Diaphragm Pump. This USA-made pneumatic pump features a robust bolted construction, delivering leak-free, reliable fluid transfer for heavy-duty industrial systems.
