Product Overview
The VERSA P-2002-02-XMAA-D024 is a pneumatically actuated directional control valve engineered by VERSA Products, a recognized manufacturer of precision fluid power and process control components. This valve operates on a spool-and-sleeve principle, where an internal sliding spool is shifted by a solenoid pilot actuator to route compressed air or process gas through the body ports. The P-2002 series is designed for reliable media control in industrial automation, offering positive sealing, fast response, and long cycle life. Its 2-position, 4-way configuration makes it suitable for double-acting actuator control, cylinder extension/retraction, and general pneumatic circuit switching in demanding process environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Directional Control Valve (Process & Pneumatic Valve) |
| Model Designation | P-2002-02-XMAA-D024 |
| Valve Function | 2-Position, 4-Way directional control |
| Actuation Type | Solenoid pilot actuated (D024 coil, 24V DC nominal) |
| Operating Pressure | Standard pneumatic range (up to rated bar, consult factory for exact limits) |
| Port Size & Connection | 1/4″ NPT (02 designation), standard industrial interface |
| Mounting | Inline / manifold mount, standard VERSA body configuration |
| Seal Material | Nitrile / Buna-N (standard), compatible with air and inert gases |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and sleeve assembly ensures minimal leakage, consistent shift response, and accurate flow direction control across millions of cycles.
- Fast Solenoid Response: The D024 solenoid pilot provides rapid actuation and de-actuation, enabling high-speed cycling in automated pneumatic systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust body construction and wear-resistant internal components.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original VERSA P-2002 series mounting and port standards, minimizing downtime during changeout.
- Versatile Media Compatibility: Suitable for compressed air, inert gases, and select process media when fitted with appropriate seal options.
Typical Industrial Applications
This VERSA P-2002-02-XMAA-D024 directional control valve is commonly deployed in pneumatic automation systems, including packaging and material handling machinery, plastic injection molding machine auxiliary circuits, CNC machine tool clamping and tool-change actuators, and general process valve piloting in chemical and petrochemical plants. Its 4-way configuration is particularly suited for controlling double-acting pneumatic cylinders and rotary actuators in demanding industrial environments.
PRODUCT IMAGES

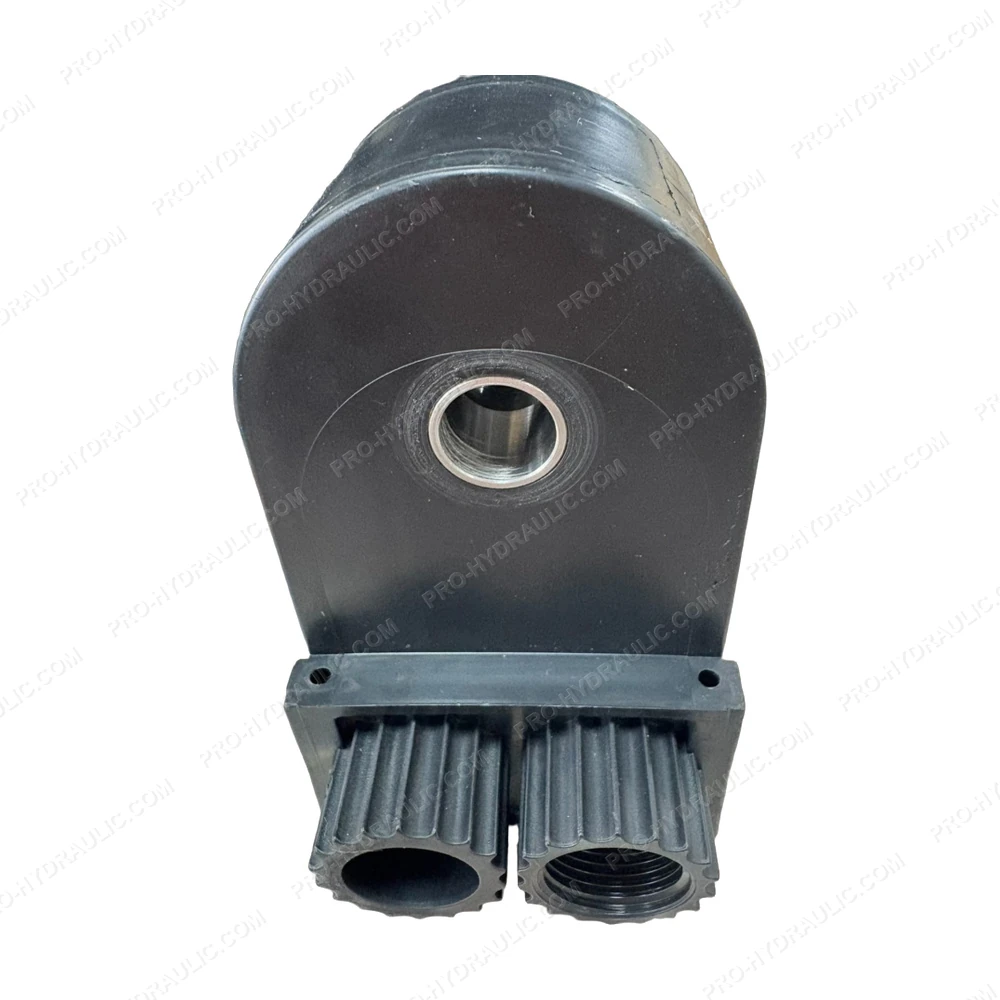

VERSA P-2002-02-XMAA-D024 Pneumatic Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine VERSA P-2002-02-XMAA-D024 Solenoid Directional Valve. This USA-made 24V DC hydraulic component features a 4-way 2-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
