Product Overview
The VERSA QE-5-316 is a precision-engineered Quick Exhaust Valve designed to significantly accelerate the exhaust phase of pneumatic and process control systems. Manufactured by VERSA, a global leader in valve technology, this component functions by rapidly venting downstream air pressure directly to the atmosphere when the inlet supply is interrupted. This action bypasses the restrictive flow paths of directional control valves, dramatically reducing cylinder retraction times and improving overall machine cycle efficiency. Constructed from 316 Stainless Steel, the QE-5-316 is specifically suited for demanding industrial environments requiring high corrosion resistance, such as chemical processing, offshore marine applications, and food-grade manufacturing systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Quick Exhaust Valve (Pneumatic / Process Valve) |
| Model Designation | QE-5-316 |
| Body Material | 316 Stainless Steel |
| Operating Pressure | Standard Industrial Grade (Up to 150 PSI / 10 Bar) |
| Port Size | 1/4″ NPT (Standard Industrial Interface) |
| Mounting & Connection | Inline / Standard Threaded Connection |
| Seal Material | Nitrile (Buna-N) / Fluorocarbon (FKM) Options |
Engineering Features & Advantages
- Precision Performance: Utilizes a differential piston design that ensures rapid opening and high exhaust flow rates, minimizing back pressure and maximizing cylinder speed.
- Industrial Reliability: The 316 Stainless Steel body provides superior resistance to caustic chemicals, saltwater, and washdown environments, ensuring long-term durability in severe conditions.
- Direct Fit Replacement: Manufactured to exacting VERSA dimensional standards, ensuring seamless integration with existing pneumatic circuits and direct interchangeability with original OEM components.
- Optimized Flow Dynamics: Large exhaust porting reduces restriction, allowing for faster evacuation of air than standard directional valve exhaust paths.
Typical Industrial Applications
This valve is ideal for high-cycle pneumatic systems requiring rapid response and corrosion resistance. Common applications include chemical injection skids, offshore oil and gas actuator control panels, food and beverage packaging lines requiring frequent washdowns, and heavy-duty automation systems where reducing cylinder retraction time is critical for throughput. It is also frequently used in marine environments and water treatment facilities where standard brass or aluminum valves would fail due to oxidation.
PRODUCT IMAGES

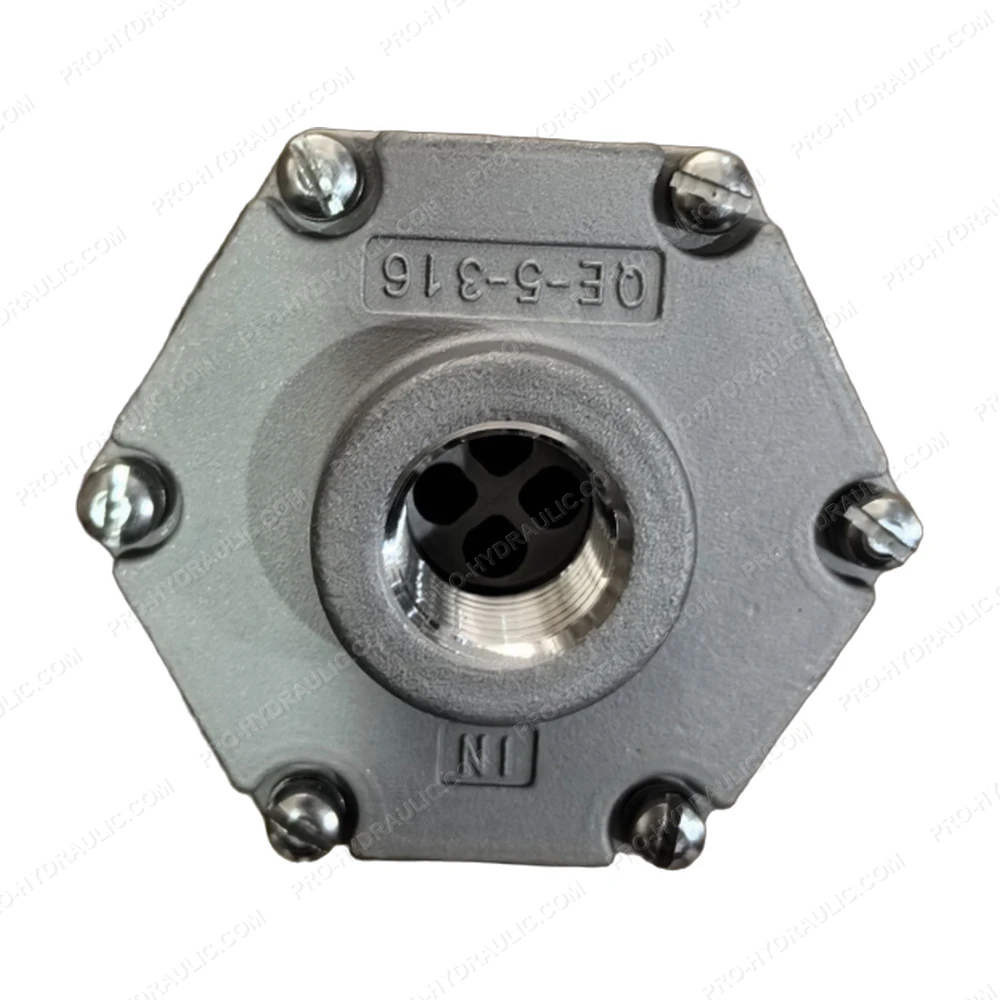

VERSA QE-5-316 Quick Exhaust Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine VERSA QE-5-316 Solenoid Directional Control Valve. This USA-made 120V AC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
