Product Overview
The Vickers 02-123993 is a solenoid operated directional control valve engineered for precise control of hydraulic fluid flow direction in industrial hydraulic systems. Manufactured by Vickers (Eaton), this valve utilizes a solenoid-actuated spool design to shift between flow paths, enabling directional control of cylinders, motors, and other hydraulic actuators. The 02-123993 is a direct-acting, spring-centered or spring-offset configuration designed for reliable performance in demanding industrial circuits. It serves as a critical control component in manifold-mounted or subplate-mounted hydraulic power units, providing dependable switching, holding, and reversing functions for machine actuation sequences.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | Vickers 02-123993 |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Mounting & Connection | Standard ISO / Vickers Subplate Interface |
| Actuation Type | Solenoid Actuated, Spring Return / Spring Centered |
| Spool Configuration | Multi-position, Multi-port Directional Spool |
| Flow Capacity | Rated per Vickers DG4V / D1VW Series Standard |
| Seal Material | Nitrile (Buna-N) / Viton Options Available |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and sleeve assembly ensures minimal internal leakage, accurate flow metering, and consistent directional response across the full pressure range.
- Fast Solenoid Response: High-force solenoid actuators provide rapid spool shifting for precise timing in automated sequencing and safety interlock circuits.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust coil insulation and durable wet-armature or dry-armature solenoid construction.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Vickers OEM standards, ensuring drop-in replacement without manifold or plumbing modification.
- Low Pressure Drop: Optimized internal flow passages minimize pressure loss across the valve, improving overall system efficiency and reducing heat generation.
Typical Industrial Applications
This Vickers solenoid directional control valve is widely deployed in plastic injection molding machines for mold open/close and injection sequence control, metallurgical presses for ram advance/retract and pressure holding, construction and marine hydraulic systems for steering and implement actuation, and CNC machine tools for tool clamping, pallet changing, and axis positioning circuits. It is also commonly found in hydraulic power units, test stands, and automated assembly lines requiring reliable directional control of hydraulic actuators.
PRODUCT IMAGES

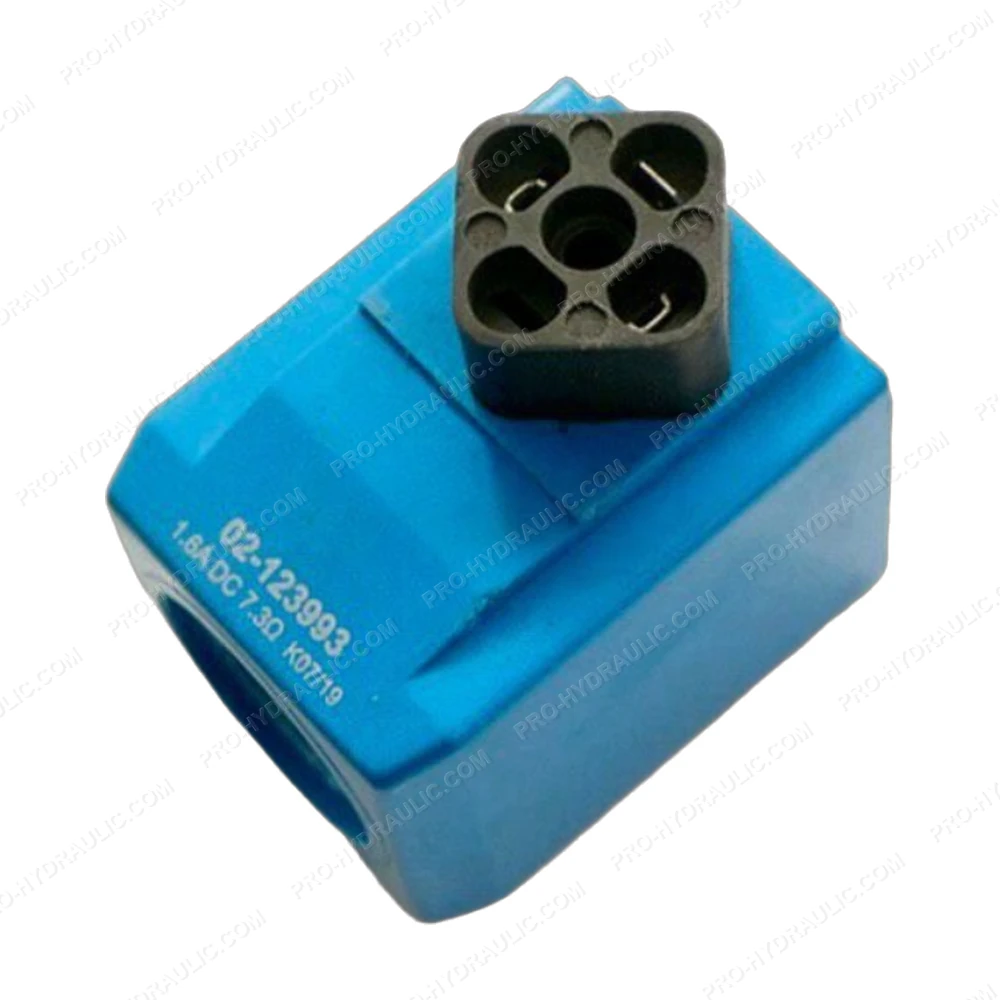

Vickers 02-123993 Solenoid Operated Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Vickers 02-123993 Solenoid Directional Control Valve. This USA-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
