The VICKERS 35V-30A-1B-22R is a heavy-duty industrial hydraulic vane pump engineered for reliable fluid power delivery in demanding industrial systems. This fixed-displacement, intra-vane design provides smooth, low-noise operation and high volumetric efficiency across a wide viscosity range.
VICKERS 35V-30A-1B-22R Technical Specifications
| Parameter | Specification |
|---|---|
| Pump Type | Fixed-displacement intra-vane pump |
| Displacement | 30.0 cm³/rev (1.83 in³/rev) |
| Maximum Pressure | 210 bar (3045 psi) continuous |
| Maximum Speed | 1800 rpm |
| Flow Rate at 1500 rpm | 45 L/min (11.9 gpm) |
| Mounting | SAE 2-bolt flange, 4-bolt pilot |
| Drive Shaft | Straight keyed, SAE B |
| Port Connections | SAE split-flange (1 in suction, 3/4 in pressure) |
| Rotation | Clockwise (viewed from shaft end) |
| Operating Temperature | -20 °C to +80 °C |
| Fluid Compatibility | Mineral oil, ISO VG 32–68 |
| Mounting Position | Any orientation |
Key Engineering Features
- Intra-vane design with hydraulic balance for extended service life
- Low noise level and minimal pressure ripple
- High volumetric efficiency across wide viscosity range
- Replaceable cartridge kit for simplified maintenance
- Robust cast-iron housing for industrial duty
Industrial Applications
- Hydraulic power units and central systems
- Machine tool and press hydraulics
- Injection molding and die-casting equipment
- Material handling and lifting systems
- Marine and offshore hydraulic circuits
For technical inquiries, dimensional drawings, or replacement support for VICKERS 35V-30A-1B-22R, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

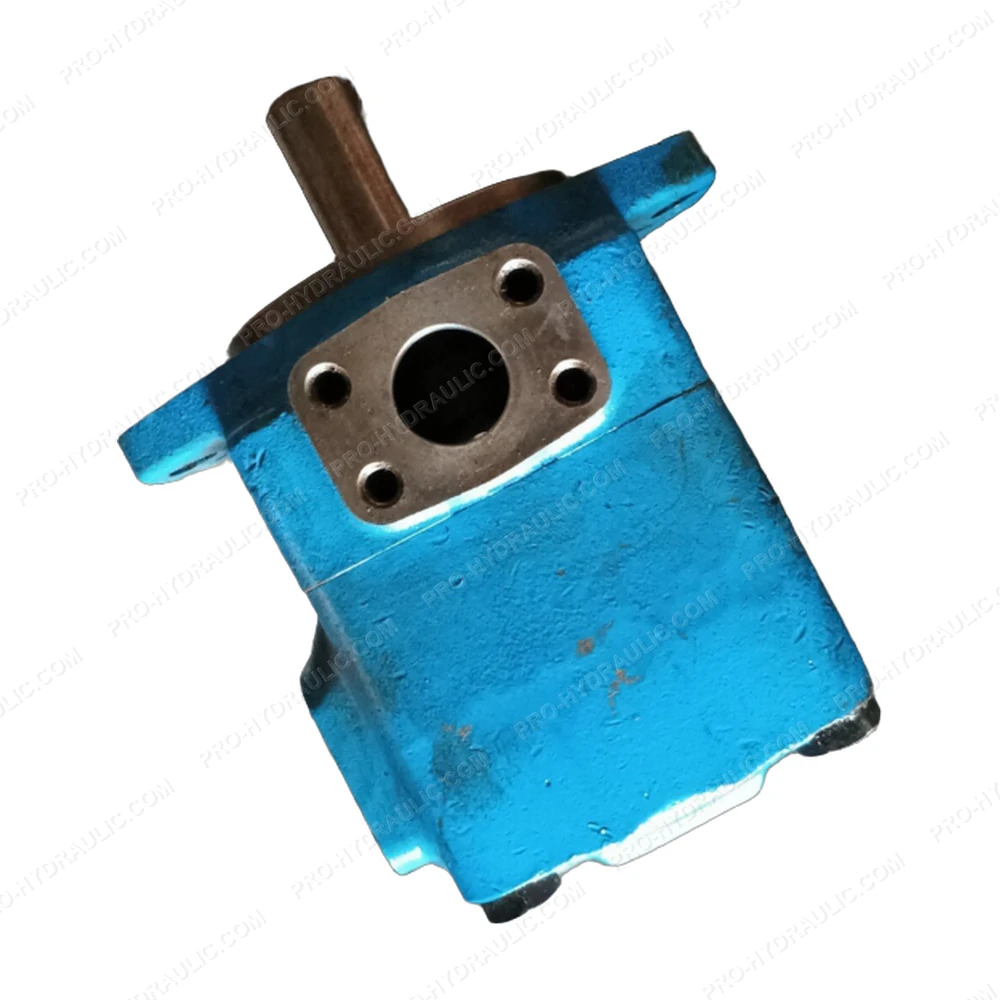

VICKERS 35V-30A-1B-22R Hydraulic Vane Pump
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the VICKERS 35V-30A-1B-22R Hydraulic Vane Pump. This precision-engineered industrial component delivers reliable performance and accurate operation for demanding industrial systems.
