Product Overview
The Vickers DG4V-3-8C-VM-U-H7-69-EN124 (Part Number: 6050142-002) is a high-performance, solenoid-operated directional control valve designed for precise control of hydraulic fluid flow direction in industrial systems. Manufactured by Vickers (Eaton), this valve features a robust wet-armature solenoid design that ensures reliable shifting and long service life. The DG4V-3 series is renowned for its high flow capacity relative to its compact size, low pressure drop, and fast response times. This specific model is configured with a “8C” spool type, providing a closed-center position for precise load holding and actuator control. It is an ideal component for demanding applications requiring accurate directional control, smooth operation, and high cycle rates.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DG4V-3-8C-VM-U-H7-69-EN124 / 6050142-002 |
| Spool Type | 8C (Closed Center, All Ports Blocked in Neutral) |
| Operating Pressure | Up to 350 bar (5075 psi) at P, A, B Ports |
| Rated Flow | Up to 40 L/min (10.5 US gpm) nominal |
| Solenoid Voltage | 24V DC (Standard Industrial) |
| Mounting & Connection | ISO 4401-03 (CETOP 3 / NFPA D03) Subplate Mounting |
| Electrical Connection | DIN 43650 Connector (EN175301-803) |
| Seal Material | Nitrile (NBR) / Viton (FKM) Options Available |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The “8C” closed-center spool is precision-ground and matched to the sleeve for minimal internal leakage and precise metering, ensuring accurate actuator positioning and load holding.
- High-Performance Wet Armature Solenoid: The solenoid operates in hydraulic fluid, providing superior heat dissipation, reduced wear, and quiet operation. This design ensures consistent shifting force and long life even under high cycle rates.
- Low Pressure Drop: Optimized flow paths within the valve body minimize pressure loss, improving system efficiency and reducing heat generation.
- Industrial Reliability: Built for continuous operation in severe industrial environments, with a rugged construction that withstands vibration, shock, and contamination.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Vickers standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
It is an ideal component for demanding applications requiring accurate directional control, smooth operation, and high cycle rates.
PRODUCT IMAGES

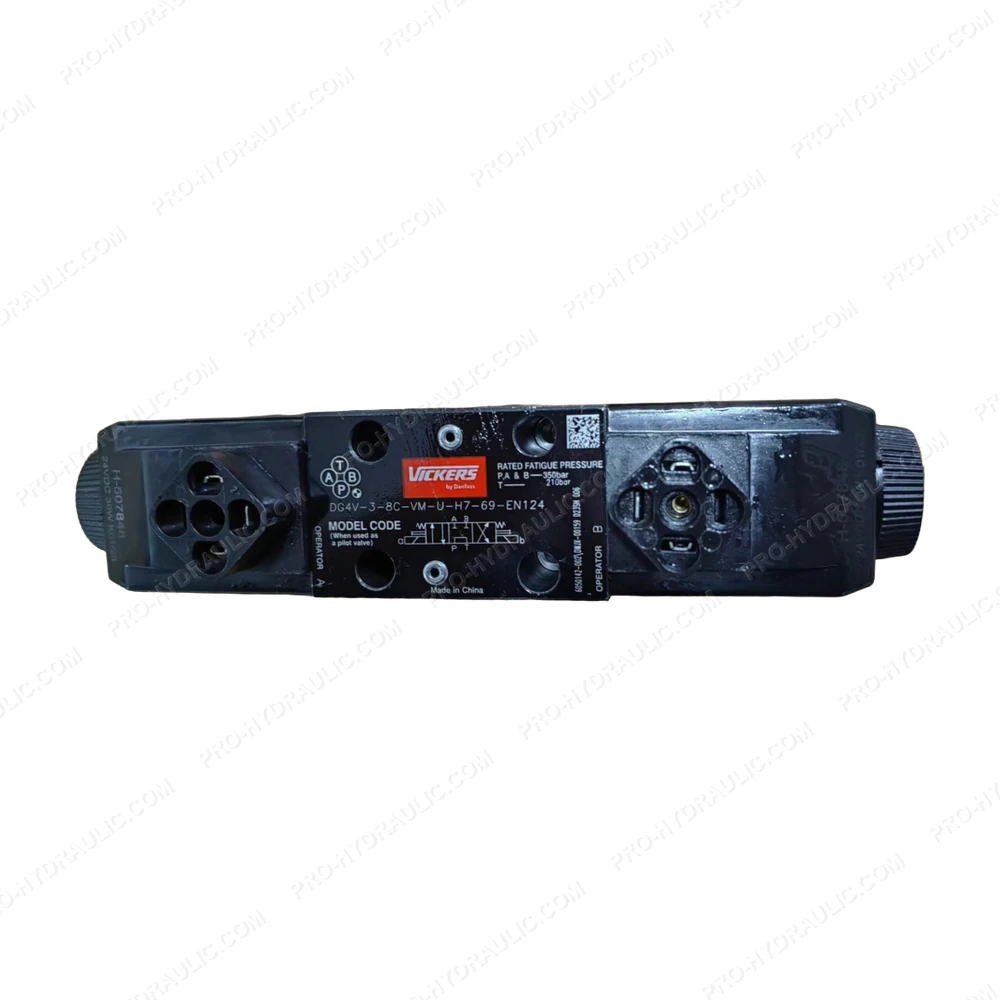

Vickers DG4V-3-8C-VM-U-H7-69-EN124 / 6050142-002 Solenoid Operated Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Vickers DG4V-3-8C-VM-U-H7-69-EN124 / 6050142-002 Solenoid Directional Valve. This UK-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
