Product Overview
The Vickers DG4V-5-2CJ-M-U-H7-29-EN124 is a high-performance solenoid operated directional control valve from the Vickers DG4V-5 series, engineered for precise control of hydraulic fluid flow direction in industrial power systems. Utilizing a robust wet-armature solenoid design and a precision-ground spool within a high-strength cast iron body, this valve directs pressurized flow to actuate cylinders, motors, and other hydraulic actuators with exceptional repeatability. The DG4V-5 series is a globally recognized industry standard, offering high flow capacity in a compact NFPA D05 / CETOP 5 / ISO 4401-05 mounting pattern, making it an ideal choice for demanding industrial circuits requiring reliable, high-cycle directional control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DG4V-5-2CJ-M-U-H7-29-EN124 |
| Series | Vickers DG4V-5 (Size 5 / NFPA D05 / CETOP 5) |
| Spool Configuration | 2CJ — Two-position, spring offset, closed center |
| Actuation | Single solenoid, spring return (wet armature) |
| Operating Pressure | Up to 350 bar (5,000 psi) rated working pressure |
| Rated Flow | Up to 80 L/min (21 gpm) nominal |
| Solenoid Voltage | H7 coil — 110V AC / 50-60 Hz (per model code) |
| Mounting & Connection | ISO 4401-05 / NFPA D05 / CETOP 5 subplate mounting |
| Electrical Connection | EN124 / EN175301-803 (DIN 43650) plug connector |
| Seal Material | Nitrile (NBR) — compatible with mineral-based hydraulic fluids |
Engineering Features & Advantages
- Precision Performance: The integrated single solenoid, spring return (wet armature) ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original Vickers specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The DG4V-5 series is a globally recognized industry standard, offering high flow capacity in a compact NFPA D05 / CETOP 5 / ISO 4401-05 mounting pattern, making it an ideal choice for demanding industrial circuits requiring reliable, high-cycle directional control.
PRODUCT IMAGES

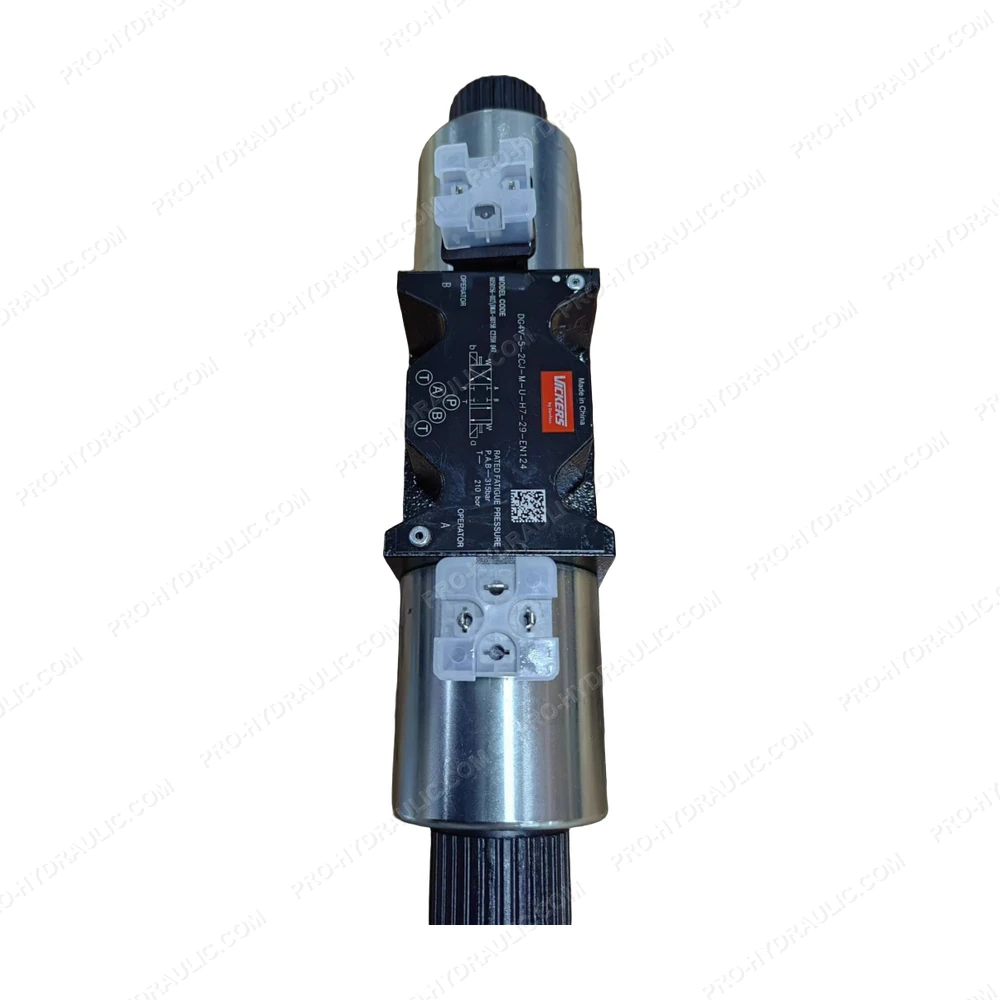

Vickers DG4V-5-2CJ-M-U-H7-29-EN124 Solenoid Operated Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Vickers DG4V-5-2CJ-M-U-H7-29-EN124 Solenoid Operated Directional Valve. This UK-made 24V DC hydraulic component features a 2-position, spring-centered design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
