Product Overview
The Vickers DG4V-5-6CJ-M-U-H7-29-EN124 is a high-performance solenoid operated directional control valve from the proven DG4V series, engineered for precise control of hydraulic fluid flow direction in industrial power systems. Utilizing a wet-armature solenoid design and a robust sliding spool mechanism, this valve directs pressurized flow to selected actuator ports to command extension, retraction, or holding functions of cylinders and motors. The DG4V-5-6CJ configuration features a spring-centered, spring-offset spool with a closed-center (tandem) flow path, delivering dependable shifting, low leakage, and rapid response in demanding continuous-duty applications. With the “M” designation indicating a high-performance solenoid and the “U” indicating a cULus-recognized coil, this valve is a direct-fit replacement for OEM Vickers installations and is compatible with standard ISO 4401 / CETOP 5 mounting interfaces.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DG4V-5-6CJ-M-U-H7-29-EN124 |
| Series / Size | DG4V-5 (CETOP 5 / NG10 / ISO 4401-05) |
| Spool Type | 6CJ — Spring Centered, Spring Offset, Closed Center (Tandem) |
| Actuation | Single Solenoid, Wet Armature, Spring Return |
| Operating Pressure | Up to 350 bar (5075 psi) rated working pressure |
| Rated Flow | Up to 80 L/min (21 gpm) nominal |
| Coil Rating | H7 — 110V AC / 50-60 Hz, cULus Recognized (U) |
| Mounting & Connection | ISO 4401-05 / CETOP 5 Subplate Mounting, 4-Bolt Flange |
| Port Connections | P, T, A, B — Standard Subplate Port Pattern |
| Seal Material | Nitrile (Buna-N) — Standard Industrial |
Engineering Features & Advantages
- Precision Performance: The integrated single Solenoid, Wet Armature, Spring Return ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original Vickers specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 80 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The DG4V-5-6CJ configuration features a spring-centered, spring-offset spool with a closed-center (tandem) flow path, delivering dependable shifting, low leakage, and rapid response in demanding continuous-duty applications.
PRODUCT IMAGES

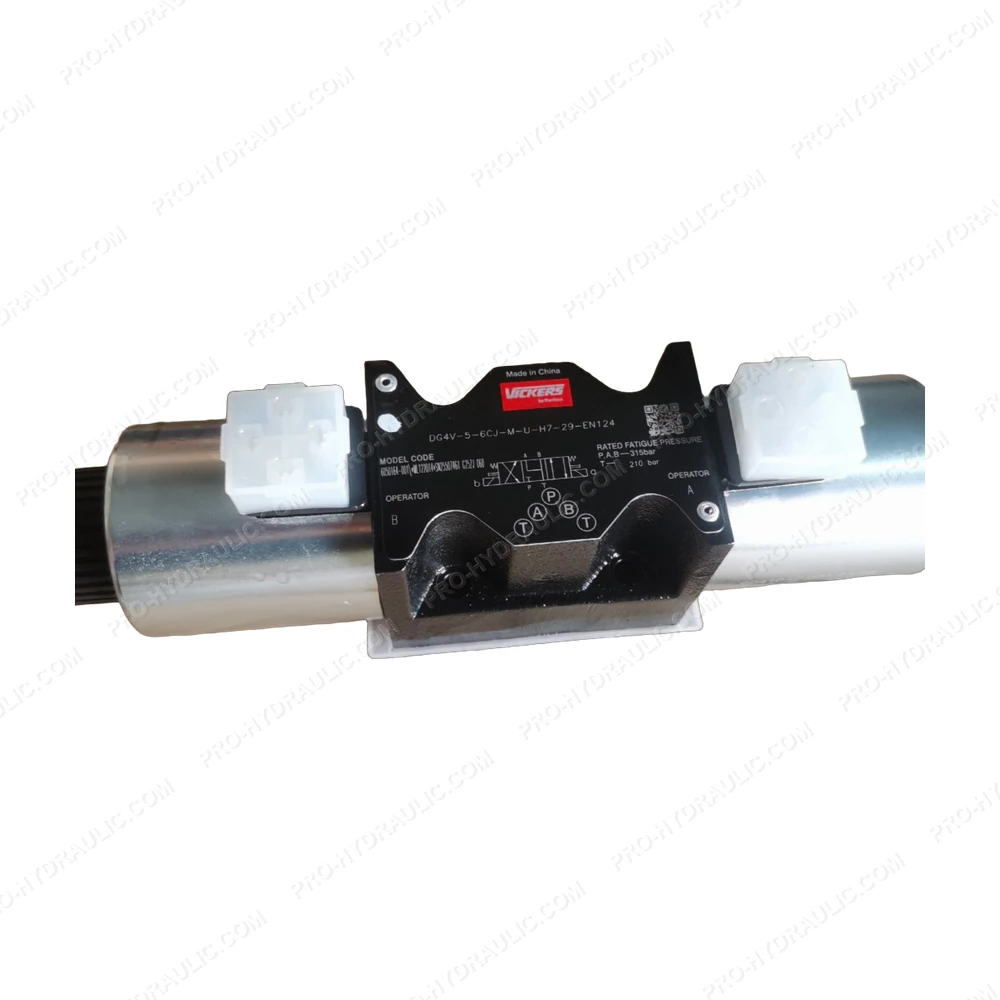

Vickers DG4V-5-6CJ-M-U-H7-29-EN124 Solenoid Operated Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Vickers DG4V-5-6CJ-M-U-H7-29-EN124 Solenoid Operated Directional Valve. This UK-made 110V AC hydraulic component features a 4-way, 3-position design with spring centered, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
