Product Overview
The VICKERS DGMC2-3-AB-CW-BA-CW-41 is a dual modular pressure relief valve engineered by Vickers (Eaton) for precision pressure control in demanding industrial hydraulic systems. Designed around the proven DGMC2 modular valve platform, this unit combines two independently adjustable relief cartridges within a single sandwich-style body, allowing two separate circuit branches to be protected and regulated from one compact manifold interface. The valve operates on a direct-acting, spring-biased poppet principle: when system pressure exceeds the preset cracking value, the poppet lifts off its seat and diverts excess flow to tank, thereby limiting circuit pressure and safeguarding downstream components. The “CW” designations indicate the specific adjustment and control configuration of each relief section, while the “AB” and “BA” port identifiers define the inlet and outlet flow paths for the two independent pressure circuits. As a modular component, the DGMC2-3 mounts between a directional valve and its subplate, eliminating the need for separate inline relief valves and reducing piping complexity, leak points, and installation time. This valve is a genuine Vickers modular pressure control solution, suited for OEM and MRO applications where reliable, repeatable pressure limitation is essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve — Pressure Control Valve (Dual Modular Pressure Relief Valve) |
| Model Designation | DGMC2-3-AB-CW-BA-CW-41 |
| Manufacturer | Vickers (Eaton Hydraulics) |
| Valve Function | Dual pressure relief — two independently adjustable relief sections in one modular body |
| Operating Pressure | Standard industrial grade, up to rated pressure per Vickers DGMC2 series (typically up to 315 bar / 4,500 psi depending on spring range) |
| Adjustment Type | CW — screw/knob adjustment with locknut (per model code designation) |
| Port Configuration | AB / BA dual-circuit porting (independent inlet/outlet paths for each relief section) |
| Mounting & Connection | Modular sandwich mounting — ISO / Vickers NG6 (CETOP 3) interface, bolts between directional valve and subplate |
| Seal Material | NBR (Buna-N) standard; FKM available for high-temperature or fire-resistant fluid service |
| Fluid Compatibility | Mineral-based hydraulic oil, phosphate ester, and water-glycol (dependent on seal selection) |
Engineering Features & Advantages
- Precision Performance: The hydraulic valve — pressure control valve (dual modular pressure relief valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original VICKERS standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 315 bar, supporting stable operation across the full working range.
Typical Industrial Applications
This valve is a genuine Vickers modular pressure control solution, suited for OEM and MRO applications where reliable, repeatable pressure limitation is essential.
PRODUCT IMAGES

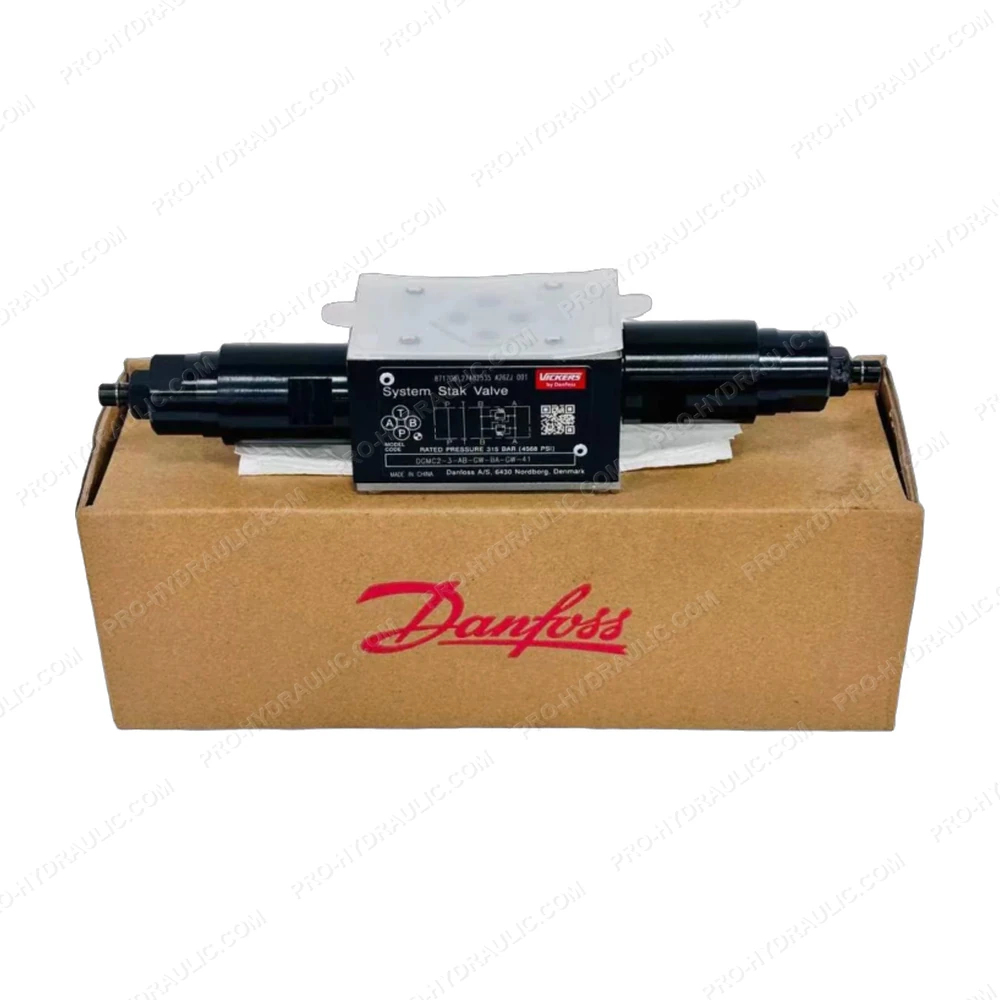

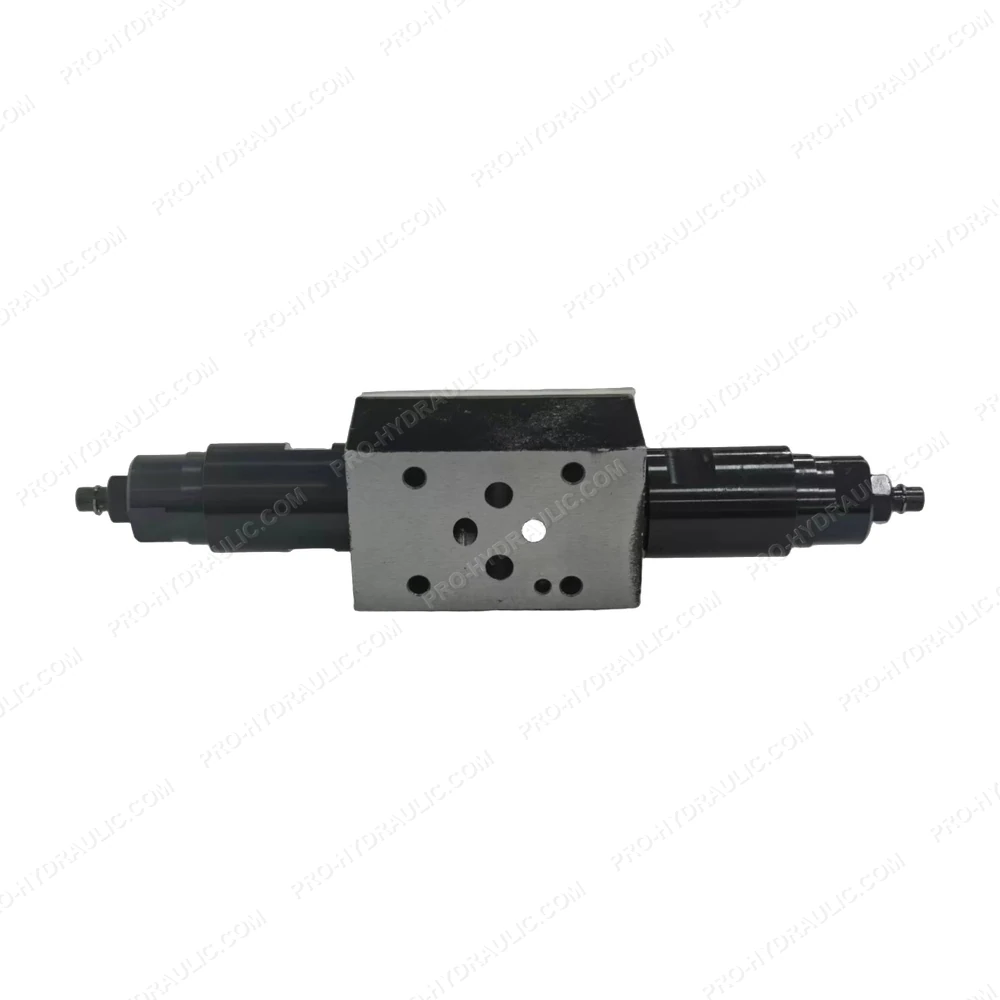

VICKERS DGMC2-3-AB-CW-BA-CW-41 Dual Modular Pressure Relief Valve
