Product Overview
The Vickers EPV16-A-00-24D-S-U-13 is a high-performance electro-proportional cartridge valve engineered by Vickers (Eaton) for precise, infinitely variable control of hydraulic flow and pressure within demanding industrial circuits. Operating on a two-stage electro-proportional principle, the valve converts a proportional electrical input signal into a continuously modulated hydraulic output, allowing seamless command of actuator speed, force, and position. Its slip-in cartridge construction enables compact manifold mounting, reducing system footprint and leak paths while delivering the fast dynamic response and low hysteresis required for closed-loop proportional control. The EPV16 series is a trusted solution for OEM and MRO applications where accurate, repeatable electro-hydraulic modulation is critical to machine performance.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Proportional Cartridge Valve (Proportional & Servo Valve) |
| Model Designation | EPV16-A-00-24D-S-U-13 |
| Series / Size | EPV16 (NG16 / CETOP 16 cartridge interface) |
| Actuation | Proportional solenoid, single-stage pilot with spool-type metering |
| Coil Voltage | 24 VDC (24D designation) |
| Operating Pressure | Standard Industrial Grade (up to 350 bar rated) |
| Control Signal | Proportional current input (PWM / analog amplifier compatible) |
| Mounting & Connection | Slip-in cartridge, ISO / Vickers standard cavity; DIN valve connector |
| Seal Material | NBR / FKM options per industrial fluid compatibility |
Engineering Features & Advantages
- Precision Proportional Metering: Continuously variable spool positioning delivers smooth, stepless control of flow and pressure, eliminating the shock and chatter associated with on/off directional valves.
- Fast Dynamic Response: Optimized magnetic circuit and low-inertia spool design provide rapid response to command signal changes, ideal for closed-loop position, velocity, and force control.
- Low Hysteresis & High Repeatability: Tight manufacturing tolerances ensure consistent output for a given input current, supporting accurate, repeatable machine cycles.
- Compact Cartridge Construction: Slip-in design reduces manifold size, minimizes external leakage paths, and simplifies installation and service compared to line-mounted valves.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid and hardened spool/body interfaces for long service life.
- Direct Fit Replacement: Precision-manufactured to original VICKERS specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The EPV16 series is a trusted solution for OEM and MRO applications where accurate, repeatable electro-hydraulic modulation is critical to machine performance.
PRODUCT IMAGES

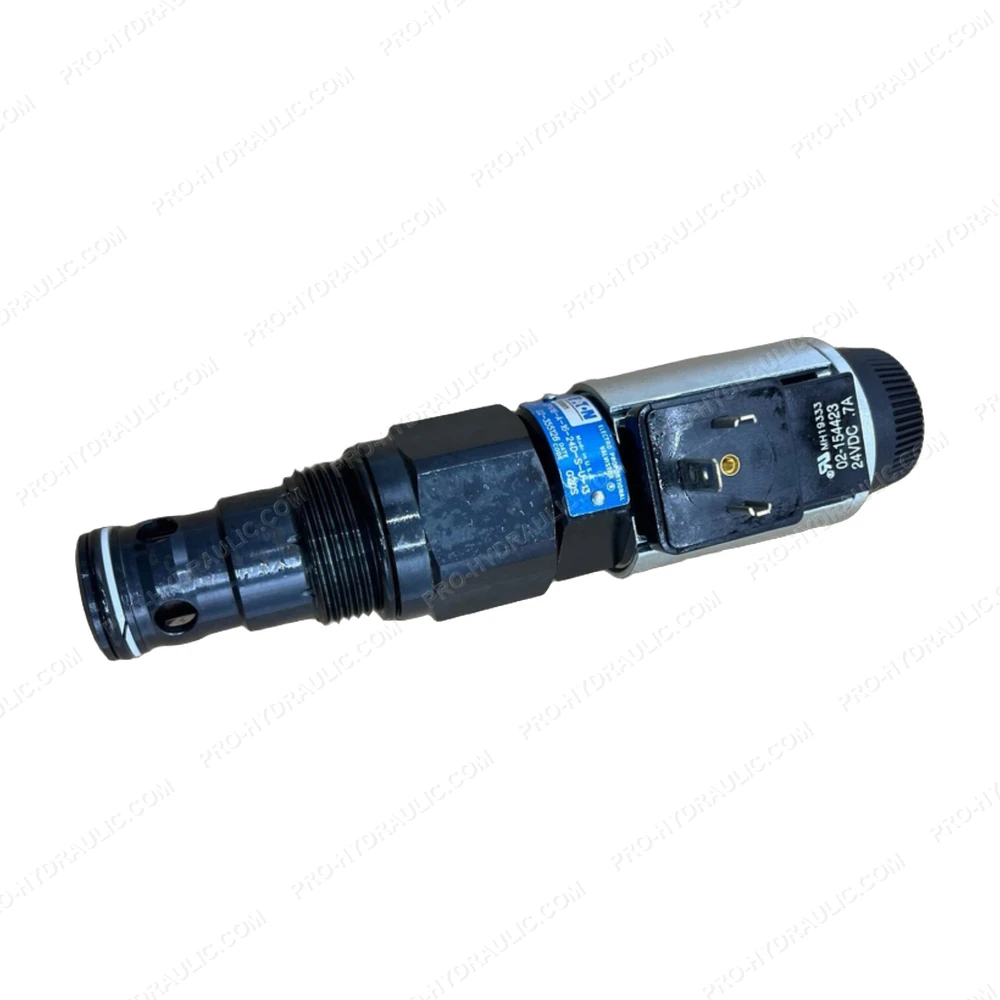

VICKERS EPV16-A-00-24D-S-U-13 Electro-Proportional Cartridge Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Vickers EPV16-A-00-24D-S-U-13 Proportional Directional Valve. This US-made 24V DC hydraulic component features a proportional solenoid actuation, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
