Product Overview
The Vickers KBS2-03-39-NS-11-E-CO-A-NS-VSC-NS-004-11 is a high-performance proportional directional valve engineered by Vickers (Eaton) for precise electro-hydraulic control of flow direction and magnitude in demanding industrial hydraulic systems. Utilizing a robust spool-and-sleeve design with proportional solenoid actuation, this valve delivers infinitely variable flow control proportional to the electrical input signal, enabling smooth acceleration, deceleration, and positioning of hydraulic actuators. The KBS2 series is widely recognized for its exceptional response characteristics, low hysteresis, and high repeatability, making it an ideal choice for closed-loop and open-loop control applications where precise motion control is critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve |
| Model Designation | KBS2-03-39-NS-11-E-CO-A-NS-VSC-NS-004-11 |
| Series | Vickers KBS2 Proportional Valve Series |
| Nominal Size | NG10 / CETOP 5 (03 Size) |
| Actuation Type | Proportional Solenoid, Single or Dual Solenoid Configuration |
| Operating Pressure | Up to 350 bar (5075 psi) rated working pressure |
| Rated Flow | Up to 80 L/min depending on spool configuration and pressure drop |
| Hysteresis | < 3% (typical, with dither signal) |
| Response Time | 10–30 ms (depending on signal amplitude and system conditions) |
| Electrical Command Signal | ±10 V DC or 4–20 mA (via proportional amplifier) |
| Solenoid Voltage | 24 V DC nominal (11 coil designation) |
| Mounting & Connection | ISO 4401 / CETOP 5 subplate mounting interface |
Engineering Features & Advantages
- Precision Performance: The proportional directional valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Vickers standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 80 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The KBS2 series is widely recognized for its exceptional response characteristics, low hysteresis, and high repeatability, making it an ideal choice for closed-loop and open-loop control applications where precise motion control is critical.
PRODUCT IMAGES

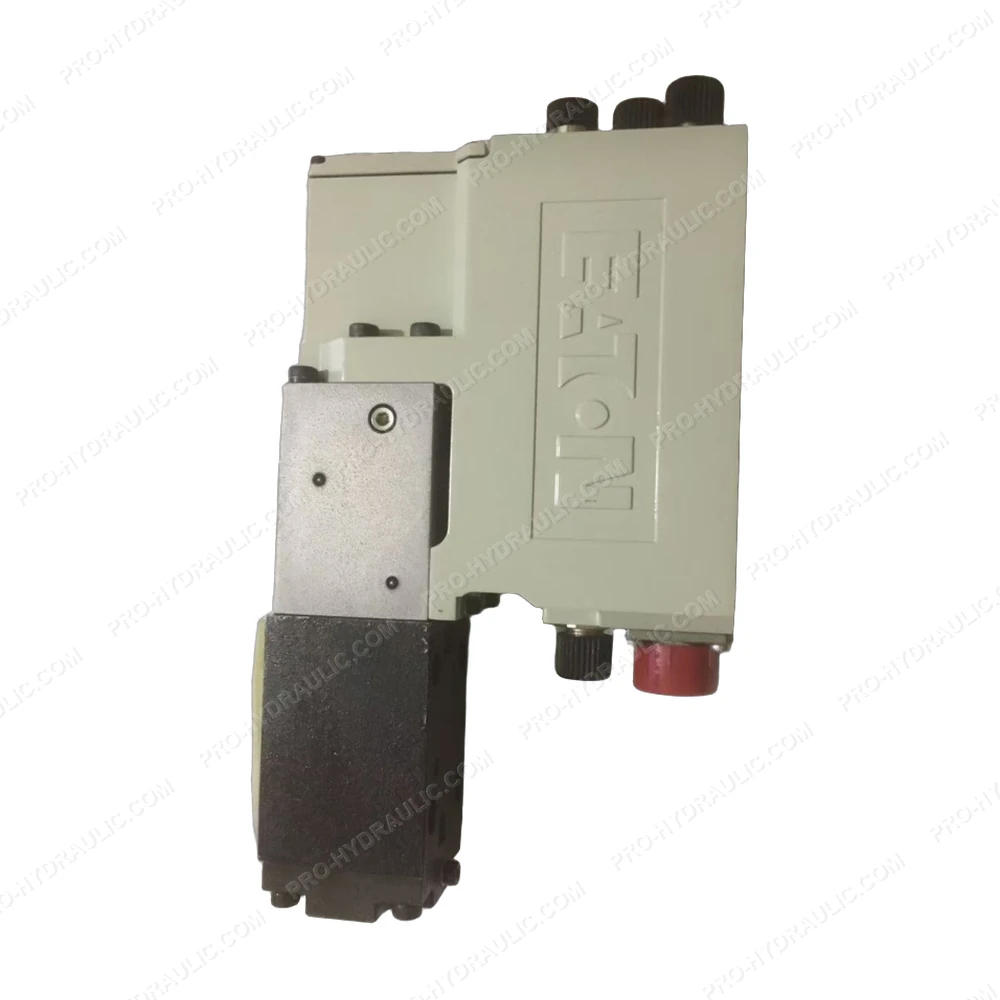

Vickers KBS2-03-39-NS-11-E-CO-A-NS-VSC-NS-004-11 Proportional Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Vickers KBS2-03-39-NS-11-E-CO-A-NS-VSC-NS-004-11 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
