Product Overview
The Vickers RV3-10-S-0-35 is a precision-engineered screw-in cartridge style pressure relief valve designed for direct integration into hydraulic manifold blocks and integrated circuits. Manufactured by Vickers (Eaton), this direct-acting poppet-type relief valve provides accurate system pressure limitation and overload protection in compact hydraulic power units. The RV3-10 series is specifically engineered for space-constrained installations where a conventional inline or subplate-mounted valve is impractical. The cartridge design allows for clean drop-in installation into a standard cavity, delivering reliable pressure control with minimal pressure override and fast response to system pressure transients.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Cartridge Pressure Relief Valve (Direct-Acting, Poppet Type) |
| Model Designation | RV3-10-S-0-35 |
| Series | RV3 Series — 10 Size Cartridge |
| Pressure Adjustment Range | 35 bar (507 psi) nominal cracking pressure setting |
| Operating Pressure | Standard Industrial Grade (Up to rated 350 bar / 5075 psi system capability) |
| Actuation Type | Direct spring-loaded poppet, adjustable via hex socket |
| Mounting & Connection | Screw-in cartridge, standard 10-size cavity per Vickers specification |
| Seal Material | Nitrile (Buna-N) / Fluorocarbon options available |
| Fluid Compatibility | Mineral-based hydraulic oils, phosphate esters, water-glycol |
| Filtration Requirement | ISO 4406 18/16/13 or better recommended |
Engineering Features & Advantages
- Precision Pressure Control: Direct-acting poppet design delivers accurate cracking pressure with minimal override, ensuring consistent system protection across the full flow range.
- Compact Cartridge Architecture: Screw-in cartridge format eliminates external leakage paths and reduces manifold space requirements compared to conventional subplate-mounted relief valves.
- Fast Response Time: Low-inertia poppet and spring assembly responds rapidly to pressure spikes, protecting downstream components from transient overloads.
- Industrial Reliability: Hardened steel internal components and robust spring cage construction built for continuous operation under severe industrial conditions.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Vickers OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
This cartridge pressure relief valve (direct-acting, poppet type) is widely used in industrial hydraulic power units, machine tools, presses, and general automation systems where reliable, precise performance is required.
PRODUCT IMAGES

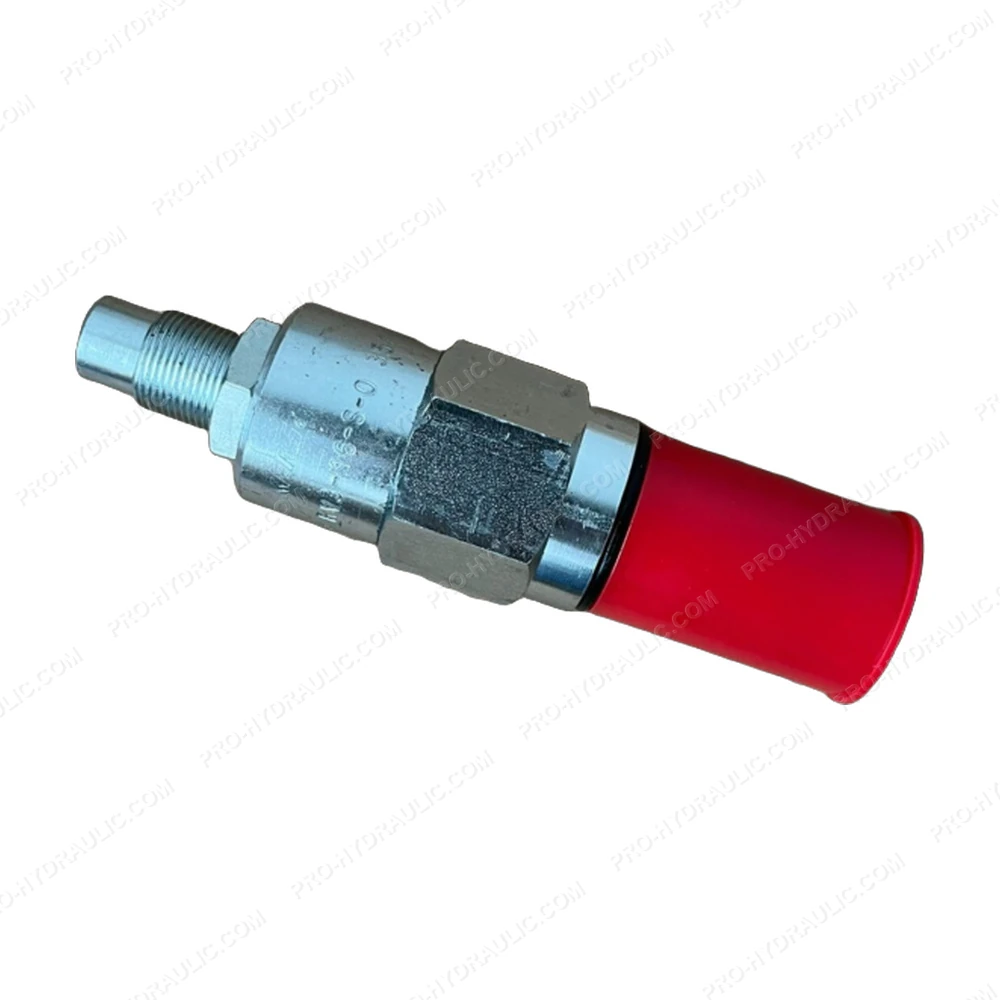

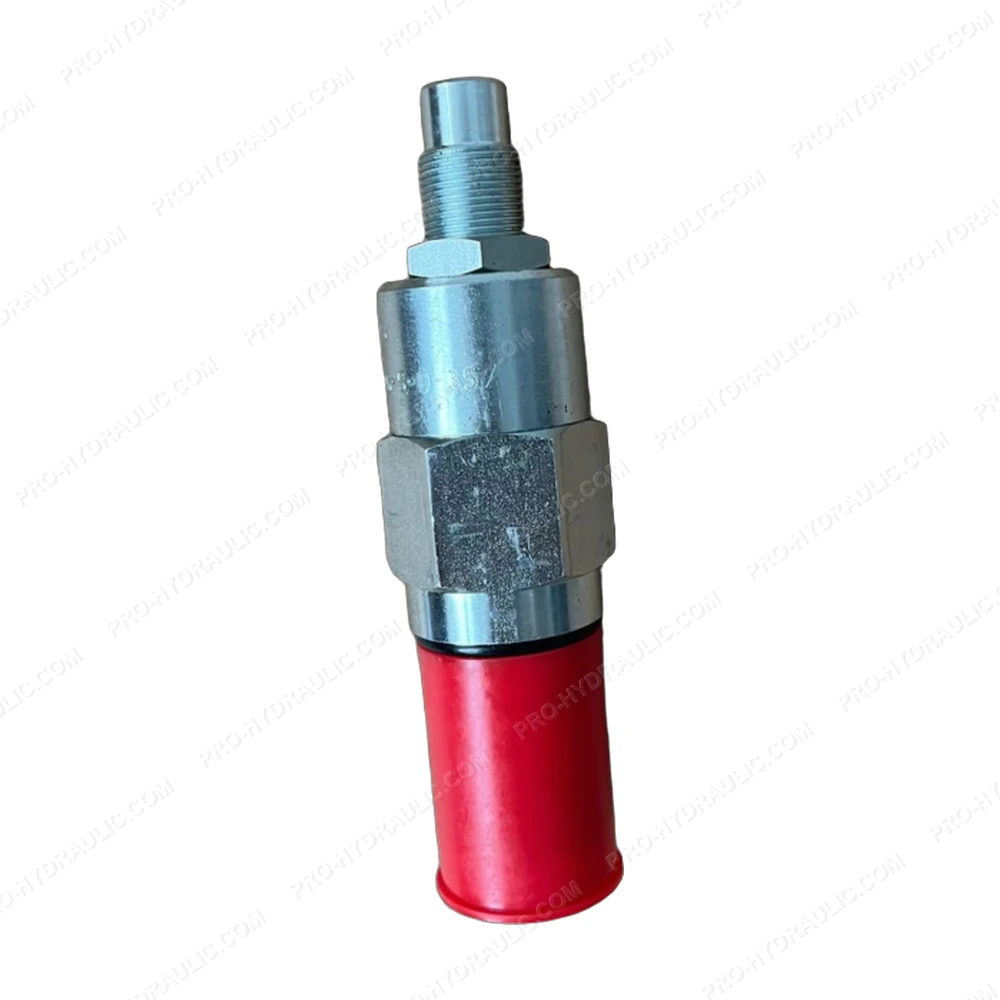

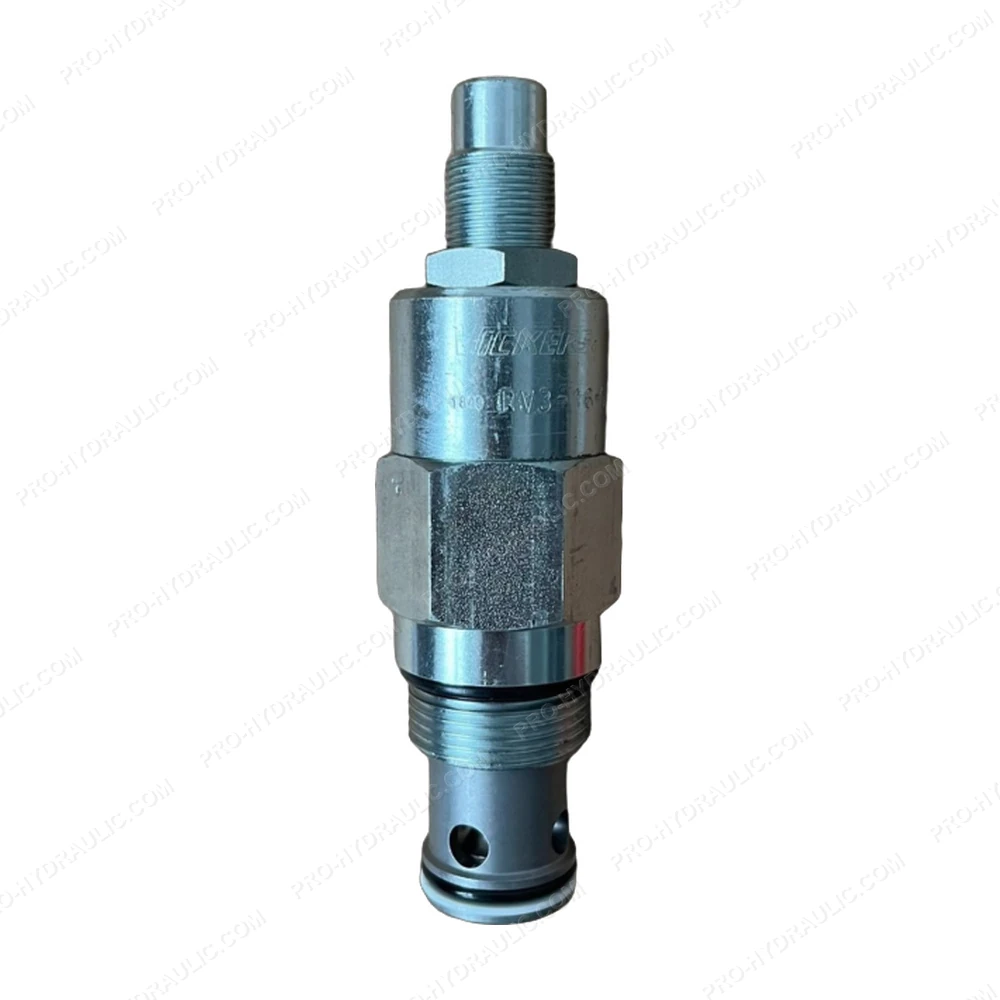

Vickers RV3-10-S-0-35 Cartridge Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Vickers RV3-10-S-0-35 Pressure Relief Valve. This USA-made hydraulic component features a direct-acting poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
