Product Overview
The VIS HYDRAULICS RV50.S10 is a precision-engineered cartridge-type pressure relief valve designed to protect hydraulic circuits from overpressure conditions while maintaining stable system pressure. Manufactured by VIS HYDRAULICS, this direct-acting, slip-in cartridge valve operates on a spring-loaded poppet principle, opening proportionally when inlet pressure exceeds the adjustable set point to divert excess flow to the tank port. Its compact cartridge construction allows direct insertion into a machined manifold cavity, eliminating the need for separate subplates or external piping. The RV50.S10 is widely deployed as a primary safety and pressure-limiting element in industrial hydraulic power units, offering reliable crack pressure control, low internal leakage, and fast response to pressure transients.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Cartridge Pressure Relief Valve (Pressure Control Valve) |
| Model Designation | RV50.S10 |
| Manufacturer | VIS HYDRAULICS |
| Operating Pressure | Standard Industrial Grade (Up to rated bar, adjustable via spring/shim configuration) |
| Mounting & Connection | Slip-in cartridge, standard ISO / manufacturer cavity interface |
| Actuation Principle | Direct-acting, spring-loaded poppet / spool |
| Adjustment Method | Manual screw / shim adjustable pressure setting |
Engineering Features & Advantages
- Precision Pressure Control: Direct-acting poppet design delivers accurate crack pressure and consistent reseat performance, minimizing pressure overshoot and protecting downstream components.
- Compact Cartridge Construction: Slip-in cartridge format enables high-density manifold integration, reducing installation space, leak points, and assembly time compared to inline valve configurations.
- Fast Dynamic Response: Low-inertia moving element responds rapidly to pressure spikes, providing effective circuit protection during transient load conditions.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with hardened, wear-resistant internal components and minimal internal leakage.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM cavity and pressure-setting standards for drop-in servicing.
Typical Industrial Applications
The VIS HYDRAULICS RV50.S10 cartridge pressure relief valve is suited for a broad range of heavy industrial hydraulic systems, including plastic injection molding machines, metallurgical presses and rolling mill equipment, construction and marine hydraulic power units, and CNC machine tool hydraulic circuits. It is equally applicable as a safety relief element in manifold blocks, pump protection circuits, and accumulator charging systems where precise, repeatable pressure limiting is required.
PRODUCT IMAGES

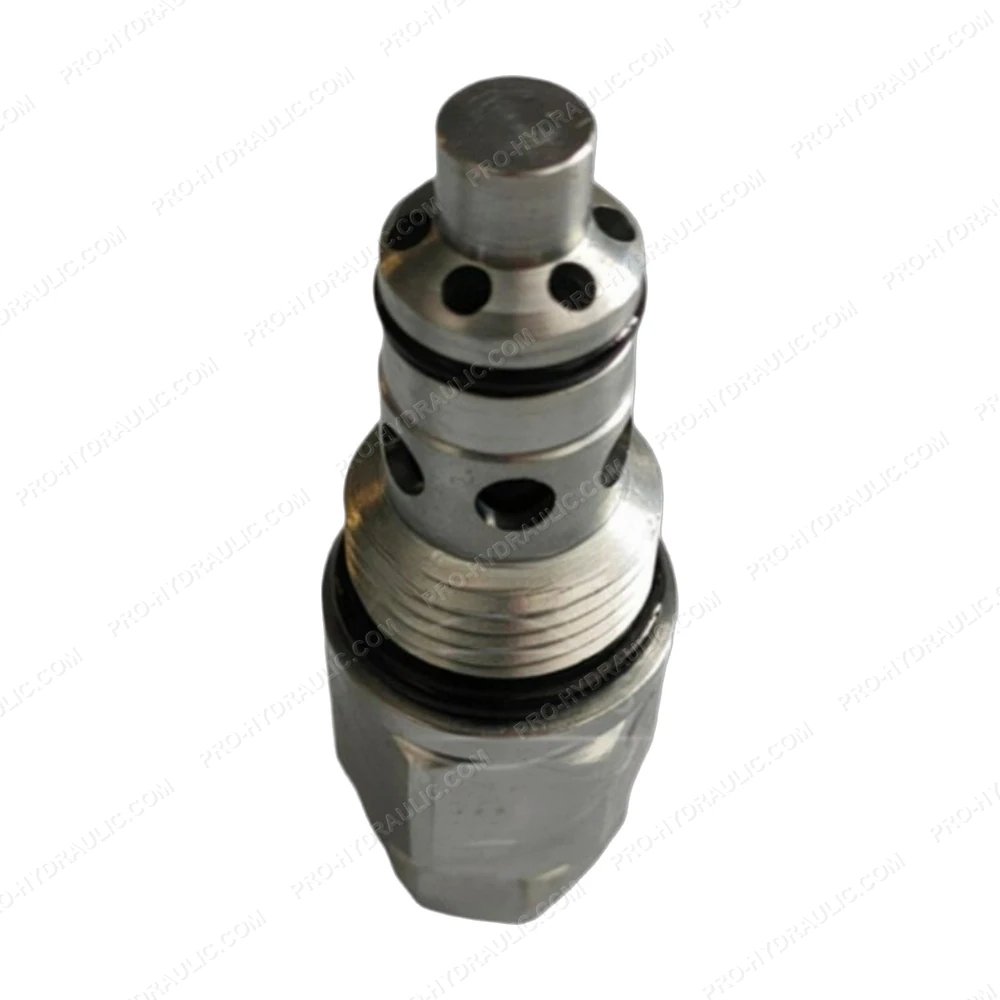

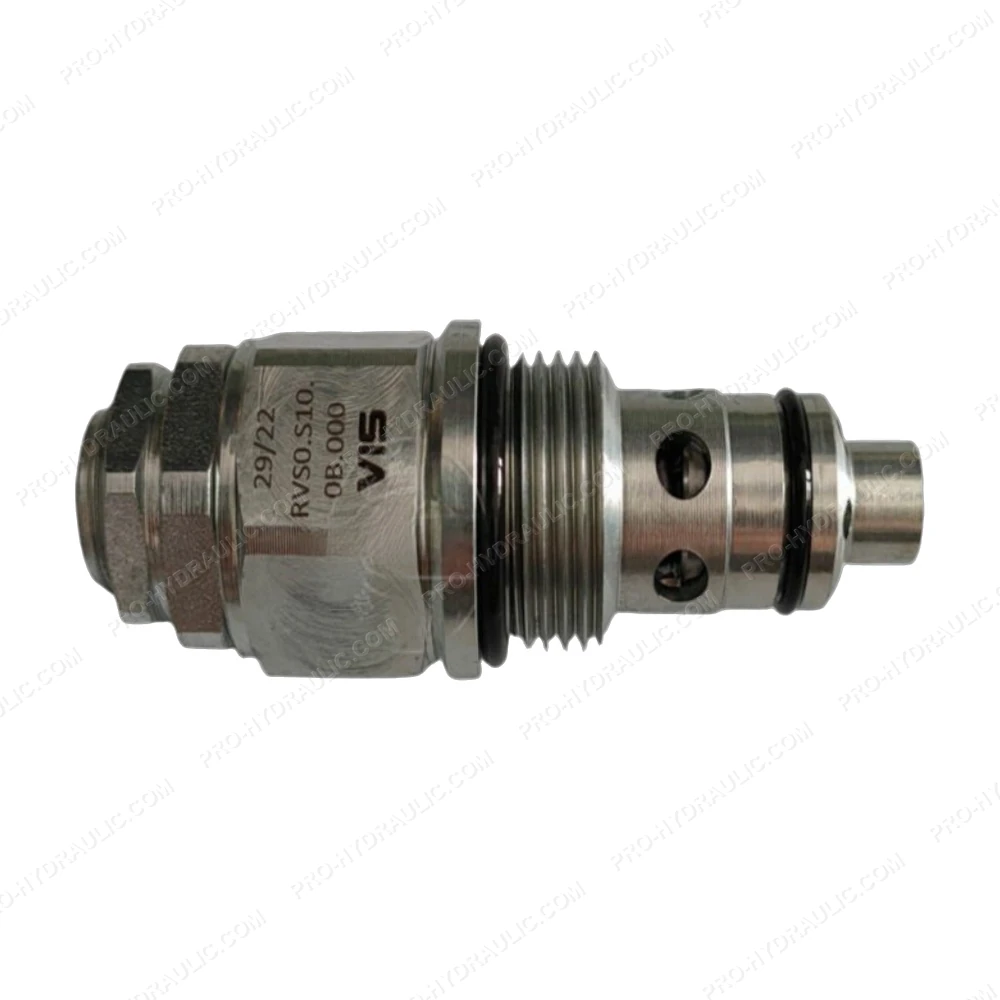

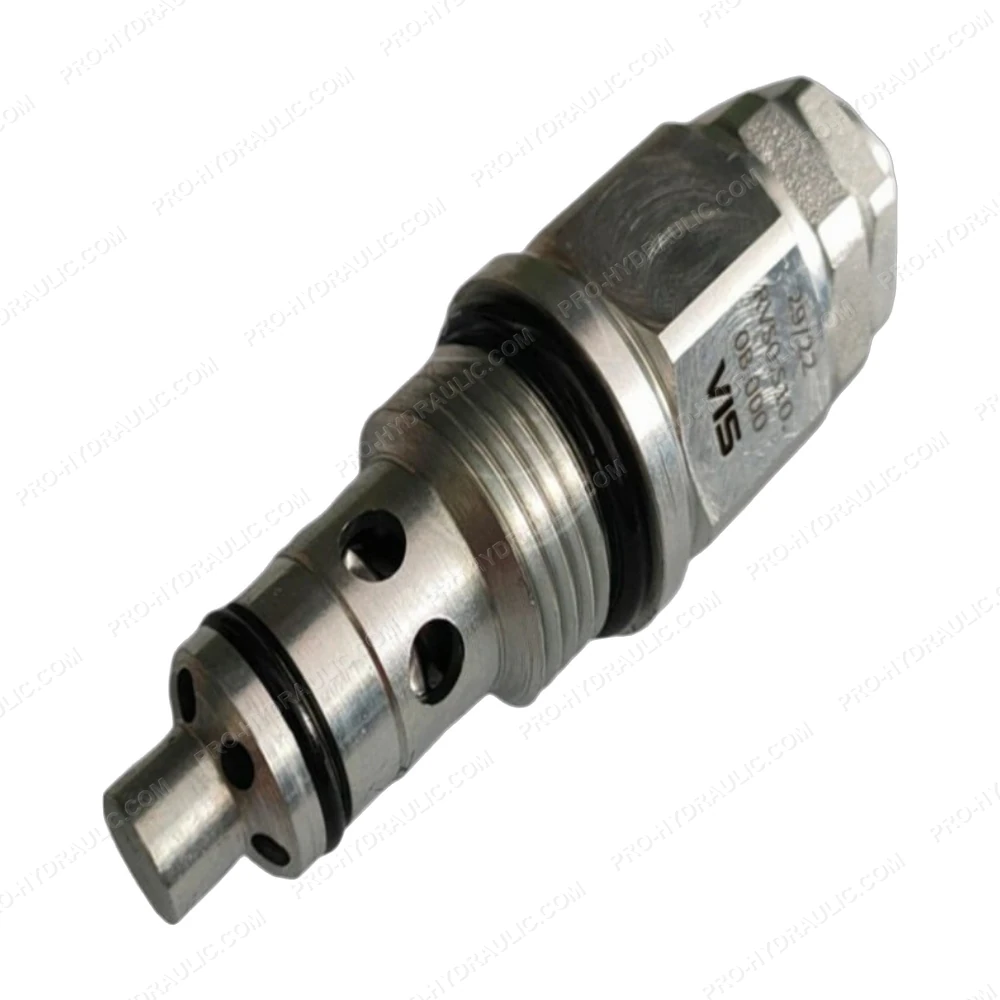

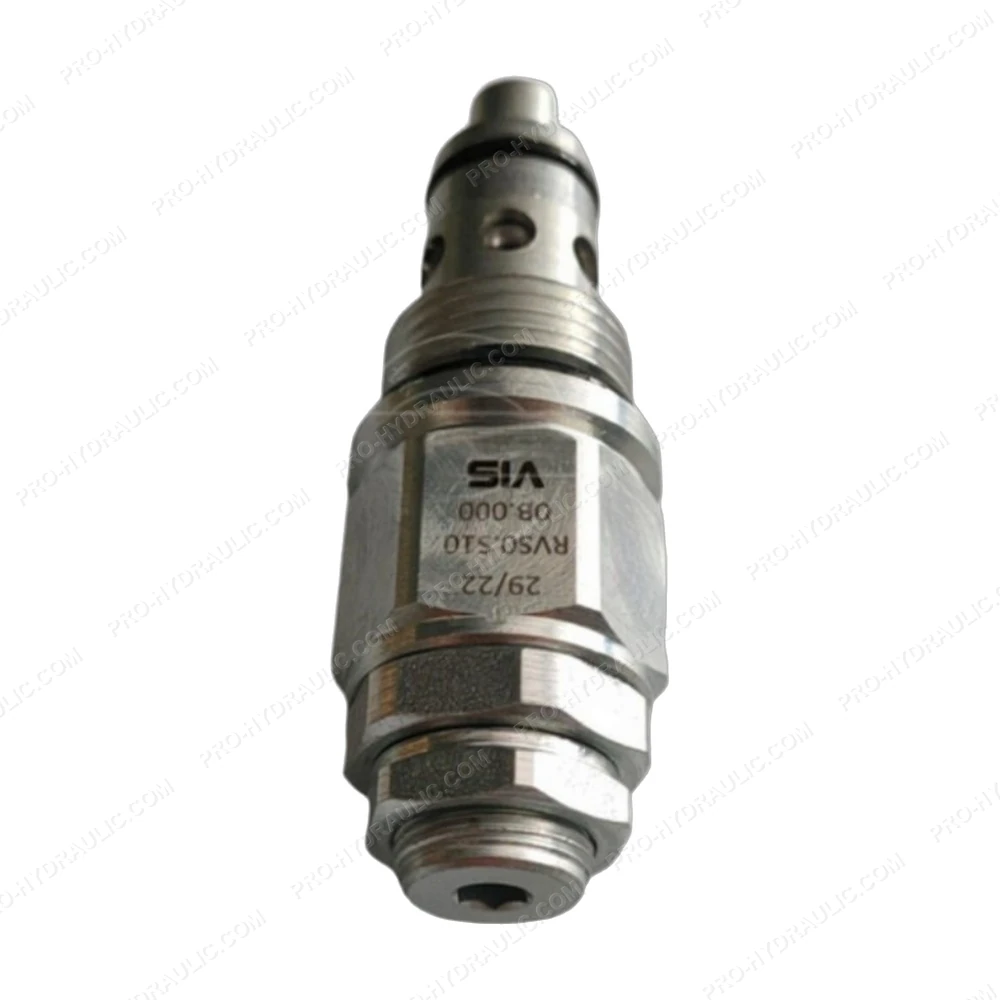

VIS HYDRAULICS RV50.S10 Cartridge Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine VIS HYDRAULICS RV50.S10 Pressure Relief Valve. This Germany-made hydraulic component features a direct-acting poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
