Product Overview
The VOITH WE09-4L100Z24/0H (Part No. 2500127871001T) is a high-performance solenoid-actuated directional control valve engineered by Voith for precise control of hydraulic fluid flow direction in industrial power transmission systems. Utilizing a robust 4-way, 3-position spool design, this valve directs pressurized fluid to dual-acting actuators, cylinders, or motors with exceptional response fidelity. The WE09 series is a proven workhorse in demanding hydraulic circuits, offering reliable switching, low internal leakage, and long service life under continuous duty cycles. Its solenoid pilot operation ensures rapid, repeatable actuation, making it an ideal choice for OEM and MRO applications requiring exacting directional control and drop-in compatibility with Voith original specifications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (4-Way, 3-Position) |
| Model Designation | WE09-4L100Z24/0H / 2500127871001T |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Nominal Flow Rate | Up to 100 L/min (size 09) |
| Solenoid Voltage | 24 V DC (Z24 coil designation) |
| Spool Configuration | 4L100 — Four-way, three-position, closed-center or tandem (per model code) |
| Mounting & Connection | Standard ISO / Voith Interface, subplate mounted |
| Seal Material | NBR / FKM (standard industrial hydraulic fluids) |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and sleeve assembly ensures minimal internal leakage, accurate flow metering, and consistent directional switching even under high cyclic rates.
- Rapid Solenoid Response: High-force 24 V DC solenoids deliver fast, repeatable actuation with low hysteresis, enabling precise control sequencing in automated hydraulic systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust coil insulation and wear-resistant spool surfaces for extended service intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Voith OEM standards, ensuring drop-in installation without modification to manifolds or piping.
- Leakage-Optimized Design: Tight radial clearances and quality sealing minimize pressure loss and fluid bypass, improving overall system efficiency and thermal stability.
Typical Industrial Applications
This Voith solenoid directional control valve is widely deployed in heavy industrial scenarios including plastic injection molding machines, metallurgical presses and rolling mills, construction and marine hydraulic systems, and CNC machine tool power packs. It is equally suited for general industrial automation, test stands, and MRO replacement in
PRODUCT IMAGES

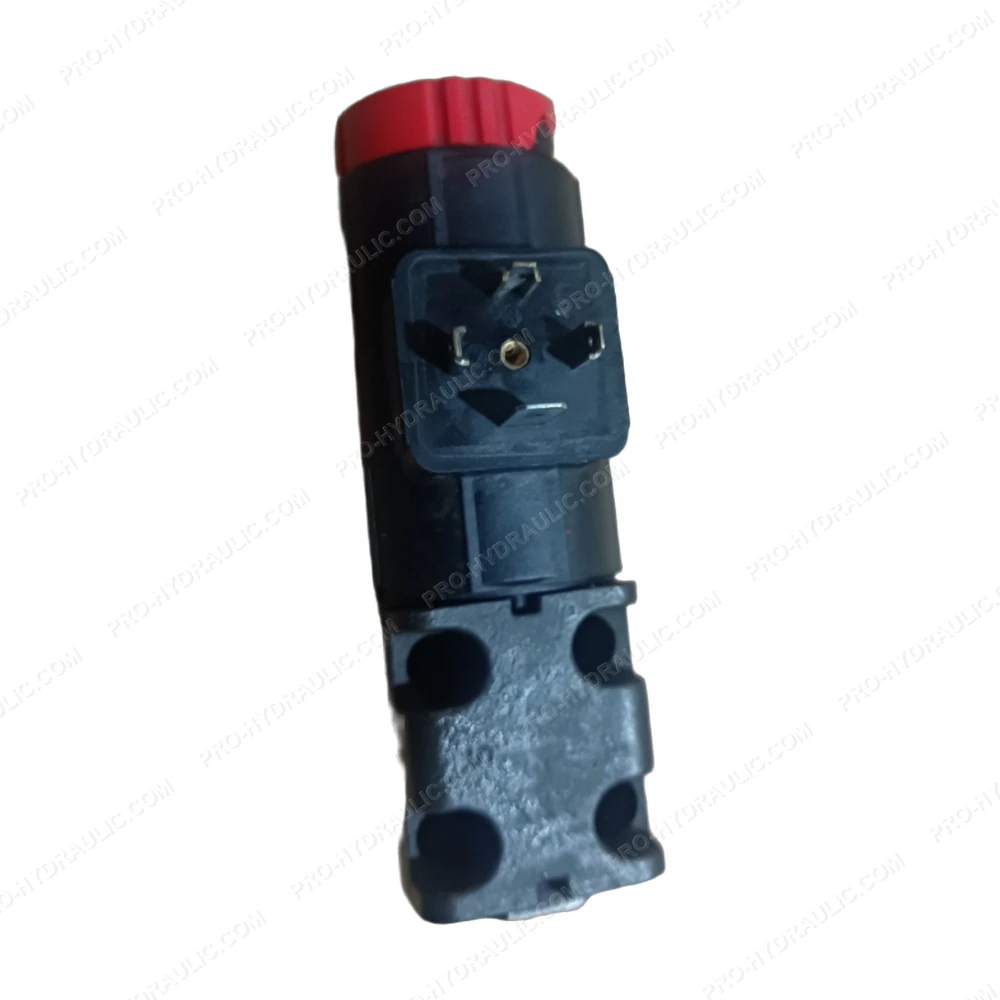

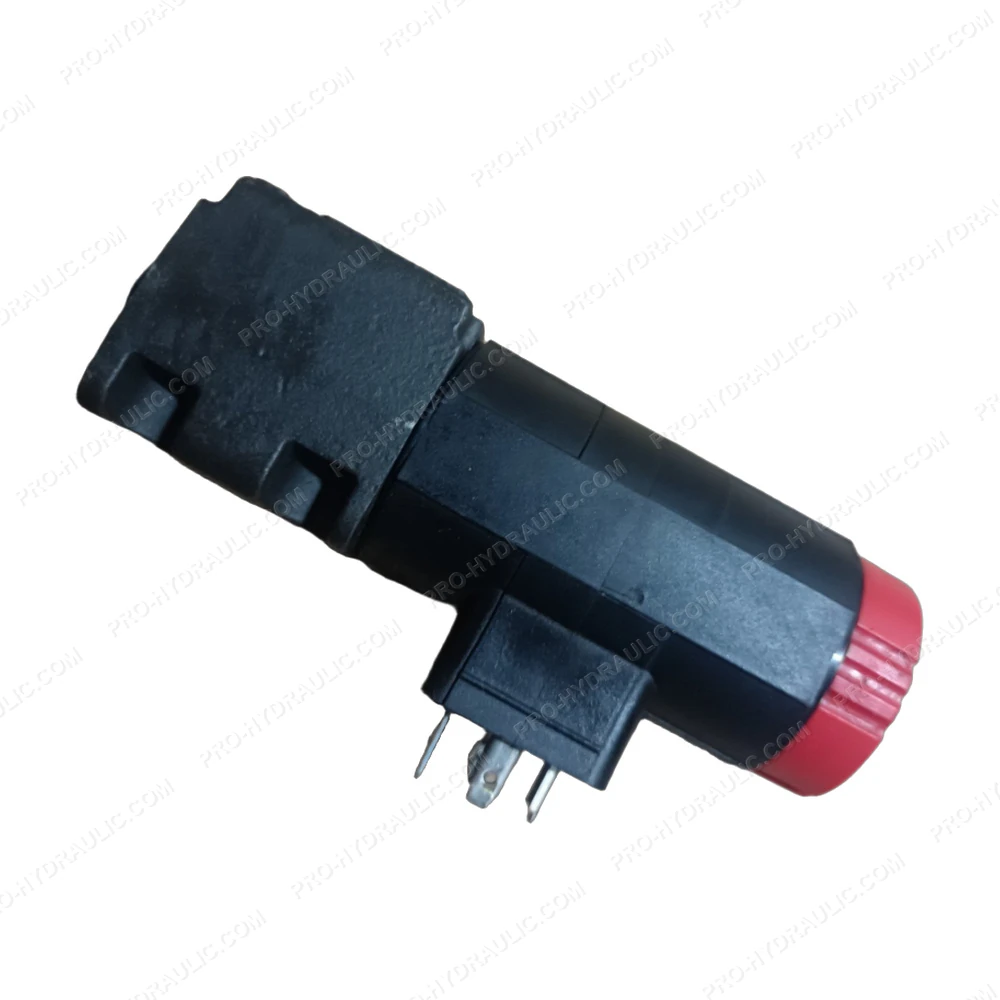

VOITH WE09-4L100Z24/0H / 2500127871001T Solenoid Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine VOITH WE09-4L100Z24/0H / 2500127871001T Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way, 2-position spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
