The WAISN CSV0201 is a heavy-duty industrial directional control valve engineered for precise flow direction and reliable operation in hydraulic systems. It features a robust spool design and solenoid actuation for efficient control of hydraulic actuators.
WAISN CSV0201 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Directional Control Valve |
| Actuation | Solenoid Actuated |
| Spool Configuration | 3-Position, 4-Way |
| Max Operating Pressure | 350 bar |
| Rated Flow | 60 L/min |
| Mounting Standard | ISO 4401 / CETOP 3 |
| Port Connections | G1/4 (BSPP) |
| Operating Temperature | -20°C to +80°C |
| Hydraulic Fluid | Mineral oil based, viscosity 10-400 cSt |
Key Engineering Features
- Precision spool and sleeve design for low leakage and long service life
- High-strength cast iron body for durability under high pressure
- Solenoid coil with manual override for emergency operation
- Standard ISO 4401 mounting pattern for easy integration
- Corrosion-resistant surface treatment
Industrial Applications
- Hydraulic presses and machine tools
- Mobile and industrial hydraulic systems
- Material handling and lifting equipment
- Automated production lines
- Marine and offshore hydraulic circuits
For technical inquiries, dimensional drawings, or replacement support for WAISN CSV0201, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

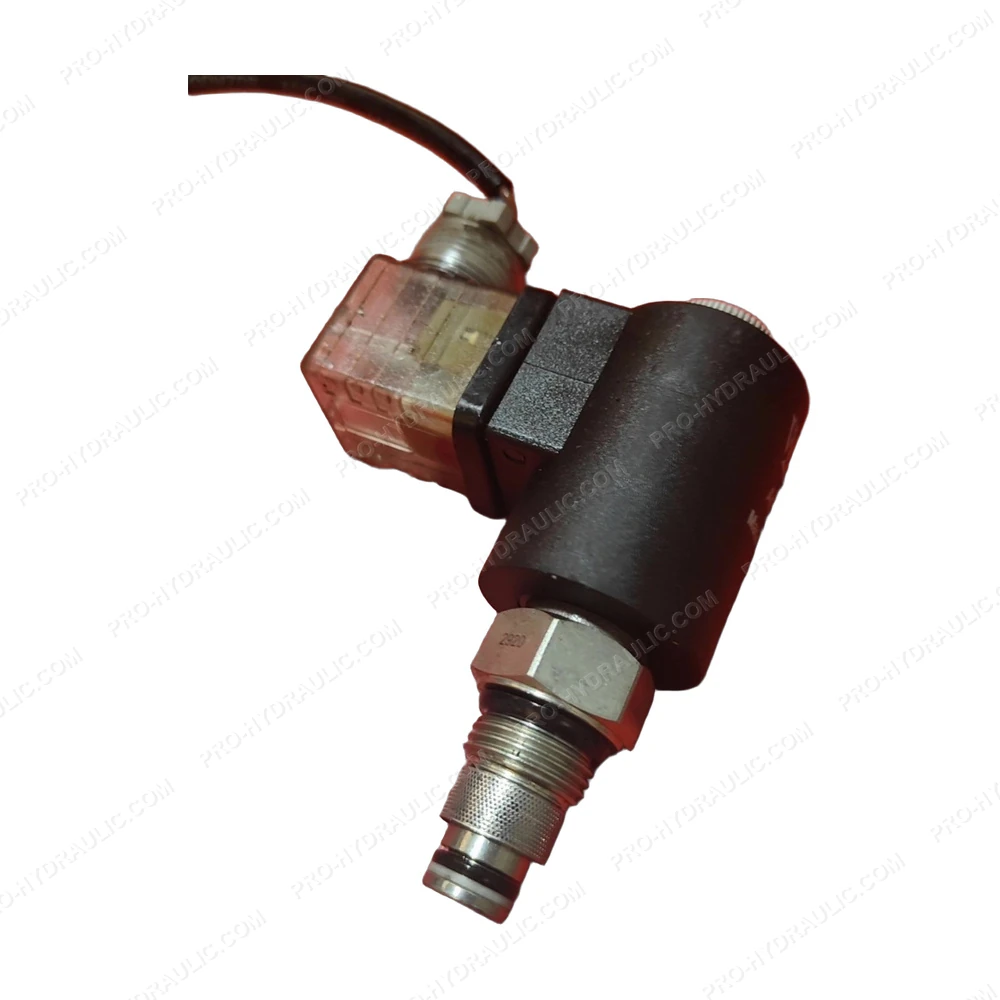

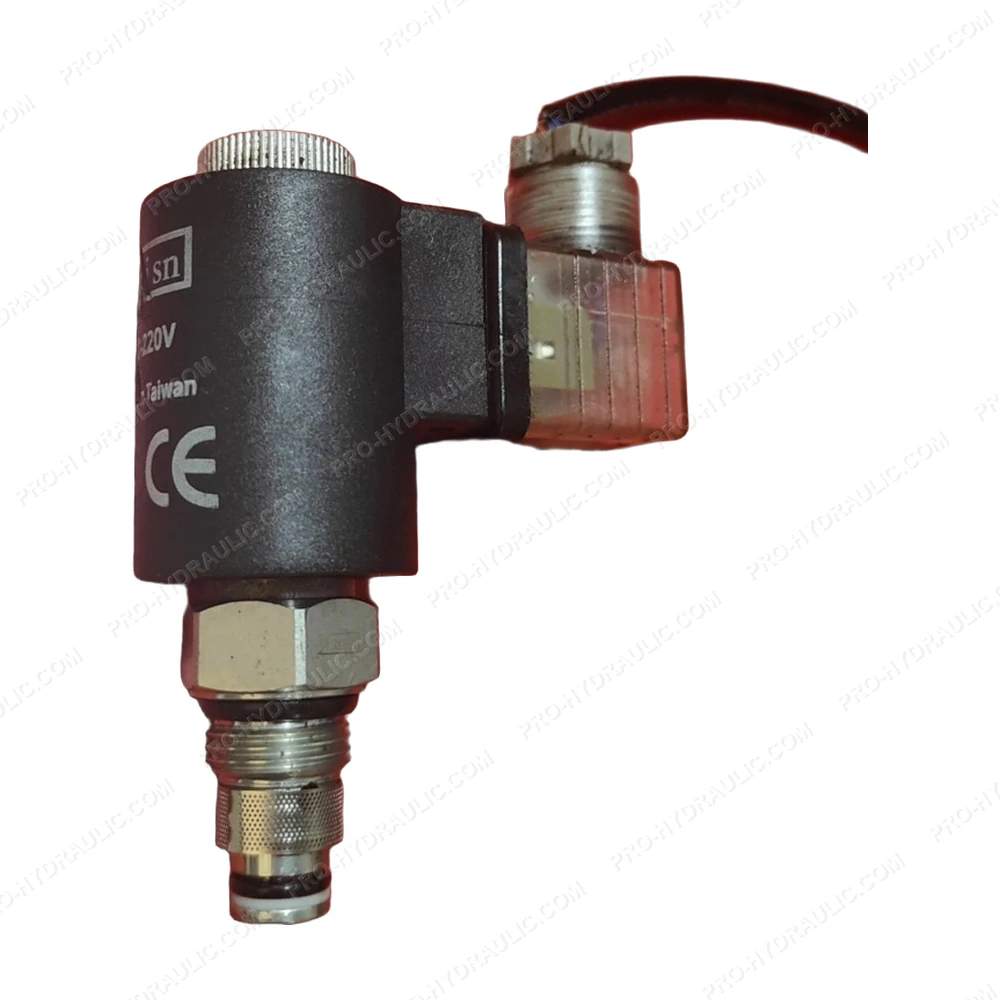

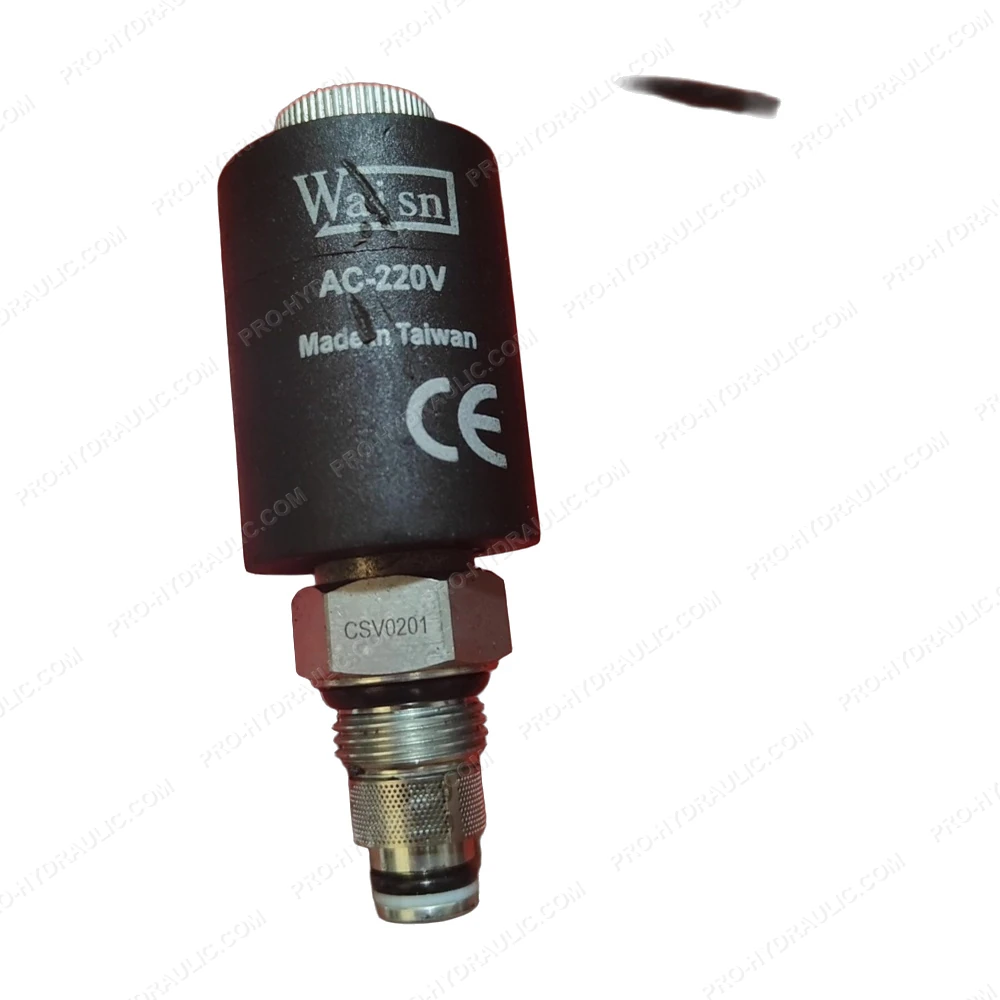

WAISN CSV0201 Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the WAISN CSV0201 Directional Control Valve. This precision-engineered hydraulic component delivers reliable flow control and accurate operation for demanding industrial systems.
